Supero SuperRack User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
S
UPER
®

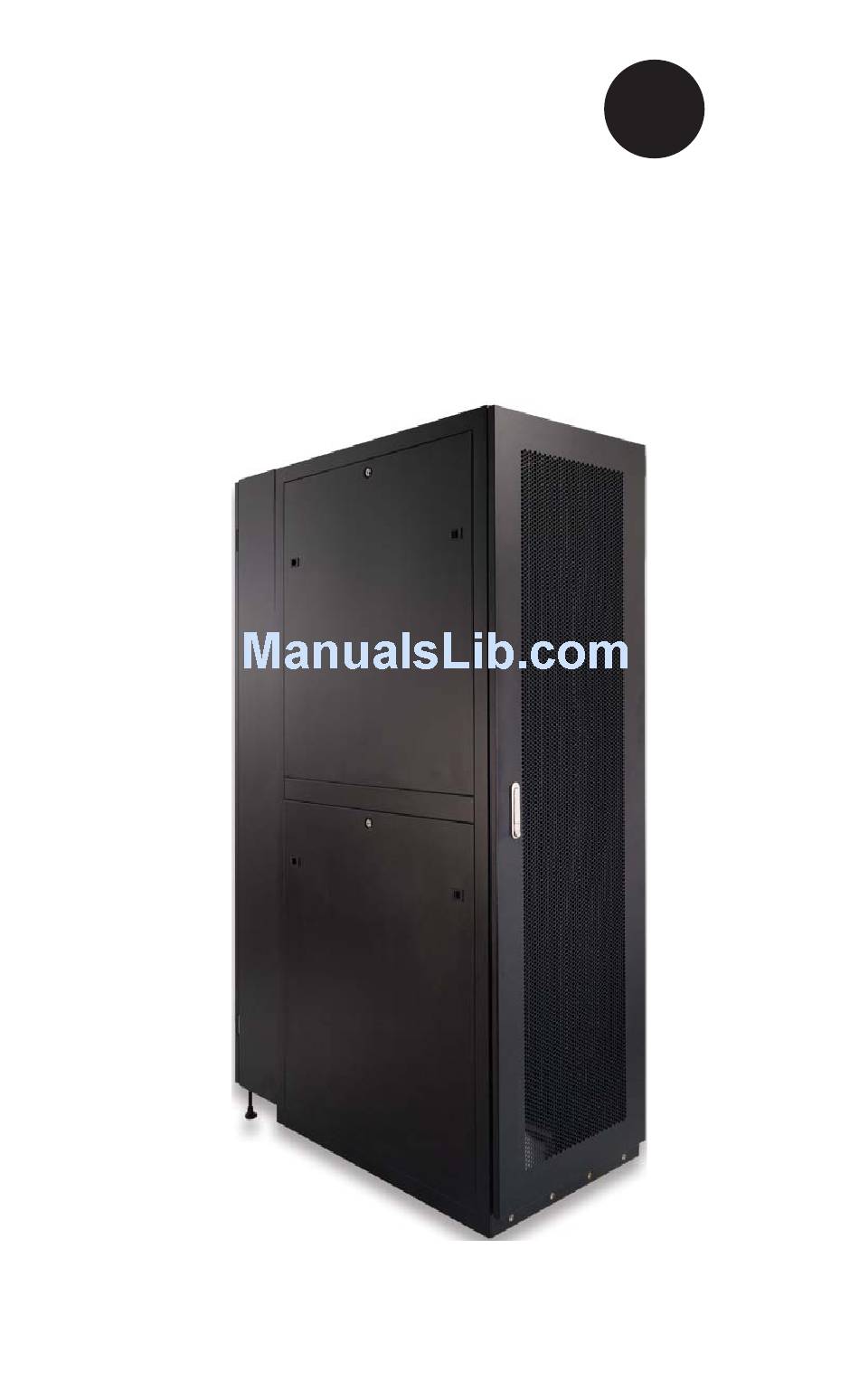

SuperRack™
USER'S MANUAL
Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperRack and is the answer not in the manual?

Questions and answers

Related Manuals for Supero SuperRack

Summary of Contents for Supero SuperRack

  • Page 1 UPER ® SuperRack™ USER'S MANUAL Revision 1.0...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.

  • Page 3: About This Manual

    SuperRack. Manual Organization Chapter 1: Introduction The fi rst chapter provides a overview of the SuperRack system and its various models and components. Chapter 2: SuperRack System Installation This chapter describes the steps necessary to install the SuperRack system on site and how to unship the SuperRack from its crate.
  • Page 4 SuperRack Installation Manual Notes...

  • Page 5: Table Of Contents

    Preparing for Setup ..................3-1 Location Setup Recommendations ..............3-1 Rack Precautions .................... 3-2 Server or Component Precautions..............3-2 Unpacking the SuperRack from its Shipping Carton ........3-3 Installing EIA Mounting Posts ................. 3-7 Chapter 4 SuperRack Models SuperRack Model SRK-42BF-01 ..............4-1 SuperRack Model SRK-42OR-01 ..............
  • Page 6 Component Installation ................. 5-18 Fan Modules ....................5-18 Cable Management Troughs and Fiber Optic Pipes ........5-18 Mounting a Vertical Plate ................. 5-20 Mounting a Cable Management Trough to a Vertical Plate ..... 5-21 Appendix A SuperRack System Parts List...

  • Page 7: Chapter 1 Introduction

    Introduction Overview The SuperRack system consists of fi ve standard models of racks that are assembled from the same pool of components and accessories. The below table lists the available standard rack models in the SuperRack system and their described uses.

  • Page 8: Superrack Features

    SuperRack Installation Manual SuperRack Features The SuperRack system offers the following features: • Supports quick release square mounting holes with adapters for round screw mounts • User conventional cabling and cabling identifi cation designs • Front, rear and side expansion units provide modular solutions for any system confi...

  • Page 9: Contacting Supermicro

    Chapter 1: Introduction Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:...
  • Page 10 SuperRack Installation Manual Notes...

  • Page 11: Chapter 2 System Safety

    Warnings and Precautions! Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SuperRack system from damage: • Be aware of the locations of the power on/off switch on the chassis as well as the room's emergency power-off switch, disconnection switch or electrical outlet.

  • Page 12: General Safety Precautions

    Keep the area around the SuperRack system clean and free of clutter. • The SuperRack system weighs up to 258.91 lbs (117.44 kg) empty, and has a shipping weight of up to 331.08 lbs (150.18 kg). The system should be moved on its casters.

  • Page 13: Esd Precautions

    Chapter 2: Safety ESD Precautions Electrostatic discharge (ESD) is generated by two objects with different electrical charges coming into contact with each other. An electrical discharge is created to neutralize this difference, which can damage electronic com ponents and printed circuit boards.

  • Page 14: Rack Precautions

    • Ensure that the leveling jacks on the bottom of the rack are fully extended to the fl oor with the full weight of the rack resting on them when the SuperRack is setup in its location. Caution: To reduce the risk of damage to the casters make sure that the full weight of the rack rests on the leveling feet, and not on the casters.

  • Page 15: Chapter 3 Rack Setup And Installation

    . Inspecting the Rack and Shipping Crate You should inspect the crate the SuperRack system was shipped in and note if it was damaged in any way. After unshipping the SuperRack from the crate inspect the SuperRack itself for any damage.

  • Page 16: Rack Precautions

    Server or Component Precautions Below are server and component precautions to observe for all components installed in the SuperRack system: • Review the electrical and general safety precautions in Chapter 2. •...

  • Page 17: Unpacking The Superrack From Its Shipping Carton

    Note: Make sure the crate is upright with the label arrow pointing upward. 2. Move the shipping carton to the SuperRack's deployment location. Note: It is recommended that you use a lift or forklift for moving the SuperRack to its fi nal location.
  • Page 18 SuperRack Installation Manual 3. Remove the outer plastic wrapping from the carton, then cut and remove the retaining straps from the outside of the shipping carton (see Figure 3-1). Figure 3-1. Remove Retaining Straps 4. Remove the sides from the shipping carton (see Figure 3-2).
  • Page 19 6. Remove all the remaining tape from the shipping carton pieces and the interior plastic covering. Note: The shipping carton can be reused for reshipping the SuperRack in the future. It is recommended that you retain the carton pieces and the interior plastic covering for any possible future use.
  • Page 20 8. Remove the pallet retaining brackets with a screwdriver (see Figure 3-4). Figure 3-4. Remove Pallet Retaining Brackets 9. Gently take the SuperRack off its pallet and place it in its fi nal location (see Figure 3-5). Figure 3-5. Rack Unpacked...

  • Page 21: Installing Eia Mounting Posts

    The EIA mounting posts should be placed so that they are arranged with the unit numbers facing out the front or rear of the SuperRack with the number "42" on top and the "1" on the bottom (see Figure 3-7). SuperRack EIA mounting posts accept square spring nuts for securing rack components with panel screws.
  • Page 22 SuperRack Installation Manual Figure 3-7. EIA Post Numbering Number "42" at Top of Rack...
  • Page 23 Chapter 3: Rack Setup and Installation Installing EIA Posts into a Super Rack 1. Push each M6 spring nut into the back of the horizontal strut's C-channel and rotate each nut 90-degrees (see Figure 3-8). Figure 3-8. Installing M6 Spring Nuts 2.
  • Page 24 SuperRack Installation Manual 3. Move the EIA posts that face the front of the rack all the way forward till they touch the outer frame front. 4. Adjust the distance between the front and back posts to approximately 742mm distance.

  • Page 25: Chapter 4 Superrack Models

    Chapter 4: SuperRack Models Chapter 4 SuperRack Models SuperRack Model SRK-42BF-01 The SuperRack Model SRK-42BF-01 is a 42U basic frame rack with no casters, enclosure, rear expansion or front door.
  • Page 26 SuperRack Installation Manual SuperRack Model SRK-42BF-01 Specifi cations: Net Weight 52.26 kg / 117.41 lbs Maximum Height 2020.00 mm / 79.52 in Maximum Width 598.00 mm / 23.54 in Maximum Depth 950.00 mm / 37.40 in Net Depth with Stabilizing Feet 950.00 mm / 37.40 in...

  • Page 27: Superrack Model Srk-42Or-01

    Chapter 4: SuperRack Models SuperRack Model SRK-42OR-01 The SuperRack Model SRK-42OR-01 is a 42U open frame rack with casters and stands. This model does not come with an enclosure, rear expansion or front door.
  • Page 28 SuperRack Installation Manual SuperRack Model SRK-42OR-01 Specifi cations: Net Weight 55.42 kg / 122.18 lbs Maximum Height 2092.70 mm / 82.38 in Maximum Width 598.00 mm / 23.54 in Maximum Depth 950.00 mm / 37.40 in Net Depth with Stabilizing Feet 950.00 mm / 37.40 in...

  • Page 29: Superrack Model Srk-42Or-02

    Chapter 4: SuperRack Models SuperRack Model SRK-42OR-02 The SuperRack Model SRK-42OR-02 is a 42U open frame rack with casters and stands and a rear expansion for power strips and cable runs. This model does not come with an enclosure or front door.
  • Page 30 SuperRack Installation Manual SuperRack Model SRK-42OR-02 Specifi cations: Net Weight 78.82 kg / 173.76 lbs Maximum Height 2092.70 mm / 82.38 in Maximum Width 598.00 mm / 23.54 in Maximum Depth 1175.00 mm / 46.25 in Net Depth with Stabilizing Feet 1175.00 mm / 46.25 in...

  • Page 31: Superrack Model Srk-42Se-01

    Chapter 4: SuperRack Models SuperRack Model SRK-42SE-01 The SuperRack Model SRK-42SE-01 is a 42U enclosed rack with casters, stands and an enclosure with both front and rear door. Both the enclosure side panels and the front door have locks for security.
  • Page 32 SuperRack Installation Manual SuperRack Model Model SRK-42SE-01 Specifi cations: Net Weight 94.04 kg / 207.60 lbs Maximum Height 2092.70 mm / 82.38 in Maximum Width 598.00 mm / 23.54 in Maximum Depth 1000.00 mm / 39.37 in Net Depth with Stabilizing Feet 1000.00 mm / 39.37 in...

  • Page 33: Superrack Model Srk-42Se-02

    Chapter 4: SuperRack Models SuperRack Model SRK-42SE-02 The SuperRack Model SRK-42SE-02 is a 42U enclosed rack with casters, stands, a rear expansion for power strips and cable runs, and an enclosure with a both a front and rear door. Both the enclosure side panels and the front door have locks...
  • Page 34 SuperRack Installation Manual SuperRack Model Model SRK-42SE-02 Specifi cations: Net Weight 117.44 kg / 258.91 lbs Maximum Height 2092.70 mm / 82.38 in Maximum Width 598.00 mm / 23.54 in Maximum Depth 1225.00 mm / 48.22 in Net Depth with Stabilizing Feet 1225.00 mm / 48.22 in...

  • Page 35: Chapter 5 Optional Accessories

    SuperRack system. See your enclosed parts list for a complete list of parts supplied for your SuperRack system. For the most recent list of parts and accessories available for the SuperRack system, visit the Supermicro website at www.Supermicro.com for more details.

  • Page 36: Tools

    SuperRack User's Manual Tools For modifying accessories on the SuperRack, you will need to use the following required tools: • Phillips Screwdriver • Level • Box Cutter or shears • Tape Measure • Step Ladder • Set of Allen Wrenches The following tools are optional, but recommended: •...

  • Page 37: Accessories And Modifi Cation Procedures

    Several models of doors (solid, ventilated, mesh and fi lter) are available for mounting in the SuperRack system either as front or rear doors. Ventilated mesh doors and fi lter doors that provide for increased air fl ow can have fan modules installed on them.
  • Page 38 Installing Doors 1. If your rack does not already have them installed, screw the door latches to either the top and bottom of the SuperRack frame (for double doors), or to the mid- left side of the frame (for single doors).
  • Page 39 Chapter 5: Optional Accessories 5. Close the SuperRack doors to verify that they latch and move on their hinges properly. Uninstalling Doors 1. Open door(s) wide for access. Unattach any fan modules or other attachments from the door before uninstalling it.

  • Page 40: Top And Side Panels

    SuperRack User's Manual Top and Side Panels Both top and side panels are available for installation in the SuperRack system. Some panel models come ventilated for increased airfl ow, and some come with locks for security. Side panels are secured by braces and securing tabs, while top panels are secured by straight-head plastic expanding screw-mounts.
  • Page 41 Chapter 5: Optional Accessories Uninstalling Side Panels 1. Loosen and turn the locking latch lever on the inside of the panel to a horizontal position. Securing Tabs 2. On the outside of the panel pull out the securing tabs. 3. Pull off the panel and place it carefully in a secure location.

  • Page 42: Installing And Uninstalling Top Panels

    SuperRack User's Manual Installing and Uninstalling Top Panels The procedures for installing and uninstalling SuperRack top panels are shown below. Installing Top Panels 1. Place the top panel gently into the space on the rack's top. 2. Verify that the panel is securely placed on the top of the rack.

  • Page 43: Types Of Top Panels

    Chapter 5: Optional Accessories Types of Top Panels Top panels come in the following four categories. Blanking Panels Blanking panels are used to cover a space in the top of the rack. They come in sizes from 1U to 16U and come in both solid and mesh panels.

  • Page 44: Expansion Units

    There are several models of expansion units, ranging in width from 75mm to 300mm, available for the SuperRack system that can be mounted on the front, sides or rear of the rack for holding doors, cable troughs, power surge protectors panels and fans.
  • Page 45 Chapter 5: Optional Accessories Installing an Extension Unit onto a Rack 1. Extend the rack extension's fl oor levers and carefully mount the extension unit fl ush to the rack. Note: You may have to adjust the fl oor levelers so that the retaining screw holes in the rack extension match up with the screw holes in the rack itself.

  • Page 46: Eia Posts

    The posts should be placed so that they are arranged with the unit numbers facing out the front or rear of the SuperRack with the number "42" on top and the "1" on the bottom. SuperRack EIA posts accept square cage nuts for securing rack components with panel screws.
  • Page 47 Chapter 5: Optional Accessories Installing an EIA Post into a Rack 1. Put the right front post on right side of frame. The post should be fl ush to the frame front. Note: The numbers should be on the inside of the post when you place the correct post on the correct side.
  • Page 48 SuperRack User's Manual Uninstalling an EIA Post from a Rack 1. Remove the screws from the EIA post. 2. Pull the EIA post off the rack frame. 5-14...

  • Page 49: Changing Casters

    Chapter 5: Optional Accessories Changing Casters The SuperRack is mounted on four 3" swivel casters for moving the rack when required. When not being moved, the SuperRack system should be mounted on fl oor levelers instead for stability. If you need to change out a caster, use the procedure shown below.

  • Page 50: Shelves And Slide Rails

    All shelves can be mounted with four cage nuts and four panel screws onto the front EIA posts of the SuperRack. The SuperRack also has 1U and 2U brackets with cable management troughs that can mounted to EIA rails for supporting rack components. Use the procedures below for installing and uninstalling this bracket system.
  • Page 51 Chapter 5: Optional Accessories 3. On the SuperRack EIA posts (front and rear), attach cage nuts with the nuts facing the inside of the rack. Mount all cage nuts above and below the same EIA post number. 4. Mount and screw the front of...

  • Page 52: Component Installation

    The SuperRack system also uses standard slide rails that can be attached to rack components for mounting on the rack EIA posts. Figure 5-3 below shows various sizes of slide rails that can be mounted on the EIA posts in the SuperRack. Figure 5-3: Sliding Rails Component Installation Various network and server components can be mounted in your SuperRack system.
  • Page 53 Chapter 5: Optional Accessories Figure 5-4: Cable Management Trough Tumb Screw Cover Base Latch These cable mangement troughs come in 1U or 2U models for mounting on EIA posts and in 54mm or 108mm width by 40mm, 60mm or 80mm length fi ngers or cover-over models for mounting on side mounted vertical mounting plates (that are either 70mm or 130mm wide).

  • Page 54: Mounting A Vertical Plate

    In order to mount a cable management trough, you may fi rst need to mount a vertical plate onto the SuperRack's frame. Cable management troughs mounted on rack extensions do not need to use a vertical plate since slot and peg holes are provided on the rack extension already for them.

  • Page 55: Mounting A Cable Management Trough To A Vertical Plate

    Note: You can also mount cable management troughs without a vertical plate on a bare SuperRack frame by their pegs or slots and by using spring screw holes to secure them. This method is not as secure as mounting them to a vertical plate though.
  • Page 56 SuperRack User's Manual Notes 5-22...
  • Page 57 Appendix A SuperRack System Parts List Below is list of parts and accessories for the SuperRack system as shown in Figure A-1. This list is not all inclusive, please see the SuperMicro website or contact Supermicro for information on the the lastest parts and accessories for the SuperRack system.
  • Page 58 SuperRack Installation Manual Part Number Descriptions SRK-00AS-41 2.5 inch (63.50 mm) Bolt Down kit SRK-00AS-42 3.0 inch (76.20 mm) Bolt Down kit SRK-00AS-51 (optical fi ber) Goose Neck Pipe SRK-03AS-61 Fan Module for Vented Door SRK-00AS-71 Join Bracket Kits SRK-00AS-81...
  • Page 59 Appendix A: SuperRack System Specifi cations Part Number Descriptions SRK-42CM-73 42U Vertical Mounting with Cover Over Fingers Cable Management Trough - 54 x 80 mm (W x D) SRK-42CM-74 42U Vertical Mounting with Cover Over Fingers Cable Management Trough - 108 x 40 mm (W x D)
  • Page 60 SuperRack Installation Manual Part Number Descriptions SRK-02PN-11 2U Solid Blanking Panel SRK-03PN-11 3U Solid Blanking Panel SRK-04PN-11 4U Solid Blanking Panel SRK-05PN-11 5U Solid Blanking Panel SRK-07PN-11 7U Solid Blanking Panel SRK-08PN-11 8U Solid Blanking Panel SRK-16PN-11 16U Solid Blanking Panel...
