Summary of Contents for Supero Supero M14T

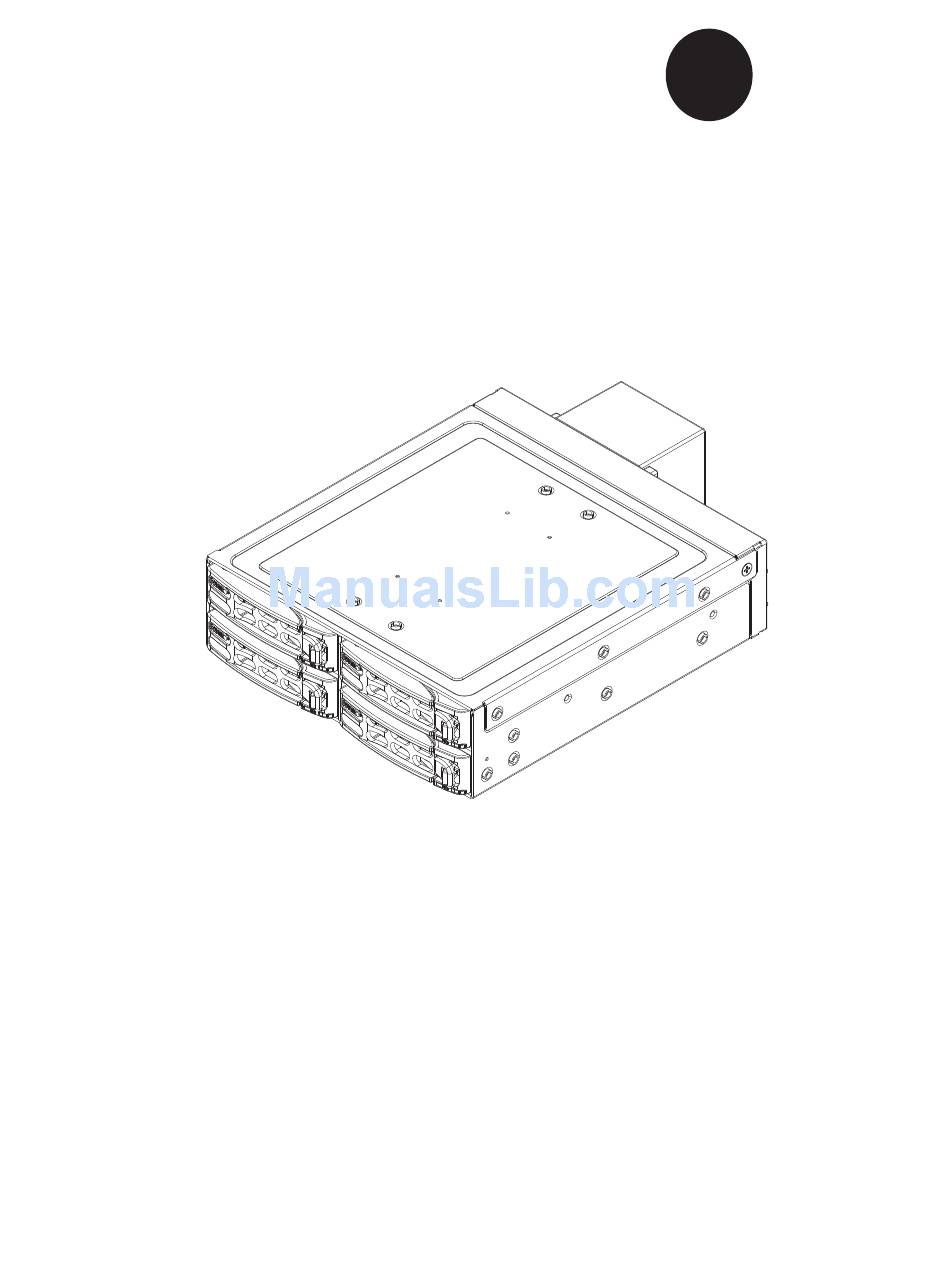

  • Page 1 ® UPER M14T Mobile Rack USER'S GUIDE Rev. 1.0a...
  • Page 2 Please Note: For the most up-to-date version of this manual, please see our web site at www.supermicro.com. Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software, if any, and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without prior written consent.
  • Page 3: Table Of Contents

    Product Features ................... 1-1 Operating Systems Supported ................ 1-2 System Monitoring ..................1-2 An Important Note to the User ................ 1-2 Contacting Supermicro ..................1-3 Returning Merchandise for Service..............1-4 Chapter 2 SASM14V Backplane SASM14V Front Connectors and Jumpers ............. 2-1 Front Connectors ....................
  • Page 4: Chapter 1 Introduction

    Overview This manual is written for system integrators, PC technicians and knowledgeable PC users who intend to integrate Supermicro's intelligent, highly expandable and cost- effective mobile rack solutions into their systems. It provides the user with detailed information for the installation and use of the M14T mobile rack.
  • Page 5: Operating Systems Supported

    M14T Mobile Rack User's Guide Operating Systems Supported For the most up-to-date information visit the Supermicro Web site at www.super- micro.com • Windows 2000, Windows XP, and Windows 2003 • Linux: Red Hat and SuSE • Upgradable in the future System Monitoring •...
  • Page 6: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
  • Page 7: Returning Merchandise For Service

    For faster service, RMA authorizations may be requested online (http://www.super- micro.com/support/rma/). Whenever possible, repack the mobile rack in the original Supermicro carton, using the original packaging material. If these are no longer available, be sure to pack the mobile rack securely, using packaging material to surround the mobile rack so that it does not shift within the carton and become damaged during shipping.
  • Page 8: Sasm14V Front Connectors And Jumpers

    Backplane layout: The following information refl ects SASM14V Revision 1.0, the most current release available at the time of publication. Always refer to the Supermicro Web site at www.supermicro.com for the latests updates, parts and supported confi gurations. SAS/SATA #2...
  • Page 9: Sasm14V Rear Connectors And Jumpers

    M14T Mobile Rack User's Guide SASM14V Rear Connectors and Jumpers JP22 JP42 JP26 ACT In SAS In +12V +12V 4-Pin PWR JP10 JP18 Figure 2-2: Rear Connectors and Jumpers Rear Side Connectors 4-pin Power Connector Pin Defi nitions J P 1 0 : 4 - p i n p o w e r c o n n e c t o r...
  • Page 10: Rear Jumpers

    Safety Information and Technical Specifi cations Rear Jumpers Description Defi nition Open (*Default) Normal Closed Buzzer reset Open Set overheat temperature to 45º Celcius Pins 1-2 (*Default) Set overheat temperature to 50º Celcius Pins 2-3 Set overheat temperature to 55º Celcius Open Fan disabled Closed (*Default)
  • Page 11: Chapter 3 Installation Instructions

    Safety Information and Technical Specifi cations Chapter 3 Installation Instructions Packing List Examine the following items that are included in your shipping package. If any items are missing or damaged, please contact your retailer immediately. • One 4-drive mobile rack cage (CSE-M14 ((B)) P) •...
  • Page 12 M14T Mobile Rack User's Guide Before Accessing the Mobile Rack: Turn off all peripheral devices and the power supply connected to the chassis and unplug all power cords from the system or the wall outlets. Disconnect all the cables and label the cables for easy identifi cation. Use a grounded wrist strap designed to prevent static discharge when han- dling components.
  • Page 13: Cooling Fan Installation And Removal

    Safety Information and Technical Specifi cations Cooling Fan Installation and Removal If your M14T mobile rack is a stand-alone model, you will need to install the cooling fan onto the M14T before operating it. Installing the Cooling Fan Place the cooling fan on the M14T mobile rack, aligning the mounting holes in the fan housing with the holes on the mobile rack.
  • Page 14: Hdd Installation

    M14T Mobile Rack User's Guide HDD Installation Removing the HDD Tray Before installing the hard disk into the M14T, you will need to remove the HDD drive trays from the cage. Removing the HDD Tray Press the release tab toward the right to release the HDD drive tray from the M14T cage.
  • Page 15: Installing The Hard Disk Drive Into The Drive Tray

    Safety Information and Technical Specifi cations Installing the Hard Disk Drive into the Drive Tray Installing a Hard Disk Drive into the Drive Tray Place a 2.5" HDD on top of the drive tray. Align the HDD against the drive tray. Secure the HDD onto the drive tray with four M-3 screws as shown below.
  • Page 16: Installing Hard Disk Drive Trays Into The Mobile Rack

    M14T Mobile Rack User's Guide Installing Hard Disk Drive Trays into the Mobile Rack Installing Drive Trays After you've installed a hard disk drive into a drive tray as described on the previous page, you are ready to install the HDD into the mobile rack. Insert a loaded hard drive tray into a drive bay.
  • Page 17: Rear Panel Removal And Installation (Optional)

    Safety Information and Technical Specifi cations Rear Panel Removal and Installation (Optional) Removing the Rear Panel Follow the procedures given previously to remove the cooling fan from the M14T mobile rack. After the cooling fan is detached, remove the four screws from the M14T as shown below.
  • Page 18 M14T Mobile Rack User's Guide Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life sup- port systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to per- form be reasonably expected to result in signifi...
