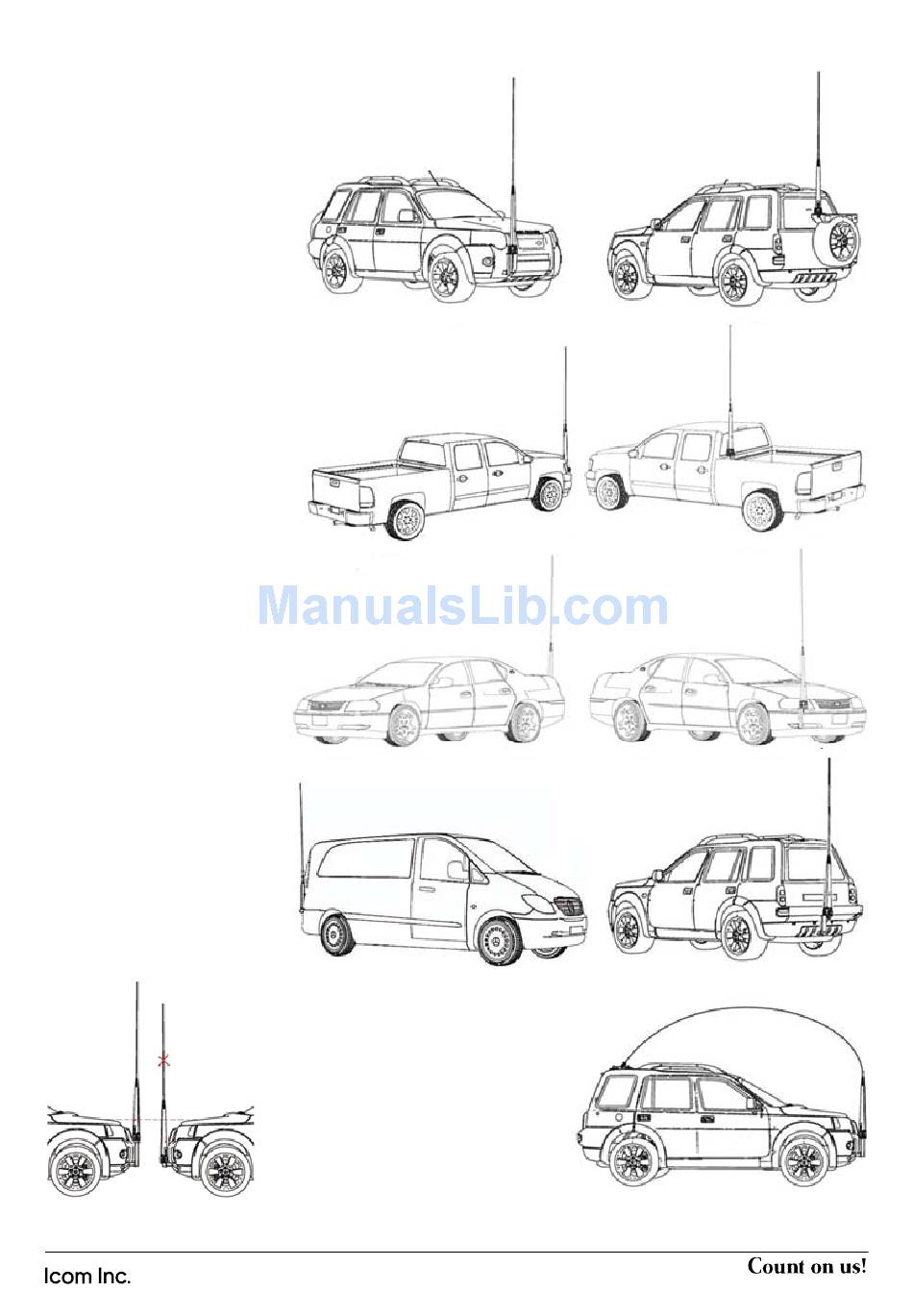

Typical Installation Scenarios for AH-760

Most recommended SUV installa-
tion scenarios use a Universal Gibbet
Mounting System (front) or the Spare
Wheel Antenna Bracket (rear). Note
the upper 2/3rd of the Antenna Main
Assembly is kept clear of the vehicle's
hood and other metal panels. Best
communications in all directions is en-
sured.
Recommended installation options on
typical pickup vehicle using a Univer-
sal Gibbet Mounting System (front)
and a customer provided bracket
(middle). Both methods provide effec-
tive communications in all directions.
Recommended installation options
on a typical sedan vehicle use a
Universal Gibbet Mounting System
for both front and rear antenna lo-
cations. Note the upper 2/3rd of the
Antenna Main Assembly is optimally
raised above the trunk and hood of
the vehicle.
NON-RECOMMENDED installation
methods using a Universal Gibbet
Mounting System (both at the rear)
shown on a typical minivan or 4WD
vehicles. Note the entire Antenna
Main Assembly and partially Whip
Section are OBSTRUCTED by ve-
hicle metal panels. Communica-
tions will be affected.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom,
Germany, France, Spain, Russia and/or other countries.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
hf automatic tuning antenna
For best communications, position the an-
tenna as high as possible. Please use a
Level Mark triangle as a reference when
selecting a Universal Gibbet Raiser. The
picture to the left indicates the preferred
option selection. The picture to the right
indicates an antenna installation that uses
the optional NVIS-kit, for best communica-
tions on the 30–300km short ranges, and
up to 1500 km medium ranges. Note, with
the NVIS-kit installed, the antenna upper
tuning range will be limited to 16 MHz.
