CARVIN PM15 Specifications

PM15 & PM15A
Features
♦ Compact light weight design
♦ Heavy-Duty 15" Woofer
♦ Titanium 1-inch exit (1.5" VC) HF driver
♦ Rear 30° angled design for floor monitoring
♦ Water Resistant Polypropylene Enclosure
Application
The PM15 is designed to stand alone as a full range sound
reinforcement loudspeaker, to lay down for a full range moni-
tor, or to couple with our LSx1801 for a three way extended
low-end system. Designed for both permanent and portable
applications, it comes with 4 fly points, rubber footpads, and a
1-3/8-inch pole mount cup.
Applications include:
♦ Club System
♦ House of Worship
♦ Auditoriums
♦ Band PA
♦ Satellite system

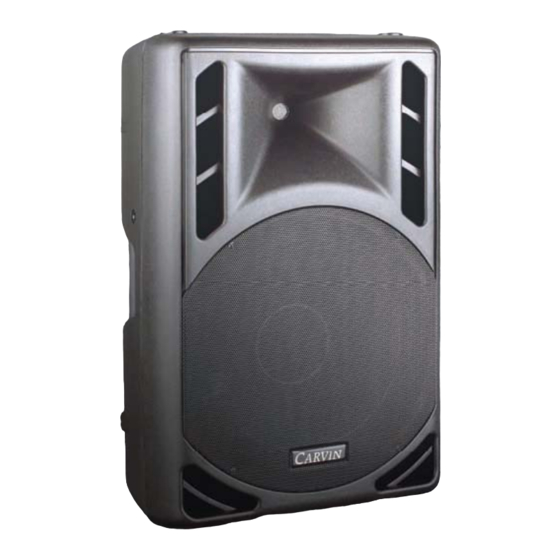

Description
The PM15 incorporates premium components
housed in a rugged water resistant enclosure,
designed for crystal clear sound in small to medium
size venues. The high power drivers feature large
magnet structures for high efficiency producing
more output per watt. The enclosure is made of
molded virgin polypropylene that won't chip or
crack. The woofer is protected by a heavy gauge
steel powder coated grill. Carvin's HF driver protec-
tion uses a self leveling PTC thermistor circuit to
protect the HF driver from excessive power. The
circuit resets as soon as the high frequency content
is back to normal levels. Two combination Speakon
- ¼" input jacks allow for versatile connections and
chaining of speakers. Rubber foot pads on the bot-
tom interlock with receptacles on the top for stack-
ing two PM15's. The bottom pole mount cup offers
universal mounting to pole stands or SS10 wall
mounts. For installations, 4 fly points allow the
PM15 to be hung or use the optional LMUB
brackets.
12340 WORLD TRADE DRIVE SAN DIEGO, CA USA 92128
15-inch 2-Way Main / Monitor
Specifications PM15
System Type:
Frequency Response:
Coverage Pattern:
Crossover:
Crossover Frequency:
Power:
Full Range
Recommended Amplifier Power: 400 – 800w
Sensitivity (1w @ 1m):
Maximum SPL:
LF Driver:
HF Driver:
Nominal Impedance full range:
Enclosure:
Suspension/Mounting:
Transport:
Connectors:
Dimensions (H x W x D):
Net Wt:
Optional Accessories:
CARVIN.COM (USA)
15-inch 2-Way, bass-reflex
47 Hz – 18 kHz (-10DB)
58 Hz – 17 kHz (-3 dB)
90°H x 30°V(up) x 45°V(down)
2-Way with HF protection
2.5 k Hz
Continuous / Program / Peak
400w /800w /1600w
99dB
125dB / 131dB peak
15-inch Woofer
1-inch exit 1.5-inch VC
Titanium Driver
8 ohms
Virgin Polypropylene
1-3/8-inch pole mount cup
4 Fly Points
2 Handles
Grill: Black steel
Two Neutrik Combo
1/4-inch / Speakon's
710 mm x 454 mm x 300 mm
27.875 in x 17.875 in x 13.125 in
16 kg (35.4 lb)
CVL15 cover
SS20 adjustable floor stand
SS10 wall mount bracket
LS1801 sub with SS4 adj. pole
SS5 dual pole mount
LMUB suspension "U" bracket
