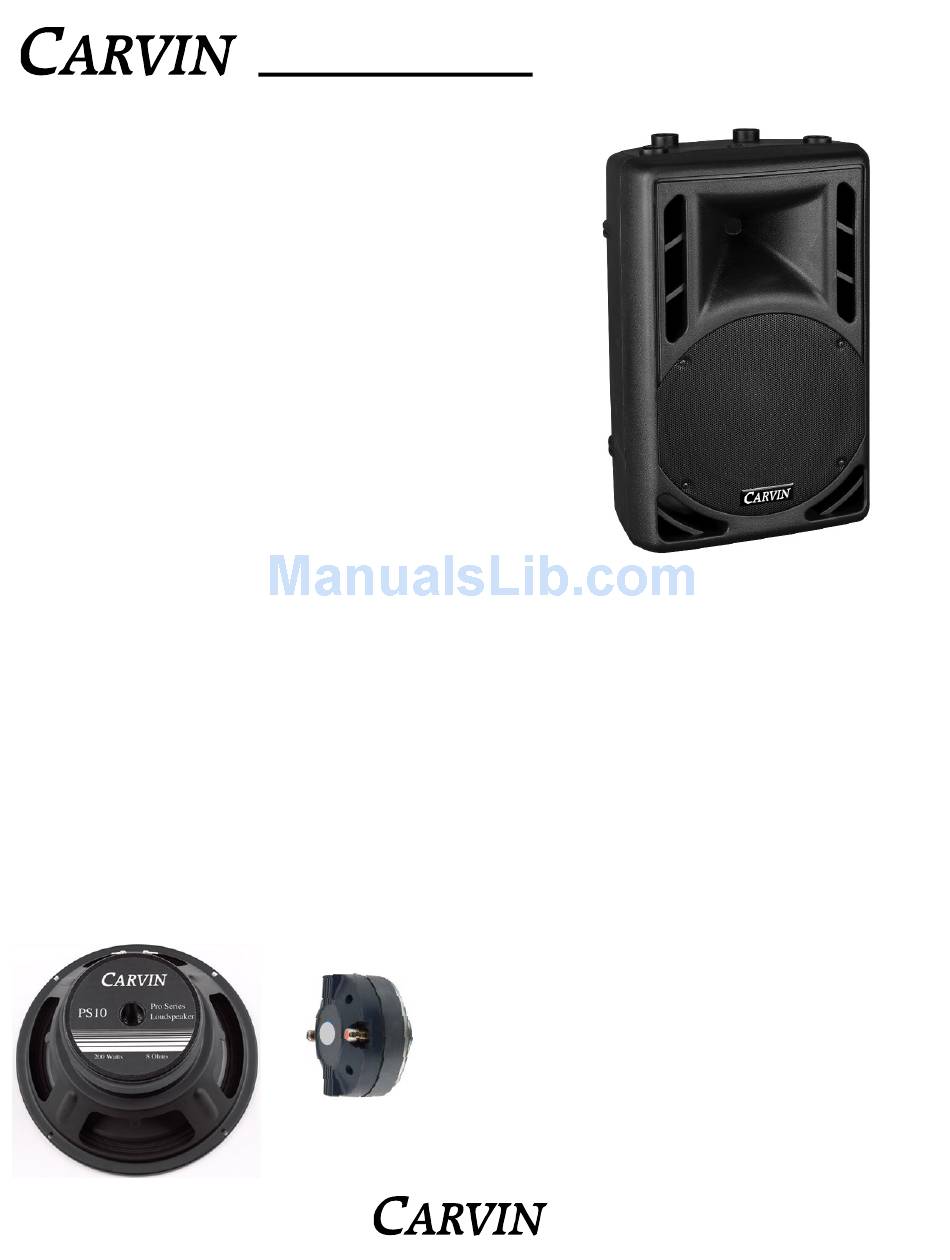

CARVIN PM10 Specifications

Features

♦ Compact light weight Design
♦ Heavy-Duty 10" Woofer
♦ 1-inch exit (1.5" VC) HF driver
♦ Durable Water Resistant Enclosure

Application

The PM10 is designed to stand alone as a full range sound rein-
forcement loudspeaker for small systems. The PM10 can be laid
on it's side for a 60 degree angled stage monitor. Coupling the
PM10 with an LS1501 15" subwoofer results in an ideal three
way system with extended low end. Effective for both portable
and permanent applications, featuring a 1-3/8" pole mount cup.
Applications include:
♦ DJ system
♦ House of Worship
♦ Band PA
♦ Satellite system

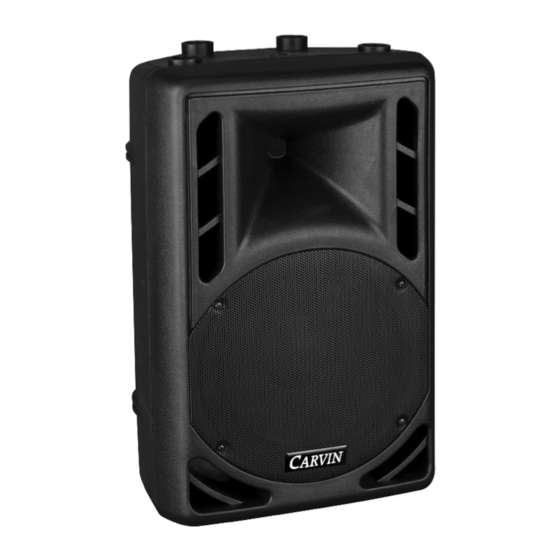

Description

The PM10 incorporates premium components
housed in a rugged water resistant enclosure,
designed for crystal clear sound in small to me-
dium size venues. The high power drivers fea-
ture large magnet structures for high efficiency
producing more output per watt than systems
costing two to three times more. The woofer is
protected by a heavy gauge steel powder
coated grill. Two combination Speakon - ¼"
input jacks allow for versatile connections and
chaining of speakers. Rubber foot pads on the
bottom interlock with receptacles on the top for
stacking two PM10's. The bottom pole mount
cup offers universal mounting to pole stands
and mounts.
10" WOOFER
12340 WORLD TRADE DRIVE SAN DIEGO, CA USA 92128
PM10 & PM10A
Recommended Amplifier Power: 100w – 400w
TITANIUM
HF DRIVER
10-inch 2-Way Main/Monitor

Specifications PM10

System Type:
Frequency Response:
Coverage Pattern:
Crossover:
Crossover Frequency:
Power:
Full Range
Sensitivity (1w @ 1m):
Maximum SPL:
LF Driver:
HF Driver:
Nominal Impedance full range:
Enclosure:
Suspension/Mounting:
Transport:
Connectors: 2 combo Speakon - 1/4 inch jacks
Dimensions (H x W x D):
Net Wt:
Optional Accessories:
CARVIN.COM (USA)
10-inch 2-Way, bass-reflex
60 Hz – 18 kHz (-10DB)
75 Hz – 17 kHz (-3 dB)
90H x 45V
2-Way
3 kHz
Continuous / Program / Peak
250w / 500w / 1000w
96.5dB
120dB / 126dB peak
10-inch Woofer
1-inch exit 1.5-inch VC
Titanium Driver
8 ohms
Molded High Impact Plastic
1-3/8-inch pole mount cup with clamp
1 side handle
Grill: Steel
546 mm x 330 mm x 279 mm
21.5 in x 13 in x 11.0 in
12 kg (26 lb)
CVL10 cover
SS20 adjustable floor stand
SS10 wall mount
LS1501 sub with SS4 adj. pole
SS5 dual pole mount
