CARVIN LSX1002 Manual

LSx1002 LSx1202
System Type: 10-inch 2-Way, bass-reflex 12-inch 2-Way, bass-reflex
Frequency Response: 72 Hz – 20 kHz (-10DB) 70 Hz – 20 kHz (-10DB)
85 Hz – 18 kHz (-3 dB) 76 Hz – 18 kHz (-3 dB)
Coverage Pattern: 60 degree round 90H x 60V
Crossover: 2-Way 2-Way with Speaker Guard™ HF
Crossover Frequency: 3.5 k Hz 2.5 k Hz
Sensitivity (1w @ 1m)/ Max SPL: 98dB /121dB 97dB /122dB
LF Driver: 10-inch woofer 12-inch woofer
HF Driver: 1-inch titanium 1-inch titanium
Power: Continuous / Program / Peak Continuous / Program / Peak
Nominal Impedance full range: 8 ohms 200w /400w /800 8 ohms 300w /600w /1200
Bi-amp LF: 8 ohms 300w /600w /1200w
Bi-amp HF: 8 ohms 50w /100w /200w
Suspension/Mounting: 1-3/8-inch pole mount cup 1-3/8-inch pole mount cup
Connectors: Two NL-4 Neutrik Speakon's Two NL-4 Neutrik Speakon's
Two ¼ TS phone jacks Two ¼ TS phone jacks
Dimensions (H x W x D): 18 in x 12.5 in x 11.5 in 23 in x 15.5 in x 11.75 in
480 mm x 320 mm x 295 mm 585 mm x 395 mm x 300 mm
Net Wt: 21 lb (10 kg) 33 lb (15 kg)
Optional Accessories: CVS1002A cover CVS1202B cover
LSx1502 LSx1502A
System Type: 15-inch 2-Way, bass-reflex Active Bi-amp system
Frequency Response: 47 Hz – 20 kHz (-10DB)
53 Hz – 18 kHz (-3 dB)
Coverage Pattern: 90H x 60V
Crossover: 2-Way with Speaker Guard™ HF Active LF / HF Limiters
Crossover Frequency: 2.5 k Hz 2.5 k Hz
Sensitivity (1w @ 1m)/ Max SPL: 100dB / 129dB 127dB
LF Driver: 15-inch woofer
HF Driver: 1-inch titanium
Power: Continuous / Program / Peak Continuous / Peak
Nominal Impedance full range: 8 ohms 400w /800w /1600w 350W / 700W
Bi-amp LF: 8 ohms 400w /800w /1600w 8 ohms 300w / 600w
Bi-amp HF: 8 ohms 50w /100w /200w 8 ohms 50w / 100w
Suspension/Mounting: 1-3/8-inch pole mount cup
Connectors: Two NL-4 Neutrik Speakon's Two Bal. XLR
Two ¼ TS phone jacks One Bal. 1/4 TRS phone jack
Dimensions (H x W x D): 25.75 in x 18.5 in x 11.75 in
655 mm x 470 mm x 300 mm
Net Wt: 44 lb (20 kg) 49 lb (22.5 kg)
Optional Accessories: CVS1502B cover
LSx1503 LSx1503A
System Type: 15-inch 3-Way, bass-reflex Active Tri-amp system
Frequency Response: 46 Hz – 20 kHz (-10DB)
52 Hz – 18 kHz (-3 dB)
Coverage Pattern: 90H x 60V
Crossover: 3-Way with Speaker Guard™ HF Active LF/MF/HF Limiter
Crossover Frequency: 500Hz & 3.3 k Hz 500 Hz & 3.3 kHz
Sensitivity (1w @ 1m)/ Max SPL: 101dB / 130dB 128 dB
LF Driver: 15-inch woofer
MF Driver: 6-inch woofer
HF Driver: 1-inch titanium
Power: Continuous / Program / Peak Continuous / Peak
Nominal Impedance full range: 8 ohms 400w /800w /1600w 425w / 850w
Bi-amp LF: Active Tri-amp LF 8 ohms 400w /800w /1600w 8 ohms 300w / 600w
Active Tri-amp MF 8 ohms 75w / 150w
Bi-amp MF/HF: Active Tri-amp HF 8 ohms 200w /400w /800w 8 ohms 50w / 100w
Suspension/Mounting: 1-3/8-inch pole mount cup
Connectors: Two NL-4 Neutrik Speakon's Two Bal. XLR
Two ¼ phone jacks One Bal. 1/4 TRS phone jack
Dimensions (H x W x D): 28.75 in x 18.75 in x 15 in
730 mm x 480 mm x 380 mm
Net Wt: 58 lb (26.4 kg) 63 lb (28 kg)
Optional Accessories: CVS1503A cover
LSx1501 LSx1801
System Type: 15-inch Sub, bass-reflex 18-inch Sub, bass-reflex
Frequency Response: 37 Hz – 265 Hz (-10DB) 29 Hz – 265 Hz (-10DB)
45 Hz – 150 Hz (-3 dB) 35 Hz – 150 Hz (-3 dB)
Active Protection
Crossover: Low Pass Low Pass
Crossover Frequency: 150 Hz 150 Hz
Sensitivity (1w @ 1m): 97dB / 123dB 98dB / 127dB
LF Driver: 15-inch woofer 18-inch woofer
Power: Continuous / Program / Peak Continuous / Program / Peak
Nominal Impedance full range: 8 ohms 400w /800w /1600w 4 ohms
Suspension/Mounting: Top: 1-3/8-inch Pole Mount Cup Top: 1-3/8-inch Pole Mount Cup
Connectors: Two NL-4 Neutrik Speakon Two NL-4 Neutrik Speakon's
Two ¼ TS phone jacks Two ¼ TS phone jacks
Dimensions (H x W x D): 23.5 in x 19.75 in x 22.75 in 23.5 in x 19.75 in x 22.75 in
600 mm x 505 mm x 580 mm 600 mm x 505 mm x 580 mm
Net Wt: 56 lb (26 kg) 69 lb (31 kg)
Optional Accessories: CVS1801A cover CVS1801A cover
LSx1202A LSx1202M
Active Bi-amp system 12-inch 2-Way, bass-reflex
70 Hz – 20 kHz (-10DB)
76 Hz – 18 kHz (-3 dB)
90H x 60V
Active LF / HF Limiters 2-Way with Speaker Guard™ HF
2.5 k Hz 2.5 k Hz
127dB 97dB / 122dB
12-inch woofer
1-inch titanium
Continuous / Peak Continuous / Program / Peak
350W / 700W 8 ohms 300w /600w /1200
8 ohms 300w / 600w 8 ohms 300w /600w /1200w
8 ohms 50w / 100w 8 ohms 50w /100w /200w
none
Two Bal. XLR Two NL-4 Neutrik Speakon's
One Bal. 1/4 TRS phone jack Two ¼ phone jacks
22.75 in x 15.5 in x 14.75 in
580 mm x 395 mm x 375 mm
37 lb (17 kg) 33 lb (15 kg)
CVS1202MA cover
LSx1502M LSx1502MA
15-inch 2-Way, bass-reflex Active Bi-amp system
47 Hz – 20 kHz (-10DB)
53 Hz – 18 kHz (-3 dB)
90H x 60V
2-Way with Speaker Guard™ HF Active LF / HF Limiters
2.5 k Hz 2.5 k Hz
100dB / 129dB 127dB
15-inch woofer
1-inch titanium
Continuous / Program / Peak Continuous / Peak
8 ohms 400w /800w /1600w 350W / 700W
8 ohms 400w /800w /1600w 8 ohms 300w / 600w
8 ohms 50w /100w /200w 8 ohms 50w / 100w
none
Two NL-4 Neutrik Speakon's Two Bal. XLR
Two ¼ TS phone jacks One Bal. 1/4 TRS phone jack
25.75 in x 18.5 in x 15.75 in
655 mm x 470 mm x 400 mm
44 lb (20 kg) 49 lb (22.5 kg)
CVS1502MB cover
LSx2153 LSx1523
Dual 15-inch 3-Way, bass-reflex Dual 15-inch 3-Way, bass-reflex
45 Hz – 20 kHz (-10DB) 43 Hz – 20 kHz (-10DB)
51 Hz – 18 kHz (-3 dB) 49 Hz – 18 kHz (-3 dB)
90H x 60V 90H x 60V
3-Way with Speaker Guard™ HF 3-Way with Speaker Guard™ HF
350Hz, 2.5 k Hz 500 Hz, 2.5 kHz
101dB / 130dB 101dB / 130dB
15-inch woofer Dual 15-inch woofer
15-inch Woofer Dual 16-inch woofer
1-inch 1.5" Dia. titanium 1-inch (1.5-inch Dia.) titanium
Continuous / Program / Peak Continuous / Program / Peak
4 ohms 800w /1600w /3200 4 ohms 800w /1600w /3200
4 ohms 800w /1600w /3200 4 ohms 800w /1600w /3200
4 ohms 150w /300w /600w
8 ohms 50w / 100w 8 ohms 50w / 100w
none none
Two NL-4 Neutrik Speakon's Two NL-4 Neutrik Speakon's
Two ¼ TS phone jacks Two ¼ TS phone jacks
43.75 in x 16.5 in x 15 in 46.75 in x 22.5 in x 15 in
1110 mm x 420 mm x 380 mm 1190 mm x 570 mm x 380 mm
73 lb (33 kg) 98 lb (45 kg)
CVS2153A cover CVS1523A cover
LSx1801A LSx1802
Active SubWoofer system Dual 18-inch Sub, bass-reflex
24 Hz – 265 Hz (-10DB)
30 Hz – 150 Hz (-3 dB)
Active Sub Limiter
Low Pass with High Pass Line Out Low Pass
80 Hz or 120 Hz switchable 150 Hz
128dB 102dB / 134dB
Dual 18-inch woofer
Continuous / Peak Continuous / Program / Peak
800w /1600w /3200 700W / 1400W 4 ohms 1600w /3200w / 6400w
none
Two Bal. XLR Two NL-4 Neutrik Speakon's
One Bal. 1/4 TRS phone jack Two ¼ TS phone jacks
23.5 in x 40 in x 22.75 in
600 mm x 1020 mm x 580 mm
77 lb (35 kg) 122 lb (55 kg)
CVS1802A cover
CARVIN ENGINEERING DATA
LSx1202MA
Active Bi-amp system
Active LF / HF Limiters
2.5 k Hz
127dB
Continuous / Peak
350W / 700W
8 ohms 300w / 600w
8 ohms 50w / 100w
LSx1002
Two Bal. XLR
One Bal. 1/4 TRS phone jack
37 lb (17 kg)
LSx1202M/LSx1202MA
LSx1523A
Active Tri-amp system
Active LF/MF/HF Limiter
500Hz & 3.3 k Hz
128dB
Continuous / Peak
900W / 1800W
4 ohms 700w / 1400w
4 ohms 120w / 260w
LSx2153
8 ohms 80w / 160w
Two Bal. XLR
One Bal. 1/4 TRS phone jack
106 lb (48 kg)
LSx1501
LSx1801/LSx1801A
76-15230C 0508

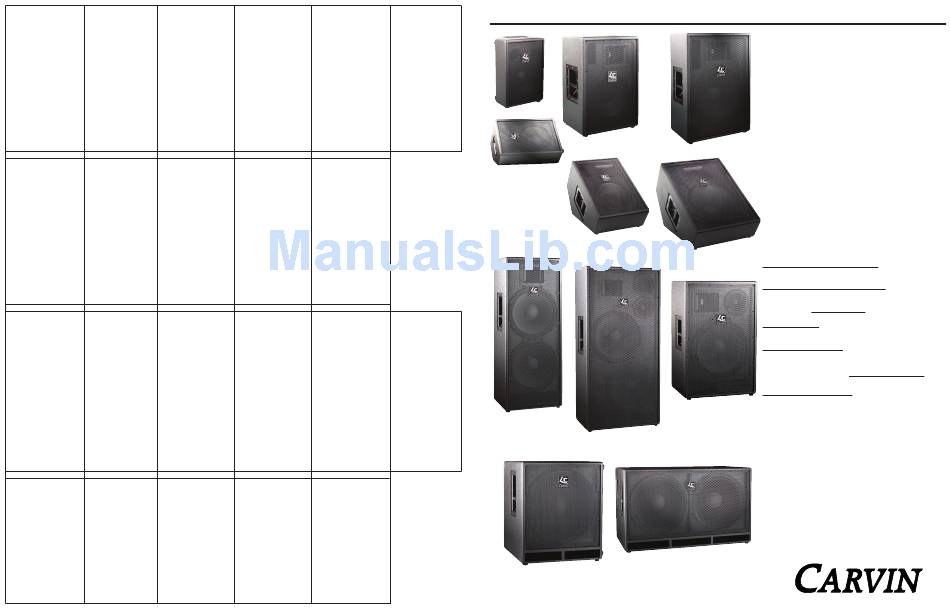

LSx (LIVE SOUND) LOUDSPEAKERS
LSx1202/LSx1202A
LSx1502/LSx1502A
LSx1502M/LSx1502MA
LSx1503/LSx1503A
LSx1523/LSx1523A
LSx1802
Carvin's new LSx (Live Sound) Series loudspeakers give new mean-
ing to high performance loudspeaker systems for today's club scene.
Building upon the company's long-standing reputation for state-of-the-
art systems offering great sonic performance coupled with proven reli-
ability and solid value, the new LSx Series loudspeakers deliver all the
features musicians and mobile DJs demand.
Consisting of ten models encompassing five 2-way systems, three
3-way systems, and two subwoofer systems, the LSx Series is ideally
suited to address a wide range of sound reinforcement system require-
ments—from intimate clubs to large scale, high impact music venues.
With key features like steel grills to protect the drivers, recessed steel
handles for easy transport, high order – low loss biampable crossovers
that ensure high intelligibility of spoken word and accurate reproduction
of music sources, plus Neutrik Speakon™ and quarter-inch connectors
across all models, Carvin's new LSx Series loudspeakers are just what
your audience has been waiting for!
Going one step further, all LSx Series loudspeaker enclosures utilize
multi-layered, cross grain laminated plywood construction. Why is this
important? Unlike other materials, plywood construction results in rigid
enclosure walls that reduce flex and sonic coloration caused by cabinet
resonance, with the added benefit of a structurally more robust enclosure
designed to handle the rigors of the road. Finished with great-looking,
rugged Duratex™ sprayed on coverings, Carvin's new LSx Series loud-
speakers look every bit as compelling as they sound!

Receiving inspection

INSPECT YOUR LOUDSPEAKER FOR DAMAGE which may have occurred
during shipping. If damage is found, please notify the shipping company
& CARVIN.
SAVE THE CARTON & ALL PACKING MATERIALS. In the event you have
to re-ship your unit, always use the original carton and packing material.
CARVIN and the shipping company are not liable for any damage caused by
improper packing. SAVE YOUR INVOICE. It will be required for warranty
service if needed in the future.
SHIPMENT SHORTAGE. If you find items missing, they may have been
shipped separately. Please allow several days for the rest of your order to
arrive before inquiring.
RECORD THE SERIAL NUMBER on the enclosed warranty card for your
records. Return the warranty card with your name and comments to us, or
register online at:
USA customers register online at: www.carvin.com/registration
All other countries register online at:
www.carvinworld.com/registration

LiMiteD WaRRanty

Parts and labor are covered for 3 years on manufacturer's defects.
Warranty does not cover burned out drivers caused by excessive power
or distortion, or physical damage caused by general use, moisture or
dust. CAUTION: Square wave distortion from power amps can destroy
drivers much faster than clean RMS power. The power generated by
the APS internal power amps has the capacity to damage the drivers, in
which case they would not be covered under warranty.

seRvice

In the USA, please call 800-854-2235 for a RMA number (return
authorization number). Write this number on the box and enclose a
description of the problem. Prepay to Carvin 12340 World Trade Drive,
SD, CA 92128
Outside the USA, contact your dealer or go to http://www.carvinworld.
com for your nearest service center. Include a written description of the
problem with serial number and date of purchase.
