CARVIN ENGINEERING DATA

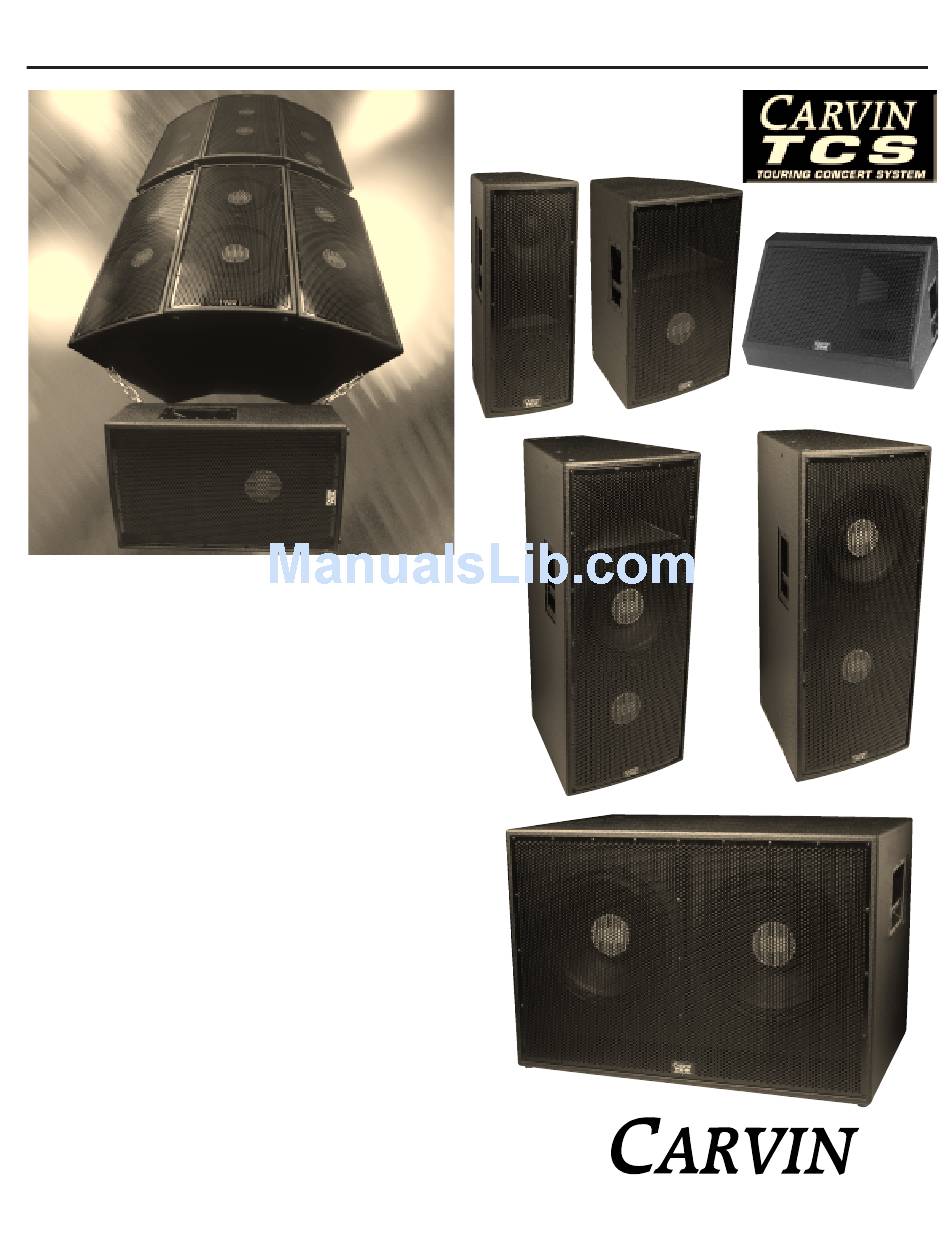

Shown: A typical TCS 60º array consisting of five TCS215's, one TCS215W for bass and one TCS
115 mounted at a 45º angle for downfill.
Congratulations!
You've joined a fast growing group of people
who have chosen the high quality TCS loudspeaker systems. We
welcome you and will do our best to satisfy you with your new
TCS loudspeaker.
In order for you to use this product most effectively, please take
some time to read this manual. We have included a great deal of
information that will help you achieve optimum performance, sound,
and quality from your new loudspeaker system.
The TCS series loudspeakers give you greater response, more power,
and more intelligibility than any other two-way speaker system on the market
today. We achieved this by using the highest quality components, the best
speaker design systems, and over 80 years of combined experience in
professional audio engineering. TCS systems provide the ultimate in pro
sound for any venue, large or small. TCS loudspeakers are designed to
be suspended separately or several different models together to create
perfect coverage for a given application. TCS loudspeakers are specifi-
cally engineered for optimum performance as front of house speakers,
fills, subwoofers, and stage monitors. Set up an entire sound system using
Carvin's TCS series loudspeakers.
All TCS loudspeakers are designed around 13 ply Baltic birch enclosures
that are engineered to a rated 1000 lbs. tensile strength. Each enclosure
incorporates 12 to 16 fly points to create any array cluster desired. TCS
enclosures feature 26 ply Baltic birch baffles (except TCS115M and
TCS210) to eliminate cabinet resonance and increase overall efficiency.
All enclosures include internal bracing for structural stability and support.
For your records, you may wish to record the following information.
Serial No._____________________ Invoice Date_______________
76-00021 1099
TCS Series Loudspeakers
TCS210
TCS218
OPERATING MANUAL
TCS115
TCS215
12340 World Trade Drive, San Diego, CA 92128
(800) 854-2235
www.carvin.com
TCS115M
TCS215W
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CARVIN TCS
Summary of Contents for CARVIN TCS
- Page 1 OPERATING MANUAL TCS115M TCS115 TCS210 Shown: A typical TCS 60º array consisting of five TCS215’s, one TCS215W for bass and one TCS 115 mounted at a 45º angle for downfill. Congratulations! You’ve joined a fast growing group of people who have chosen the high quality TCS loudspeaker systems. We welcome you and will do our best to satisfy you with your new TCS loudspeaker.
- Page 2 IMPORTANT SAFETY INFORMATION wavefront as from a single source. All TCS series crossovers are Bi ampable with the excep- CAUTION: describes an operating condition or user action that may expose the equip- tion of the TCS218 and TCS215W.
- Page 3 Every one of the TCS series loudspeakers are tested to maximum power capacity before shipping to ensure they are free of defects and to guarantee 100% satisfaction.
- Page 4 POLAR PLOTS Polar plots are loudspeaker SPL measurements taken at various rotational positions around the loudspeaker to complete a 360° circle. The purpose of this type of measurement is to analyze the coverage angles of the loudspeaker at different frequencies and to display the frequency respone attenuation from a given listening position. This will help the user to set up arrays to achieve the optimum coverage for a given situation.
- Page 5 (36) 3/8-16 forged steel quick links. Fig. 2 is a top side view of a 360° array of sixteen TCS210 cabinets. TCS hardware needed for this application is as follows: (8) TH50 truss bar kit, (8) TH56 truss bar con- Top view of 360°...
- Page 6 Each point mounted at an angle should be de-rated according TH57-TCS pull back bar kit / WLL 1000 lbs. includes: (1) pull back bar, (1) 1/2” x 3 3/4” hex screw, (1) to the following formula. WLL=cosine(angle) x 500 1/2”...
