Tripp Lite PDUMNV20HV2 Owner's Manual

Model Number: PDUMNV20HV2
Single-Phase Monitored PDU, 3.2-3.8kW 16/20A 200-240V, 0U 35.5 in. Vertical Rackmount, 18 C13 and 2 C19
outlets, C20 inlet and L6-20P cable
Description
Tripp Lite Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network
connection. PowerAlert interface supports custom notification of user-specified remote conditions via email, secure web, SNMP, Telnet or SSH
interface. PDU output current consumption in amps is displayed via front panel lighted digital display and can be monitored remotely to warn of
potential overloads before critical IT mains breakers trip.
Applications
Ideal for network configurations requiring a monitored PDU system

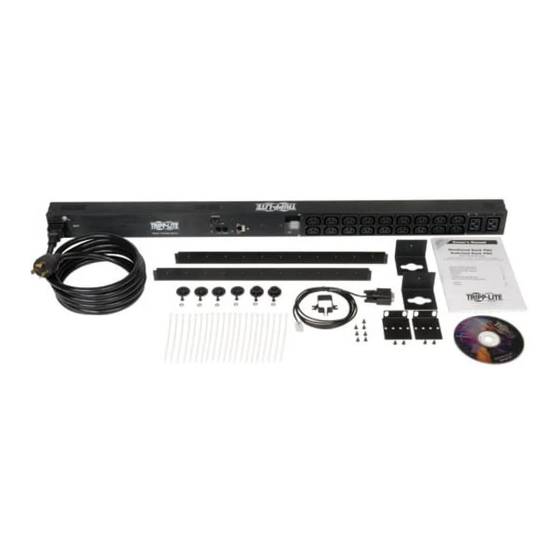

Package Includes
Rackmount PDU
Plug retention plates
Rack mounting brackets
Owner's manual
Features
200/208/230/240V Monitored PDU with built-in web/network interface in 0U 35.5 in. / 90.2cm rackmount form factor; 20A maximum capacity
(agency de-rated to 16A)
C20 inlet supports user supplied input cabling; 10ft / 3m L6-20P power cord included
20 outlets (18 C13 & 2 C19)
0U 35.5in / 90.2cm vertical rackmount form factor
Network interface provides PDU control and data regarding input voltage, frequency and loading information
Digital display reports load level information in amps
Supports user-specified alarm notification thresholds
In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4
optional SRSWITCH door sensors
DHCP/Manual configuration support
10/100 Mbps auto-sensing
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements
Highlights
Monitored 16/20A 200-240V PDU; 0U 35.5 in / 90.2cm vertical rackmount
Reports voltage, frequency & loading information via ethernet interface
Visual current meter; Toolless button-mount installation
C20 inlet; 10ft / 3m L6-20P power cable included
20 outlets (18 C13 & 2 C19); cord retention brackets included
Temperature, humidity and contact-closure monitoring options
