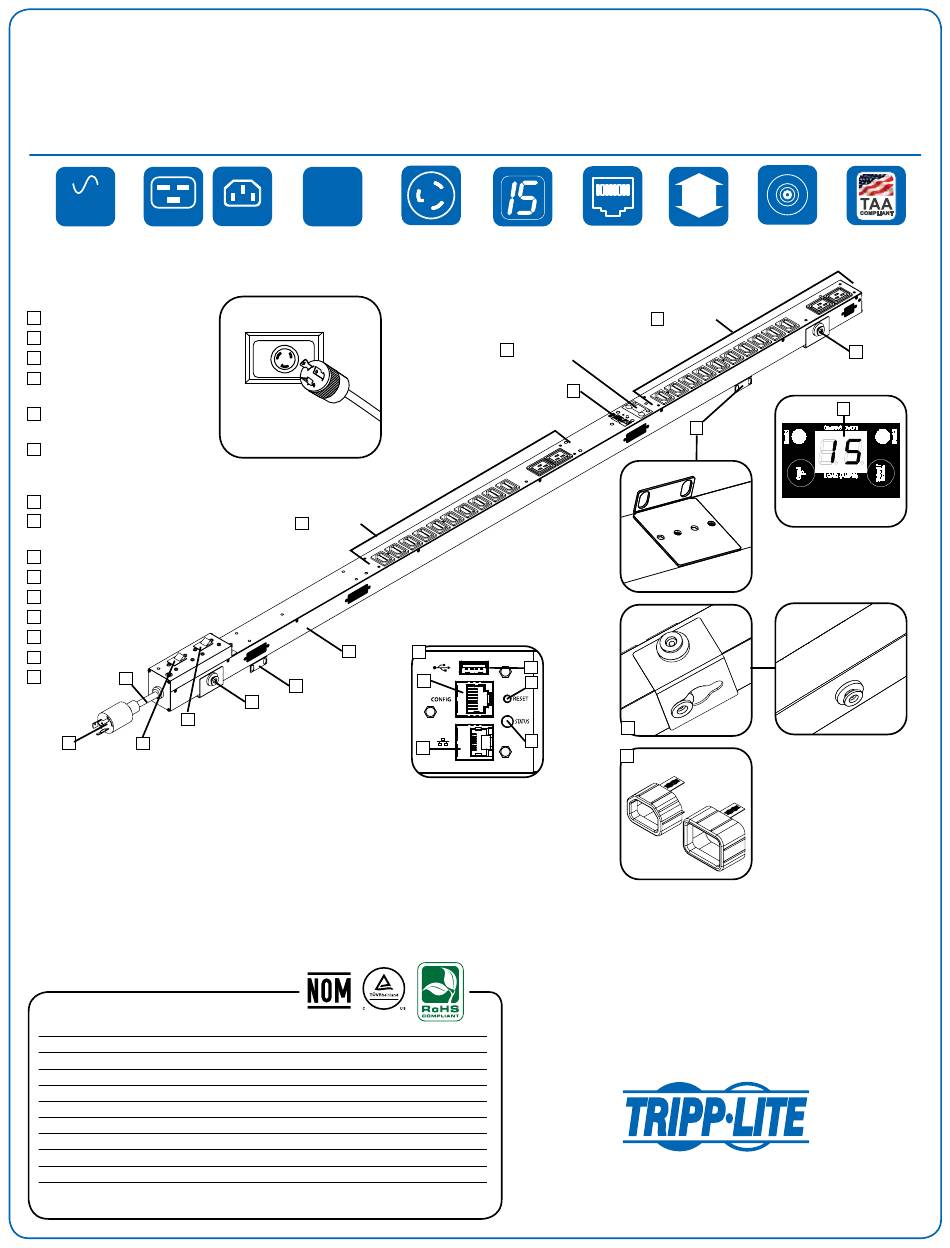

Tripp Lite PDUMNV30HVLX Quick Start Manual

PDUMNV30HVLX
200/240V
50/60Hz
C19
High Voltage 24 Outlets
Input/Output
A Digital Load Meter
B C13 and C19 Outlets
C 20A Circuit Breakers
D C13 and C19
Plug Lock Inserts
E Removable Mounting
Brackets
F Toolless Mounting
Buttons with Removable
90° Rotation Brackets
G 10 ft. Input Power Cord
H L6-30P Locking
Input Plug
I Durable Metal Case
J LX Platform Interface
K Ethernet Port
L RJ45 Configuration Port
M USB-A Port
N Reset Button
O Status LED
G
C (BANK 2)
H C (BANK 1)
Also Includes: Configuration Cable,
Owner's Manual
Specifications
Model
Voltage
Frequency
Load Capacity
Input Connector
Cord Length
Outlets
Primary Mounting Option
Unit Dimensions—H x W x D
Unit Weight
Standards
Monitored 0U Vertical PDU
5/5.8kW
C13
5/5.8kW Load L6-30P Plug
Capacity
AC Input Connection: Insert L6-30P
locking plug into compatible L6-30R
utility, generator or UPS outlet.
B (BANK 1)
I
E
F
Ethernet for remote monitoring via
SNMP, Web, SSH or telnet. Add optional
EnviroSense2 modules for temperature,
humidity and dry contact monitoring.
PDUMNV30HVLX
208/240V
50/60 Hz
5kW (208V) / 5.8kW (240V)
L6-30P
10 ft. [3 m]
24 (20 C13 / 4 C19)
0U (Vertical) Rack-mount
70 x 2.19 x 2.65 in. [1778 x 56 x 67 mm]
11.5 lb. [5.2 kg]
Tested to UL/CAN 60950-1 (US & Canada),
NOM (Mexico), FCC Class A; RoHS; TAA
MODEL:
Multimode
Load Meter
A (BANK 1 & BANK 2)
J
J
M
L
N
O
K
LX Platform Interface: Connect to
• Distributes power to 24 outlets arranged in two banks
• Java-free, HTML5-based network interface allows for
remote monitoring via SNMP, Web, SSH or telnet
• Displays load for either outlet bank or both banks
combined in real time
• Perfect for rack-mount server, network and telecom
applications
SEE NEXT PAGE FOR DETAILED UNIT MEASUREMENTS
0U
HTML 5 0U
Network Rackmount Mounting
Interface
B (BANK 2)
E
90° Bracket
F
D
C13 (x20) and C19 (x4)
1111 W. 35th Street
Chicago, IL 60609 USA
773.869.1234
www.tripplite.com
Toolless TAA
Compliant
Buttons
F
A
Multimode Load Meter:
Press the "Select" button to
switch modes—display the
load for bank 1, bank 2
or both banks combined.
Standard
Note: Installed 17.67 mm
toolless mounting buttons
can be replaced with
included 14.17 mm buttons
for additional compatibility.
