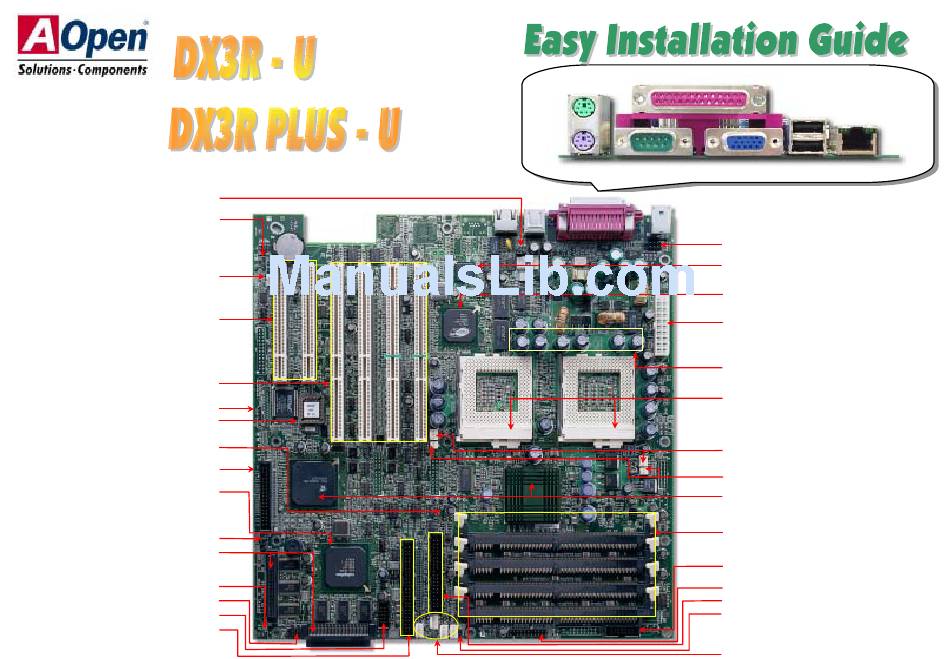

y
JP10 CPU Terminator Jumper
BP (Backplane) Connector
WOL (Wake On LAN) Connector
32bit PCI Slot x2
64bit PCI Slot x4
External Speaker Connector
Flash ROM BIOS
JP5 System Event Clear Jumper
FDD Connector
Adaptec AIC-7899 Ultra160 SCSI
Controller (DX3R Plus-U only)
JP8 Password Check Jumper
68-pin SCSI connector x2
(DX3R Plus-U only)
System Event LED Connector
JP6 SCSI terminator Jumper
nd
2
USB Connector
50-pin SCSI Connector
(DX3R Plus-U only)
PS/2 Mouse
SPP/EPP/ECP Parallel Port
Connector
PS/2 Keyboard
COM 1 Port
Connector
CPU 2
CPU 1
CPU 2
System Fan Connector (4-pins)
RJ45 LAN
USB Port
Jack
VGA Connector
COM2 Port Connector
®
Intel
82550 10/100Mbps
Ethernet Controller
ATI Rage XL Video Chip with
4MB Video RAM onboard
ATX Power Connector
Low ESR Capacitor (1500uF)
370-pin CPU Socket x2
FSB133 MHz Coppermine and Tualatin
CPU Supported
CPU Fan Connector with H/W
Monitoring x2
Thermal Sensor Connector x2
®
Server Works
ServerSet™ III
LE Chipset
PC 100/133 DIMM x4 (Maximum up
to 4GB, 1GB per DIMM slot)
Redundant SPS Connector
Front Panel Connector
IDE Connector
NMI Switch Connector
System Fan Connectors (4-pins)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AOpen DX3R-U
Summary of Contents for AOpen DX3R-U
- Page 1 PS/2 Mouse SPP/EPP/ECP Parallel Port Connector RJ45 LAN USB Port Jack PS/2 Keyboard COM 1 Port VGA Connector Connector JP10 CPU Terminator Jumper BP (Backplane) Connector COM2 Port Connector ® Intel 82550 10/100Mbps WOL (Wake On LAN) Connector Ethernet Controller ATI Rage XL Video Chip with 4MB Video RAM onboard 32bit PCI Slot x2...
-
Page 2: Installing Cpu
1. Installing CPU Pull up the CPU socket level and up to 90-degree angle. CPU Pin 1 and cut edge Locate Pin 1 in the socket and look for a (golden) cut edge on the CPU upper interface. Everything you need to boot this Match Pin 1 and cut edge. - Page 3 4. JP10 CPU Terminator Jumper 6. Connecting ATX Power Connector ® The DX3R Plus-U/DX3R-U uses 20-pins ATX power connector. Make sure you plug the When you are using SINGLE Intel Pentium!!! CPU with DX3R Plus-U/DX3R-U, you connector in the right direction.
-
Page 4: Connecting Ide And Floppy Cables
7. Connecting Redundant SPS Connector 9. Connecting Ultra160 Narrow SCSI Cables This motherboard implements Redundant SPS connector to provide better expansibility The DX3R Plus-U provides two 68-pins Ultra Wide/Ultra2/3 and one 50-pins Narrow on superior server. It is feasible to install an additional 337-watts power supply module SCSI connectors for 8/16-bit or 16-bit differential SCSI devices. - Page 5 13. Support 2 USB Port 11. Connecting Front Panel Connector Attaching such as power LED, reset switch, power switch connector, etc.… to This motherboard supports four USB ports. Two of them are on back panel connector, the corresponding pins. other two are on the left-bottom area of this motherboard. With proper cable, you can Chassis connect them to front panel.
-
Page 6: External Speaker Connector
17. Event LED Connector The BP connector provides the signals of BPL6 / BPL5 back plane to ASM (Advanced The DX3R Plus-U/DX3R-U BIOS supports the system monitored event logs recording Server Management) software monitoring program, such as storage category, HDD function. -
Page 7: Part Number And Serial Number
It is very possible that your keyboard press Del to see if the is defective. system reboots. DX3RPU R1.00 Dec. 30. 2001 AOpen Inc. Award Plug and Play BIOS Extension v1.0A During system rebooting, press Del to enter BIOS Setup. Choose “Load Setup Default". - Page 8 Dear Customer, Test Report: We recommend choosing board/card/device from the Thanks for choosing AOpen products. To provide the best and fastest service to compatibility test reports for assembling your PC. our customer is our first priority. However, we receive numerous emails and http://www.aopen.com/tech/report/default.htm...
