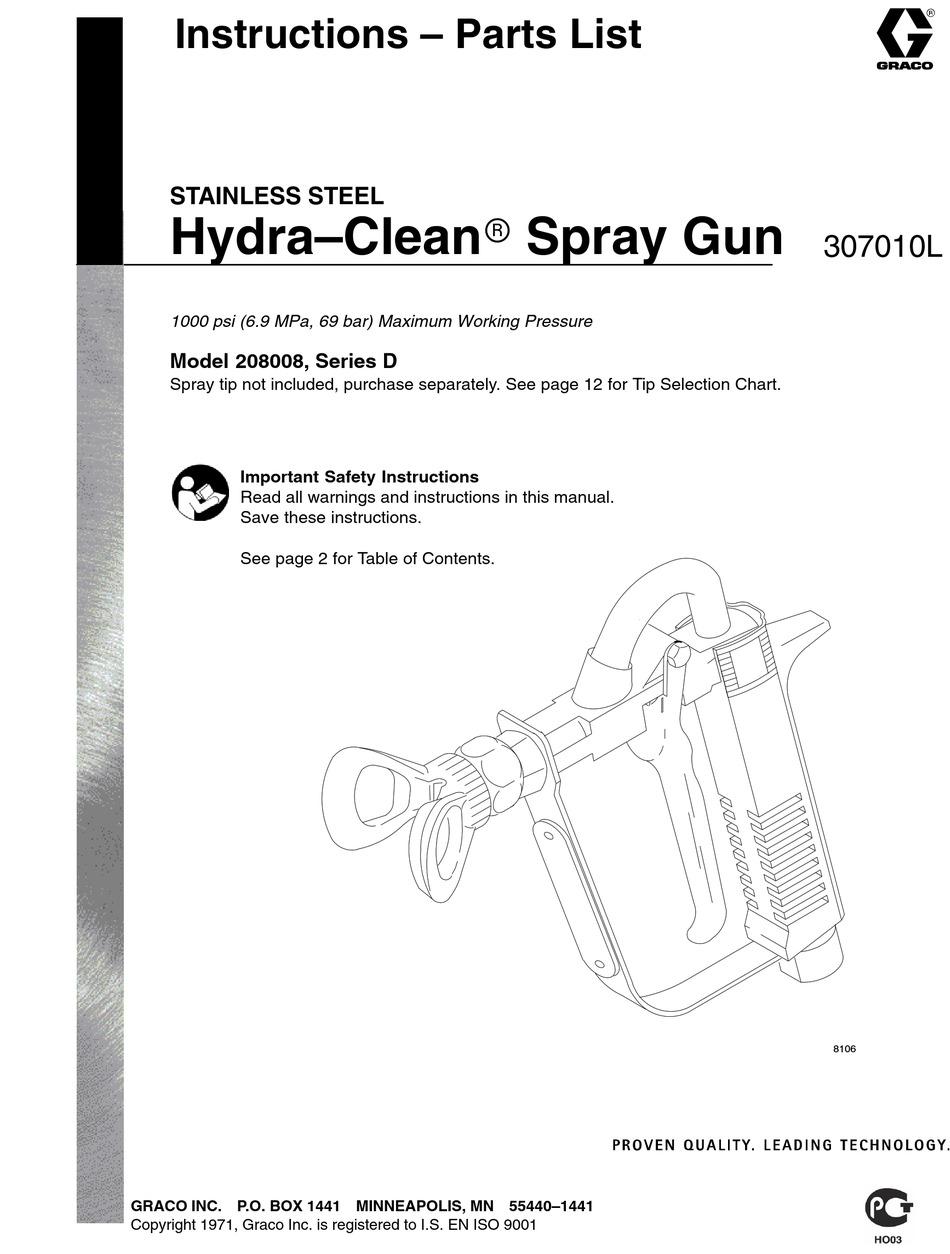

Instructions – Parts List
STAINLESS STEEL
Hydra–Cleanr Spray Gun
1000 psi (6.9 MPa, 69 bar) Maximum Working Pressure
Model 208008, Series D
Spray tip not included, purchase separately. See page 12 for Tip Selection Chart.
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
See page 2 for Table of Contents.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
Copyright 1971, Graco Inc. is registered to I.S. EN ISO 9001
307010L
8106
Advertisement
Related Manuals for Graco Hydra-Clean 208008
Summary of Contents for Graco Hydra-Clean 208008
- Page 1 Instructions – Parts List STAINLESS STEEL Hydra–Cleanr Spray Gun 1000 psi (6.9 MPa, 69 bar) Maximum Working Pressure Model 208008, Series D Spray tip not included, purchase separately. See page 12 for Tip Selection Chart. Important Safety Instructions Read all warnings and instructions in this manual. Save these instructions.
- Page 2 Table of Contents Setup ......... Installation .
- Page 3 FIRE AND EXPLOSION HAZARD Improper grounding, poor air ventilation, open flames, or sparks can cause a hazardous condition and result in fire or explosion and serious injury. D Ground the equipment and the object being sprayed. See Grounding on page 4. D Provide fresh air ventilation to avoid the buildup of flammable fumes from solvent or the fluid being sprayed.
- Page 4 Pressure Relief Procedure WARNING PRESSURIZED EQUIPMENT HAZARD The system pressure must be manually relieved to prevent the system from starting or spraying accidentally. To reduce the risk of an injury from accidental spray from the gun, splashing fluid, or moving parts, follow the Pressure Relief Procedure whenever you: D are instructed to relieve the pressure,...
- Page 5 WARNING SKIN INJECTION HAZARD To reduce the risk of serious injury, whenever you are instructed to relieve pressure, follow the Pressure Relief Procedure on page 4. NOTE: Numbers and letters in parentheses in the text correspond to the reference numbers and letters in the text and drawings.
- Page 6 WARNING SKIN INJECTION HAZARD To reduce the risk of serious injury, whenever you are instructed to relieve pressure, follow the Pressure Relief Procedure on page 4. Whenever you stop spraying for a moment, en- gage the gun safety latch. See Fig. 2. WARNING The wallet-sized warning card provided with this gun should be kept with the operator at all times.
- Page 7 WARNING SKIN INJECTION HAZARD To reduce the risk of serious injury, whenever you are instructed to relieve pressure, follow the Pressure Relief Procedure on page 4. Adjust the Spray Pattern 1. To adjust the spray pattern, relieve the pressure. Engage the safety latch and loosen the tip guard retaining nut.
-
Page 8: Troubleshooting
Troubleshooting If the gun leaks at the swivel (21), see Swivel Repair, below. If the gun leaks at the nozzle, try adjusting the trigger free play. See Needle Adjustment on page 9. If the leakage is not stopped, the needle (10) or valve seat (8) may need to be replaced. - Page 9 WARNING SKIN INJECTION HAZARD To reduce the risk of serious injury, whenever you are instructed to relieve pressure, follow the Pressure Relief Procedure on page 4. Swivel Repair 1. Relieve the pressure. 2. Unscrew the swivel stud (21) from the gun. Re- move the spring (22), glands (24†, 25†), and packings (23†) from the swivel housing (26).
- Page 10 WARNING SKIN INJECTION HAZARD To reduce the risk of serious injury, whenever you are instructed to relieve pressure, follow the Pressure Relief Procedure on page 4. Gun Repair (See Fig. 6) NOTE: Repair kit 208328 is available for the needle packings.
- Page 11 Parts 1/4 npt(f) †24 †23 †25 3/8 npt(f) 8103 307010...
- Page 12 Part No. Description 203953 SCREW, hex hd cap; w/nylon locking pellet; no. 10–24 x 3/8 208028 BODY, valve 101690 WRENCH, hex key; for 0.125 in. (3.18 mm) hex socket in needle 102931 NUT, hex mach; no. 8–32 104836 SCREW, pan hd mach; no.
-
Page 13: Technical Data
Maximum Working Pressure ........... . Wetted Parts . -
Page 14: Graco Standard Warranty
Graco Standard Warranty Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
