FBII OMNI-848 User Giude

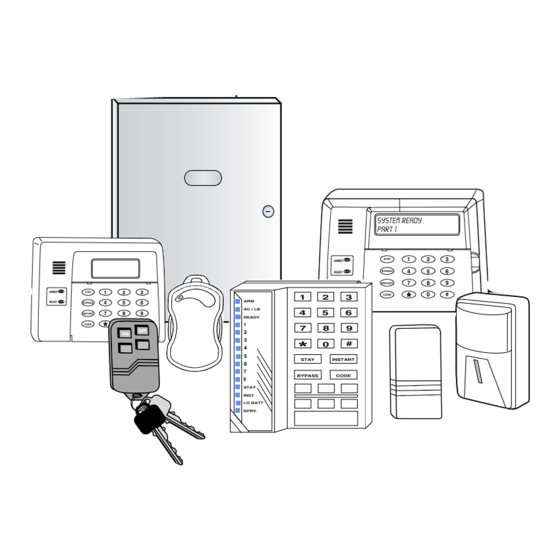

Omni series hardwired/wireless system
Hide thumbs Also See for OMNI-848:
Table of Contents

Advertisement

Quick Links

See also: User Manual
ARMED
READY
N9939 8/00
1
2
3
STAY
4
5
6
ARM
BYPASS
AC / LB
7
8
9
INSTANT
READY
0
#
CODE
STAY
INST
LO BATT
SPRV.
1
2
3
STAY
ARMED
4
5
6
BYPASS
READY
7
8
9
INSTANT
0
#
CODE
1
2
3
4
6
5
7
8
9
0
#
STAY
INSTANT
BYPASS
CODE
FIRE BURGLARY INSTRUMENTS, INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OMNI-848 and is the answer not in the manual?

Questions and answers

Related Manuals for FBII OMNI-848

Summary of Contents for FBII OMNI-848

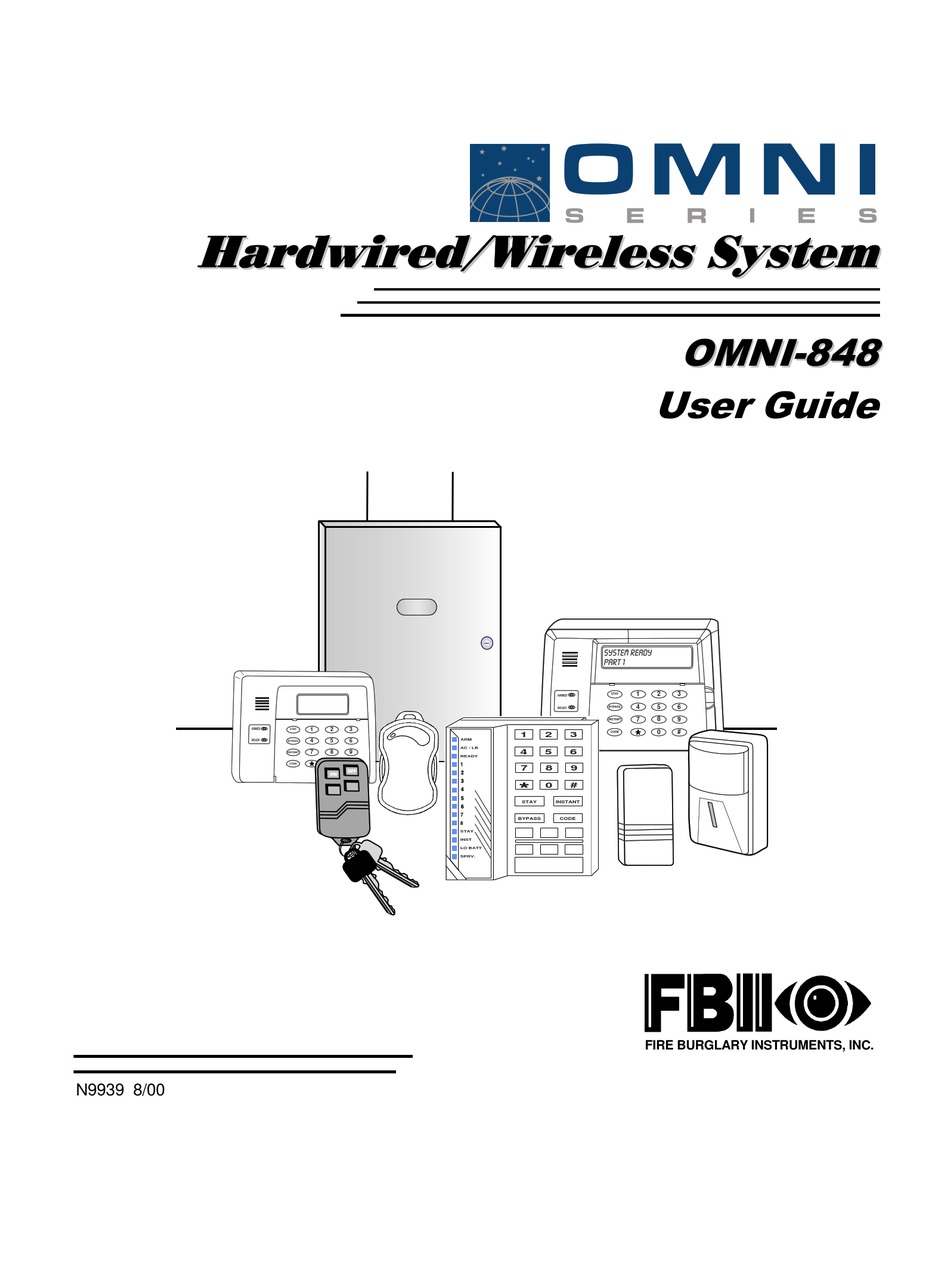

  • Page 1 STAY ARMED BYPASS READY INSTANT ARMED STAY CODE READY BYPASS AC / LB INSTANT READY CODE STAY INSTANT BYPASS CODE STAY INST LO BATT SPRV. FIRE BURGLARY INSTRUMENTS, INC. N9939 8/00...

  • Page 2: Table Of Contents

    Table Of Contents QUICK REFERENCE....................... 3 INTRODUCTION ........................5 SYSTEM REFERENCE......................6 TURNING THE SYSTEM ON....................9 TURNING THE SYSTEM OFF....................12 USER CODES ........................13 MISCELLANEOUS COMMANDS ..................14 TESTING THE SYSTEM ......................19 RECOMMENDATIONS ON SMOKE DETECTORS............. 20 EMERGENCY EVACUATION ....................

  • Page 3: Instant

    TO TURN SYSTEM ON 1. Check to make sure the system is ready, The On/Off (ARM) light will light (Green READY light is lit). 2. Enter your 4-digit user code. 3. Exit through a door designated by your installer as an exit/entry door. TO TURN SYSTEM OFF 1.
  • Page 4 The following table lists the “Quick Commands” available with this control. Description Keypads Comments Quick Arm - If system is All keypads Allows you to arm the system without requiring your user code. ready User code is always needed to disarm the system, though. Force Arm - bypasses faulted All keypads Allows you to arm the system even if some zones are faulted.

  • Page 5: Introduction

    Since your system may use any of these keypads, the displays of all keypads are described in this manual. The OMNI-848 is listed by Underwriters Laboratories for Household Fire and Burglary applications. Throughout this manual, the following conventions are used to represent the keystrokes required to perform the following functions.

  • Page 6: System Reference

    System Reference ZONE DESCRIPTIONS In the following table, enter a description of the area of protection for each zone. Example: Zone 1 Windows on North side of building Zone 4 Main entrance to building. Zone Description Zone Description Entry time ________ Door __________ Exit time ________ Entry time ________ Door __________ Exit time is the same for all designated entry/exit doors.
  • Page 7 System Reference (cont) SEND-HELP ALERT All keypads are equipped with emergency-pair keys. In order to activate the alert, both keys must be pressed at the same time. The type of keypad you have installed dictates which keys you press. Your installer will show you how to activate these emergency keys.

  • Page 8: User Code Assignments

    System Reference (cont) USER CODE ASSIGNMENTS In the following table, enter the names of the individuals assigned to each user number. User Assigned To… User Assigned To… ____ ____ USER CODE NOTE: User codes can be either 4 digits or 6 digits, depending on installer programming.

  • Page 9: Turning The System On

    Turning The System On IS THE SYSTEM READY? You can turn the burglar portion of your security system on and off. Before you can turn the system on, it must be “ready.” If you have a protected door open, or someone is moving in view of a motion detector, the system will not display “READY.”...
  • Page 10 Turning The System On (cont) Determine which zone or zones are not ready, resolve the problem, and turn the system on normally. If the problem cannot be resolved, you may bypass the zone that is not ready. Bypassing should only be done if the problem on the zone cannot be resolved, OR if you intentionally wish to leave the zone off.
  • Page 11 Turning The System On (cont) TO TURN THE SYSTEM ON IN INSTANT MODE In INSTANT mode, all alarm sensors including doors that normally have a delay to allow you to turn the system off will report an alarm immediately if activated.

  • Page 12: Turning The System Off

    Turning The System Off When you turn the system off, you turn off only the burglar portion of your system; any smoke or heat detectors and panic keys will remain on. You must enter through a designated entry door and turn off the system within the time allowed.

  • Page 13: User Codes

    User Codes TO ADD OR CHANGE A USER CODE Users can be added or changed directly at the keypad. Your system can have up to 64 different user codes, with each assigned to one of four authority levels and to a primary partition. The authority level determines the functions that user can perform.

  • Page 14: Miscellaneous Commands

    Miscellaneous Commands SEND HELP ALERTS Your system can be programmed for 3 separate keypad Send Help alerts that would send an emergency signal to your central station. See the System Reference sheet to see which have been programmed for your system. DURESS Your system can be programmed to send an emergency signal to the central station if you are forced to enter the premises under threat.
  • Page 15 Miscellaneous Commands (cont) QUICK EXIT Restarts exit delay time if the system is already armed. This allows someone to leave after the system has been armed, without having to disarm the system first. To restart the exit delay time, press: STAY .. TURN CHIME ON/OFF Chime is an optional feature that causes the keypad to beep when selected doors are opened while the burglary protection is off or disarmed.
  • Page 16 Miscellaneous Commands (cont) TO VIEW AUTOARM TIME To view the autoarm time for the partition to which the keypad is assigned, press: # [52] [user code with authority level 1 or 2]. AUTOARM TIME: 05:00PM (The user code is not required if so programmed by installer.) DOOR STRIKE To activate door strikes: Press # , then [57], then [Door #]...

  • Page 17: Using A Pager

    Using a Pager If programmed, the system can send messages to a pager. The messages display as follows: ACCT E XXX where: "ACCT" = the 4-digit central station no. 2 account number. "E" = is the event code. There are 4 event types: alarms, troubles, openings, and closings.
  • Page 18 3. Press the [#] key after you have made your pager phone number changes. Pressing the [#] key saves your new pager number. An acknowledgement tone sounds. To exit without saving changes, press the [ ] key to exit pager phone number programming.

  • Page 19: Testing The System

    Testing The System SYSTEM TEST It is recommended that you test your system once a week using the following procedure: NOTE: If your system is monitored, contact your central station before you perform this test. 1. Turn your security system on. 2.

  • Page 20: Recommendations On Smoke Detectors

    Recommendations On Smoke Detectors With regard to the number and placement of smoke/heat detectors, we subscribe to the recommendations contained in the National Fire Protection Association’s (NFPA) Standard #72 noted below. Early warning fire detection is best achieved by the installation of fire detection equipment in all rooms and areas of the household as follows: A smoke detector installed outside of each separate sleeping area, in the immediate vicinity of the bedrooms and on each additional story of the family living unit, including...

  • Page 21: Emergency Evacuation

    Emergency Evacuation Establish and regularly practice a plan of escape in the event of fire. The following steps are recommended by the National Fire Protection Association: 1. Position your detector or your interior and/or exterior sounders so that they can be heard by all occupants. 2.

  • Page 22: Glossary

    Glossary AC INDICATOR: Small green power on-off light between the center buttons on the keypad. When lit, the system is running on primary power; when not lit, the system is running off the backup battery. ALARM: Sound from keypad or other horn/siren indicates a burglar alarm, fire alarm, or other condition you should be alerted to.
  • Page 23 Glossary (cont) EXIT DELAY: The period of time allowed between turning the system on and leaving through a designated exit/entry door before the system will register an alarm condition. This is determined at the time of installation. INTERIOR ZONE: An interior zone is a group of points that protect the interior of your premises.
  • Page 24 Glossary (cont) SILENT CONDITION: Most types of alarms and troubles alert you with the keypad sounder and the sirens, horns, or speakers located in your premises. The intent is to advise you of the alarm or trouble and allow you to respond promptly.

  • Page 25: Fcc Statement

    FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following statement for your information: This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception.

  • Page 26: Limitations Of This Alarm System

    LIMITATIONS OF THIS ALARM SYSTEM While this system is an advanced design security system, it does not offer guaranteed protection against burglary, fire, or other emergency. Any alarm system, whether commercial or residential, is subject to compromise or failure to warn for a variety of reasons.
  • Page 27 LIMITATIONS OF THIS ALARM SYSTEM (cont) Alarm warning devices such as sirens, bells or horns may not alert people or wake up sleepers who are located on the other side of closed or partly open doors. If warning devices sound on a different level of the residence from the bedrooms, then they are less likely to waken or alert people inside the bedrooms.

  • Page 28: Limited Warranty

    LIMITED WARRANTY Fire Burglary Instruments, Inc.,. a subsidiary of Pittway Corporation, and Pittway Corporation, its divisions, subsidiaries and affiliates ("Seller"), 149 Eileen Way, Syosset, New York 11791, warrants its security equipment (the "product") to be free from defects in material and workmanship for one year from date of original purchase, under normal use and service.
