FBII xl-4 Installation And Setup Manual
Hide thumbs
Also See for xl-4:
- Programming manual (100 pages) ,
- Owner's manual (47 pages) ,
- User manual (56 pages)
Subscribe to Our Youtube Channel
Related Manuals for FBII xl-4
Summary of Contents for FBII xl-4

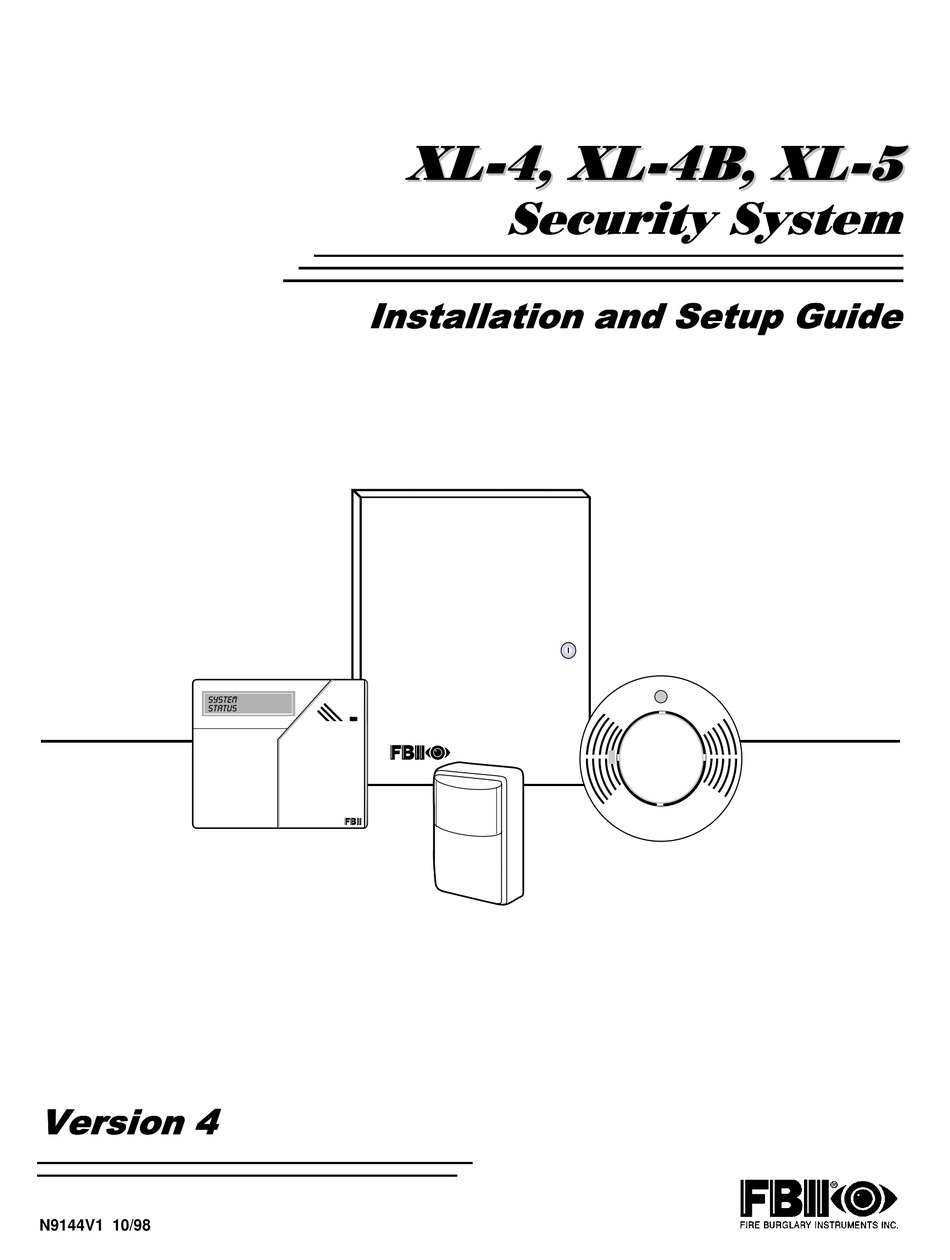

- Page 1 6HFXULW\6\VWHP ,QVWDOODWLRQDQG6HWXS*XLGH 9HUVLRQ N9144V1 10/98...
-
Page 2: Table Of Contents
Table of Contents Conventions Used in This Manual ........................iv Section 1 - Introduction ...........................1–1 General................................1–1 UL Listings ................................1–2 How To Use This Manual ..........................1–2 Related Documentation ............................1–2 Section 2 - System Components ........................2–1 Control Panels ..............................2–1 Keypads................................2–1 Expansion Modules ............................2–1 Accessories .................................2–1 Multiplex Peripherals ............................2–2 Section 3 - System Wiring And Hookup .......................3–1... - Page 3 Table of Contents (cont'd) Group Unbypass ..............................5–10 User Programming ............................5–10 User Deletion..............................5–11 Disarming ................................5–12 Keypad Auxiliary Conditions .........................5–12 Duress/Ambush ...............................5–13 LCD Keypad Programming Mode ........................5–13 Quick Commands ............................5–13 Log Dump Function............................5–17 Keypad Function Summary..........................5–18 Section 6 - Installer Functions ........................6–1 Keypad Programming ............................6–1 Time Date Setup..............................6–1 Walk Test ................................6–2...
-
Page 4: Conventions Used In This Manual
Conventions Used in This Manual Before you begin using this manual, it is important that you understand the meaning of the following symbols (icons). These notes include specific information that must be followed if you are installing this system for a UL Listed application. -
Page 5: Section 1 - Introduction
S E C T I O N Introduction • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section General UL Listings... -
Page 6: Ul Listings
Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 Failure to connect and program the control unit as described in this manual is a violation of the Listing Mark. Programming requirements are contained in the LCD Keypad Programming Guide. UL Listings The XL-4 is the Residential (Household) version of the has been listed by Underwriters Laboratories for the following applications:... -
Page 7: Section 2 - System Components
S E C T I O N System Components • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Control Panels Accessories... -
Page 8: Multiplex Peripherals
Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 Multiplex Peripherals XL-4701 Single Point Multiplex Interface. XL-4702 2 Point Multiplex Adapter Module that allows two conventional alarm sensing devices to be connected to the multiplex bus. XL-4708 8 Point Multiplex Adapter Module. Used to interface 8 conventional sensing devices to the multiplex bus. -
Page 9: Section 3 - System Wiring And Hookup
S E C T I O N System Wiring And Hookup • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Wiring Diagram Ground Start... -
Page 10: Wiring Diagram
Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 Wiring Diagram INSTRUCTIONS NOTE 1: Connect to cold water pipe ground. 16 gauge at 15 feet. NOTE 2: Terminal #27 is internally connected to terminal #31. For dry RED (+) 12V 5AH contact output on RELAY #1, cut jumper BATTERY... - Page 11 Section 3 – System Wiring and Hookup XL-4 and XL-5 CONNECTIONS FOR HOUSEHOLD FIRE/BURGLAR ALARM SYSTEMS UL985 AND 1023 Detail A NOTES: For UL Installation (Household) WARNING SMOKE DETECTOR 1- Connect to a grounded could water pipe, 16 ga. at 15 DISCONNECT PHONE LINES PRIOR TO CONTROL PANEL feet.
-
Page 12: Zone Hookup
Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 Zone Hookup The first eight zones are connected to T1 through T12 on the main circuit board as follows: Zone 1 Terminal 1 & 2 (-) Zone 2 Terminal 3 & 2 (-) Zone 3 Terminal 4 &... -
Page 13: Multiplex Zone Expander
Section 3 – System Wiring and Hookup Multiplex Zone Expander The 7120 or 7126 Multiplex expander module provides multiplex loop expansion to the control panel. Each multiplex loop consists of a two-wire hookup that transmits power and data from the control panel to the multiplex accessories. The multiplex expander can be installed as follows: 1- Remove all power from the control panel. -
Page 14: Keypad Connections
Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 Keypad Connections The keypads are connected to the control panel with four-conductor cable to terminals 13 through 16. Attach each keypad used within the system to the terminals as follows: T13 Red ( + voltage) T14 Green T15 Yellow... - Page 15 Section 3 – System Wiring and Hookup XK-5LC AND XK-516 BOTTOM VIEW (WITH BACK REMOVED) XK-7LC AND XK-716 FRONT VIEW (WITH COVER OPEN) The first three switches (SW1 - SW3) should be set as follows: KEYPAD NUMBER On XK-716 and XK-7LC keypads, when the right hand side of the switch is pushed in the switch is in the ON position.
-
Page 16: Auxiliary Power
Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 The factory default settings enable the first LCD keypad within the system (address 9, SW1-ON, SW2-ON, SW3-ON). At least one LCD keypad is necessary in order to perform keypad programming. 1. -
Page 17: Jp2
Ground Lug as instructed above instead of using terminal 18. The Ground Lug is located on the lower left-hand corner of the panel . Telephone Line Connect an FBII model 368 cord to an RJ31X jack as follows: Green Telco Tip Red Telco Ring... -
Page 18: Tamper Switch
AB bell housing. Maximum alarm load is 1 Amp. REFER TO WIRING DIAGRAMS FOR FURTHER DETAILS SET UP AS BELL OUTPUT JP2 CONNECTED 12 v BELL Connections To FBII Siren Drivers Control VS279 VS299 Panel Siren Driver Voice Siren Driver... -
Page 19: Relay #2 [Smoke Detector Power Reset]
Section 3 – System Wiring and Hookup Relay #2 [Smoke Detector Power Reset] Relay #2 can be used as a smoke detector reset or as dry contacts as shown below: Smoke Detector To utilize relay #2 as smoke detector power reset connect a jumper between terminals 33 and 24 to power the smoke detectors. -
Page 20: Trigger Connector
The control panel contains eight voltage level triggers that are provided through connector P3. The connections for the trigger outputs are displayed below and requires connection of FBII part number 7103UL Trigger Connector. The triggers can be programmed for pulsed or latched operation through the programming questions. The triggers when active deliver 12VDC, 25ma maximum. -
Page 21: Transformer
Section 3 – System Wiring and Hookup Transformer Connect the 16.5VAC 40VA transformer to terminals 36 and 37, using #16AWG wire at 15 feet maximum to an unswitched 120 VAC outlet. Do not use any other transformer since this may result in improper operation or damage to the unit. - Page 22 Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 XK-5LC and XK-516 Surface Mounting 1- Remove the front of the keypad from the keypad back by placing a straight-slot screwdriver into one of the two slots in the bottom of the keypad and twisting the screwdriver.
- Page 23 Section 3 – System Wiring and Hookup XK-7LC and XK-716 Recessed Mounting 1- Select the desired location for mounting the keypad. Note: For recessed mounting this must be between two studs. Note: The rear plastic mounting plate is not used for recessed installations. 2- Create an opening in the wall exactly 4 inches high by 5 13/16 inches wide.
- Page 24 Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 3–16...
-
Page 25: Section 4 - Multiplex Polling Loop
S E C T I O N Multiplex Polling Loop • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Multiplex Expander Installation Polling Loop Overview... -
Page 26: Polling Loop Overview
Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 The multiplex busses can be connected as follows: MULTIPLEX BUS LOOP 7120 MULTIPLEX 7126 MULTIPLEX NUMBER/POLARITY ZONE EXPANDER ZONE EXPANDER LP1 - LP1 - LP1 + LP1 + LP2 - LP2 + Proper polarity of the multiplex bus must be maintained. - Page 27 Section 4 – Multiplex Polling Loop system log and the keypad will display “SYSTEM NOT READY Zn #”, “CHK LOG & RESET! MPX ZONE ERRORS”, or “SYSTEM NOT READY SUPERVIS ZN #”. If extra zones exist that have not been defined in programming, then the keypad will display “CHK LOG & RESET”, “MPX ZONES ERRORS”...
- Page 28 Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 Intercom Considerations If an intercom system is used, the multiplex polling loop wires must be as far from the intercom wiring as possible (minimum 6"). If this spacing cannot be achieved, shielded wire must be used.
-
Page 29: Section 5 - System Operations
S E C T I O N System Operations • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Keypad Layout Group Unbypass... - Page 30 Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 The keypads have the following appearance: STAY 12 13 STAY STAY BYPASS BYPASS INSTANT INSTANT CODE CODE Model XK-716 LED Keypad 7 Model XK-7LC LCD Keypad 7 8 BATSTAYRDY 6)%(= 10 11 12 13 14 15 16 COM INS PWR Model XK-5LC LCD Keypad Model XK-516 LED Keypad...
- Page 31 Section 5 – System Operations STAY - LED ON when the system is armed in the STAY mode. Slow Blink (600 msec. ON - 600 msec. OFF) when the system is armed in the AUTO STAY mode. RDY - LED ON when the system (or partition) is Ready to be armed. The LED will go OFF if any of the zones are not READY.
-
Page 32: Sample Lcd Display
Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 11) EMERGENCY KEYS These keys generate Fire, Medical, or Panic signals when certain key combinations are entered. Sample LCD Display The LCD keypad consists of a two line by sixteen-character display as shown in the sample below: BURGLARY ZN 055... - Page 33 Section 5 – System Operations additional system information such as zone bypasses. This message indicates that all the zones are READY and that there are currently no conditions that could prevent arming. On the LED keypad the system is ready if the RDY LED is ON. Arming Procedure [USER] Enter the four-digit user code.
-
Page 34: Stay
Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 STAY The STAY mode will ARM the system and deactivate any interior protection zones that exist within the system. In order to perform the STAY function the system must be ready. See description of READY state within ARMING sequence. -
Page 35: Instant-Stay
Section 5 – System Operations ON: AWAY INSTANT On LED keypads both the ARMED and INSTANT LEDs will be lit. The INSTANT option will automatically be reset after the system is disarmed. The second line of this display can scroll between various system conditions such as zones that are currently bypassed. -
Page 36: Forced Arming
Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 UNBYPASS Zne 002 UPSTAIRS BEDROOM Note: Bypassing can be performed either while the system is armed or disarmed. A bypass signal will be transmitted to the Central Station if a bypass code has been programmed and the zone has been enabled for bypass. -
Page 37: Groups
Section 5 – System Operations Groups The system contains a concept known as groups. This allows multiple zones within a partition to be grouped together for bypassing and alarm transmission purposes. There can be up to 24 groups. HOW TO DEFINE A GROUP A programming option has been added to the zone definition section to define whether the zone should be considered as [part of a group. -
Page 38: Group Unbypass
Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 Group Unbypass Groups can also be unbypassed through the following command: Group Unbypass Procedure BYPASS [USER] 2 GP where: BYPASS = Bypass Key on keypad [USER] = User Code 1 keys GP = Group number (01 - 24). -
Page 39: User Deletion
Section 5 – System Operations Multiple users can be assigned the same authorization level and perform the identical functions. User Programming Procedure CODE [USER] Depress the CODE key followed by the four-digit user access code. The user code entered must be a level 1, 2, or 3 user. Assuming that the user is authorized to perform programming within the specified partition the following displays will appear: (XL-4) (XL-5) -
Page 40: Disarming
Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 Disarming To disarm the system from an armed state: Disarming Procedure: [USER] Enter a valid user code. The keypad display that appears on LCD keypads depends whether or not alarms have taken place while the system was armed. -
Page 41: Duress/Ambush
Section 5 – System Operations Duress/Ambush The system contains duress capability, which can be obtained through use of a user code with an authorization level of 6. The duress feature will report to the Central Station based on the parameters defined as keypad condition number 4. LCD Keypad Programming Mode Installer programming can be performed through a LCD keypad to view or modify the programmable characteristics of the control panel. - Page 42 Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 Alarms in a partition are not displayed on LCD keypads unless the partition containing the alarm is addressed. Alarms in a partition cause the partition LED to pulse in LED keypads. The alarm sounder in the keypad will not sound unless the alarm occurs in the partition that the keypad is assigned to.
- Page 43 Section 5 – System Operations CURRENT DAY OF WEEK CURRENT ENTRY FIELD SU = Sunday HR = Hour M = Monday MIN = Minute TU = Tuesday MON = Month W = Wednesday DAY = Day TH = Thursday YR = Year F = Friday SA = Saturday Clock set...
- Page 44 Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 2) Press 2. The keypad will display: Su AUTOARM HR 12:00 a Part 1 The Part number will be the partition number the keypad is enabled in. 3) Set the hour by entering a number from 1 to 12 for the desired hour (HR). 4) Press the Instant key.
-
Page 45: Log Dump Function
Local Printer A serial printer can be used at the control panel location to obtain a printout of the system log dump information. This requires the use of the FBII model 7130 Serial Printer Interface Module connected to P1. Local printer output will occur regardless of a remote log dump transmission if the DUMP telephone number is defined or a null value (blank) through keypad or remote programming. -
Page 46: Keypad Function Summary
Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 programmed (daily, monthly, weekly, # events). Note: To obtain a printout after each event, program the number of events to 1. The local printer at the control panel location must have the following characteristics: Serial printer, 300 baud, 8 data bits, one stop bit, and no parity. -
Page 47: Section 6 - Installer Functions
S E C T I O N Installer Functions • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Keypad Programming Walk Test With Bell Output... -
Page 48: Walk Test
Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 Time Date Setup Procedure CODE [INSTALLER CODE] 2 This will generate similar keypad displays as the end user procedure. See time/date section for more details. Walk Test The walk test function provides the ability to test the zones that have been programmed within the system. -
Page 49: Walk Test With Bell Output
Section 6 – Installer Functions To exit the walk test mode press the key. This will return to the previous state of the panel prior to the Walk Test. Walk Test With Bell Output This function is identical to the normal walk test function except the bell will be activated with each zone violation. - Page 50 Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 BYPASS Scroll in reverse through the system log Clear the log Exit from the log view function The list below shows the entries that can appear in the system log. These items will appear on the second line of the display, the first line contains the time and date of the entry.
- Page 51 Section 6 – Installer Functions Extra zone zn Indicates that an additional multiplex zone has been seen on the multiplex loop that was not defined within the programming sequence. Supervisor zn p Indicates a supervisory failure on a multiplex point. zn = zone number , p = partition Sup Restore zn p Indicates that multiplex points that previously not heard from...
- Page 52 Xl-4, XL-4B, and XL-5 Hookup and Installation Instructions Version 4 6–6...
- Page 53 WARNING LIMITATIONS OF THIS ALARM SYSTEM While this system is an advanced design security system, it does not offer guaranteed protection against burglary, fire or other emergency. Any alarm system, whether commercial or residential, is subject to compromise or failure to warn for a variety of reasons.
- Page 54 "FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT" This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following statement for your information. This equipment generates and uses radio frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions may cause interference to radio and television reception.
- Page 55 FBII LIMITED WARRANTY Fire Burglary Instruments Inc., a Subsidiary of Pittway Corporation, and Pittway Corporation its divisions, subsidiaries, and affiliates ("Seller"), 149 Eileen Way, Syosset, New York 11791, warrants its products to be in conformance with its own plans and specifications and to be free from defects in materials and workmanship under normal use and service for five years from the date stamp control on the product, or for products not having a date stamp, for twelve months from the date of original purchase unless the installation instructions or catalog sets forth a shorter period, in which case the shorter period shall apply.
- Page 56 A–4...
-
Page 57: Index
Index • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 7103UL ........ - Page 58 Subsidiary of Pittway Corp. 149 Eileen Way, Syosset, New York 11791 Copyright © 1998 PITTWAY CORPORATION ¬1 95l N9144V1 10/98...
