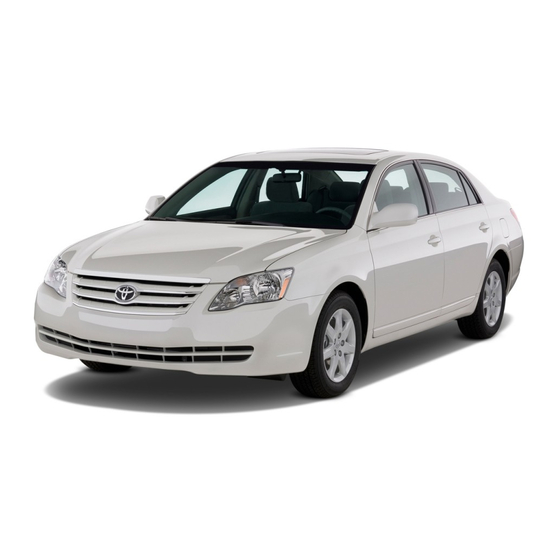

Toyota 2009 Avalon Quick Reference Manual

Toyota 2009 avalon quick reference guide
Hide thumbs Also See for 2009 Avalon:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for Toyota 2009 Avalon

Summary of Contents for Toyota 2009 Avalon

  • Page 2 Owner’s Manual and supplementary manuals so you will have a better understanding of your vehicle’s capabilities and limitations. Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new Avalon.

  • Page 3: Table Of Contents

    OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES Visit your Toyota dealer for information on customizing this feature. Programmable by customer. Refer to the Owner’s Manual for instructions and more information. ® HomeLink is a registered trademark of Johnson Controls, Inc. Engine maintenance...

  • Page 4: Instrument Panel

    OVERVIEW Instrument panel Steering wheel controls Steering wheel audio controls Telephone controls Steering wheel climate controls Voice command button Distance button Driving position memory switches Headlight, turn signal and front fog light controls Engine (ignition) switch (standard key) Wiper and washer controls “ENGINE START STOP”...

  • Page 5: Instrument Cluster

    Low engine oil pressure warning Malfunction/Check Engine indicator If indicator does not turn off within a few seconds of starting engine, there may be a malfunction. Have vehicle inspected by your Toyota dealer. Engine oil replacement reminder Low fuel level warning...

  • Page 6: Keyless Entry 1

    OVERVIEW Keyless entry Locking operation Without Smart Key system With Smart Key system Unlocking operation Without Smart Key system With Smart Key system Push ONCE: Driver door TWICE: All doors NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for safety.

  • Page 7: Light Control-Instrument Panel

    OVERVIEW Fuel tank door release and cap Push Store NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check Engine “ indicator may illuminate. Light control-Instrument panel Brightness control Trunk release Trunk opener Push Hood release Turn Engine maintenance ”...

  • Page 8: Smart Key System 2

    Auto lock functions Automatic door locks can be programmed to operate in two different modes, or turned OFF. 1. Doors lock: when shifting from Park. Doors unlock: when shifting into Park. 2. Doors lock: when the vehicle speed goes above 12 mph. Doors unlock: when the driver’s door is opened within 10 seconds after turning the “ENGINE START STOP”...
  • Page 9 FEATURES/OPERATIONS Seat adjustments-Front Manual seat Power seat Seatback angle Seat position (forward/backward) Leg support (if equipped) Lumbar support (if equipped) Position, cushion angle (if equipped) and height (if equipped) Seat adjustments-Rear Seatback angle lever Refer to the Owner’s Manual for more details. Windshield wipers &...
  • Page 10 FEATURES/OPERATIONS Windows-Power Driver side Down Automatic operation (front windows only) Push the switch completely down or pull it completely up and release to fully open or close. To stop window midway, lightly push the switch in the opposite direction. Window lock switch Deactivates all passenger windows. Driver’s window remains operable.
  • Page 11 Refer to “Garage door opener,” Section 3-6 in the Owner’s Manual for more details. For programming assistance, contact the Toyota Customer Experience Center at 1-800-331-4331, or visit http://www.homelink.com. * HomeLink ® is a registered trademark of Johnson Controls, Inc.

  • Page 12: Center Display

    FEATURES/OPERATIONS Audio Preset buttons - functions in other modes indicated above number Eject CD Seek station/ CD track select Push to turn Station/CD Mode ON/OFF Select CD track scan AM/Satellite Radio CD PLAYER To scan tracks on a disc Push and hold “SCAN.” Push again to hold selection.
  • Page 13 FEATURES/OPERATIONS Air Conditioning/Heating Display Without navigation system With navigation system Control Temperature selector (driver side) Temperature selector (passenger side) Climate control OFF Air Conditioning ON/OFF Fresh or recirculated cabin air Automatic climate control ON Outside rearview mirror*/Rear defogger Airflow vent In “...

  • Page 14: Clock

    FEATURES/OPERATIONS Power outlets Auxiliary box Console box The “ENGINE START STOP” switch/engine switch must be in the “ACC” or “ON” position to be used. Cup holders Front Rear (type A) Rear (type B) Clock Without navigation system H-Hour set M-Minute set :00-Round off minutes With navigation system Refer to the “Navigation System Owner’s Manual.”...

  • Page 15: Seat Belt Comfort Guide

    If the tire pressure indicator flashes for more than 60 seconds and then remains on, take the vehicle to your local Toyota dealer. Note: The warning light may come on due to temperature changes or changes in tire pressure from natural air leakage. If the system has not been initialized recently, setting the tire pressures to factory specifications should turn off the light.

  • Page 16: Spare Tire & Tools

    Trunk-Internal release Spare tire & tools Tool location Spare tire cover Jack handle Spare tire Removing the spare tire (1) Remove the luggage cover. (2) Loosen and remove the center fastener. (3) Remove the spare tire cover. Refer to the Owner’s Manual for tire changing and jack positioning procedures.
  • Page 17 MN 00505-QRG09-AVA Printed in the USA 7/08...
