Traynor Custom Valve 20 Owner's Manual page 4

1 2 4
1
GAIN
5
INPUT
0 10
BOOST
3
16
15
CAUTION: REPLACE WITH
SAME TYPE FUSE AND RATING
ATTENTION: UTILISER UN FUSIBLE DE
RECHANGE DE MEME TYPE ET CALIBRE
ON
POWER

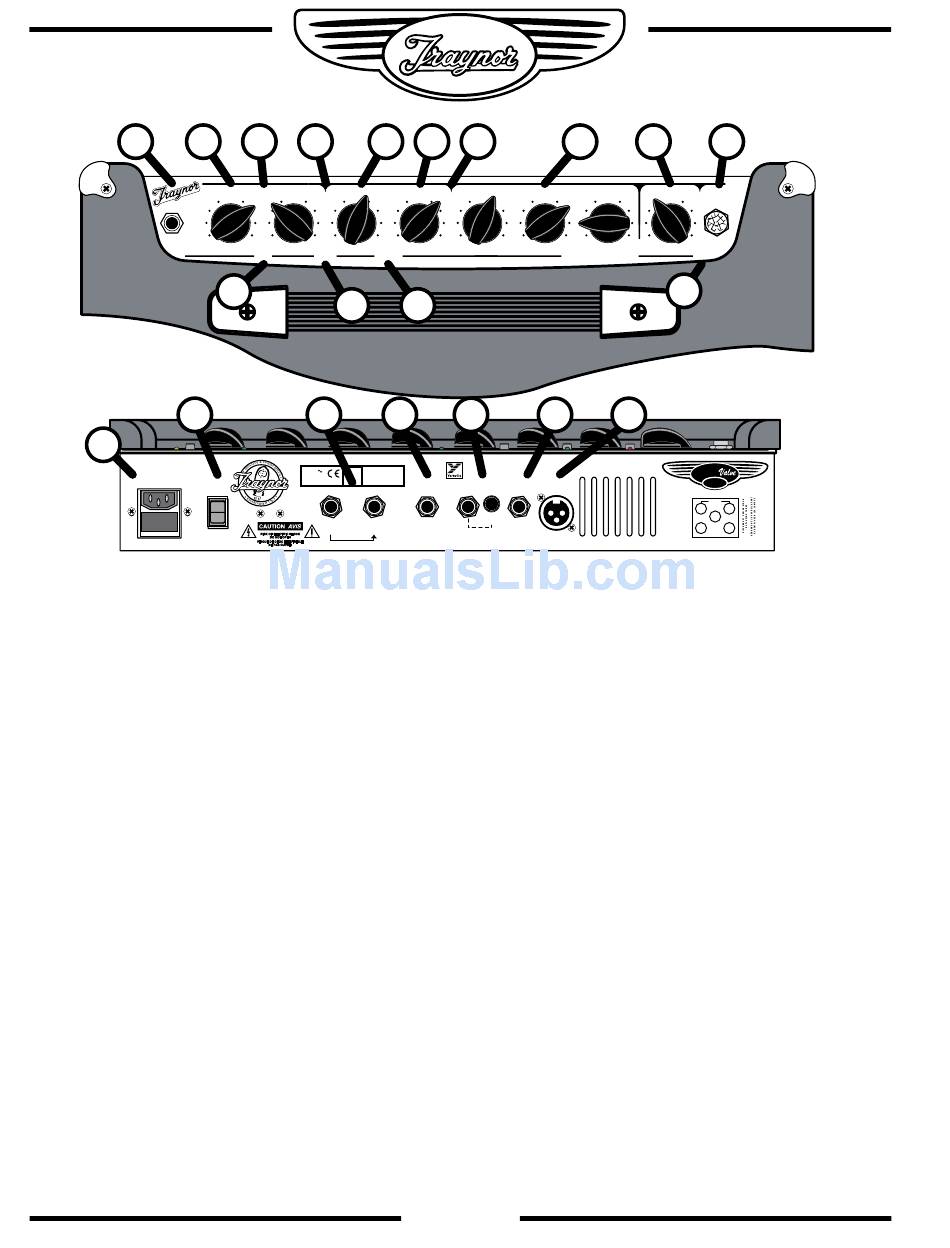

Chassis Layout
Top
1. Input jack – 1/4 inch phone jack.
2. Channel 1 Gain & Volume Controls.
3. Channel 1 Boost Switch – Activates the boost circuitry.
4. Boost LED – Illuminated Red when the boost is active.
5. Channel 1 Indicator LED – Illuminates Yellow when active.
6. Channel Select Switch – Channel 1 is optimized for lead,
Channel 2 for clean
7. Channel 2 Gain Control.
8. Channel 2 Volume Control.
9. Channel 2 Indicator LED – Illuminates Green when active.
10. Channel 2 Brightness Switch – Add sparkle to your clean sound.
11. Main Tone Controls – Treble, Bass, & Middle.
12. Reverb Control – Adjusts the Accutronics® reverb level for
both channels.
13. Standby Switch – Activates standby mode to keep the tubes
warm while the amp is not in use.
14. Power Indicator Jewel – Illuminates Red when in Active mode,
and Yellow when in Standby mode.
Rear
15. Fuse & Power Cord
16. Power Switch.
17. Send / Return (Efx/Line) jacks – 1/4 inch phone Input &
Output jacks.
18. Channel Select Footswitch jack – uses a 1/4 inch TRS
standard latching dual-footswitch.
19. External Speaker jack and selectable defeat.
20. Headphone jack.
21. D.I. Output for connections straight to the 'board.
5 7 8
2
VOLUME GAIN VOLUME
5
5 5
0 10 0 10 0 10
CHANNEL BRIGHTNESS
SELECT
6 10
17 18
TYPE: YS1006
1v3
230V
120VAC
50Hz 0,25A
60Hz 0.5A
FUSE: T400mAL FUSE: T1.0A sloBlo
CH. SELECT
EXT. SPKR
/ BOOST
EFX / LINE
SEND RTN FOOTSWITCH
2
9 11
TREBLE BASS MIDDLE
5 5 5
0 10 0 10 0 10
Traynor Guitar Amplifier
19 20 21
DESIGNED & MANUFACTURED BY
YORKVILLE SOUND • Toronto, CANADA
PHONES DI OUT
INT. SPKR
DEFEAT
12 14
REVERB
5
POWER
0 10
STANDBY
13
Custom Custom Valve
20
TRAYNOR YCV20
PREAMP
12AX7 12AX7
SPLITTER
V1 V2
12AX7
V3
POWER POWER
6BQ5 6BQ5
V5 V4
