Summary of Contents for White 1620

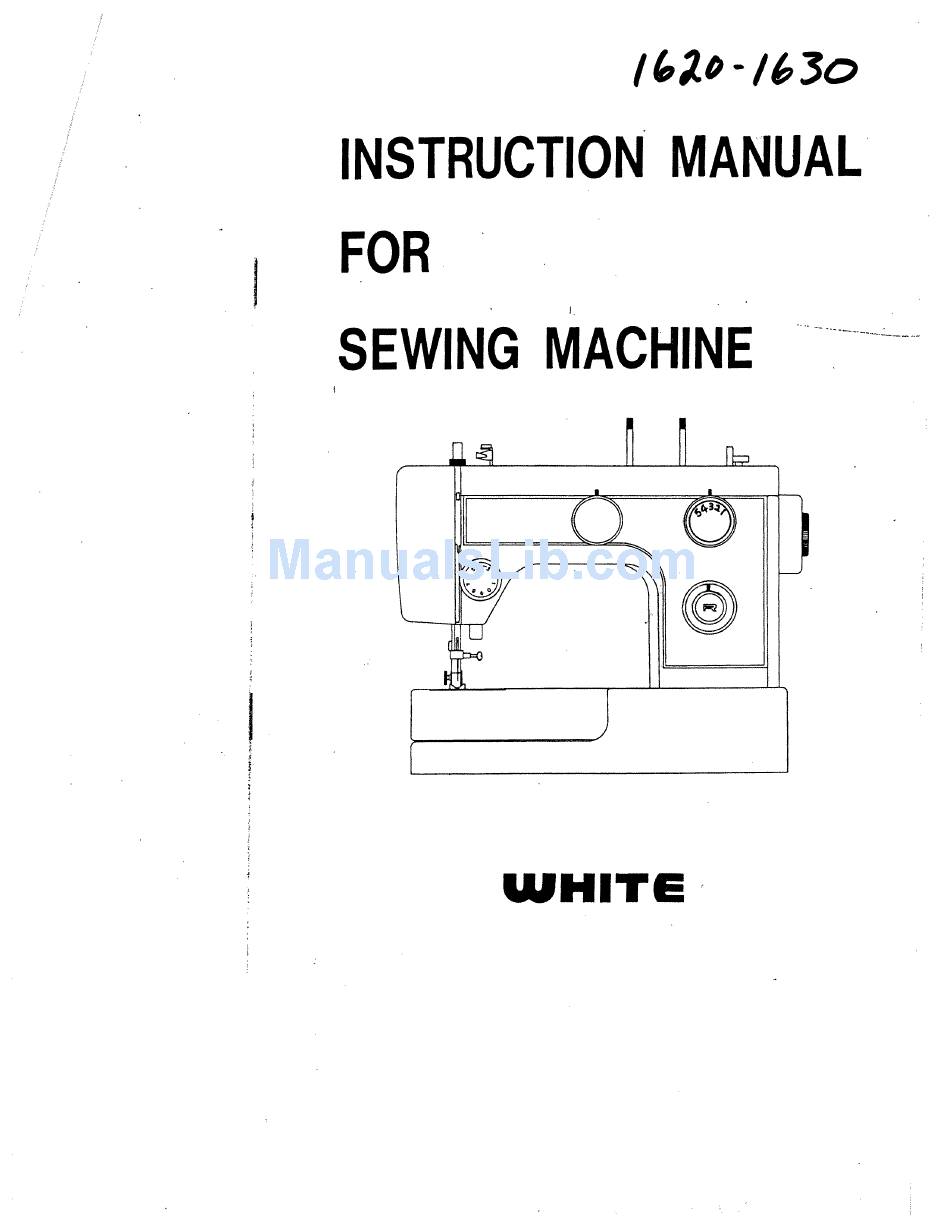

- Page 1 INSTRUCTION MANUAL SEWING MACHINE © WHITE’...
- Page 2 __ __ __ __ __ __ __ __ __ __ Se ria No .
-
Page 4: Product Front View And Parts
NAME OF PARTS (FRONT VIEW) 1 Pattern selector dial 8 Sub-spool pins 2 Pressure regulator 9 Top cover 3 Take up lever 10 Zigzag width dial 4 Thread tension dial Stitch length dial 5 Presser foot Reverse button 6 Shuttle cover 13 Thread guide for upper threading 7 Extension table... - Page 5 (REAR VIEW) Bobbin winder spindle Bobbin winder stopper Upper thread guide Stop Motion knob Hand wheel Face cover Thumb screw Needle plate Presser foot lever —2—...
- Page 6 ACCESSOR I ES Bobbin Felt Zigzag foot Button hole foot machine) Button foot Machine Oil Zipper foot Button hole cutter Screw driver Needle —3—...
- Page 9 WINDIN G THE BOBBIN 1. Release stop motion knob. 2. Thread as shown. 3. When bobbin filled, tighten stop motion knob. Push bobbin winder spindle in direction of arrow. When bobbin winding is com pleted return spindle original position. When bobbin winding is correct, release the screw of upper thread guide and ad just up or down until bobbin...
- Page 12 Twin needle threading —9—...
- Page 14 CONTROL DIAL 1. Pattern selector dial 2. Thread tension dial 3. Zig-zag width dial 4 Stitch length dial 5. Reverse button —11—...
- Page 17 CHANGING NEEDLE 1. Raise needle to its highest position. 2. Loosen neecile clamp screw and remove old needle. 3. With the flat side of the needle facing away from you, insert needle as far up as it will go. 4. Tighten the needle clamp screw securely. —14—...
- Page 18 —...
- Page 19 I— 16— —...
- Page 21 — —...
- Page 24 BLIND STITCH 1. Fold fabric as shown. 2. To frnjsh seam as shown. — —...
- Page 25 Adjust width and needle position to obtain correct seam Needle s not piercing Needle is pierces edge edge of fold at all of fold too much Correct seam —22—...
- Page 28 BUTTON HOLE SEWING Select stitch length dial in area indicated. Settings 1. Set dial to ‘.1” position. 2. Sew left side. 3. Raise the needle 4. Set dial to “2” position. 5. Sew 56 stitches. 6. Raise the needle 7. Set dial to “3” position. 8.
- Page 29 HEMMJNG 1. Raise the foot and the needle to its highest position. Replace the foot with the hemmer foot. 2. Fold over the fabric edge by about 3mm and place it under the foot. Secure the Take out the workpiece and draw the hem folded edge with a few stitches.
- Page 30 TWIN NEEDLE Thread machine as for normal sewing passing both threads through the same procedure: NB. Sewing width should not exceed the third widest stitch width, exceeding this will result in breaking of needles. EMBROIDERY (Use darning plate see page 11) Lower feed dog and move hooped fabric slowly to form the desired effect.
Need help?
Do you have a question about the 1620 and is the answer not in the manual?
Questions and answers
How do you adjust the bobbin tension?
To adjust the bobbin tension on a White 1620 sewing machine, turn the screw on the bobbin case slightly to the right to increase tension or to the left to decrease tension.
This answer is automatically generated
I have a model 1620-1 white sewing machine without a manual how do I thread it?
To thread the White model 1620-1 sewing machine, follow these steps:
1. Thread the Upper Thread:
- Raise the needle to its highest position using the handwheel.
- Place the spool of thread on the spool pin.
- Guide the thread through the thread guide.
- Pull the thread down through the tension discs.
- Pass the thread through the take-up lever.
- Thread the needle from front to back.
2. Thread the Bobbin:
- Wind the bobbin following the instructions in the manual.
- Remove the bobbin case and insert the wound bobbin.
- Pull the thread through the bobbin case tension spring.
- Insert the bobbin case into the shuttle race.
3. Draw Up the Bobbin Thread:
- Hold the upper thread and turn the handwheel to lower and raise the needle.
- Pull the upper thread gently to bring up the bobbin thread.
- Pull both threads to the back of the machine.
Ensure both threads are correctly positioned before starting to sew.
