Sonance VISUAL PERFORMANCE VP62R TL Specifications

V i s uA L P e R F o R M A n C e
THINLINE: VP62R TL, VP62R SST/SUR TL,
VP66R TL, + Square Adapter
Product Family Overview
From the company that invented the category, comes the
best sounding, best looking and most complete range of
in-wall and in-ceiling speakers ever. Visual Performance

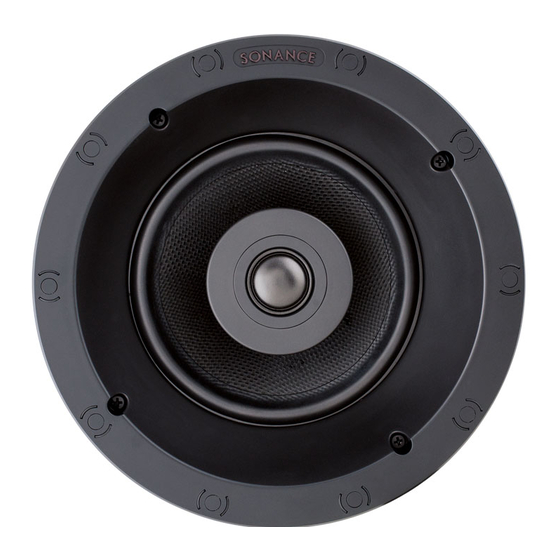

VP62R TL

Features and Benefits

Visual Performance thinLine speakers feature shallow
2 1/2" and 3 5/32" (64mm and 80mm) depths that
allow installation in areas that will not accommodate
conventional speakers.
Absolute best sonic performance at all price points
• Designed using state-of-the-art computer modeling software
to vastly improve magnetic field and suspension linearity
for consistent sonic performance at any SPL for
best-in-class performance
Latest high-tech driver and tweeter material technology
• Improved low frequency performance
• Improved driver cone materials
• Low diffraction woofer and tweeter design
• Pivoting tweeter for improved frequency response in
off-axis installations
• Chambered tweeter design on all models

Specifications

Diameter: 9 3/4" (248mm)
Depth: 3 5/32" (80mm)
Cut Out Diameter: 8 1/4" (210mm)
Series
®
VP66R TL VP62R SST/SUR TL
s e R i e s
®
comes in various shapes and sizes to compliment down lights and
décor and a complete range that allows you to enjoy a consistent
aesthetic for any application in any room.
the chambered tweeter design does the following
• Lowers the resonance frequency of the tweeter
• Allows for a lower crossover frequency to the woofer
• Reduces the back pressure on the tweeter dome
• Reduces the distortion of the tweeter near the
crossover frequency
easier to install
• Easier to access Roto-Lock
• Removed metal hang tabs
• One-piece paintable grille with peel and stick scrim cloth for
easier painting
• Two piece toggle feet allows installation with double dry wall
and thicker ceiling and wall materials
Diameter
Cut Out
Diameter
Square Adapter w/ Grille
screws
®
Depth
3.10 [78.8] 3.10 [78.8]
