1. Connect supplied coax cable/antenna to the antenna socket
transmitter without antenna connected, damage will occur to the transmitter unit.)
2. Connect power source to DC power input jack
Power-Ready RED light
3. Connect audio source using supplied 3.5mm audio cable. Connect one end to audio input jack
.
Connect the other end of the cable to audio output jack (or headphone jack) of the source device
ie. MP3 player, iPod, PC, MAC, PDA, DVD player*, Satellite receiver*, TV*, etc.
*
You may connect audio input source through the supplied RCA jacks

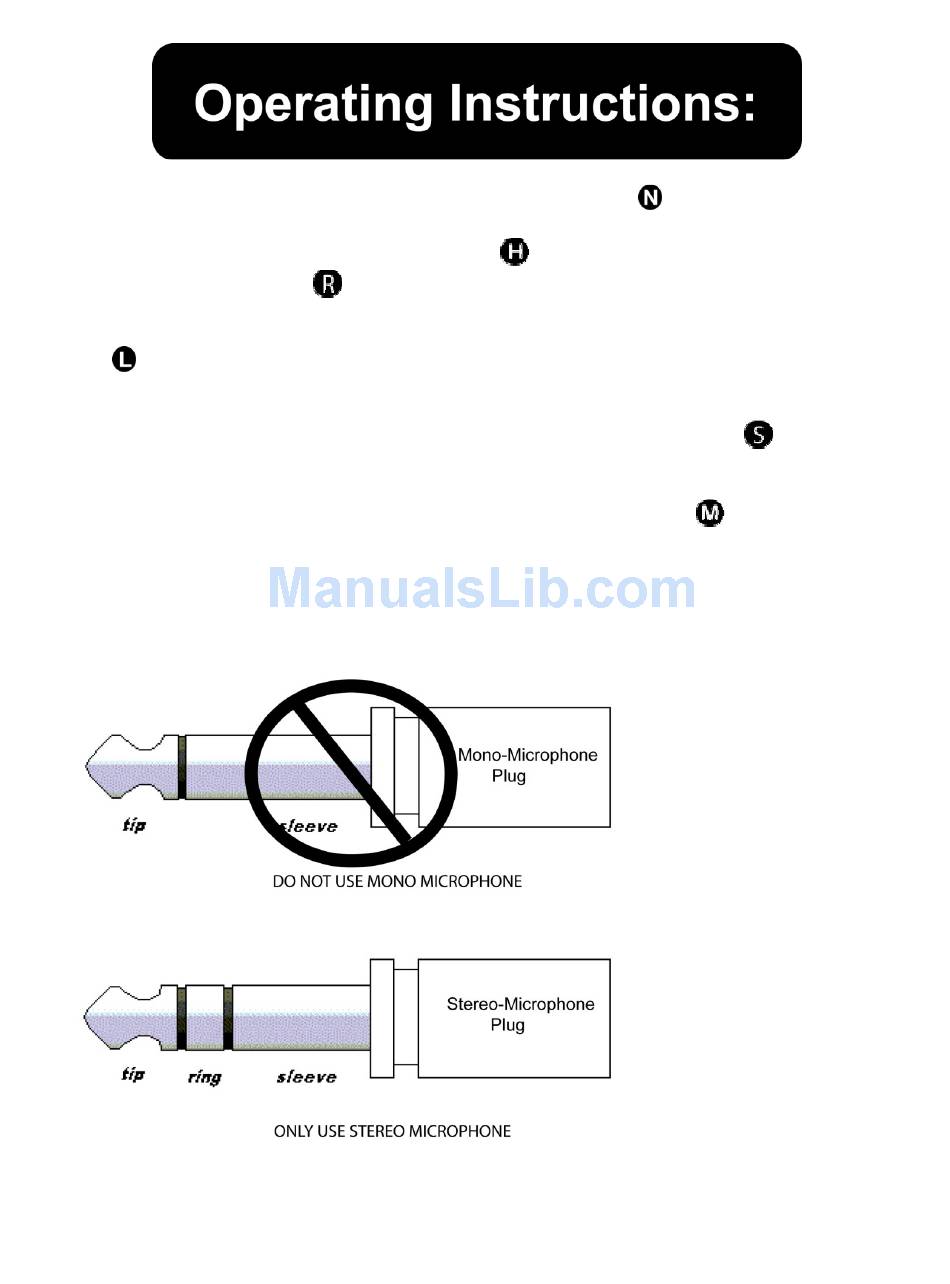

4. Optional – transmitting from a microphone: You may transmit audio from a microphone by
connecting a stereo plug-type microphone to the microphone input jack
(DO NOT USE A MONO PLUG-TYPE MICROPHONE, DOING SO WILL CAUSE PERMANENT
DAMAGE TO YOUR ORION-5000 FM TRANSMITTER UNIT) see illustration below....
will light-up to indicate that power is connected and ready.
. (DO NOT operate
, using the supplied DC power cord/adapter.
.
