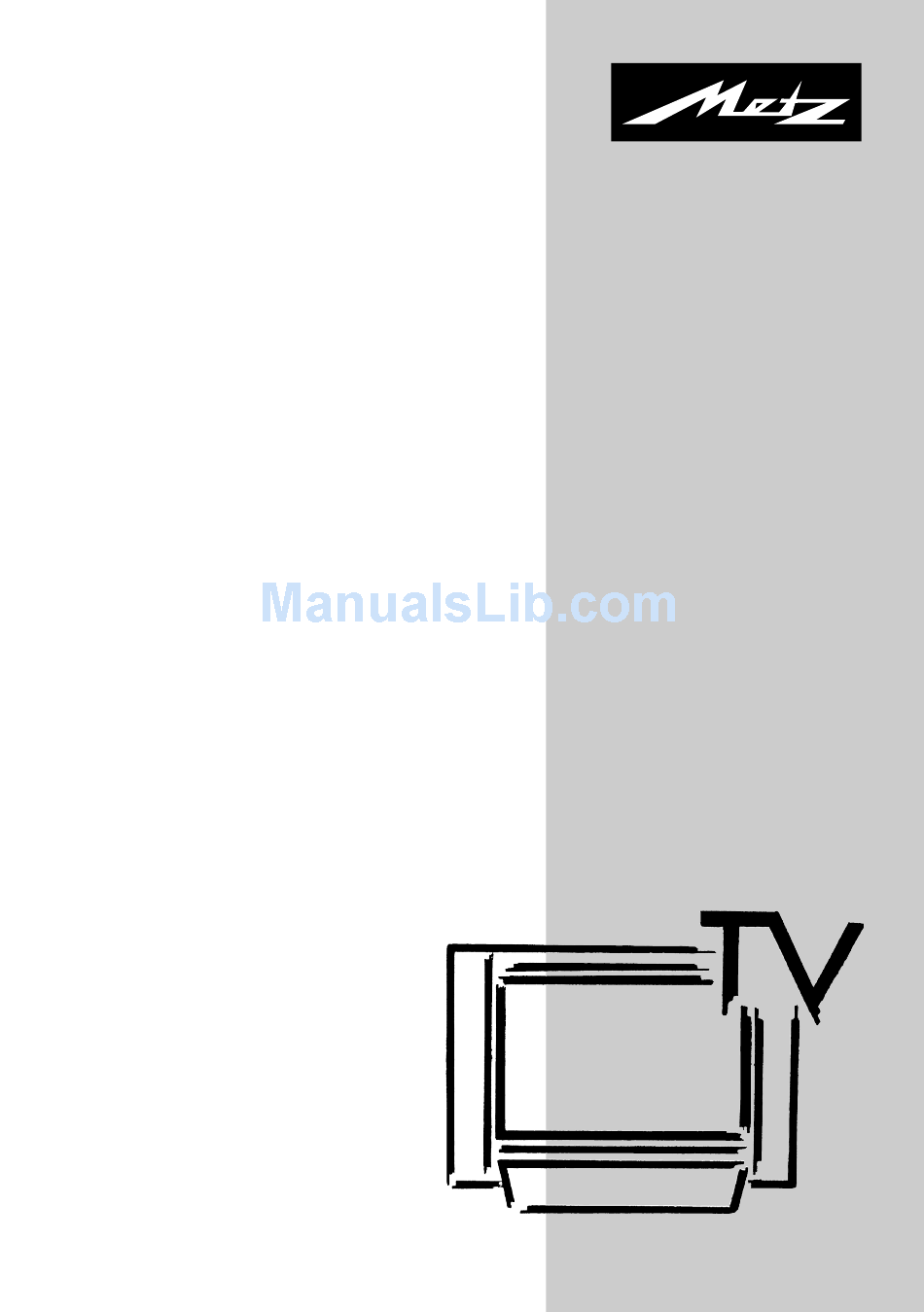

  • Page 1 30 LCD-TV PIP 30 TL 55 Operating Instructions...

  • Page 2: Table Of Contents

    Setting up ......3 thank you for selecting this Metz Safety notes ..... . 5 product.

  • Page 3: Setting Up

    1. Setting up The TV is delivered complete with base and wall bracket. Fitting the base Slide the base into the slots provi- ded for it and secure it carefully with four screws (M4 x 16mm). 4 screws M4 x 16mm Base Wall mounting Non-compliance with these instructions can result in serious injuries to...

  • Page 4: Wall Mounting

    1. Setting up Wall mounting Remove the base (if it is fitted). • Remove the four caps from the Holes plug rear side. • Insert the enclosed plastic screw bolts in the holes and carefully secure each one with a screw M6x20 mm.

  • Page 5: Safety Notes

    2. Safety notes • Place the TV set on a solid surface remove the power cable from the wall which is capable of bearing the outlet and disconnect the antenna weight! cable from the outlet or from the TV set. •...

  • Page 6: The Remote Control

    •VCR2 Metz VCR with remote control RF52 •DVD Metz DVD player with remote control RG/RH37 •HiFi Metz HiFi CD receiver HE 11 with remote control Do not use rechargeable batteries in the remote control. Use only two dry batteries of the type...
  • Page 7 3. The remote control Back to TV mode Overview of the key functions Select video input signal at the programme position selected Select key – Switches to the operating when the set was switched off level for AV devices OFF (standby) Select aspect ratio (picture format) Back to previous programme position Numeric keys (direct programme...
  • Page 8 TV operating level. The TV operating level is programmed a) Use the Select key to select the opera- in the factory for the Metz 30 LCD-TV ting level HiFi. The coloured HiFi LED PIP. You cannot enter any other code.
  • Page 9 3. The remote control 1.3 Entering the code for a 2. Reading out a programmed HiFi amplifier code After executing steps a) to d), you After executing steps a) to e), you have about 15 seconds to make have about 15 seconds to make further entries.
  • Page 10 3. The remote control K e y V C R 1 / 2 On / Standby Record Time in display 0...9 Numeric keys: progr. selection Programme +/– Fast forward / Rewind Vol.+/– Lautstärke +/– TV Mute TV mute Menu MENU Switching voltage on/off Text Info...
  • Page 11 3. The remote control H i F i K e y D V D C D ( I-II ) T U N E R ( T A P E ( ON: Display time/track ON:Radio-text on/off On / Standby ON&AV, ON:On/Standby ON&AV, ON: On/Standby Return Angle...

  • Page 12: Day-To-Day Operation

    4. Day-to-day operation Switching on Switch on the TV set with the mains switch. It is now in the standby state and the red standby indi- cator lights. Select any desired programme posi- tion with the numeric keys on the remote control. Alternatively, you can switch on the TV set by pressing the key.

  • Page 13: Selecting Your Country

    5. Selecting your country Open the menu Once you have installed the TV set, you must spe- cify the country in which it is located (e.g. UK) to assign certain basic settings (such as the TV chan- nel frequencies). Selecting your country: •...

  • Page 14: Selecting A Language

    Open the menu 5.1 Selecting a language Language selection for the TV menu You can select any of the available languages for the TV menu. All text in the menu and the help screens (Information) are displayed in the selected language.

  • Page 15: Tuning To Tv Stations

    6. Tuning to TV stations Open the menu You can tune your TV set to TV stations in three different ways: a) Automatic Programme Search (APS) The automatic programme search searches the entire range of channels for TV stations. All sta- tions which are found are placed in a station table which is displayed at the end of the search.
  • Page 16 Open the menu 6. Tuning to TV stations b) Manual search You can use the manual search function to search for individual stations whose channel number or frequency you do not know. Executing a manual search • Press the "MENU" key to open the TV menu. MENU •...
  • Page 17 6. Tuning to TV stations Open the menu c) Direct channel input If you know the channel number of a station you want to save, you can enter this number directly. Executing direct channel input MENU • Press the "MENU" key to open the TV menu. •...
  • Page 18 Open the menu 6. Tuning to TV stations Fine tuning The TV set is normally tuned to the centre frequency of each of the TV channels. This is usually satisfac- MENU tory. If you are not satisfied, you can carry out fine tuning of the frequency.

  • Page 19: Station Logos

    6.1 Station logo Open the menu Each station which transmits VPS signals automati- cally receives a station logo with up to four cha- racters. If this automatic assignment does not work, or if you want a different logo, you can enter the logo manually.

  • Page 20: Sorting The Stations

    Open the menu 6.2 Sorting the stations In the station table, you can shift or delete indivi- dual stations. Shifting and deleting stations • Press the "INFO" key to open the station table. INFO • Use the cursor key to select the station you want to shift or delete.

  • Page 21: Selecting A Station

    7. Programme selection Programme selection and programme- position management Your TV set can manage a maximum of 100 pro- gramme positions (0-99) in the station table. You can select these programme positions with the numeric keys, the "P+/P-" keys or from the sta- tion table.

  • Page 22: Picture Settings

    Open the menu 8. Picture settings The picture settings (brightness, contrast, sharp- ness, etc.) can be set globally for all programme positions. Adjusting the picture settings: • Press the "MENU" key to open the TV menu. • Use the cursor key to select the menu MENU "Picture".

  • Page 23: Sound Settings

    9. Sound settings Open the menu The sound settings (volume, headphone volume, balance, etc.) can be adjusted in the menu "Audio". Adjusting the sound settings: MENU • Press the "MENU" key to open the TV menu. • Use the cursor key to select the menu "Audio".

  • Page 24: Special Functions

    10. Special functions Open the menu Picture in Picture (PIP) The PIP picture can be used to display the pro- gramme of a second TV station or a signal from an AV device. Displaying/hiding PIP: • Press the red key to display the PIP picture. •...

  • Page 25: Picture Size

    10. Special functions Open the menu Picture size You can use the function "Picture size " to adjust programmes transmitted in various formats to match the wide-screen format of the TV screen. Adjusting the picture-size: • Press the key. The current aspect ratio is displayed at the bottom of the screen.

  • Page 26: Split Screen

    10. Special functions Split screen In "split screen" mode, the screen is divided verti- cally into two halves. You can activate and deactivate this mode with the key. When this mode is activated, you hear the sound belonging to the picture on the left.

  • Page 27: Sleep Timer

    10. Special functions Open the menu Sleep timer By programming the sleep timer, you can determi- ne when the TV set is to switch itself off automati- MENU cally. The sleep timer can be set to Off, 30, 60, 90 or 120 minutes.

  • Page 28: Teletext

    11. Teletext Teletext is an additional, free information servi- ce which is provided by many TV stations. You can scroll through the pages of this "electronic newspaper" in various ways. Displaying Teletext: • Press the "TEXT" key. TEXT Page 100 (Contents page) of the Teletext is displayed on the screen.

  • Page 29: Av Devices

    12. AV devices - Connecting facilities...

  • Page 30: Av Mode

    Open the menu 12. AV devices AV (Audio/Video) devices are external devices (such as video recorders, DVD players, decoders, video cameras, etc.) which generate picture and/or sound signals and can be connected to a TV set. Video recorders, DVD players and similar devices oder can be connected to the Scart 1 or Scart 2 socket.
  • Page 31 12. AV devices Possible selections • Tuner The signal from the TV station to which the TV set is tuned is displayed. • Scart 1/2 The picture from the AV device connected to the Scart1 socket is displayed in the composite- colour picture signal.

  • Page 32: Copying Recordings

    12. Copying AV recordings Open the menu Your TV set has a copy mode in which an AV devi- ce connected to the Scart 2 socket can record the picture and sound coming from an AV device con- nected to the "FAV" (Front AV socket) or to the Scart 1 socket.

  • Page 33: Vcr Function

    12. AV devices Open the menu Picture quality when playing back pictu- res from tape MENU The VCR function ensures an optimal picture quali- ty when playing back recordings from tape devices such as camcorders or video recorders. The VCR function in the menu "Options" can be selected only if, for example, the connec- ted video recorder is delivering a signal.

  • Page 34: Operation Without The Remote Control

    13. Operation without the remote control This facility is provided only as an emergency measure for use in cases where the batteries of the remote control are flat or where the remote control is not easily available. The local controls are located on the top of the TV set.

  • Page 35: Key Lock (Child Lock)

    13.1 Key lock (child lock) With the function "Key lock", you can disable the local controls on the front of the TV set. This makes it possible to indirectly prevent use of the TV by other persons (such as children) by acti- vating this function and hiding the remote control.

  • Page 36: Cleaning The Tv Set

    15. Cleaning the set Before cleaning the set, always switch it off with the mains switch! Incorrect treatment and cleaning of the screen surface can cause irreparable dama- ge to it. You should therefore always obser- ve the following instructions for treatment and cleaning of the set.

  • Page 37: Technical Data

    16. Technical data Mains voltage: 220 - 240 V ˜ 50 Hz Antenna input: 75 Ohms asymmetrical DIN 45325 Tuning range: Standard channels 2 - 12, 21 - 69 Special channels S1 - S20, S21 - S41 S42 ... S46 (Belgium: channels OIR) Power consumption:...

  • Page 38: Disposal Of Batteries

    Disposal of batteries Dry or rechargeable batteries should never be discarded as normal garbage! Please use the local facilities for the disposal of exhausted batteries. Make sure the batteries are fully discharged befo- re disposal. The batteries are generally fully discharged when the unit in which they are used - switches itself off or indicates "Battery flat"...

  • Page 39: Troubleshooting

    Problem Possible cause Remedy The TV set does not • There is an obstacle between • Remove the obstacle. react to commands the remote control and the TV from the remote con- set. trol. • Ensure that the sun does •...

  • Page 40: Code List

    Code list BLACK PANTHER Codes Video BLAUPUNKT etz VG61 VF21, VF44, VF46 VF61, VE21, VE43 BONDSTEC VE44, VE45, VD21 BONDSTECBRANDT VD43, VD44, VD45 BRANDT ELECTRONIQUE 503 VC21, VC43, VC44 BRAUN VC62, 21VB11 BRIONVEGA 42VB12, 21VA12 BROKSONIC 21VA13, 42VA11 BRUNS 64VA14, 9836,9837 BUSH 9847, 9874, 9875 ALIN...
  • Page 41 Code list ENSEN JETPOINT ETZUKO EUROPHON EXPERT JVC_LCD ERGUSON AISER KAISUI FIDELITY KAPSCH FINLUX KARCHER FIRST LINE KENDO FISHER KENWOOD FUNAI KLIT KODAK KORPEL KUBA GELOSO EYCO GITEM GOLDHAND LIESENKOTTER GOLDSTAR LLOYD LLOYD’S GOODMANS LOEWE LOEWE OPTA GRAETZ LOGIK GRANADA LUXOR GRANDIN AGNADYNE...
  • Page 42 Code list QUELLE NESCO NIKKAI NIKKO NOBLIKO NOKIA QUESTAR ADIALVA RADIOLA RADIONETTE RADIX RANDEX RANDIU NOVATRONIC RANK/BUSH/MURPHY CEANIC OKANO REALISTIC OLYMPIC REDIFFUSION OLYMPUS ORION RICOH ROADSTAR ROYAL OTTO VERSAND SABA SABA SAISHO SALORA SALORA PALLADIUM SAMBERS PANASONIC SAMEX SAMSUNG PATHE MARCONI SANKY PAXSONIX SANSUI...
  • Page 43 Code list SIEMENS TRIAD TRIX SILMA SILVA ULTRAVOX SINGER SINUDYNE UNITECH SOLAVOX UNITED SONOKO UNIVERSUM SONOLOR SONTEC SONY UNIVOX ICTOR SR1000 VIDEOMASTER VIDEOPLUS SUNWOOD VIDEOSONIC SYLVANIA VIEWMARK SYMPHONIC VIEWMAX AISHO ARDS TALENT WEGAVOX TANDBERG WELTBLICK TANDY WHITE WESTINGHOUSE 450 TASHIKO WINSTON TATUNG WIZJA...
  • Page 44 Code list DIORA ABWAVE DUAL LINN ISCHER LOEWE ARANTZ OLDSTAR MbyN GOODMANNS MEDIENCOM GOODMANS MEDION GRUNDIG MEGATON MUSTEK ARMAN KARDON MYRYAD HITACHI NTERSOUND NONAME NKYO ORION ANASONIC PHILIPS ENWOOD PIONEER KRELL PROLINE LUXMAN AMSUNG SCHAUB LORENZ ETZ HE11 SCHNEIDER MARANTZ MATSUI SHERWOOD MEDION...
  • Page 45 Code list REVOX DENON REVOX/STUDER ROTEL DIORA DUAL SAMSUNG SANSUI ISCHER SANYO SCHNEIDER OLDSTAR GOODMANNS GOODMANS GRUNDIG ARMAN KARDON HITACHI SHARP SHERWOOD SIEMENS ENWOOD SINOTEC SINOTEC (PEPSI-DOSE) 892 LUXMAN SONY ETZ HE11 MARANTZ SUPERTECH SYLVANIA NAKAMICHI NOKIA T+A ELECTROAKUSTIK 882 KANO TECHNICS ONKYO...
  • Page 46 Code list NAKAMICHI NONAME SONY KANO ONKYO ALLADIUM T+A ELEKTROAKUSTIK 961 PANASONIC TECHNICS PHILIPS THOMSON PIONEER NIVERSUM EVOX REVOX/STUDER AMAHA RADMOR ROTEL Codes HIFI - Tuner AMSUNG SANYO AKAI SCHNEIDER AMSTRAD ASWO ANG & OLUFSEN BUSH AEWOO SHARP DENON SHERWOOD SIEMENS DIORA DUAL...
  • Page 47 Code list SAMSUNG ANG & OLUFSEN SANYO BRAUN SCHNEIDER BUSH AEWOO DENON DIORA DUAL ISCHER SHARP SHERWOOD RUNDIG SIEMENS GOODMANNS GOLDSTAR ARMAN KARDON HITACHI SINOTEC SINOTEC (PEPSI-DOSE) 786 SONY SUPERTECH T+A ELEKTROAKUSTIK 774 ENWOOD TECHNICS TENSAI LUXMAN THOMSON ETZ HE11 MARANTZ UNIVERSUM MEDION...
