American DJ Duo Station User Instructions

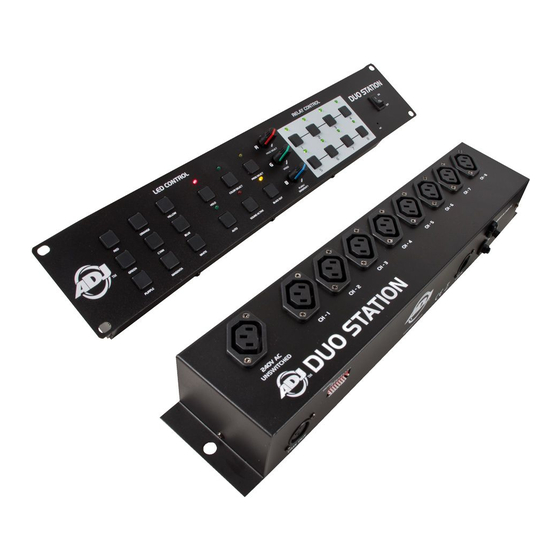

The American DJ Duo Station features two controllers in one. One side is a basic 3-channel RGB
LED controller, while the other side is an 8-channel On/Off switching system. The Duo Station has
seperate outputs on the rear control panel so each side runs independently from the other. It's the
ideal control solution for DJs, bands, small night clubs, and bars that want a simple LED control and
On/Off control of effect type lights.

MAIN FEATURES:

LED Control Features:
• 9 Static Color Buttons
• Color Select Button
• 10 Chase Programs
• Sound Active
Relay Control Features:
• 8 On/Off Dipswitches to control channels 1-8
Duo Station Controller
1
Front
Rear
Controls & Functions - Front
1. STATIC COLOR - This button will let you choose a built-in color.
2. HOLD BUTTON - When this button is active all buttons and knobs will be inactive.
3. COLOR SELECT - Press this button to activate the COLOR MODE. When this mode is active
you can press one or two of the 9 Color Buttons or use the knobs to create your own color to
remain static.
2 3 4
13 12 11
16
American DJ - www.americandj.com - Duo Station
© ®
USER INSTRUCTIONS
5 6
10 9
15
8 7
14
