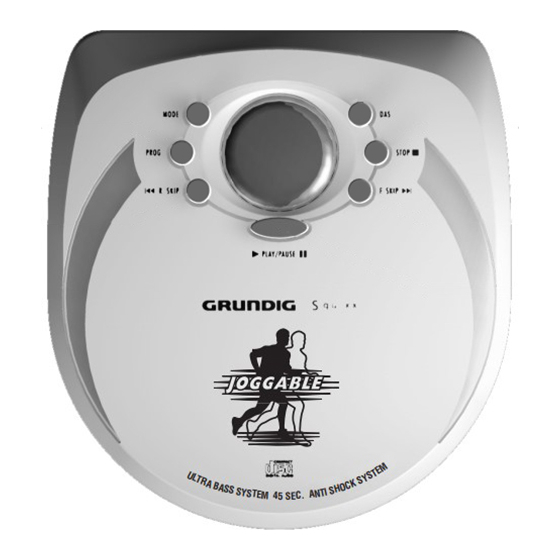

PORTABLE CD-PLAYER
Squixx
CDP 4200 AS 45

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SQUIXX CDP 4200 AS 45 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grundig SQUIXX CDP 4200 AS 45

Summary of Contents for Grundig SQUIXX CDP 4200 AS 45

  • Page 1 PORTABLE CD-PLAYER Squixx CDP 4200 AS 45...
  • Page 2 ___________________________________________________________________ 4 Besonderheiten 10 Grundfunktionen DEUTSCH 5 Sicherheit 11 Zusatz-Funktionen 6 Auf einen Blick 12 Musikprogramm erstellen 8 Stromversorgung 13 Informationen 9 Vorbereiten 114 Service 15 Special features 21 Basic functions ENGLISH 16 Safety 22 Additional functions 17 Overview 23 Creating a track memory 19 Power supply 24 Information 20 Preparation...

  • Page 3: Package Contents

    4.5 Volt power supply/charger (for battery operation) Operating manual Squixx CDP 4200 AS 45 The Squixx CDP 4200 AS 45 is a portable CD player with an extremely robust anti-shock system which has been specially designed for outdoor sports. The anti-shock system ensures uninterrupted music playback even during sporting activities and under extreme conditions.

  • Page 4: Maintenance

    SAFETY ___________________________________________________ Safety °C °C To ensure that this device provides you with long-term satisfaction and enjoyment, please observe the following instructions: This device is designed for the playback of audio signals. Any other use is expressly prohibited. You must make sure that the device is protected from moisture such as rain or water splashes.
  • Page 5 OVERVIEW ___________________________________________ Operating controls on the top of the device MODE STOP 5 PROG 8 R SKIP F SKIP 9 R PLAY/PAUSE $ Switches the digital anti-shock system on and off. Press once to end CD playback STOP Press twice to switch off the device s s s 6 F.SKIP Press briefly to select the next track Hold down to search for a particular passage...

  • Page 6: The Display

    OVERVIEW ____________________________________________ Controls and connections on the side DC IN 4.5V PHONES LINE OUT ß LOCK VOLUME IIIIIIIR OPEN External power supply socket (4.5 V) DC IN 4.5 V +>- LINE OUT Audio signal output for CD playback via a HiFi system Adjusts the volume VOLUME...

  • Page 7: Power Supply

    POWER SUPPLY ___________________________________ Mains operation (with mains adapter) Note: Check if the mains voltage on the mains adapter type plate corresponds to your local mains supply. The only way to disconnect the device from the mains supply is to unplug the adapter. Only unplug the mains adapter from the socket when you are not using the device.

  • Page 8: Connecting The Headphones

    PREPARATION ______________________________________ Connecting the headphones. Connect the headphones to the » PHONES« socket (ø 3.5 mm). Note: Excessive volume can be dangerous to yourself and other road users. Listen at a volume which still allows you to hear outside noises such as horns, emergency vehicles and police cars.

  • Page 9: Basic Functions

    BASIC FUNCTIONS ______________________________ Digital anti-shock system (DAS) The anti-shock system reads the data on the CD 45 seconds in advance. This prevents interruptions to playback due to shocks and vibrations. Press »DAS« to switch on the anti-shock system. – Display: » «...

  • Page 10: Additional Functions

    ADDITIONAL FUNCTIONS _________________ Repeating a track Press »MODE« once during playback. – Display: » 1« and the track is repeated. 00 0 I I«. To quit this function, press » STOP Repeating the whole CD ( REPEAT Press »MODE« twice during playback. –...
  • Page 11 CREATING A TRACK MEMORY _________ This function enables you to save up to 20 tracks on the current CD in a cer- tain order and then play them back in that sequence. The same track may be saved more than once. Selecting and saving tracks Insert the CD and press »...

  • Page 12: Technical Data Power Supply

    INFORMATION _____________________________________ Playback via a HiFi system Turn down the volume on the HiFi. Plug a standard cinch cable into the »LINE OUT« socket on the device and the audio input on the HiFi system. Note: You can set the volume and tone on the HiFi system. Information This device is noise-suppressed according to the applicable EC directives.

  • Page 13: Troubleshooting

    INFORMATION _______________________________________ Troubleshooting If a problem occurs, first refer to this information before you take the device for repair. If you are unable to rectify the fault using the information given here, contact your local dealer or service specialist. Under no circumstances should you attempt to repair the device yourself, as this would invalidate the guarantee.

  • Page 14: Grundig Kundenberatungszentrum

    Unser Kundenberatungszentrum steht Ihnen werktags stets von 8.00 – 19.00 Uhr zur Verfügung. Montags bis Freitags Haben Sie Fragen zur Umweltverträglichkeit unserer von 8.00 bis 19.00 Uhr Geräte, wenden Sie sich an die GRUNDIG Deutschland: 0180 / 530 21 22* Öko-Technologie, Fax: 0911/703-9213. Österreich: 0800 / 700 600* *gebührenpflichtig...
  • Page 15 Grundig AG • Beuthener Str. 41 • D-90471 Nürnberg • http://www.grundig.com 72011 402 2000...
