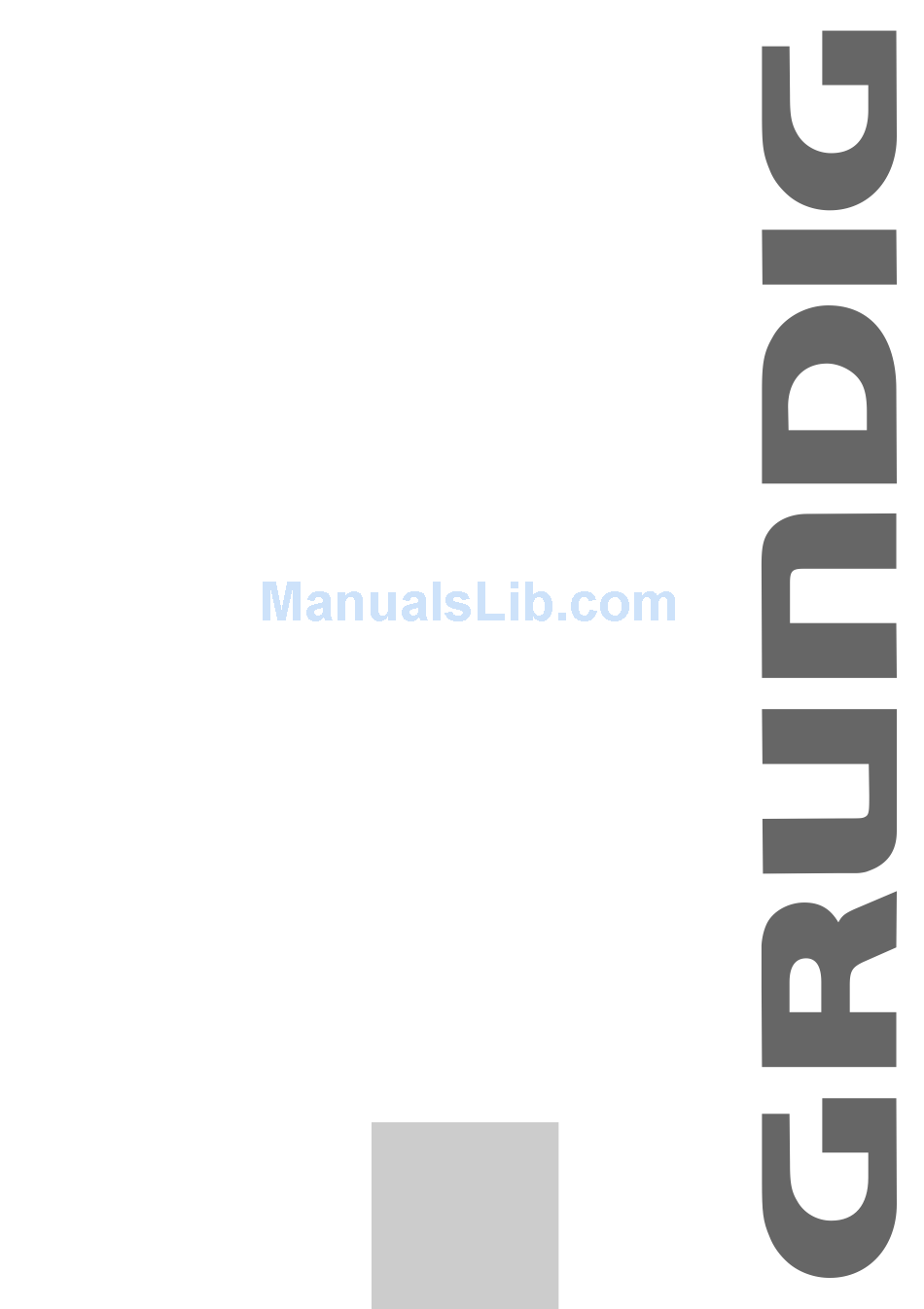

- Page 1 PORTABLE MP3/CD PLAYER Mystixx CDP 9400 SPCD...
-
Page 2: Information And Safety
INFORMATION AND SAFETY ____________ ENGLISH Safety To ensure that this device provides you with long-term satisfaction and enjoyment, please observe the following instructions. This device is designed for the playback of audio signals. PORTABLE MP3 CD PLAYER Any other use is expressly prohibited. Please ensure that the device is protected from moisture (dripping or splash- ing water), direct sunlight and heat. - Page 3 OVERVIEW ____________________________________________ Special features of your MP3/CD player – CD-MP3 playback; CD-RW, CD-R, CD-DA playback; multi-session CD playback. – MPEG 1 (ISO/IEC 11172-3) Layer 3: supports all MEPG bit rates, includ- ing free formats; supports 32/44.1/48 kHz sampling frequency. – MPEG 2 (ISO/IEC 13818-3) Layer 3: supports all MEPG bit rates, except for 8kpbs and free formats;...
- Page 4 OVERVIEW _________________________________________________ VOL – VOL + OPEN HOLD In MP3 or CD-DA mode: press briefly to select the previous track or the previous file or directory. Hold down to start the rapid search backwards. In MP3 or CD-DA mode: press briefly to end CD play- back.
-
Page 5: The Remote Control
OVERVIEW _________________________________________________ The remote control In MP3 or CD-DA mode: switch- es the device on and starts CD MODE/PRG/SHOW playback when the CD is in the VOL + VOL – STOP or PAUSE position. Switch- es to pause. 5 a s 6 In MP3 or CD-DA mode: press MODE/PRG briefly to select the... - Page 6 OVERVIEW _________________________________________________ The remote control display Ö O6 - 087 Appears when the rechargeable batteries Ö become weak. In MP3 or CD-DA mode: a track memory is created or played back. The anti-shock system is switched on. The search function to the file or directory level is activated.
- Page 7 POWER SUPPLY ___________________________________ Mains operation (with mains adapter) Notes: Check if the mains voltage on the mains adapter type plate corresponds to your local mains supply. The only way to disconnect the device from the mains supply is to unplug the adapter. Only unplug the mains adapter from the socket when you are not using the device.
-
Page 8: General Information
GENERAL INFORMATION __________________ Connecting the earphones and the remote control Connect the earphones to the » 0« socket on the remote control (ø 3.5 mm). Connect the remote control to the » 0« socket on the CD player. Notes: You can also connect the earphones directly to the device. If you do this, however, the remote control will not work. -
Page 9: Disabling And Enabling The Buttons
GENERAL INFORMATION ______________________________ Disabling and enabling the buttons You can lock the buttons on the device to prevent them from being acciden- tally pressed. To lock, slide the »HOLD « switch on the device towards » «. To unlock, push back the sliding switch »HOLD «... -
Page 10: Basic Functions
BASIC FUNCTIONS ______________________________ Inserting a CD The device is suitable for music CDs displaying the logo shown here (CD-DA) and for CD-Rs and CD-RWs with audio data or MP3 formats. As well as standard 12 cm CDs, it can also play 8 cm CDs without an adapter. -
Page 11: Mp3 Mode
BASIC FUNCTIONS ______________________________________ MP3 mode In MP3 mode, the terms “directory” and “file” are very important. “Directory” corresponds to a folder on a PC, “File” to a file on a PC or a CD-DA track. When naming files in MP3 format, do not use any special characters as they will not appear on the display. - Page 12 BASIC FUNCTIONS ______________________________________ Selecting another file or track During playback, keep pressing » « or » « until the number of the 01 - 006 file or track you want to hear appears in the display. – Playback of the selected file or track starts automatically. Searching for a passage within a file or track During playback, press »...
-
Page 13: Additional Functions
ADDITIONAL FUNCTIONS _________________ Repeating a file or track During playback, press »MODE/PRG/SHOW« once. – Display: » «. 003 00:25 – The track is played back repeatedly. Press »MODE/PRG/SHOW« repeatedly to return to normal play- back. – The » « indicator goes out. Repeating a directory (MP3 only) During playback, press »MODE/PRG/SHOW«... - Page 14 TRACK MEMORY _________________________________ This function enables you to save up to 64 files or tracks on the current CD in a particular order and then play them back. You can save the same file or track a number of times. Selecting and saving files or tracks Insert the CD, if necessary switch on by pressing »...
-
Page 15: Technical Data
INFORMATION _____________________________________ Playback via a HiFi system Turn down the volume on the HiFi. Plug a standard cinch cable with a 3.5 mm stereo jack plug into the »LINE OUT« socket on the device and the audio input on the HiFi system. -
Page 16: Troubleshooting
INFORMATION ___________________________________________ Troubleshooting If a problem occurs, first refer to this information before you take the device for repair. If you are unable to rectify the fault using the information given here, contact your local dealer or service specialist. Under no circumstances should you attempt to repair the device yourself, as this would invalidate the guarantee.
