Summary of Contents for Scag Power Equipment STC48V-23CV

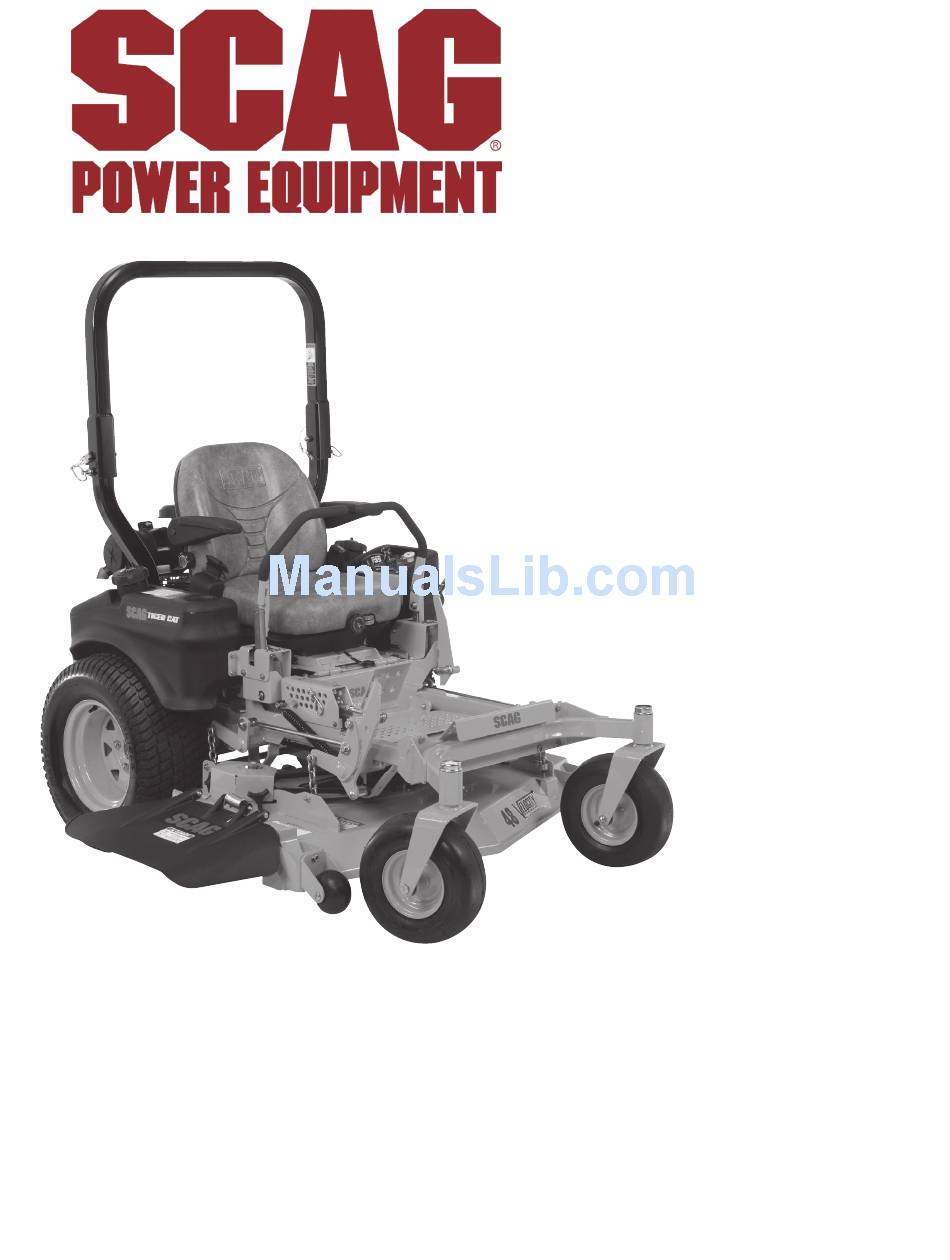

Page 1 STC61V-25CV STC61V-27BS STC61V-26CV-EFI Congratulations on owning a Scag mower! This manual contains the operating instructions and safety information for your Scag mower. Reading this manual can provide you with assistance in maintenance and adjustment procedures to keep your mower performing to maximum efficiency. The specific models that this book covers are listed on the inside cover.
Page 2 OPERATION, TRANSPORT, MAINTENANCE, AND STORAGE OF THE EqUIPMENT. This manual covers the operating instructions and illustrated parts list for: STC48v-22FS with a serial number of J8700001 to J8799999 STC48v-23Cv with a serial number of J8800001 to J8899999 STC52v-22FX with a serial number of...
Page 3: Table Of Contents
Table of Contents Table of Contents SECTION 1 - GENERAL INFORMATION ...................1 1.1 INTRODUCTION ............................1 1.2 DIRECTION REFERENCE ...........................1 1.3 SERVICING THE ENGINE AND DRIVE TRAIN COMPONENTS ..............1 1.4 SYMBOLS ..............................2 SECTION 2 - SAFETY INFORMATION ..................3 2.1 INTRODUCTION ............................3 2.2 SIGNAL WORDS ............................3 2.3 BEFORE OPERATION CONSIDERATIONS ....................3 2.4 OPERATION CONSIDERATIONS ........................4...
Page 4 Table of Contents SECTION 6 - ADJUSTMENTS ....................22 6.1 PARKING BRAKE ADJUSTMENT ......................22 6.2 TRAvEL ADJUSTMENTS ..........................22 6.3 THROTTLE CONTROL AND CHOKE ADJUSTMENTS ................24 6.4 BELT ADJUSTMENT ..........................24 6.5 BELT ALIGNMENT .............................24 6.6 CUTTER DECK ADJUSTMENTS ......................24 6.7 CUSTOM-CUT BAFFLE ADJUSTMENT ....................26 6.8 ELECTRIC CLUTCH ADJUSTMENT ......................27 SECTION 7 - MAINTENANCE...
Page 5: General Information
Attachments and accessories manufactured by companies industry. However, the prolonged life and maximum other than Scag Power Equipment are not approved for use efficiency of your mower depends on you following the on this machine. See Section 8, Paragraph 8-1.
Page 6: Symbols
Section 1 SYMBOLS SYMBOL DESCRIPTION SYMBOL DESCRIPTION Choke Transmission Parking Brake Spinning Blade 48071S On/Start Spring Tension on Idler Off/Stop Falling Hazard Thrown Object Hazard Fast Slow Continuously Variable - Linear Cutting Element - Basic Symbol Pinch Point Cutting Element - Engage 481039S Hour meter/Elapsed Operating Hours Cutting Element - Disengage...
Page 7: Safety Information
Equipment, Service Department at P.O. Box 152, Mayville, The signal word “CAUTION” is a reminder of safety practices WI 53050 or contact us via the Internet at www.scag.com. on or near the machine that could result in personal injury The manual for this machine can be downloaded by using if proper precautions are not taken.
Page 8: Operation Considerations
A Spanish decal kit is available open flames and sparks away from the fuel tank and for this model. See your local Scag Dealer. fuel container. Use only approved containers. DO NOT wear loose fitting clothing. Loose clothing, See Section 7.5 ENGINE FUEL SYSTEM for fueling...
Page 9 Section 2 Reduce speed and exercise extreme caution on NEVER raise the deck with the blades engaged. slopes and in sharp turns to prevent tipping or loss Take all possible precautions when leaving the of control. Be especially cautious when changing machine unattended, such as disengaging the directions on slopes.
Page 10: Roll-Over Protection System
Section 2 Use care when approaching blind corners, shrubs, Lower the roll bar only when absolutely necessary. trees, or other objects that may obscure vision. To lower the roll bar, remove the hairpin cotter pins NEVER leave the machine running unattended. and remove the two (2) lock pins.
Page 11 Section 2 WARNING Failure to properly inspect and maintain the seat belt can cause serious injury or loss of life. Check the full length of the seat belt webbing for cuts, wear, fraying, dirt and stiffness. See Figure 2-3. Figure 2-4. Slope Angle Graph Check the seat belt webbing in areas exposed to ultra violet rays from the sun or extreme dust or...
Page 12: Maintenance Considerations & Storage
Check blade If you need service on your hydraulic system, mounting bolts frequently to be sure they are tight. please see your authorized Scag dealer. Do not change the engine governor settings or overspeed the engine. See the engine operator's Let the engine cool before storing.
Page 13: Safety And Instructional Decals
Section 2 SAFETY AND INSTRUCTIONAL DECALS WARNING INSTALL BELT COvER BEFORE OPERATING MACHINE READ OPERATOR'S MANUAL 483402 FORWARD 483407 REvERSE 481568 WARNING Operation of this equipment may create sparks that can start res around dry vegetation. A spark arrestor may be required. 483633 The operator should contact local re agencies for laws...
Page 14: Specifications
Scag Model STC52V-25CV, STC61V-25CV ...................Kohler CV740 Scag Model STC52V-25CV-EFI ......................Kohler ECV730 Scag Model STC61V-23FX ......................Kawasaki FX730V Scag Model STC61V-26CV-EFI ......................Kohler ECV749 Scag Model STC61V-27BS ....................Briggs & Stratton 49M977 Displacement: Kohler 23CV, 25CV (CV730, CV740) ......................... 725cc Kohler ECV730, ECV740 ........................... 747cc Kawasaki 22FS, 22FX, 23FX (FS651V, FX691V, FX730V) ................
Page 15: Cutter Deck
Acres Per Day ................18.6 ......20.2 ........23.7 The preceding chart will aid you in determining how many acres your Scag mower will cut per day. The chart is an estimate based on 8 hours per day cutting time at 6 MPH with a 20% allowance for overlap and turns.
Page 16: Operating Instructions
Section 4 OPERATING INSTRUCTIONS Mower Deck Switch (Figure 4-1). Used to engage CAUTION and disengage the mower drive system. Pulling up on the switch will engage the deck drive. Pushing down on the switch will disengage the deck drive. Do not attempt to operate this mower unless you Engine Choke Control (Figure 4-1).
Page 17: Safety Interlock System
Section 4 Fuse Holders (Figure 4-1). Deck Release Lever (Figure 4-1). Two 20-amp fuses Used to lock the protect the mower’s electrical system. To replace cutter deck in the transport position. Push the foot fuses, pull fuse out of the socket and install a new pedal forward and pull back on the release lever to fuse.
Page 18: Starting The Engine
Section 4 STARTING THE ENGINE Learn to feather the steering controls to obtain a smooth operating action. Practice operating the mower until you are CAUTION comfortable with the controls before proceeding to mow. DO NOT USE STARTING FLUIDS. Use of starting FORWARD TRAvEL fluids in the air intake system may be potentially explosive or cause a “runaway”...
Page 19: Engaging The Deck Drive (Cutter Blades)
Section 4 REvERSE TRAvEL ENGAGING THE DECK DRIvE (CUTTER BLADES) CAUTION Set the throttle at about 3/4 speed. Do not attempt to engage the deck drive at high speed as this shortens the electric clutch life — use only moderate engine speed when engaging the deck drive.
Page 20: Hillside Operation
Section 4 HILLSIDE OPERATION AFTER OPERATION Wash the entire mower after each use. Do not WARNING use high pressure spray or direct the spray onto electrical components. - IMPoRtANt - DO NOT operate on steep slopes. To check a slope, attempt to back up it (with the cutter deck down).
Page 21: Moving Mower With Engine Stopped
Section 4 4.11 MOvING MOWER WITH ENGINE Keep mower and discharge chute clean. STOPPED When mowing wet or tall grass, mow the grass twice. Raise the mower to the highest setting for the first pass and then make a second pass to the desired To “free-wheel”...
Page 22: Towing (Optional Hitch Accessory)
Section 4 Insert the lanyard pin into the cutting height index at the desired cutting height. Push forward on the deck lift foot lever, hold in place and pull back on the deck release lever. See Figure 4-6. Slowly release the foot pedal.
Page 23: Troubleshooting Cutting Conditions
Section 5 TROUBLESHOOTING CUTTING CONDITIONS CONDITION CAUSE CURE STRINGERS - OCCASIONAL Low engine RPM Run engine at full RPM BLADES OF UNCUT GRASS Ground speed too fast Slow speed to adjust for conditions Wet grass Cut grass after it has dried out Dull blades, incorrect sharpening Sharpen blades Deck plugged, grass accumulation...
Page 24 Deck plugged, grass accumulation Clean underside of deck Too much blade angle (deck pitch) Adjust pitch and level Deck mounted improperly See your authorized SCAG dealer Bent spindle area See your authorized SCAG dealer Width of Deck Dull blade Sharpen blade...
Page 25 Blades not mounted evenly Adjust pitch and level OF CUTTING PATH Bent blade Replace blade Internal spindle failure See your authorized SCAG dealer Mounting of spindle incorrect See your authorized SCAG dealer Width of Deck SGB024 SLOPE CUT - SLOPING RIDGES...
Page 26: Adjustments
If the following procedures do not allow you to engage the parking Figure 6-1. Brake Adjustment brake properly, contact your Scag dealer for further brake adjustments. LOOSEN HERE Position a floor jack under the rear of the machine.
Page 27 Section 6 NEUTRAL ADJUSTMENT TRACKING ADJUSTMENT Be sure the dump valve levers are in the run position and the steering control levers are in the neutral lock CAUTION position. With an operator in the seat, start the engine and Stop the engine and remove the key from the disengage the parking brake.
Page 28: Throttle Control And Choke Adjustments
These adjustments must be performed by your Scag dealer common cutting height that you will use. On the RH side to ensure proper and efficient running of the engine.
Page 29 Section 6 CUTTER DECK PITCH CUTTER DECK HEIGHT The pitch of the cutter deck should be equal between The cutter deck height adjustment is made to ensure that the front and rear of the cutter deck for proper cutting the cutter deck is cutting at the height indicated on the performance.
Page 30: Custom-Cut Baffle Adjustment
Section 6 Check the cutter deck cutting height by placing the B. 4" (factory setting), 4-1/4" or 4-1/2" Position - (See lanyard pin in the 3" position on the cutting height Figure 6-9). For general purpose cutting. This gives the index.
Page 31: Electric Clutch Adjustment
Section 6 ELECTRIC CLUTCH ADJUSTMENT ADJUSTMENT NUTS The electric clutch serves two functions in the operation of the mower. In addition to starting and stopping the power flow to the cutter blades, the clutch also acts as a brake to assist in stopping blade rotation when the PTO is switched off or the operator presence circuit is interrupted.
Page 32: Maintenance
Section 7 MAINTENANCE MAINTENANCE CHART - RECOMMENDED SERvICE INTERvALS HOURS PROCEDURE COMMENTS BREAK-IN 100 200 500 (FIRST 10) Check all hardware for tightness Check hydraulic oil level See paragraph 7.3 C h e c k a l l b e l t s f o r p r o p e r See paragraph 7.8 alignment Check hydraulic fittings and hoses...
Page 33: Lubrication
Drain hydraulic system and Use SAE 20W50 Motor Oil. replace hydraulic oil See paragraph 7.3 Replace hydraulic oil filter See paragraph 7.3 Adjust electric PTO clutch See Scag Dealer LUBRICATION GREASE FITTING LUBRICATION CHART (SEE FIGURE 7-1) NO. OF LOCATION LUBRICATION INTERvAL LUBRICANT...
Page 34 Section 7 GREASE FITTING LUBRICATION Lubricant Interval Lithium MP White Grease 2125 (40 Hours/Weekly) Chassis Grease (100 Hours/Bi-monthly) Chassis Grease (200 Hours/Monthly) Chassis Grease (500 Hours/Yearly) Figure 7-1. Lubrication Fitting Points...
Page 35: Hydraulic System
Section 7 HYDRAULIC SYSTEM - IMPoRtANt - The hydraulic oil should be changed if you notice the presence of water or a rancid odor to the A. CHECKING HYDRAULIC OIL LEvEL hydraulic oil. The hydraulic oil level should be checked after the first 10 Park the mower on a level surface and stop the hours of operation.
Page 36: Engine Oil
Section 7 C. CHANGING HYDRAULIC OIL FILTER A. CHECKING ENGINE CRANKCASE OIL LEvEL ELEMENT The engine oil level should be checked after every 8 hours of operation or daily as instructed in the Engine Operator’s The hydraulic oil filter should be changed after every 500 Manual furnished with this mower.
Page 37: Engine Air Cleaner
Section 7 Replace gas cap and tighten securely. For Low FILLER NECK Emission (LE) and EPA Phase 3 (produced after INSERT 1/1/2011) models, tighten the fuel cap until it ratchets. B. REPLACING IN-LINE FUEL FILTER FUEL LEVEL ELEMENTS The engine fuel filter should be replaced after every 500 hours of operation or annually, whichever occurs first.
Page 38: Battery
Section 7 BATTERY A. CHARGING THE BATTERY Refer to the battery charger’s manual for specific WARNING instructions. Under normal conditions the engine’s alternator will have no problem keeping a charge on the battery. If the battery Lead-acid batteries produce flammable and has been completely discharged for a long period of time, explosive gases.
Page 39: Drive Belts
If you experience frequent belt wear or breakage, speed of the mower and causes extra wear on the see your authorized Scag service center for belt engine and the blade drive by pulling hard. adjustment.
Page 40: Tires
Section 7 C. BLADE REPLACEMENT HEX NUT-TORQUE TO 75 LB-FT WARNING Always wear proper hand and eye protection when SPINDLE working with cutter blades. SHAFT CUTTER DECK Remove the ignition key before replacing the blades. Raise the mower deck to the highest position. Place the lanyard pin in the highest cutting height position HEX HEAD to prevent the cutter deck from falling.
Page 41: Body, Deck, And Upholstery
Do not spray electrical components. Use a mild soap solution or a vinyl/rubber cleaner to clean the seat. Repair damaged metal surfaces using Scag touch- up paint available from your authorized Scag dealer. Wax the mower for maximum paint protection.
Page 42: Illustrated Parts List
Section 8 ILLUSTRATED PARTS LIST SCAG APPROvED ATTACHMENTS AND ACCESSORIES. Attachments and accessories manufactured by companies other than Scag Power Equipment are not approved for use on this machine. Scag approved attachments and accessories: • GC-3B (p/n 900S) - Requires a 900U (48/52 Install Kit) or 900V (61 STC Install Kit) •...
Page 43 Section 8 NOTES...
Page 44: 48V & 52V Cutter Decks
Section 8 48v & 52v CUTTER DECKS 64 60 62 61 59 58 66 63 6 7 8 5 25 STC 2012 CD4852 * 52" cutter deck has a notch for anti-scalp roller...
Page 45 Section 8 48v & 52v CUTTER DECKS Ref. Ref. Part No. Description 48 52 Part No. Description 48 52 43689 Idler Pivot 461854 Cutter Deck Velocity Plus 462359 Belt Cover Weldment RH (incl. #91) 461858 Cutter Deck Velocity Plus 462358 Belt Cover Weldment LH (incl.
Page 46: 61V Cutter Deck
Section 8 61v CUTTER DECK 64 60 62 61 "A" 59 58 66 63 "A" 2 80 6 7 8 5 25 STC 2012 CD61...
Page 47 Section 8 61v CUTTER DECK Ref. Ref. Part No. Description Part No. Description 461862 Cutter Deck Velocity Plus 483210 Idler Pulley, 5” Dia. 43687 Boss, Spring Anchor 48181 Idler Pulley, 5” Dia. 424371 Bracket, LH Spring Anchor 61V 424575 Belt Cover (61V) 481625-01 Wing Nut, 3/8-16 48926...
Page 48: Cutter Deck Controls
Section 8 CUTTER DECK CONTROLS CUTTER DECK STC 2006 CDC...
Page 49 Section 8 CUTTER DECK CONTROLS Ref. Part No. Description 482624 Rod, Deck Lift Linkage 04020-28 Nut, Jam 1/2-20 LH Thread 481766 Rod End, 1/2-20 Female Thread 04050-10 Retaining Ring, 1/2” External “E” 483062 Slide, Deck Height Adjust 43487 Pin, Deck Lift 423463 Bracket, Cutting Height Adjustment 04001-22...
Page 50: Sheet Metal Components
Section 8 SHEET METAL COMPONENTS 18 19 7 8 20 STC 2011 SMC...
Page 51 Pin Retainer, Spring 451658 Yoke, Front Caster Wheel (61”) 481389 Spring 04001-134 Bolt, Hex Head 1/2-13 x 7-1/2” Battery (not available through Scag) 04001-167 Bolt, Hex Head 1/2-13 x 9-1/2” (61”) 423571 Battery Cover 43581 Sleeve - 48” & 52”...
Page 52: Stc Foldable Roll-Over Protection System
Section 8 STC FOLDABLE ROLL-OvER PROTECTION SYSTEM 2011 STC ROPS...
Page 53 Section 8 STC FOLDABLE ROLL-OvER PROTECTION SYSTEM Ref. Part No. Description 462209 STC Foldable ROPS 484168 Pin Assembly (incl. #3 & #4) 484170 Spring, ROPS 484169 Clip, ROPS 04001-90 Bolt, Hex Head 1/2-13 x 3-1/4" 04021-19 Nut, Center Lock 1/2-13 484167 Spring Clip, ROPS 04021-19...
Page 54: Stc Suspension Seat
Section 8 STC SUSPENSION SEAT Ref. Part No. Description 922B Suspension Seat Assembly w/seat belt 484709 Armrest Kit, LH 484717 Seat Belt Kit 484711 Recliner Knob Kit 484710 Armrest Kit, RH 484712 Back Cover 481638 Seat Switch 484713 Track Kit 484714 Suspension Knob Kit 43572...
Page 55: Stc Soft Ride Seat W/Black Armrests
Section 8 STC SOFT RIDE SEAT W/BLACK ARMRESTS USED ON STC48v-22FS & STC61v-27BS MODELS Ref. Part No. Description 484752 Seat Assembly 484754 Armrest Kit, LH 484527 Seat Belt Kit 484528 Back Cover 484755 Armrest Kit, RH 484529 Cushion Cover 481638 Seat Switch 482937 Track Kit, 6”...
Page 56: Drive System Components
Section 8 DRIvE SYSTEM COMPONENTS STC 2005 DSC...
Page 57 Section 8 DRIvE SYSTEM COMPONENTS Ref. Part No. Description 04021-09 Nut, Elastic Stop 3/8-16 04019-04 Nut, Serrated Flange 3/8-16 483087 Spring, Pump Idler 43286 Spacer 04001-22 Bolt, Hex Head 3/8-16 x 2-3/4” 461603 Idler Arm Assy., Pump Drive 04063-14 Key, 5 x 5 x 25mm 483172 Belt, Transmission 483415...
Page 58: Engine & Attaching Parts
Section 8 ENGINE & ATTACHING PARTS 2014 STC EAP...
Page 59 Section 8 ENGINE & ATTACHING PARTS Ref. No. Part No. Description 484419 Engine, Kawasaki 22FS 484225 Engine, Kawasaki 22FX 484226 Engine, Kohler Command 484227 Engine, Kohler Command 484415 Engine, Kawasaki 23FX 485031 Engine, Kohler 25CV-EFI 484727 Engine, Kohler 26CV-EFI 484456 Engine, Briggs &...
Page 60: Steering Components
Section 8 STEERING COMPONENTS 29, 29A To Pump STC 2002 SSC...
Page 61 Section 8 STEERING COMPONENTS Ref. Part No. Description 484376 Grip, Control Lever 462401 Handle Bar (Includes item 1) 04001-32 Bolt, Hex Head 3/8-16 x 1-1/4” 04030-04 Lockwasher, 3/8” 04041-07 Flatwasher, 3/8-.391 x .938 x .105" 04040-15 Flatwasher, 5/16-.375 x .875 x .083" 04060-01 Roll Pin, Spring 5/32 x 3/4”...
Page 62: Brake Components
Section 8 BRAKE COMPONENTS 40 16 17 35 31 11 3 15 14 13 12 STC 2002 BSC...
Page 63 Section 8 BRAKE COMPONENTS Ref. Part No. Description 04019-06 Nut, Serr. Flange 1/2-13 48807 Spring 04001-08 Bolt, Hex Head 5/16-18 x 3/4” 04001-163 Bolt, Hex Head 1/2-13 x 3-3/4” 04001-52 Bolt, Hex Head 1/2-13 x 2-1/2” 04021-19 Nut, 1/2-13 Center Lock 482639 Wheel Motor, Parker 04063-25...
Page 64: Hydraulic System
Section 8 HYDRAULIC SYSTEM 3 45 20 19 STC 2011 HS...
Page 65 Section 8 HYDRAULIC SYSTEM Ref. Ref. Part No. Description Part No. Description 482643 Pump, BDP-10A-316 (LH) 48136-13 Clamp, .69" Max. / .25" Min. Dia. 482644 Pump, BDP-10A-419 (RH) 482800-02 Fitting, 9/16" O-Ring x 3/8" Hose 482266-01 Elbow, 90 Degree 9/16" O-Ring x 3/8" Hose 04019-03 Nut, Serr.
Page 66: Stc Fuel System
Section 8 STC FUEL SYSTEM To Fuel Pump To Engine Purge Port Tank Purge STC 2011 FS CARB TEIR 3...
Page 67 Section 8 STC FUEL SYSTEM Ref. Part No. Description 484286 Fuel Cap w/ Tethered 484297 Fuel Cap w/Tethered - California Models Only (not shown) 484279-01 Tube, Fuel Tank Insert 462383 Fuel Tank RH Low Perm. (incl. #7 & #8) 04030-03 Lockwasher, 5/16"...
Page 68: Electrical System
Section 8 ELECTRICAL SYSTEM STC 2011 ESKA...
Page 69 Throttle Control - Kohler (Qty 1) 481638 Switch, Seat 483599 Module, Interlock 04010-01 Screw, #10-32 x .5” Phillips Head 483665 Battery, 350CCA (Not Available Through Scag) 04001-44 Bolt, Hex Head 1/4-20 x .5” 04020-02 Nut, Hex 1/4-20 48029-15 Cable, Battery Black (negative) 48029-12...
Page 70: Electrical System - Kohler Efi
Section 8 ELECTRICAL SYSTEM - KOHLER EFI STC 2014 ESCV-EFI...
Page 71 Voltmeter 481638 Switch, Seat 483599 Module, Interlock 04010-01 Screw, #10-32 x .5” Phillips Head 483665 Battery, 350CCA (Not Available Through Scag) 04001-44 Bolt, Hex Head 1/4-20 x .5” 04020-02 Nut, Hex 1/4-20 48029-15 Cable, Battery Black (negative) 48029-12 Cable, Battery Red (positive)
Page 72: Bdp-10A Hydraulic Pump Assembly
Section 8 BDP-10A HYDRAULIC PUMP ASSEMBLY PORT "A" SIDE PORT "B" SIDE...
Page 73 Section 8 BDP-10A HYDRAULIC PUMP ASSEMBLY Ref. Part No. Description HG 70516 Housing Kit HG 70573 End Cap Kit HG 50641 Straight Headless Pin HG 50969 Hex Flange Bolt, M8-1.25 x 60mm HG 51232 Housing O-Ring HG 2513027 Charge Pump Kit HG 50273 Gerotor Assembly HG 9004101-1340...
Page 74: Replacement Decals And Information Plates
Section 8 REPLACEMENT DECALS AND INFORMATION PLATES 48404 Hea vy- Duty Comm e rcial 481971 FORWARD 483838 REvERSE WARNING 482100 WARNING INSTALL BELT COvER BEFORE OPERATING MACHINE 483900 READ OPERATOR'S MANUAL 483402 STC 2013 RDP1...
Page 75: Replacement Decals And Information Plates
Decal, Front Footplate 483405 Decal, Discharge Chute 482549 Decal, Cutting Height Top Row of Holes 461983 Spanish Decal Kit, STC / STWC (not shown) 01411 DVD Video, Tips for Safe Operation of Your Scag Zero-Turn Mower 483839 482166 STC 2009 RDP2...
Page 76: Electrical Schematic - Briggs & Stratton / Kohler
Section 8 ELECTRICAL SCHEMATIC - BRIGGS & STRATTON / KOHLER BRIGGS & STRATTON ADAPTER HARNESS SWITCH MAIN HARNESS RELAY ENGINE WHITE SWITCH ENGINE GROUND YELLOW YELLOW 20 AMP FUSES BRAKE SOLENOID SOLENOID INTERLOCK SWITCH SOLENOID "B+" KOHLER ADAPTER HARNESS RED W/YEL STRIPE ENGINE PLUG WHITE YELLOW...
Page 77: Electrical Schematic - Kawasaki
Section 8 ELECTRICAL SCHEMATIC - KAWASAKI SWITCH RELAY SWITCH KAWASAKI ADAPTER HARNESS - FX ENGINE WHITE RED W/YEL STRIPE 20 AMP YELLOW FUSES BRAKE GRN W/WHT STRIPE INTERLOCK MAIN HARNESS SWITCH BLACK KAWASAKI ADAPTER HARNESS - FS ENGINE GROUND L.H. NEUTRAL SWITCH SOLENOID BLACK...
Page 78: Electrical Schematic - Kohler Efi
Section 8 ELECTRICAL SCHEMATIC - KOHLER EFI SWITCH RELAY SWITCH BRAKE 20 AMP INTERLOCK FUSE SWITCH PINK L.H. NEUTRAL SWITCH ORANGE BROWN BLACK BLACK LIGHT BLUE MODULE GROUND BLACK BLACK PLUG WHITE BLACK GRN W/BLK STRIPE ENGINE SEAT ADAPTER SWITCH HARNESS CLUTCH R.H.
Page 79: Limited Warranty - Commercial Equipment
Cutter decks are warranted against cracking for a period of three (3) years. (parts and labor 1st and 2nd year; parts only 3rd year.) The repair or replacement of the cutter deck will be at the option of Scag Power Equipment. We reserve the right to request compo- nents for evaluation.
