Congratulations on owning a Scag mower! This manual contains the operating
instructions and safety information for your Scag mower. Reading this manual
can provide you with assistance in maintenance and adjustment procedures to
keep your mower performing to maximum efficiency. The specific models that
this book covers are listed on the inside cover. Before operating your machine,
please read all the information enclosed.
© 2013
Scag Power Equipment
Division of Metalcraft of Mayville, Inc.
OPERATOR'S
MANUAL

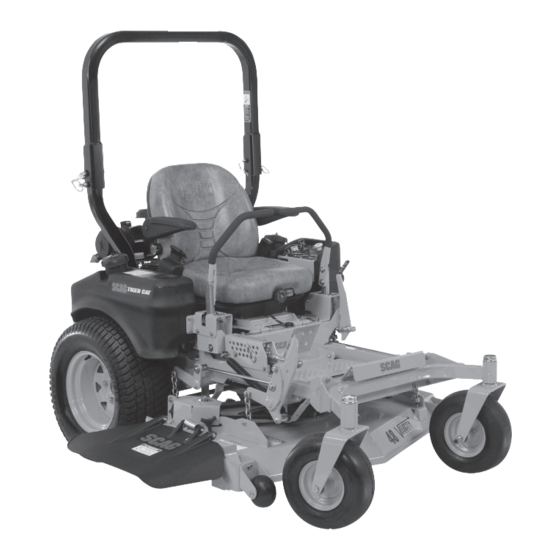

Tiger Cat
Models:
STC48V-651FS
STC48V-25CV
STC48V-27BS
STC52V-691FX
STC52V-27CV
STC61V-27CV
STC61V-730FX
STC61V-30BS
PART NO. 03324 Rev.01
PRINTED 2/2013
PRINTED IN USA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Scag Power Equipment Tiger Cat STC48V-651FS
Summary of Contents for Scag Power Equipment Tiger Cat STC48V-651FS
- Page 1 The specific models that this book covers are listed on the inside cover. Before operating your machine, please read all the information enclosed. © 2013 PART NO. 03324 Rev.01 Scag Power Equipment PRINTED 2/2013 Division of Metalcraft of Mayville, Inc. PRINTED IN USA...
- Page 2 WARNING FAILURE TO FOLLOW SAFE OPERATING PRACTICES MAY RESULT IN SERIOUS INJURY OR DEATH. • Read this manual completely as well as other manuals that came with your mower. • DO NOT operate on steep slopes. To check a slope, attempt to back up it (with the cutter deck down).
-
Page 3: Table Of Contents
Table of Contents Table of Contents SECTION 1 - GENERAL INFORMATION ...................1 1.1 INTRODUCTION ............................1 1.2 DIRECTION REFERENCE ...........................1 1.3 SERvICING THE ENGINE AND DRIvE TRAIN COMPONENTS ..............1 1.4 SYMBOLS ..............................2 SECTION 2 - SAFETY INFORMATION ..................3 2.1 INTRODUCTION ............................3 2.2 SIGNAL WORDS ............................3 2.3 BEFORE OPERATION CONSIDERATIONS ....................3 2.4 OPERATION CONSIDERATIONS ........................4... - Page 4 Table of Contents SECTION 6 - ADJUSTMENTS ....................22 6.1 PARkING BRAkE ADJUSTMENT ......................22 6.2 TRAvEL ADJUSTMENTS ..........................22 6.3 THROTTLE CONTROL AND CHOkE ADJUSTMENTS ................24 6.4 BELT ADJUSTMENT ..........................24 6.5 BELT ALIGNMENT .............................24 6.6 CUTTER DECk ADJUSTMENTS ......................24 6.7 CUSTOM-CUT BAFFLE ADJUSTMENT ....................26 6.8 ELECTRIC CLUTCH ADJUSTMENT ......................27 SECTION 7 - MAINTENANCE...
-
Page 5: General Information
Attachments and accessories manufactured by companies industry. However, the prolonged life and maximum other than Scag Power Equipment are not approved for use efficiency of your mower depends on you following the on this machine. See Section 8, Paragraph 8-1. -
Page 6: Symbols
Section 1 SYMBOLS SYMBOL DESCRIPTION SYMBOL DESCRIPTION Choke Transmission Parking Brake Spinning Blade 48071S On/Start Spring Tension on Idler Off/Stop Falling Hazard Thrown Object Hazard Fast Slow Continuously Variable - Linear Cutting Element - Basic Symbol Pinch Point Cutting Element - Engage 481039S Hour meter/Elapsed Operating Hours Cutting Element - Disengage... -
Page 7: Safety Information
Section 2 SAFETY INFORMATION INTRODUCTION DANGER Your mower is only as safe as the operator. Carelessness or operator error may result in serious bodily injury The signal word “DANGER” denotes that an extremely or death. Hazard control and accident prevention are hazardous situation exists on or near the machine that dependent upon the awareness, concern, prudence, and could result in high probability of death or irreparable injury... -
Page 8: Operation Considerations
Section 2 Clear the area to be mowed of objects that could be Fuel is flammable; handle it with care. Fill the fuel picked up and thrown by the cutter blades. tank outdoors. Never fill it indoors. Use a funnel or spout to prevent spillage. - Page 9 Section 2 Reduce speed and exercise extreme caution on NEVER raise the deck with the blades engaged. slopes and in sharp turns to prevent tipping or loss Take all possible precautions when leaving the of control. Be especially cautious when changing machine unattended, such as disengaging the directions on slopes.
-
Page 10: Roll-Over Protection System
Section 2 Use care when approaching blind corners, shrubs, Lower the roll bar only when absolutely necessary. trees, or other objects that may obscure vision. To lower the roll bar, remove the hairpin cotter pins NEVER leave the machine running unattended. and remove the two (2) lock pins. - Page 11 Section 2 WARNING Failure to properly inspect and maintain the seat belt can cause serious injury or loss of life. Check the full length of the seat belt webbing for cuts, wear, fraying, dirt and stiffness. See Figure 2-3. Figure 2-4. Slope Angle Graph Check the seat belt webbing in areas exposed to ultra violet rays from the sun or extreme dust or...
-
Page 12: Maintenance Considerations & Storage
Section 2 MAINTENANCE CONSIDERATIONS & WARNING STORAGE Never make adjustments to the machine with the Hydraulic fluid is under high pressure and can engine running unless specifically instructed to do penetrate skin causing injury. If hydraulic fluid so. If the engine is running, keep hands, feet, and is injected into the skin, it must be surgically clothing away from moving parts. -
Page 13: Safety And Instructional Decals
Section 2 SAFETY AND INSTRUCTIONAL DECALS WARNING INSTALL BELT COvER BEFORE OPERATING MACHINE READ OPERATOR'S MANUAL 483402 FORWARD 483407 REvERSE 481568 WARNING Operation of this equipment may create sparks that can start res around dry vegetation. A spark arrestor may be required. 483633 The operator should contact local re agencies for laws... -
Page 14: Specifications
Section 3 SPECIFICATIONS ENGINE General Type ....................Heavy Duty Industrial/Commercial Gasoline Brand ..........................Briggs & Statton, Kohler, Kawasaki Engine Model: Scag Model STC48V-651FS ......................Kawasaki FS651V Scag Model STC52V-691FX ......................Kawasaki FX691V Scag Model STC48V-25CV ........................Kohler CV730 Scag Model STC48V-27BS ....................Briggs & Stratton 44M777 Scag Model STC52V-27CV, STC61V-27CV ...................Kohler CV740 Scag Model STC61V-730FX ......................Kawasaki FX730V Scag Model STC61V-30BS ....................Briggs &... -
Page 15: Cutter Deck
Section 3 Wheels: (2) Front Caster (48"-52" Deck) ............13 X 5-6 Four-Ply w/Tapered Roller Bearing Pivots (2) Front Caster Wheel (61" Deck) ..........13 x 6.5-6 Four-Ply w/Tapered Roller Bearing Pivots (2) Drive - (48"-52" Deck) ..........23 X 9.50 X 12 Four-Ply Pneumatic Tubeless, Radius Edge (2) Drive - (61"... -
Page 16: Operating Instructions
Section 4 OPERATING INSTRUCTIONS Mower Deck Switch (Figure 4-1). Used to engage CAUTION and disengage the mower drive system. Pulling up on the switch will engage the deck drive. Pushing down on the switch will disengage the deck drive. Do not attempt to operate this mower unless you Engine Choke Control (Figure 4-1). -
Page 17: Safety Interlock System
Section 4 Fuse Holders (Figure 4-1). Deck Release Lever (Figure 4-1). Two 20-amp fuses Used to lock the protect the mower’s electrical system. To replace cutter deck in the transport position. Push the foot fuses, pull fuse out of the socket and install a new pedal forward and pull back on the release lever to fuse. -
Page 18: Starting The Engine
Section 4 STARTING THE ENGINE Learn to feather the steering controls to obtain a smooth operating action. Practice operating the mower until you are CAUTION comfortable with the controls before proceeding to mow. DO NOT USE STARTING FLUIDS. Use of starting FORWARD TRAvEL fluids in the air intake system may be potentially explosive or cause a “runaway”... -
Page 19: Engaging The Deck Drive (Cutter Blades)
Section 4 REvERSE TRAvEL ENGAGING THE DECk DRIvE (CUTTER BLADES) CAUTION Set the throttle at about 3/4 speed. Do not attempt to engage the deck drive at high speed as this shortens the electric clutch life — use only moderate engine speed when engaging the deck drive. -
Page 20: Hillside Operation
Section 4 HILLSIDE OPERATION AFTER OPERATION Wash the entire mower after each use. Do not WARNING use high pressure spray or direct the spray onto electrical components. - IMPoRtANt - DO NOT operate on steep slopes. To check a slope, attempt to back up it (with the cutter deck down). -
Page 21: Moving Mower With Engine Stopped
Section 4 4.11 MOvING MOWER WITH ENGINE Keep mower and discharge chute clean. STOPPED When mowing wet or tall grass, mow the grass twice. Raise the mower to the highest setting for the first pass and then make a second pass to the desired To “free-wheel”... -
Page 22: Towing (Optional Hitch Accessory)
Section 4 Insert the lanyard pin into the cutting height index at the desired cutting height. Push forward on the deck lift foot lever, hold in place and pull back on the deck release lever. See Figure 4-6. Slowly release the foot pedal. -
Page 23: Troubleshooting Cutting Conditions
Section 5 TROUBLESHOOTING CUTTING CONDITIONS CONDITION CAUSE CURE STRINGERS - OCCASIONAL Low engine RPM Run engine at full RPM BLADES OF UNCUT GRASS Ground speed too fast Slow speed to adjust for conditions Wet grass Cut grass after it has dried out Dull blades, incorrect sharpening Sharpen blades Deck plugged, grass accumulation... - Page 24 Section 5 TROUBLESHOOTING CUTTING CONDITIONS (CONT'D) CONDITION CAUSE CURE U N E v E N C U T O N F L AT Lift worn from blade Replace blade GROUND - WAvY HIGH-LOW APPEARANCE, SCALLOPED Blade upside down Mount with cutting edge toward ground CUT, OR ROUGH CONTOUR Deck plugged, grass accumulation Clean underside of deck...
- Page 25 Section 5 TROUBLESHOOTING CUTTING CONDITIONS (CONT'D) CONDITION CAUSE CURE SCALPING - BLADES HITTING Low tire pressures Check and adjust pressures DIRT OR CUTTING vERY CLOSE TO THE GROUND Ground speed too fast Slow speed to adjust for conditions May need to reduce ground speed, raise Cutting too low cutting height, change direction of cut, and/or change pitch and level...
-
Page 26: Adjustments
Section 6 ADJUSTMENTS PARkING BRAkE ADJUSTMENT STC2002BA WARNING Do not operate the mower if the parking brake LOOSEN HERE is not operable. Possible severe injury could BRAKE HANDLE result. The parking brake linkage should be adjusted whenever the parking brake lever is placed in the “ENGAGE” position and the parking brake will allow the mower to move. - Page 27 Section 6 NEUTRAL ADJUSTMENT TRACkING ADJUSTMENT Be sure the dump valve levers are in the run position and the steering control levers are in the neutral lock CAUTION position. With an operator in the seat, start the engine and Stop the engine and remove the key from the disengage the parking brake.
-
Page 28: Throttle Control And Choke Adjustments
Section 6 CUTTER DECk ADJUSTMENTS A. Stop the machine and place the steering control levers in the neutral position. Loosen the lock nuts securing the ball joints at each end of the RH steering Cutter deck level, pitch and height are set at the factory. control rod. - Page 29 Section 6 CUTTER DECk PITCH CUTTER DECk HEIGHT The pitch of the cutter deck should be equal between The cutter deck height adjustment is made to ensure that the front and rear of the cutter deck for proper cutting the cutter deck is cutting at the height indicated on the performance.
-
Page 30: Custom-Cut Baffle Adjustment
Section 6 Check the cutter deck cutting height by placing the B. 4" (factory setting), 4-1/4" or 4-1/2" Position - (See lanyard pin in the 3" position on the cutting height Figure 6-9). For general purpose cutting. This gives the index. -
Page 31: Electric Clutch Adjustment
Section 6 ELECTRIC CLUTCH ADJUSTMENT ADJUSTMENT NUTS The electric clutch serves two functions in the operation of the mower. In addition to starting and stopping the power flow to the cutter blades, the clutch also acts as a brake to assist in stopping blade rotation when the PTO is switched off or the operator presence circuit is interrupted. -
Page 32: Maintenance
Section 7 MAINTENANCE MAINTENANCE CHART - RECOMMENDED SERvICE INTERvALS HOURS PROCEDURE COMMENTS BREAk-IN 100 200 500 (FIRST 10) Check all hardware for tightness Check hydraulic oil level See paragraph 7.3 C h e c k a l l b e l t s f o r p r o p e r See paragraph 7.8 alignment Check hydraulic fittings and hoses... -
Page 33: Lubrication
Section 7 MAINTENANCE CHART - RECOMMENDED SERvICE INTERvALS (CONT'D) HOURS PROCEDURE COMMENTS BREAk-IN (FIRST 10) Apply grease to fittings See paragraph 7.2 Check hardware for tightness Change engine oil filter See paragraph 7.4 Check hydraulic oil level See paragraph 7.3 Replace engine fuel filter See paragraph 7.5 Drain hydraulic system and... - Page 34 Section 7 GREASE FITTING LUBRICATION Lubricant Interval Lithium MP White Grease 2125 (40 Hours/Weekly) Chassis Grease (100 Hours/Bi-monthly) Chassis Grease (200 Hours/Monthly) Chassis Grease (500 Hours/Yearly) Figure 7-1. Lubrication Fitting Points...
-
Page 35: Hydraulic System
Section 7 HYDRAULIC SYSTEM - IMPoRtANt - The hydraulic oil should be changed if you notice the presence of water or a rancid odor to the A. CHECkING HYDRAULIC OIL LEvEL hydraulic oil. The hydraulic oil level should be checked after the first 10 Park the mower on a level surface and stop the hours of operation. -
Page 36: Engine Oil
Section 7 C. CHANGING HYDRAULIC OIL FILTER A. CHECkING ENGINE CRANkCASE OIL LEvEL ELEMENT The engine oil level should be checked after every 8 hours of operation or daily as instructed in the Engine Operator’s The hydraulic oil filter should be changed after every 500 Manual furnished with this mower. -
Page 37: Engine Air Cleaner
Section 7 Replace gas cap and tighten securely. For Low FILLER NECK Emission (LE) and EPA Phase 3 (produced after INSERT 1/1/2011) models, tighten the fuel cap until it ratchets. B. REPLACING IN-LINE FUEL FILTER FUEL LEVEL ELEMENTS The engine fuel filter should be replaced after every 500 hours of operation or annually, whichever occurs first. -
Page 38: Battery
Section 7 BATTERY A. CHARGING THE BATTERY Refer to the battery charger’s manual for specific WARNING instructions. Under normal conditions the engine’s alternator will have no problem keeping a charge on the battery. If the battery Lead-acid batteries produce flammable and has been completely discharged for a long period of time, explosive gases. -
Page 39: Drive Belts
Section 7 DRIvE BELTS Check the cutter blades for gouges. If there are gouges on the top or bottom surfaces of the cutter blade, replace the cutter blade. All drive belts are spring-loaded and self-tensioning, however after the first 2, 4, 8 and 10 hours of operation, If a blade cutting edge is dull or nicked, it should be the belts should be checked for proper alignment and wear. -
Page 40: Tires
Section 7 C. BLADE REPLACEMENT HEX NUT-TORQUE TO 75 LB-FT WARNING Always wear proper hand and eye protection when SPINDLE working with cutter blades. SHAFT CUTTER DECK Remove the ignition key before replacing the blades. Raise the mower deck to the highest position. Place the lanyard pin in the highest cutting height position HEX HEAD to prevent the cutter deck from falling. -
Page 41: Body, Deck, And Upholstery
Section 7 7.11 BODY, DECk, AND UPHOLSTERY CAUTION Do not wash any portion of the equipment while it is hot. Do not wash the engine; use compressed air. After each use, wash the mower and cutter deck. Use cold water and automotive cleaners. Do not use pressure cleaners. -
Page 42: Illustrated Parts List
Section 8 ILLUSTRATED PARTS LIST SCAG APPROvED ATTACHMENTS AND ACCESSORIES. Attachments and accessories manufactured by companies other than Scag Power Equipment are not approved for use on this machine. Scag approved attachments and accessories: • GC-STC-V, GC-STC-61V (p/n 900F, p/n 900H) •... - Page 43 Section 8 NOTES...
-
Page 44: 48V & 52V Cutter Decks
Section 8 48v & 52v CUTTER DECkS 64 60 62 61 59 58 66 63 6 7 8 5 25 STC 2012 CD4852 * 52" cutter deck has a notch for anti-scalp roller... - Page 45 Section 8 48v & 52v CUTTER DECkS Ref. Ref. Part No. Description 48 52 Part No. Description 48 52 43689 Idler Pivot 461854 Cutter Deck Velocity Plus 462359 Belt Cover Weldment RH (incl. #91) 461858 Cutter Deck Velocity Plus 462358 Belt Cover Weldment LH (incl.
-
Page 46: 61V Cutter Deck
Section 8 61v CUTTER DECk 64 60 62 61 "A" 59 58 66 63 "A" 2 80 6 7 8 5 25 STC 2012 CD61... - Page 47 Section 8 61v CUTTER DECk Ref. Ref. Part No. Description Part No. Description 461862 Cutter Deck Velocity Plus 483210 Idler Pulley, 5” Dia. 43687 Boss, Spring Anchor 48181 Idler Pulley, 5” Dia. 424371 Bracket, LH Spring Anchor 61V 424575 Belt Cover (61V) 481625-01 Wing Nut, 3/8-16 48926...
-
Page 48: Cutter Deck Controls
Section 8 CUTTER DECk CONTROLS CUTTER DECK STC 2006 CDC... - Page 49 Section 8 CUTTER DECk CONTROLS Ref. Part No. Description 482624 Rod, Deck Lift Linkage 04020-28 Nut, Jam 1/2-20 LH Thread 481766 Rod End, 1/2-20 Female Thread 04050-10 Retaining Ring, 1/2” External “E” 483062 Slide, Deck Height Adjust 43487 Pin, Deck Lift 423463 Bracket, Cutting Height Adjustment 04001-22...
-
Page 50: Sheet Metal Components
Section 8 SHEET METAL COMPONENTS 18 19 7 8 20 STC 2011 SMC... - Page 51 Section 8 SHEET METAL COMPONENTS Ref. Ref. Part No. Description Part No. Description 462325 Main Frame Assembly w/decals 484195 Cap, Grease 04001-73 Bolt, Hex Head 5/16-18 x 3-3/4” 04021-20 Nut, Elastic Stop 1.0"-14 482625 Rim 48” & 52” (Includes Item 45) 48668 Bearing Set 482620...
-
Page 52: Stc Foldable Roll-Over Protection System
Section 8 STC FOLDABLE ROLL-OvER PROTECTION SYSTEM 2011 STC ROPS... - Page 53 Section 8 STC FOLDABLE ROLL-OvER PROTECTION SYSTEM Ref. Part No. Description 462209 STC Foldable ROPS 484168 Pin Assembly (incl. #3 & #4) 484170 Spring, ROPS 484169 Clip, ROPS 04001-90 Bolt, Hex Head 1/2-13 x 3-1/4" 04021-19 Nut, Center Lock 1/2-13 484167 Spring Clip, ROPS 04021-19...
-
Page 54: Stc Suspension Seat
Section 8 STC SUSPENSION SEAT Ref. Part No. Description 922B Suspension Seat Assembly w/seat belt 484709 Armrest Kit, LH 484717 Seat Belt Kit 484711 Recliner Knob Kit 484710 Armrest Kit, RH 484712 Back Cover 481638 Seat Switch 484713 Track Kit 484714 Suspension Knob Kit 43572... -
Page 55: Stc Soft Ride Seat W/Tan Armrests
Section 8 STC SOFT RIDE SEAT W/TAN ARMRESTS USED ON STC48v-27BS & STC48v-651FS MODELS Ref. Part No. Description 483386 Seat Assembly 04001-178 Bolt, Hex Head 7/16-20 x 1" 04040-11 Flatwasher, 7/16-.500 x 1.25 x .083 483412 Retractable Seat Belt 482618 Armrest, RH 482616 Cover, Armrest... -
Page 56: Stc Soft Ride Seat W/Black Armrests
Section 8 STC SOFT RIDE SEAT W/BLACk ARMRESTS USED ON STC48v-27BS, STC48v-651FS & STC61v-30BS MODELS Ref. Part No. Description 484752 Seat Assembly 484709 Armrest Kit, LH 484527 Seat Belt Kit 484528 Back Cover 484710 Armrest Kit, RH 484529 Cushion Cover 481638 Seat Switch 482937... - Page 57 Section 8 NOTES...
-
Page 58: Drive System Components
Section 8 DRIvE SYSTEM COMPONENTS STC 2005 DSC... - Page 59 Section 8 DRIvE SYSTEM COMPONENTS Ref. Part No. Description 04021-09 Nut, Elastic Stop 3/8-16 04019-04 Nut, Serrated Flange 3/8-16 483087 Spring, Pump Idler 43286 Spacer 04001-22 Bolt, Hex Head 3/8-16 x 2-3/4” 461603 Idler Arm Assy., Pump Drive 04063-14 Key, 5 x 5 x 25mm 483172 Belt, Transmission 483415...
-
Page 60: Engine & Attaching Parts
Section 8 ENGINE & ATTACHING PARTS 2013 STC EAP... - Page 61 Section 8 ENGINE & ATTACHING PARTS Ref. No. Part No. Description 484298 Engine, Kawasaki FS651V 484652 Engine, Briggs & Stratton 27BS 484225 Engine, Kawasaki FX691V 484226 Engine, Kohler Command 484227 Engine, Kohler Command 484415 Engine, Kawasaki FX730V 484456 Engine, Briggs & Stratton 30BS 423770 Bumper, Rear 424107...
-
Page 62: Steering Components
Section 8 STEERING COMPONENTS 29, 29A To Pump STC 2002 SSC... - Page 63 Section 8 STEERING COMPONENTS Ref. Part No. Description 484376 Grip, Control Lever 462401 Handle Bar (Includes item 1) 04001-32 Bolt, Hex Head 3/8-16 x 1-1/4” 04030-04 Lockwasher, 3/8” 04041-07 Flatwasher, 3/8-.391 x .938 x .105" 04040-15 Flatwasher, 5/16-.375 x .875 x .083" 04060-01 Roll Pin, Spring 5/32 x 3/4”...
-
Page 64: Brake Components
Section 8 BRAkE COMPONENTS 40 16 17 35 31 11 3 15 14 13 12 STC 2002 BSC... - Page 65 Section 8 BRAkE COMPONENTS Ref. Part No. Description 04019-06 Nut, Serr. Flange 1/2-13 48807 Spring 04001-08 Bolt, Hex Head 5/16-18 x 3/4” 04001-163 Bolt, Hex Head 1/2-13 x 3-3/4” 04001-52 Bolt, Hex Head 1/2-13 x 2-1/2” 04021-19 Nut, 1/2-13 Center Lock 482639 Wheel Motor, Parker 04063-25...
-
Page 66: Hydraulic System
Section 8 HYDRAULIC SYSTEM 3 45 20 19 STC 2011 HS... - Page 67 Section 8 HYDRAULIC SYSTEM Ref. Ref. Part No. Description Part No. Description 482643 Pump, BDP-10A-316 (LH) 48136-13 Clamp, .69" Max. / .25" Min. Dia. 482644 Pump, BDP-10A-419 (RH) 482800-02 Fitting, 9/16" O-Ring x 3/8" Hose 482266-01 Elbow, 90 Degree 9/16" O-Ring x 3/8" Hose 04019-03 Nut, Serr.
-
Page 68: Stc Fuel System
Section 8 STC FUEL SYSTEM To Fuel Pump To Engine Purge Port Tank Purge STC 2011 FS CARB TEIR 3... - Page 69 Section 8 STC FUEL SYSTEM Ref. Part No. Description 484286 Fuel Cap w/ Tethered 484297 Fuel Cap w/Tethered - California Models Only (not shown) 484279-01 Tube, Fuel Tank Insert 462383 Fuel Tank RH Low Perm. (incl. #7 & #8) 04030-03 Lockwasher, 5/16"...
- Page 70 Section 8 ELECTRICAL SYSTEM STC 2011 ESKA...
-
Page 71: Electrical System
Section 8 ELECTRICAL SYSTEM Ref. Part No. Description 484565 Hourmeter 48298 Fuse, 20 amp 483366 Key, Ignition 462069 Key Assembly w/Fob 48017-04 Nut, Hex 5/8-32 48017-03 Lockwasher, 5/8” Internal 461660 Electric PTO Clutch GT3.5 48798 Switch, Ignition 483957 Switch, PTO 483013 Relay 04031-01... -
Page 72: Bdp-10A Hydraulic Pump Assembly
Section 8 BDP-10A HYDRAULIC PUMP ASSEMBLY PORT "A" SIDE PORT "B" SIDE... - Page 73 Section 8 BDP-10A HYDRAULIC PUMP ASSEMBLY Ref. Part No. Description HG 70516 Housing Kit HG 70573 End Cap Kit HG 50641 Straight Headless Pin HG 50969 Hex Flange Bolt, M8-1.25 x 60mm HG 51232 Housing O-Ring HG 2513027 Charge Pump Kit HG 50273 Gerotor Assembly HG 9004101-1340...
-
Page 74: Replacement Decals And Information Plates
Section 8 REPLACEMENT DECALS AND INFORMATION PLATES 48404 Hea vy- Duty Comm e rcial 481971 FORWARD 483838 REvERSE WARNING 482100 WARNING INSTALL BELT COvER BEFORE OPERATING MACHINE 483900 READ OPERATOR'S MANUAL 483402 STC 2013 RDP1... - Page 75 Section 8 REPLACEMENT DECALS AND INFORMATION PLATES Ref. Part No. Description 483407 Decal, Danger-Spinning Blades 483406 Decal, Warning-Rotating Blades 483199 Decal, 48V 483200 Decal, 52V 483201 Decal, 61V 483158 Decal, ROPS 483900 Decal, Warning Spark Arrestor (California only) 482100 Decal, Traction Control 481971 Decal, Heavy Duty Commercial 48404...
-
Page 76: Electrical Schematic - Briggs & Stratton / Kohler
Section 8 ELECTRICAL SCHEMATIC - BRIGGS & STRATTON / kOHLER BRIGGS & STRATTON ADAPTER HARNESS SWITCH MAIN HARNESS RELAY ENGINE SWITCH ENGINE GROUND YELLOW YELLOW 20 AMP FUSES BRAKE SOLENOID SOLENOID INTERLOCK SWITCH SOLENOID "B+" KOHLER ADAPTER HARNESS RED W/YEL STRIPE ENGINE PLUG WHITE YELLOW... -
Page 77: Electrical Schematic - Kawasaki
Section 8 ELECTRICAL SCHEMATIC - kAWASAkI SWITCH RELAY SWITCH KAWASAKI ADAPTER HARNESS - FX ENGINE WHITE RED W/YEL STRIPE 20 AMP YELLOW FUSES BRAKE GRN W/WHT STRIPE INTERLOCK MAIN HARNESS SWITCH BLACK KAWASAKI ADAPTER HARNESS - FS ENGINE GROUND L.H. NEUTRAL SWITCH SOLENOID BLACK... -
Page 78: Limited Warranty - Commercial Equipment
Cutter decks are warranted against cracking for a period of three (3) years. (parts and labor 1st and 2nd year; parts only 3rd year.) The repair or replacement of the cutter deck will be at the option of Scag Power Equipment. We reserve the right to request compo- nents for evaluation. - Page 79 © 2013 Scag Power Equipment Division of Metalcraft of Mayville, Inc.
