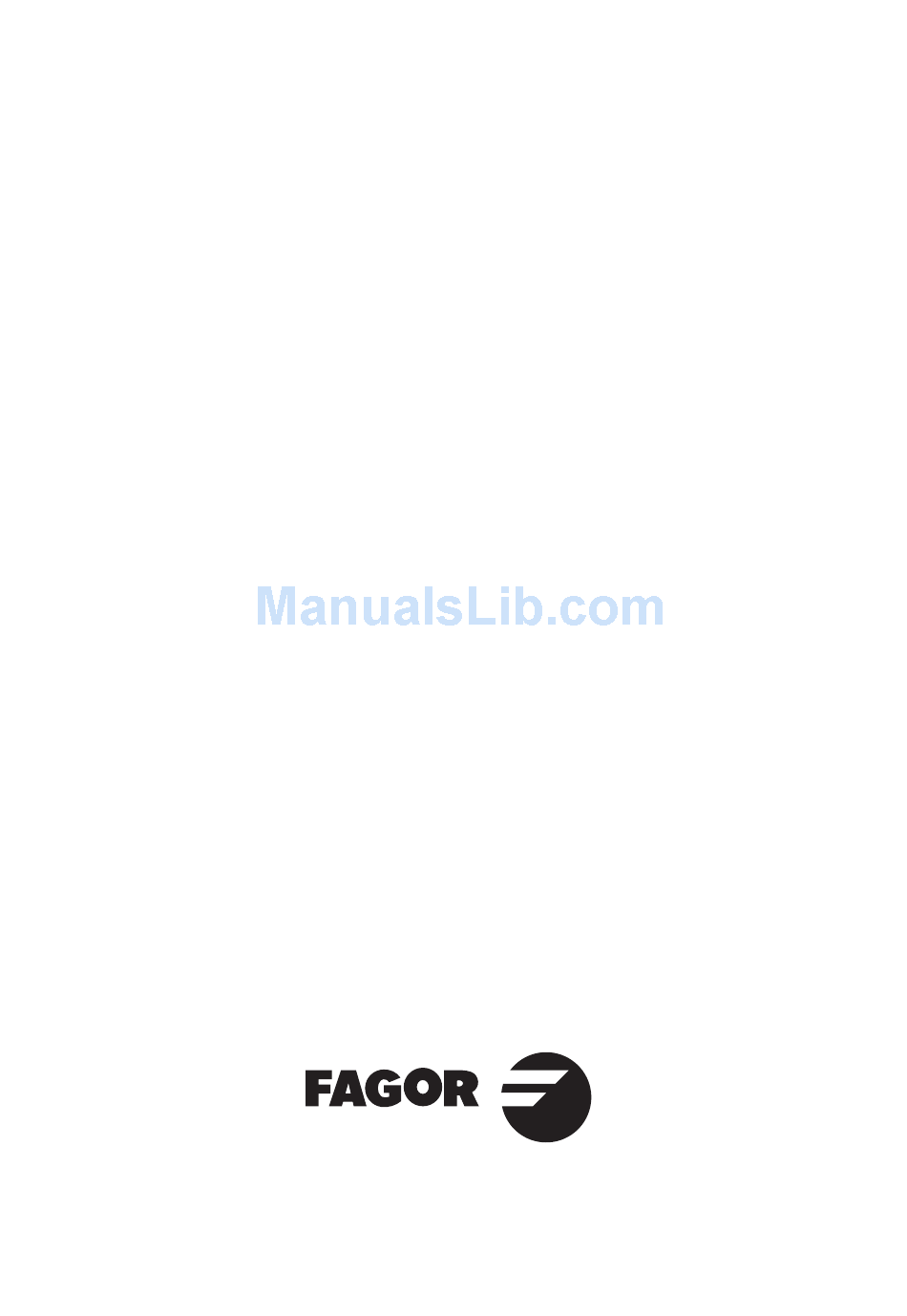

- Page 1 INSTALLATION AND USER GUIDE MANUAL DE INSTALACIÓN Y UTILIZACIÓN INSTALLATIE- EN GEBRUIKSGIDS Cooking hob Placa de cocción Kookplaat...
- Page 2 As part of our commitment to constantly improve our products, we reserve the right to alter their technical, functional and/or aesthetic characteristics as part of their continuous development. I I m m p p o o r r t t a a n n t t n n o o t t e e : Please read this Installation and User Guide carefully before installing and using the appliance, as this will help you to quickly familiarise yourself with its operation.
-
Page 3: Table Of Contents
TABLE OF CONTENTS • Safety guidelines ___________________________________________ 70 • Caring for the environment __________________________________ 71 • Description of your appliance ________________________________ 72 1 / INSTALLING YOUR APPLIANCE • Choice of location __________________________________________ 73 • Fitting ___________________________________________________ 73 • Flush Fitting recommendations _______________________________ 74 •... -
Page 4: Safety Guidelines
SAFETY GUIDELINES • — Before installation, make sure that the local distribution conditions (gas type and — This cooking hob has been designed for pressure) and the settings on the appliance private domestic use. are compatible. — This appliance must be installed in —... -
Page 5: Caring For The Environment
CARING FOR THE ENVIRONMENT • CARING FOR THE ENVIRONMENT — This appliance’s packing materials can be recycled. Please recycle the packaging and share in the protection of the environment by depositing them in municipal containers provided for this purpose. — Your appliance also contains many recyclable materials. -
Page 6: Description Of Your Appliance

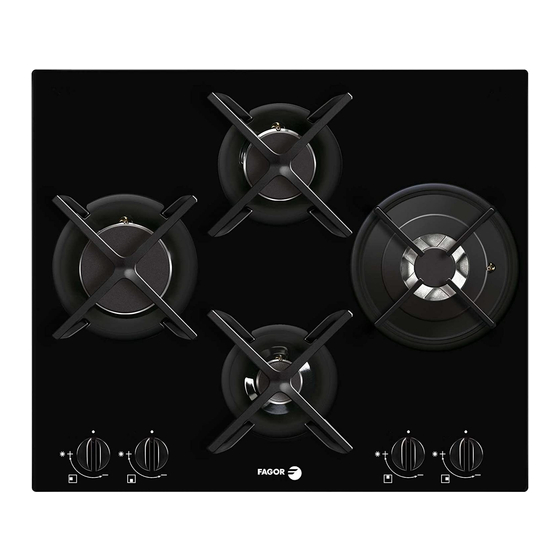

DESCRIPTION OF YOUR APPLIANCE • DESCRIPTION OF THE HOB Hob model: 4 gas burners with super fast burner Hob model: 2 gas burners with super fast burner Hob model: 3 gas burners with triple ring burner Burner cover Spark plug Burner head Thermocouple Gasket... -
Page 7: Installing Your Appliance
1/ INSTALLING YOUR APPLIANCE APPLIANCE (60 cm model) Width Depth Thickness Standard 56 cm 49 cm depending cabinet cut-out cabinet Total 71 cm 52.2 cm 5 cm dimensions above the work surface Total 55.4 cm 47 cm 5.1 cm dimensions below the work surface... -
Page 8: Flush Fitting Recommendations
1/ INSTALLING YOUR APPLIANCE • FLUSH FITTING RECOMMENDATIONS • 4 Burner Model • 3 Burner Model (underside view (underside view of the housing) of the housing) Fig. 01 Fig. 01 Mounting holes Mounting brackets • 2 Burner Model (underside view of the housing) Mounting holes located using... -
Page 9: Electrical Connection
1/ INSTALLING YOUR APPLIANCE • ELECTRICAL CONNECTION Warning Your hob (which is supplied with an H05V2V2- The safety wire (green/yellow) is F type wire) must be connected to the 220- connected to the appliance’s ground terminal 240 V ~ single phase grid via a standardised and must be connected to the installation’s CEI 60083 2-pole + ground electrical outlet ground terminal... -
Page 10: Gas Connection
1/ INSTALLING YOUR APPLIANCE • GAS CONNECTION • Preliminary comments If your hob is installed above an oven or if the proximity of other heating elements risks overheating the connection, you must insulate the cable in a rigid pipe. If a flexible hose or pipe (in the case of butane gas) is used, it must contact a moving part of the cabinet or traverse a location likely to become blocked. - Page 11 1/ INSTALLING YOUR APPLIANCE Gas supplied by tank or In an existing system, a flexible pipe fitted • cylinder (butane/propane) with hose clips (compliant with the XP D 36- 110 standard) with a five year service life For your safety, you can only choose from the guarantee can be used.
-
Page 12: Changing The Gas Supply
1/ INSTALLING YOUR APPLIANCE • CHANGING THE GAS SUPPLY Warning Warning Exceeding this limit may damage the product. - For the following references : CFI- 4GLSTANAT* - CFI-3GLSTANAT*, your hob - Reposition the burner heads, burner covers is delivered set-up for n n a a t t u u r r a a l l g g a a s s . and pan supports on the hob. - Page 13 1/ INSTALLING YOUR APPLIANCE • Adjust the hob connections: these are located underneath the control knobs (Fig. 04) . — Proceed one tap at a time. Control Knob — Remove the control knobs and the gaskets by pulling upwards. - Switching from natural butane/propane...
- Page 14 1/ INSTALLING YOUR APPLIANCE • Injector markings INJECTOR MARKINGS The diagram opposite shows where the For example: injector marking 62 injectors are positioned on your appliance according to the type of gas used. Each number is marked on the injector. 4 gas burner hob with triple ring Butane/Propane Natural Gas...
- Page 15 1/ INSTALLING YOUR APPLIANCE • Injector markings TRIPLE RING BURNER INJECTOR MARKINGS Natural Gas Butane/Propane Gas...
- Page 16 1/ INSTALLING YOUR APPLIANCE •Gas Properties ES - PT - CZ - SK ES - PT - FR - ES - PT - CZ - Appliance intended to be installed for use with: Butane Butane Propane Natural Natural FR.......cat : II2E+3+ ES - PT ....cat : II2H3+ CZ - SK ....cat : 2H3B/P 28-30 mbar 30 mbar...
-
Page 17: Using Your Appliance
2 / USING YOUR APPLIANCE DESCRIPTION OF THE SURFACE CONTROL PANEL • CFI-4GLSTA* CFI-3GLSTA* 2MCF-2GSAX* Semi-fast burner 1.50 kW* High-speed burner 2.25 kW Super fast burner 3.10 kW Auxiliary burner 0.85 kW Triple-ring burner 3.6 kW Power obtained with natural gas G20... -
Page 18: Switching On The Gas Burners
2 / USING YOUR APPLIANCE • SWITCHING ON THE GAS BURNERS Gas is supplied to each burner via a tap which is opened by pressing and turning the gas control knob anti-clockwise. ● The black “ ” indicates the closed position. —... -
Page 19: Suitable Cookware For Gas Burners
2 / USING YOUR APPLIANCE • SUITABLE COOKWARE FOR GAS BURNERS • Which burner should you use for your particular cookware? Cookware diameter Cookware diameter Usage Triple ring 20 to 30 cm Super fast Frying - Boiling 18 to 28 cm Searing High-speed 16 to 22 cm... -
Page 20: Regular Care Of Your Appliance
3 / REGULAR CARE OF YOUR APPLIANCE • CARING FOR YOUR APPLIANCE PRODUCTS/ACCESSORIES ACTION MAINTENANCE..TO BE USED Of the spark plugs If spark plugs become soiled, clean them . Small, hard-bristled brush. and injectors using a small, hard-bristled brush (non- . -
Page 21: Special Instructions, Troubleshooting
4 / SPECIAL INSTRUCTIONS, TROUBLESHOOTING • DURING USE PROBLEM: RESOLUTION: • Burner ignition: . Check the electrical connection. No sparks appear when the . Check that the spark plugs are clean. control knobs are pressed. . Check that the burners are clean and correctly assembled. -
Page 22: Cooking Chart
5 / COOKING CHART • GAS COOKING GUIDE PREPARATIONS TIMES TRIPLE SUPER FAST SEMI- AUXILIARY RING FAST FAST SOUPS Broths 8-10 minutes Thick soups FISH Court-bouillon 8-10 minutes Grilled food 8-10 minutes SAUCES Hollandaise, Bearnaise Béchamel, Aurore 10 minutes VEGETABLES Chicory, spinach Cooked peas 25-30 minutes... -
Page 23: After-Sales Service Department And Customer Relations
7 / AFTER-SALES SERVICE DEPARTMENT AND CUSTOMER RELATIONS • SERVICE CALLS Any repairs to your appliance must be carried out by a qualified professional authorised to work on this brand. When you call, state your appliance’s complete reference information (model, type, serial number). This information appears on the manufacturer’s nameplate which is located on the underside of the appliance (Fig. - Page 24 CFI-4GLSTANAT* - CFI-4GLSTABUT* - CFI-3GLSTANAT* - CZ5700093 - 09/09 CFI-3GLSTABUT* - 2MCF-2GSAXBUT* - 2MCF-2GSAXNAT*...
