X7722271404 / X772000164
Operator's Manual
The muffler or catalytic muffler and surrounding cover may become extremely hot.
Always keep clear of exhaust and muffler area, otherwise serious personal injury may
occur.
The engine exhaust from this product contains chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
Users of this equipment risk injury to themselves and others if the unit is used
improperly and/or safety precautions are not followed. ECHO provides an operator's
manual and a safety manual. Both must be read and understood for proper and safe
operation. Failure to do so could result in serious injury.
Specifications, descriptions and illustrative material in this literature are as accurate as known at the time
of publication, but are subject to change without notice. Illustrations may include optional equipment and
accessories, and may not include all standard equipment.
X7502255307
© 9/2013 ECHO Inc.

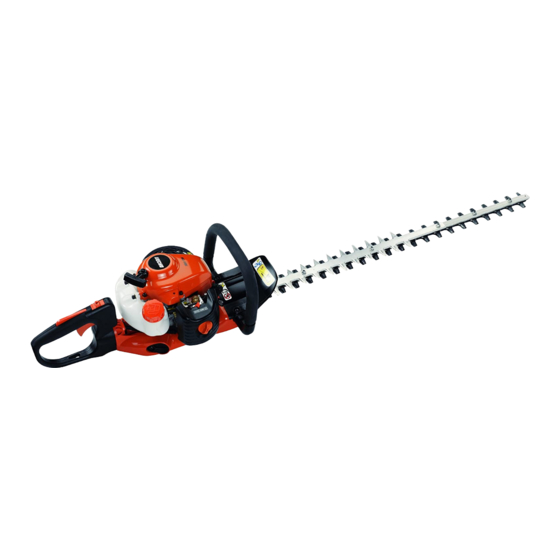

HC-165/185
Hedge Clipper
Burn Hazard

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HC-165 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Echo HC-165

Summary of Contents for Echo HC-165

  • Page 1 Users of this equipment risk injury to themselves and others if the unit is used improperly and/or safety precautions are not followed. ECHO provides an operator’s manual and a safety manual. Both must be read and understood for proper and safe operation.

  • Page 2: Table Of Contents

    The Safety Manual........................3 Servicing information ......................... 3 Parts/Serial Number........................3 Service ............................3 Echo Consumer Product Support ....................3 Warranty Registration ........................3 Additional or Replacement Manuals .................... 4 Safety..............................4 Manual Safety Symbols and Important Information ..............4 International Symbols ........................

  • Page 3: Introduction

    Service of this product during the warranty period must be performed by an Authorized ECHO Service Dealer. For the name and address of the Authorized ECHO Service Dealer nearest you, ask your retailer or call: 1-800-432-ECHO (3246). Dealer information is also available on our Web Site. When presenting your unit for Warranty service/repairs, proof of purchase is required.

  • Page 4: Additional Or Replacement Manuals

    ECHO Inc., 400 Oakwood Road, Lake Zurich, IL 60047 (800-673-1558). Always check the ECHO Web Site for updated information. Safety Videos are available from your Echo dealer. A $5.00 shipping charge will be required for each video. SAFETY Manual Safety Symbols and Important Information Throughout this manual and on the product itself, you will find safety alerts and helpful, informational messages preceded by symbols or key words.

  • Page 5: International Symbols

    Your judgment and physical dexterity may not be good: • if you are tired or sick, • if you are taking medication, • if you have taken alcohol or drugs. Operate unit only if you are physically and mentally well. X7502255307 © 9/2013 ECHO Inc.
  • Page 6 ECHO does not recommend the use of ECHO products by anyone who has a pacemaker.
  • Page 7 All over head electrical conductors and communications wires can have electricity flow with high voltages. This unit is not insulated against electrical current. Never touch wires directly or indirectly, otherwise serious injury or death may result. X7502255307 © 9/2013 ECHO Inc.

  • Page 8: Equipment

    Never perform blade maintenance procedures while engine is running. Equipment Use only ECHO approved attachments. Serious injury may result from the use of a non-approved attachment combination. ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO. Read and comply with all safety instructions listed in this manual and safety manual.
  • Page 9 Check fuel system for leaks due to fuel tank damage, especially if the unit is dropped. If damage or leaks are found, do not use unit, otherwise serious personal injury or property damage may occur. Have unit repaired by an authorized servicing dealer before using. X7502255307 © 9/2013 ECHO Inc.

  • Page 10: Emission Control (Exhaust & Evaporative)

    The 50 or 300 hour emission compliance period is the time span selected by the manufacturer certifying the engine emissions output meets applicable emissions regulations, provided that approved maintenance procedures are followed as listed in the Maintenance Section of this manual. X7502255307 © 9/2013 ECHO Inc.

  • Page 11: Description

    Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and that you understand and follow the instructions on it. If a decal cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDERING instructions for specific information.
  • Page 12 DO NOT pull rope all the way out or allow the handle to snap back, damage to the starter will occur. 17. BLADE COVER - Used to cover blades during transportation or storage. Remove blade cover before using unit. X7502255307 © 9/2013 ECHO Inc.

  • Page 13: Contents

    HC-165/185 CONTENTS CONTENTS After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts. ____ 1 - Hedge Clipper Assembly ____ 1 - Operator’s Manual...

  • Page 14: Assembly

    ASSEMBLY This model is factory assembled. Note: For Normal cutting, Echo strongly recommends the blade guard be installed. In extreme conditions, such as commercial cutting or when cutting thick and/or dense branches, efficiency may be increased by trimming without the blade guard.

  • Page 15: Install Blade Guard

    4. Align holes in blade guard with blade bolts, then install blade guard. 5. Secure blade guard with new locknuts (A) Note: Use new locknuts every time blade guard is installed or removed If blade guard is damaged or show signs of wear, replace it. X7502255307 © 9/2013 ECHO Inc.

  • Page 16: Operation

    Fuel Alternative fuels, such as E-15 (15% ethanol), E-85 (85% ethanol) or any fuels not meeting ECHO requirements are NOT approved for use in ECHO 2-stroke gasoline engines. Use of alternative fuels may cause performance problems, loss of power, overheating, fuel vapor lock, and unintended machine operation, including, but not limited to, improper clutch engagement.
  • Page 17 Stored fuel ages. Do not mix more fuel than you expect to use in thirty (30) days, ninety (90) days when a fuel stabilizer is added. Stored two-stroke fuel may separate. ALWAYS shake fuel container thoroughly before each use. X7502255307 © 9/2013 ECHO Inc.

  • Page 18: Starting Cold Engine

    The blades must not move at idle, otherwise serious personal injury may result. Periodic carburetor adjustment may be necessary to assure blades do not move at idle. If blades move, readjust carburetor according to “Carburetor Adjustment” instructions in this manual or see your ECHO Dealer.

  • Page 19: Starting Warm Engine

    Move stop switch (A) to STOP position. If engine does not stop when stop switch is moved to STOP position, close choke - COLD START position - to stall engine. Have your ECHO dealer repair stop switch before using trimmer again.

  • Page 20: Rotating Operation

    OPERATION HC-165/185 Rotating Operation HC-165/185 Hedge Clipper throttle handles are adjustable for operator comfort at all angles of operation. Stop engine before rotating throttle handle, otherwise serious personal injury may result. Changing throttle handle angle may change exhaust direction. Use a grip and operating position that blows exhaust away from you.

  • Page 21: Hedge Trimming

    Never remove hands from unit when blades are moving. For more information scan this QR code. The engine continues running even when the blades have stopped due to an obstruction. If this occurs, stop the engine, disconnect ignition cable and remove the obstruction X7502255307 © 9/2013 ECHO Inc.

  • Page 22: Maintenance

    If you are unsure or are not equipped with the necessary tools, you may want to take your unit to an ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the ECHO Dealer do it, each maintenance task has been graded.

  • Page 23: Air Filter

    When servicing model year 2012 and later equipment, only fuel supply hoses certified by EPA can be used to replace the original equipment supply hose. Fines up to $37,500 may be enforced for using an un-certified replacement part X7502255307 © 9/2013 ECHO Inc.

  • Page 24: Spark Plug

    1. Remove muffler cover. 2. Remove starter cover and clean dirt and dust from fins. DO NOT use a metal scraper to remove dirt from the cylinder fins. 3. Assemble components in reverse order. X7502255307 © 9/2013 ECHO Inc.

  • Page 25: Exhaust System

    6. Tighten muffler mounting bolts (or nuts) to 60-70 in•lbf (70-80 kgf•cm). 7. Install engine cover and attach spark plug lead. 8. Start engine, and warm to operating temperature. 9. Stop engine, and re-tighten mounting bolts (or nuts) to specifications. X7502255307 © 9/2013 ECHO Inc.

  • Page 26: Carburetor Adjustment

    This engine has been factory adjusted to maintain satisfactory starting, emission, and durability performance up to 1,100 feet above sea level (ASL) (96.0 kPa). To maintain proper engine operation and emission compliance above 1,100 feet ASL the carburetor may need to be adjusted by an authorized ECHO service dealer.

  • Page 27: Lubrication

    5. Apply clean oil to the entire length of the blade. Be certain the blade bolts are lubricated. 6. Wipe excess oil from the blade before putting the unit back in service. Gear Box Level 1. Parts Required: POWER BLENDX 14 oz. or Lithium Base Grease. X7502255307 © 9/2013 ECHO Inc.

  • Page 28: Blades

    Leave room for the grease to expand during operation 3. Wipe excess grease from around grease fitting. Blades Blades should only be removed and reinstalled by an Authorized ECHO Servicing Dealer, otherwise premature wear or internal damage may occur. Sharpening Level 2.
  • Page 29 2. Hold blade screws (A) to prevent turning, and tighten locknuts (B). Locking ability of Hedge Clipper blade lock nuts will diminish each time they are removed. Replace if turning resistance is not felt when installing locknuts. X7502255307 © 9/2013 ECHO Inc.

  • Page 30: Troubleshooting

    Fuel strainer clogged Clean or replace Fuel at carburetor No fuel at carburetor Fuel line clogged Clean or replace Carburetor See your Echo dealer No fuel at cylinder Carburetor See your Echo dealer Open choke Fuel at cylinder Clean/replace air filter...

  • Page 31: Storage

    Always store and transport hedge clippers in a stable, horizontal position. Support gear case and cutting blades to prevent excessive flexing, which may cause damage to these components. Always install blade cover when transporting or storing unit. X7502255307 © 9/2013 ECHO Inc.

  • Page 32: Specifications

    21.0 mm (0.83 in.) Maximum Diameter Cut Soft Material 25.4 mm (1 in.) Woody Material 13 mm (1/2 in.) Idle Speed 3,300 RPM Clutch Engagement Speed 5,100 RPM Wide Open Throttle Speed (W.O.T.) 11,250 RPM X7502255307 © 9/2013 ECHO Inc.

  • Page 33: Warranty Statements

    PRODUCT SOLD IN USA AND CANADA BEGINNING 01/01/2010 ECHO'S RESPONSIBILITY THIS LIMITED WARRANTY IS ONLY APPLICABLE TO ECHO PRODUCTS SOLD BY AUTHORIZED ECHO DEALERS. IT IS EXTENDED TO THE ORIGINAL PURCHASER ONLY, AND IS NOT TRANSFERABLE TO SUBSEQUENT OWNERS EXCEPT FOR EMISSION RELATED PARTS. 1-800-432-ECHO.
  • Page 34 PURCHASED REPAIR PARTS, SHORT BLOCKS AND ACCESSORIES ATTENTION TWO-STROKE ENGINE POWER PRODUCT OWNERS (&+2 3RZHU %OHQGŒ 7ZR6WURNH 2LO THIS WARRANTY DOES NOT COVER DAMAGE CAUSED BY: PD[LPXP ® DISCLAIMER OF IMPLIED WARRANTIES MERCHANTABILITY 99922201032 11/18/2011 X7502255307 © 9/2013 ECHO Inc.

  • Page 35: Notes

    HC-165/185 NOTES NOTES X7502255307 © 9/2013 ECHO Inc.
  • Page 36 (165) S69411001001/S69411999999 S76612001001/S76612999999 (185) S69511001001/S69511999999 S76812001001/S76812999999...
