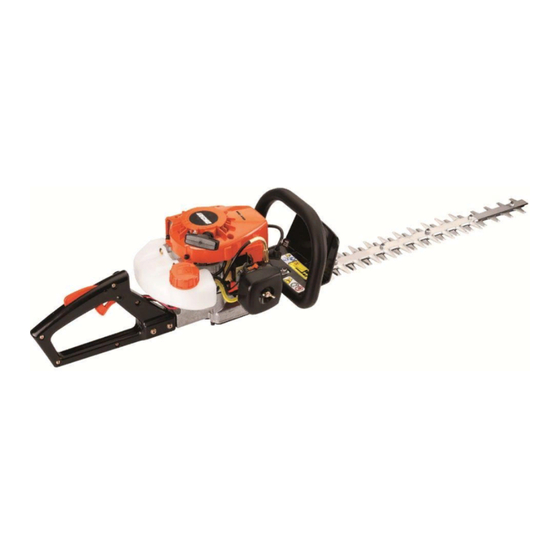

Echo HC-150 HEDGE CLIPPER - PARTS CATALOG SERIAL NUMBER 08001001 - 08999999 Parts Catalog

21.2cc

Hide thumbs

Table Of Contents

Quick Links

Download this manual

AVAILABLE ATTACHMENTS & ACCESSORIES

PARTS CATALOG

Accessories

99944200004

i-Start Kit

HC-150 HEDGE

CLIPPER

21.2cc

MODEL:SERIAL NUMBERS

HC-150:

S/N: 08001001 - 08999999

ECHO, INCORPORATED

400 Oakwood Road Lake Zurich, Illinois 60047 USA

WWW.ECHO-USA.COM

99922203278_150/08

REVISED 06/18/07

Table of Contents

Need help?

Do you have a question about the HC-150 HEDGE CLIPPER - PARTS CATALOG SERIAL NUMBER 08001001 - 08999999 and is the answer not in the manual?

Questions and answers

Summary of Contents for Echo HC-150 HEDGE CLIPPER - PARTS CATALOG SERIAL NUMBER 08001001 - 08999999

Page 1 Kit HC-150 HEDGE CLIPPER 21.2cc MODEL:SERIAL NUMBERS HC-150: S/N: 08001001 - 08999999 ECHO, INCORPORATED 400 Oakwood Road Lake Zurich, Illinois 60047 USA WWW.ECHO-USA.COM 99922203278_150/08 REVISED 06/18/07 2007 ECHO Incorporated, RePower is Registered Trademark of ECHO Incorporated. All Rights Reserved...
Page 2: Table Of Contents
Table of Contents Part Number Index Table of Contents Click Any Diagram Desciption Below To Veiw That Diagram. HC-150 S/N: 08001001 - 08999999 Engine, Short Block, Ignition, Clutch, Cylinder Cover....................4 Standard Starter................................6 Fuel System..................................8 Intake....................................10 Carburetor -- RB-K75..............................12 Exhaust...................................14 Handle, Ignition Switch, Throttle Cable........................16 Cutters, Gear Case, Tools..............................18 Part Number Index.................................20 Part Description Index..............................21...
Page 3 This Page Intentionally Left Blank - 3 -...
Page 4: Engine, Short Block, Ignition, Clutch, Cylinder Cover
Table of Contents Part Number Index HC-150 HEDGE CLIPPER Engine, Short Block, Ignition, Clutch, Cylinder Cover 99922203278_150/08 - 4 - REVISED 06/18/07...
Page 5 Table of Contents Part Number Index HC-150 HEDGE CLIPPER Engine, Short Block, Ignition, Clutch, Cylinder Cover ITEM PART NUMBER DESCRIPTION REMARKS SB1074 SHORT BLOCK INCLUDES ITEM 2-17 90016205022 SCREW 5X22 A130000550 CYLINDER V100000160 GASKET, CYLINDER P021007772 PISTON KIT INCLUDES ITEMS 6-10 A101000090 RING, PISTON 10001311520...
Page 6: Standard Starter
Table of Contents Part Number Index HC-150 HEDGE CLIPPER Standard Starter 99922203278_150/08 - 6 - REVISED 06/18/07...
Page 7 Table of Contents Part Number Index HC-150 HEDGE CLIPPER Standard Starter ITEM PART NUMBER DESCRIPTION REMARKS 17720012220 STARTER ASY INCLUDES ITEMS 2-8 10151106562 COVER, FAN 17722042030 SPRING, REWIND 17721544430 DRUM, STARTER 17722610120 ROPE, STARTER - 3X1000mm 17722742030 GUIDE, ROPE 17722811120 GRIP, STARTER 17723644330 SCREW...
Page 8: Fuel System
Table of Contents Part Number Index HC-150 HEDGE CLIPPER Fuel System 99922203278_150/08 - 8 - REVISED 06/18/07...
Page 9 Table of Contents Part Number Index HC-150 HEDGE CLIPPER Fuel System ITEM PART NUMBER DESCRIPTION REMARKS A350000041 TANK, FUEL INCLUDES ITEM 2 13104528230 SPACER 90027505015 SCREW 5X15 13201007530 3X5X195mm BULK OPTION: 90014 PIPE, FUEL - 3X5X195mm V137000030 GROMMET 13201309820 CLIP 13120507320 STRAINER, FUEL 13201006460...
Page 10 Table of Contents Part Number Index HC-150 HEDGE CLIPPER Intake 99922203278_150/08 - 10 - REVISED 06/18/07...
Page 11 Table of Contents Part Number Index HC-150 HEDGE CLIPPER Intake ITEM PART NUMBER DESCRIPTION REMARKS 21041752730 BOLT, WING 13031306563 LID, AIR CLEANER 13031054130 FILTER, AIR 12901152730 PLATE, PREVENT 90022005065 SCREW 5X65 P021000991 CASE, AIR CLEANER 89012152730 LABEL, CHOKE 13001013410 GASKET, INTAKE Also Included In GASKET KIT 13001744330 INSULATOR, INTAKE...
Page 12: Carburetor -- Rb-K75
Table of Contents Part Number Index HC-150 HEDGE CLIPPER Carburetor -- RB-K75 99922203278_150/08 - 12 - REVISED 06/18/07...
Page 13 Table of Contents Part Number Index HC-150 HEDGE CLIPPER Carburetor -- RB-K75 ITEM PART NUMBER DESCRIPTION REMARKS A021000740 CARBURETOR -- RB-K75 P005001320 ROTOR COVER ASY 12534413931 SCREW, ROTOR COVER ASY 12534452130 SCREW, ROTOR COVER P005001330 SCREW, CABLE ADJUST P005001240 SWIVEL P005000190 E-RING P005000100...
Page 14: Exhaust
Table of Contents Part Number Index HC-150 HEDGE CLIPPER Exhaust 99922203278_150/08 - 14 - REVISED 06/18/07...
Page 15 Table of Contents Part Number Index HC-150 HEDGE CLIPPER Exhaust ITEM PART NUMBER DESCRIPTION REMARKS P021012290 GASKET KIT V104000590 SHIELD, EXHAUST 14581011520 MUFFLER 90060000005 WASHER 5 90010505050 BOLT 5X50 14586240630 SCREEN, MUFFLER 14586642031 GASKET, EXHAUST A313000610 GUIDE, EXHAUST 90024204010 SCREW 4X10 A300000080 MUFFLER A313000640...
Page 16: Handle, Ignition Switch, Throttle Cable
Table of Contents Part Number Index HC-150 HEDGE CLIPPER Handle, Ignition Switch, Throttle Cable 99922203278_150/08 - 16 - REVISED 06/18/07...
Page 17 Table of Contents Part Number Index HC-150 HEDGE CLIPPER Handle, Ignition Switch, Throttle Cable ITEM PART NUMBER DESCRIPTION REMARKS 35110006560 REAR HANDLE SET 90025504016 SCREW 4X16 90022005047 SCREW 5X47 90060000005 WASHER 5 90056000005 LOCKNUT 90034250025 SPRING PIN 5X25 17809006560 LOCKOUT, THROTTLE CONTROL 17801006560 CONTROL,THROTTLE 17804315130...
Page 18: Cutters, Gear Case, Tools
Table of Contents Part Number Index HC-150 HEDGE CLIPPER Cutters, Gear Case, Tools 99922203278_150/08 - 18 - REVISED 06/18/07...
Page 19 Table of Contents Part Number Index HC-150 HEDGE CLIPPER Cutters, Gear Case, Tools ITEM PART NUMBER DESCRIPTION REMARKS 17500506560 DRUM, CLUTCH 90070200035 CIRCLIP 35 90087236202 BEARING, BALL 90087036202 BEARING, BALL 90070100014 CIRCLIP 14 13192061830 CUSHION, FUEL TANK C531000050 CASE, GEAR 90016304016 SCREW 4X16 88011054230...
Page 20: Part Number Index
Table of Contents Part Number Index Part Number Index Click The Page Number After Any Part Number To Veiw The Diagram Containing That Part. Part Number Page Part Number Page Part Number Page ------------------ ..... 11, 13 69912503060 .... V104000072 ....10001311520 ....
Page 21 Table of Contents Part Number Index Part Description Index Click The Page Number After Any Part Desciption To Veiw The Diagram Containing That Part. GASKET, METERING..13 ROLLER, GUIDE..13 GASKET, PUMP..13 ROPE, STARTER - 3X1000mm..7 GEAR, SPUR..19 ROTOR COVER ASY..13 BEARING, BALL..5, 19 GRIP, STARTER..7 BEARING, NEEDLE..5 GROMMET..5, 9...
Page 22 Table of Contents Part Number Index Part Description Index (continued) WASHER, CLUTCH..5 WASHER, CONICAL..15 WRENCH, W/SCREWDRIVER..19 99922203278_150/08 - 22 - REVISED 06/18/07...
Page 23 NOTES 99922203278_150/08 - 23 - REVISED 06/18/07...
Page 24 ECHO, INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 USA WWW.ECHO-USA.COM...
