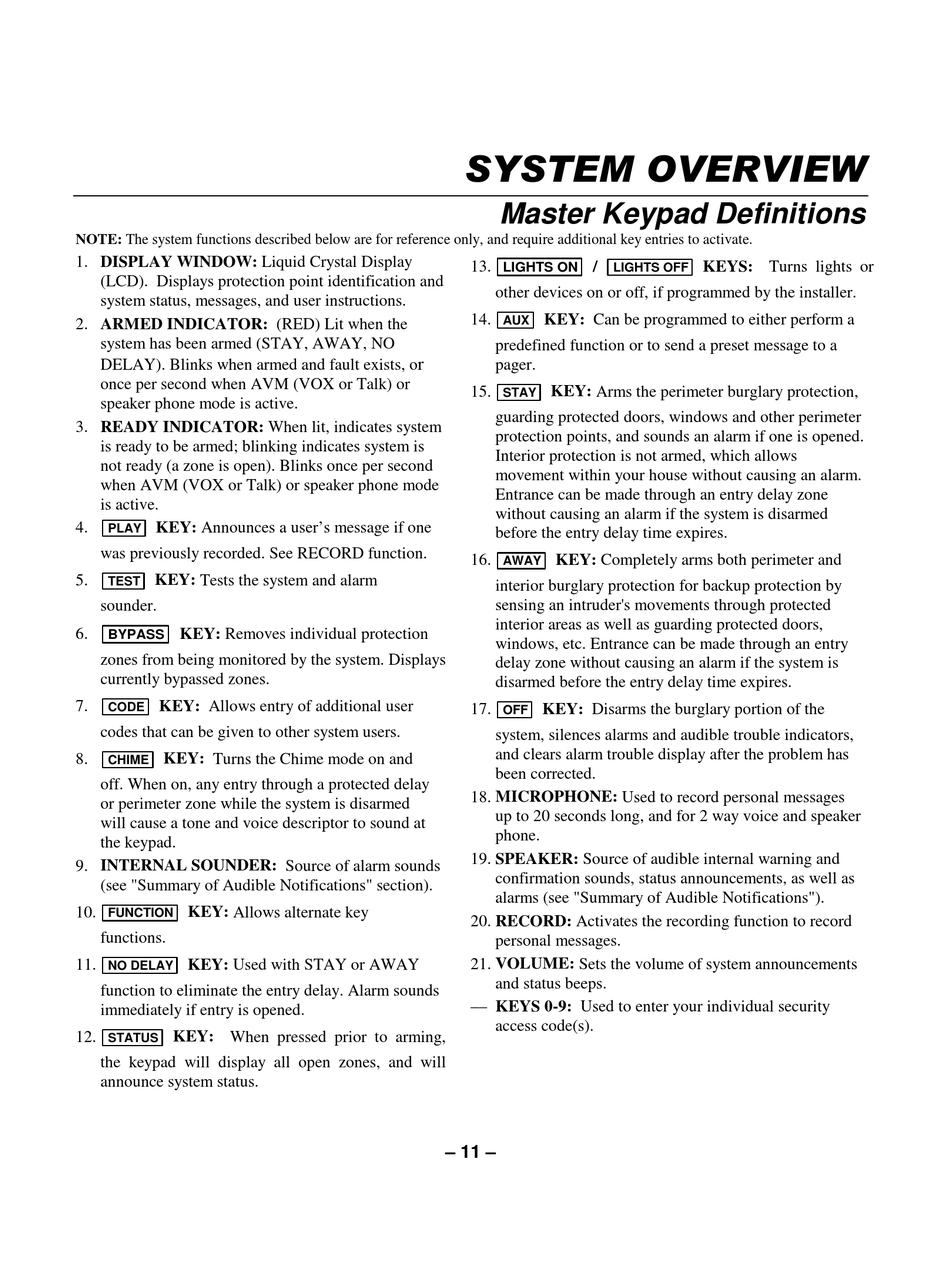

ADEMCO LYNXR-EN User Manual page 11

NOTE: The system functions described below are for reference only, and require additional key entries to activate.
1. DISPLAY WINDOW: Liquid Crystal Display
(LCD). Displays protection point identification and
system status, messages, and user instructions.
2. ARMED INDICATOR: (RED) Lit when the
system has been armed (STAY, AWAY, NO
DELAY). Blinks when armed and fault exists, o
once per second when AVM (VOX or Talk) or
speaker phone mode is active.
3. READY INDICATOR: When lit, indicates system
is ready to be armed; blinking indicates system is
not ready (a zone is open). Blinks once per second
when AVM (VOX or Talk) or speaker phone mode
is active.
4. KEY: Announces a user's message if one
PLAY
was previously recorded. See RECORD function.
5. KEY: Tests the system and alarm
TEST
sounder.
6. KEY: Removes individual protection
BYPASS
zones from being monitored by the system. Displays
currently bypassed zones.
7. KEY: Allows entry of additional user
CODE
codes that can be given to other system users.
8. KEY: Turns the Chime mode on and
CHIME
off. When on, any entry through a protected delay
or perimeter zone while the system is disarmed
will cause a tone and voice descriptor to sound at
the keypad.
9. INTERNAL SOUNDER: Source of alarm sounds
(see "Summary of Audible Notifications" section).
10. KEY: Allows alternate key
FUNCTION
functions.
11. KEY: Used with STAY or AWAY
NO DELAY
function to eliminate the entry delay. Alarm sounds
immediately if entry is opened.
12. KEY: When pressed prior to arming,
STATUS
the keypad will display all open zones, and will
announce system status.
Master Keypad Definitions
13. /
LIGHTS ON
other devices on or off, if programmed by the installer.
KEY: Can be programmed to either perform a
14.
AUX
predefined function or to send a preset message to a
r
pager.
15. KEY: Arms the perimeter burglary protection,
STAY
guarding protected doors, windows and other perimeter
protection points, and sounds an alarm if one is opened.
Interior protection is not armed, which allows
movement within your house without causing an alarm.
Entrance can be made through an entry delay zone
without causing an alarm if the system is disarmed
before the entry delay time expires.
KEY: Completely arms both perimeter and
16.
AWAY
interior burglary protection for backup protection by
sensing an intruder's movements through protected
interior areas as well as guarding protected doors,
windows, etc. Entrance can be made through an entry
delay zone without causing an alarm if the system is
disarmed before the entry delay time expires.
17. KEY: Disarms the burglary portion of the
OFF
system, silences alarms and audible trouble indicators,
and clears alarm trouble display after the problem has
been corrected.
18. MICROPHONE: Used to record personal messages
up to 20 seconds long, and for 2 way voice and speaker
phone.
19. SPEAKER: Source of audible internal warning and
confirmation sounds, status announcements, as well as
alarms (see "Summary of Audible Notifications").
20. RECORD: Activates the recording function to record
personal messages.
21. VOLUME: Sets the volume of system announcements
and status beeps.
–– KEYS 0-9: Used to enter your individual security
access code(s).
– 11 –
KEYS: Turns lights or
LIGHTS OFF
