Citizen A414 Instruction Manual

Citizen A414 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
Reception result

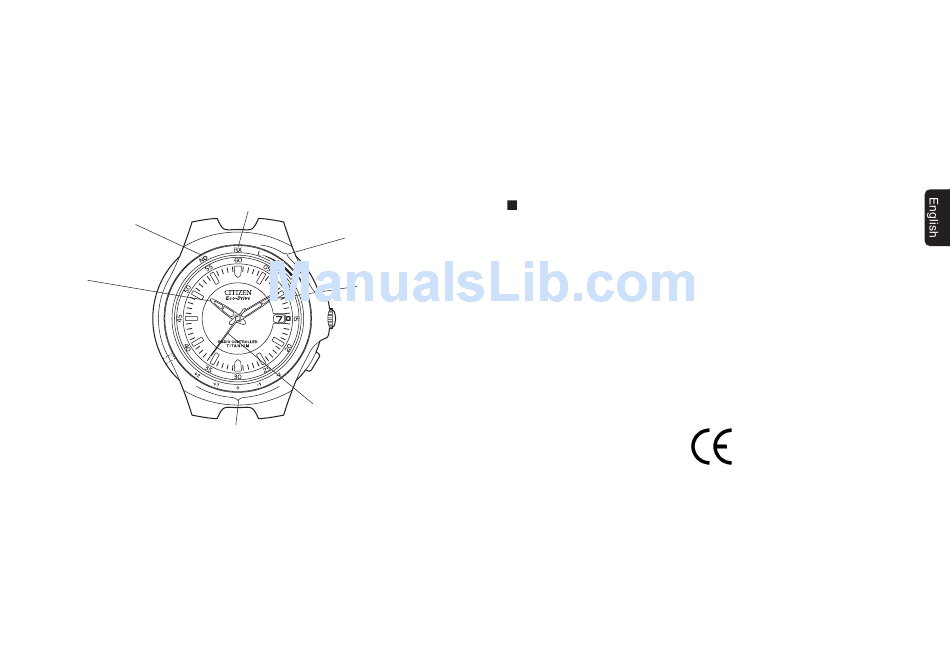

Hour hand
Button (B)
The design may differ slightly depending on the model.
2
Reception in progress
Reception level /
Reception result
Minute hand
Crown
Button (A)
Second hand
Time difference display
Please fully charge your watch before use by exposing it to
light.
When the watch does not operate according to the instruction manual, this means that it is
insufficiently charged. When this happens, charge the watch before using by exposing to
direct sunlight for at least 2 hours.
[This watch is equipped with a power save function (Power Save 1 and 2) that reduces
power consumption]
Power Save 1: When the solar cell is not being exposed to light for more than 24 hours
continuously, the second hand and the minute hand stop and the power
save state is entered.
Power Save 2: The Power Save 1 state will continue for about 2 days after which the
Power Save 2 state is entered.
* Upon entering the power save state, the second hand stops at the 12 o'clock position while
the minute hand stops at the reference position. For details concerning the power save func-
tion, please read [6. A. Power Save Function].
3
