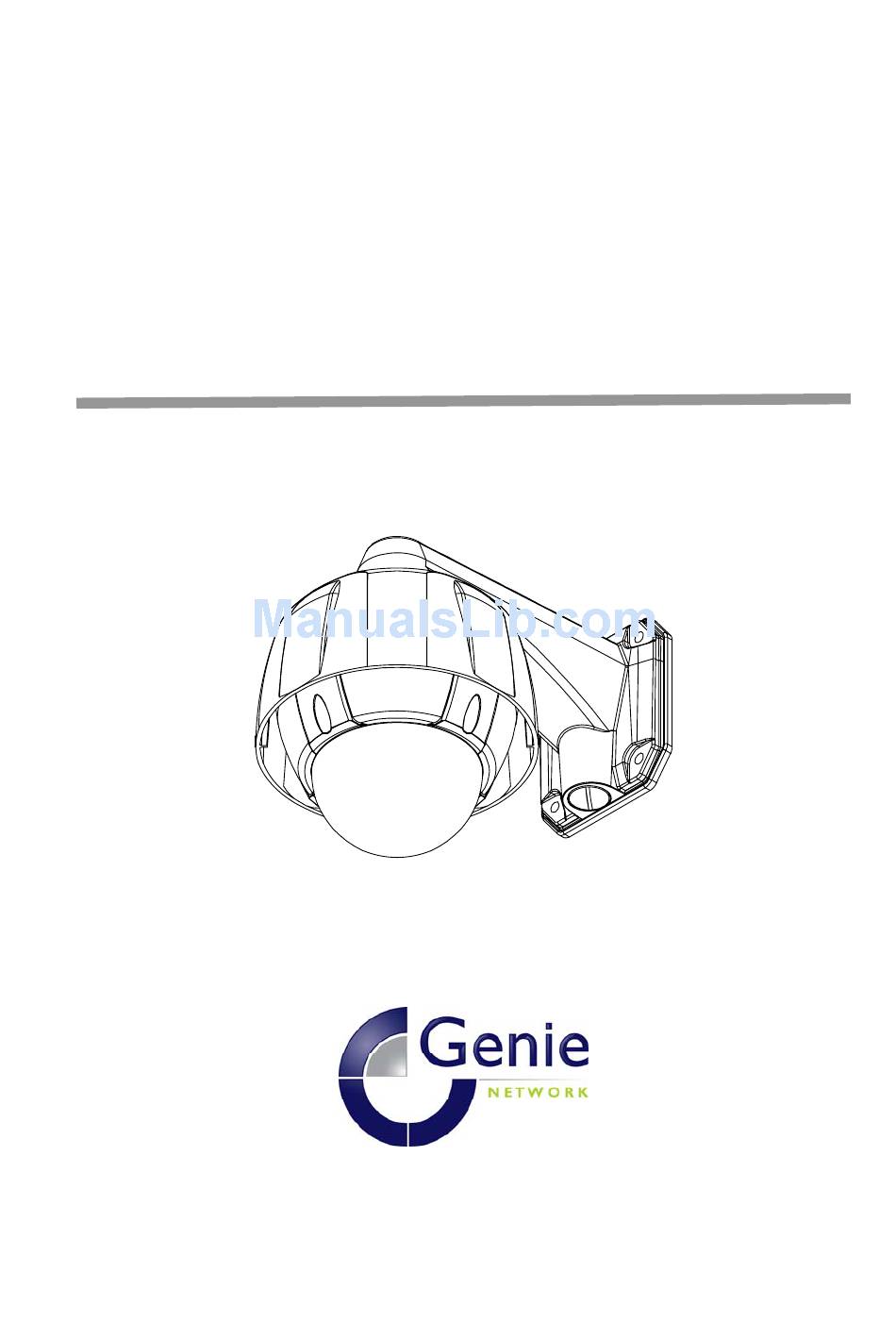

IP Network A/V Camera,
"Geniewatch IP
10X Speed Dome camera"
NSD5451 User Manual
Geniewatch(NSD5451)_Version 1.0_G0810010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Geniewatch NSD5451 and is the answer not in the manual?

Questions and answers

Related Manuals for Genie Geniewatch NSD5451

Summary of Contents for Genie Geniewatch NSD5451

  • Page 1 IP Network A/V Camera, “Geniewatch IP 10X Speed Dome camera” NSD5451 User Manual Geniewatch(NSD5451)_Version 1.0_G0810010...
  • Page 2 First of all, we would like to express our appreciation on your choosing our IP Network Camera, NSD5451. Geniewatch (NSD5451) is a state of the art network A/V camera designed for demanding professional surveillance applications with the latest and most advanced H.264 codec. And...
  • Page 3 IMPORTANT NOTES for Safety Precaution . Please be sure to read the following with carefulness, before installing the product, Make sure to turn off the power before installing NSD5451. Do not install under the direct sunlight or in dusty areas.

  • Page 4: Table Of Contents

    Geniewatch, NSD5451 User Manual (Ver. 1.0) Table of Content Introduction......................5 About User Manual ................... 5 Feature......................5 Product and Accessories..................7 Parts Name & Functions ..................8 System Connections ..................10 Installation ......................12 DIP Switch Setup .....................12 Installation using Surface Mount Bracket...............15 Installation using Ceiling Mount Bracket ...............16...
  • Page 5 Geniewatch, NSD5451 User Manual (Ver. 1.0) Specifications ....................43 Specifications....................43 Dimension ......................44 Genie Network...

  • Page 6: Introduction

    NSD5451. In this guide, information on installation, operation, configuration of NSD5451 is written as well as how to trouble shoot in case problems arise. Feature NSD5451 is a network camera and a video and audio surveillance transmission system based on IP network through LAN, ADSL/VDSL, and Wireless LAN. Camera Specifications - CCD Sensor : 1/4"...

  • Page 7: Ptz Control

    Serial Data - One serial ports (RS-485) - Data pass-through mode: Serial data communication between NSD5451 – Decoder PTZ(Pan/Tilt/Zoom) Control - With RS-485 communication, max. 255 of cameras can be controlled at the same time.

  • Page 8: Product And Accessories

    Geniewatch, NSD5451 User Manual (Ver. 1.0) any trajectory operated by joystick as closely as possible. - Max. 8 set of Group action can be stored. This enables to move camera repetitively with combination of Preset or Pattern or Swing. A Group is composed of max. 20 entities of Preset/Pattern/Swings.

  • Page 9: Parts Name & Functions

    Geniewatch, NSD5451 User Manual (Ver. 1.0) Options Surface Mount Bracket Wall Mount Bracket Ceiling Mount Bracket <Picture 1> Product and Accessories Parts Name & Functions Assemble Reference Line Mount Bracket Mounting Hole Audio Connector Drop Prevention Power LED Drop Prevention...
  • Page 10 Geniewatch, NSD5451 User Manual (Ver. 1.0) Lockup Screw Fixes main unit to surface mount bracket. Cabling Terminal Block During installation, Power, Video, Communication, Alarm Input cables are connected on to this cabling terminal block. DIP Switch Adjusts camera ID and protocols.

  • Page 11: System Connections

    Local Site NSD5451 Mostly used configuration is 1 to 1 connection. A NSD5451 is installed at a site where video images can be transmitted and a PC or a decoder is installed at a center location to receive and view the video images on analog monitor.
  • Page 12 NSD5451 Decoder Cymanager Cymanager is a Windows based remote monitoring program to access multiple NSD5451 for real- time monitoring or control of the encoders and connected cameras. Please refer to Cymanager User Manual for more information on Cymanager. Genie Network...

  • Page 13: Installation

    Geniewatch, NSD5451 User Manual (Ver. 1.0) 2 Installation DIP Switch Setup Before you install the camera, you should set the DIP switches to configure the camera ID, communication protocol. Communication Camera ID Protocol OPTIONS ADDRESS (ID) 16 32 64 128...
  • Page 14 Geniewatch, NSD5451 User Manual (Ver. 1.0) Communication Protocol Setup Select the appropriate Protocol with DIP switch combination. Switch State Protocol (Pin 1) (Pin 2) PELCO-D, 2400 bps PELCO-D, 9600 bps PELCO-P, 4800 bps PELCO-P, 9600 bps If you want to control using DVR or P/T controller, their protocol must be identical to camera.
  • Page 15 Geniewatch, NSD5451 User Manual (Ver. 1.0) Terminal resistor Setup Terminal resistor is used if your system is one of following two cases. Case1: Control cable between camera controller is relatively very long (1:1 connection) If communication cable is very long, the electrical signal will bound in the terminal point.

  • Page 16: Installation Using Surface Mount Bracket

    Geniewatch, NSD5451 User Manual (Ver. 1.0) Installation using Surface Mount Bracket ① To pass cables through to upside of ceiling, ② After assembling Rubber Gasket to make a hole whose diameter is about Mount Cover, install Mount Cover on 50~60mm on the ceiling panel.

  • Page 17: Installation Using Ceiling Mount Bracket

    Geniewatch, NSD5451 User Manual (Ver. 1.0) Installation using Ceiling Mount Bracket ① To pass cables through to upside of ceiling, ② Turn camera housing on its axis in make a hole whose diameter is about CW(Clockwise) direction until it stops.

  • Page 18: Installation Using Wall Mount Bracket

    Geniewatch, NSD5451 User Manual (Ver. 1.0) Installation using Wall Mount Bracket ① To pass cables through to inside of wall, ② Hook up “Drop Prevention Spring” on make a hole whose diameter is about main body to prevent camera from 50~60mm on the wall.

  • Page 19: Cabling

    Geniewatch, NSD5451 User Manual (Ver. 1.0) Cabling MIC Speaker Power PWR(+) IrDA PWR(-) Sensor IN COM+ RS-485(+) RS-485(-) Door Controller/ DVR VIDEO(+) Switch VIDEO(-) Sensor Moinitor Ethernet Internet RJ-45 Browser Power Connection Please, check the voltage and current capacity of rated power carefully. Rated power is indicated in the back of main unit.

  • Page 20: Alarm Input Connection

    Geniewatch, NSD5451 User Manual (Ver. 1.0) Video Connection Connect with BNC coaxial cable. Alarm Input Connection Sensor Input Internal +5V~12V IN COM+ Sensor 1 Output IN 1- Sensor 4 Output IN 4- Before connecting sensors, check driving voltage and output signal type of the sensor.

  • Page 21: Operation

    Geniewatch, NSD5451 User Manual (Ver. 1.0) 3 Operation Check points before operation - Before power is applied, please check the cables carefully. - The camera ID of the controller must be identical to that of the target camera. The camera ID can be checked by reading DIP switch of the camera.

  • Page 22: Starting Osd Menu

    Geniewatch, NSD5451 User Manual (Ver. 1.0) Starting OSD Menu Function Using the OSD menu, Preset, Pattern, Swing, Group and Alarm Input function can be configured for each application. Enter Menu <Go Preset> [95] Reserved Preset Description Some Preset numbers are reserved to special functions.

  • Page 23: Preset

    Geniewatch, NSD5451 User Manual (Ver. 1.0) Preset Function Max. 127 positions can be stored as Preset position. The Preset number can be assigned from 1 to 128, but 95 is reserved for starting OSD menu. Camera characteristics (i.e. White Balance, Auto Exposure) can be set up independently for each preset.

  • Page 24: Pattern

    Geniewatch, NSD5451 User Manual (Ver. 1.0) Pattern Function Pattern Function is that a camera memorizes the path (mostly curve path) by joystick of controller for assigned time and revives the path exactly as it memorized. 4 Patterns are available and Maximum 1200 communication commands can be stored in a pattern.

  • Page 25: Group

    Geniewatch, NSD5451 User Manual (Ver. 1.0) Group Function The group function allows running sequence of Presets, Pattern and/or Swings. Max 8 group can be stored. Each group can have max 20 action entities which can be preset, pattern or swing. Preset speed can be set up and the repeat number of Pattern &...

  • Page 26: Other Functions

    Geniewatch, NSD5451 User Manual (Ver. 1.0) Other Functions Power Up Action This function enables to resume the last action executed before power down. Most of actions such as Preset, Pattern, Swing and Group are available for this function but Jog actions are not available to resume.
  • Page 27 Geniewatch, NSD5451 User Manual (Ver. 1.0) SemiAuto Focus This mode exchanges focus mode automatically between Manual Focus mode and Auto Focus mode by operation. Manual Focus mode activates in preset operation and Auto Focus mode activates during jog operation. With Manual mode at presets, Focus data is memorized in each preset in advance and camera calls focus data in correspondence with presets as soon as camera arrives at a preset.

  • Page 28: Osd Display Of Main Screen

    Geniewatch, NSD5451 User Manual (Ver. 1.0) 3.10 OSD Display of Main Screen Action Title Preset Label LABEL12345 PRESET1 Image Flip Alarm Information I:1--4 Camera ID CAM 1 15/4/x1/N P/T/Z Information P/T/Z Information Current Pan/Tilt angle in degree, zoom magnification and a compass direction.

  • Page 29: How To Use Osd Menu

    Geniewatch, NSD5451 User Manual (Ver. 1.0) 4 How to use OSD menu General Rules of Key Operation for Menu - The menu items surrounded with ( ) always has its sub menu. - For all menu level, to go into sub menu, press NEAR key.

  • Page 30: Display Setup

    Geniewatch, NSD5451 User Manual (Ver. 1.0) Display Setup This menu defines Enable/Disable of OSD display on DISPLAY SETUP Main Screen. If an item is set to be AUTO, the item is ------------------------ displayed only when the value of it is changed.

  • Page 31: Privacy Zone Mask Setup

    Geniewatch, NSD5451 User Manual (Ver. 1.0) PRIVACY ZONE MASK Setup Select area in image to mask. PRIVACY ZONE ------------------------ Mask No [1~4] MASK NO UNDEFINED Select Mask number. If the selected mask DISPLAY has already data, camera moves as it was...

  • Page 32: Camera Setup

    Geniewatch, NSD5451 User Manual (Ver. 1.0) CAMERA SETUP Setup the general functions of zoom camera module. ZOOM CAMERA SETUP ------------------------ Focus Mode [AUTO/MANUAL/SEMIAUTO] FOCUS MODE SEMIAUTO Sets camera focus mode. DIGITAL ZOOM LINE LOCK SEMIAUTO Mode IMAGE FLIP This mode...
  • Page 33 Geniewatch, NSD5451 User Manual (Ver. 1.0) Auto Exposure Setup Backlight [ON/OFF] Sets Backlight Compensation AE SETUP - GLOBAL ------------------------ Day/Night Sets up Day&Night mode. The time to BACKLIGHT DAY/NIGHT <AUTO2> change mode is 10 sec. BRIGHTNESS # AUTO1 Mode : The sensitivity to change...

  • Page 34: Motion Setup

    Geniewatch, NSD5451 User Manual (Ver. 1.0) Motion Setup Setup the general functions of Pan/Tilt motions. MOTION SETUP ------------------------ MOTION LOCK Motion Lock [ON/OFF] PWR UP ACTION AUTO FLIP If Motion Lock is set to ON, it is JOG MAX SPEED...
  • Page 35 Geniewatch, NSD5451 User Manual (Ver. 1.0) Parking Action Setup If Park Enable is set to ON, camera runs assigned function PARKING ACTION SETUP automatically if there is no PTZ command during assigned ------------------------ "Wait Time". PARK ENABLE WAIT TIME 00:10:00...
  • Page 36 Geniewatch, NSD5451 User Manual (Ver. 1.0) Alarm Input Setup Sets alarm function. ALARM INPUT SETUP ------------------------ Alarm No [1~4] ALARM NO. Selects a sensor number to set up. TYPE N.OPEN ACTION NOT USED HOLD TIME ENDLESS Type [Normal OPEN/Normal CLOSE]...

  • Page 37: Preset Setup

    Geniewatch, NSD5451 User Manual (Ver. 1.0) PRESET Setup Preset Number [1~128] PRESET SETUP ------------------------ If a selected preset is already defined, PRESET NO. camera moves to pre-defined position CLR PRESET CANCEL and preset characteristics such as <EDIT SCENE> Label and Relay Outputs show on <EDIT LABEL>...
  • Page 38 Geniewatch, NSD5451 User Manual (Ver. 1.0) Edit Preset Scene ○ 1 Using Joystick, move camera to desired position. EDIT SCENE - PRESET 1 ------------------------ ○ 2 By pressing NEAR key, save current PTZ data. ○ 3 Press FAR key to cancel.

  • Page 39: Swing Setup

    Geniewatch, NSD5451 User Manual (Ver. 1.0) Swing Setup Swing Number [1~8] SWING SETUP ------------------------ Selects Swing number to edit. If a SWING NO. selected Swing has not defined, "NOT 1ST POS. NOT USED 2ND POS. NOT USED USED" is displayed in 1st Position and...

  • Page 40: Pattern Setup

    Geniewatch, NSD5451 User Manual (Ver. 1.0) Pattern Setup Pattern Number [1~4 ] PATTERN SETUP ------------------------ Selects Pattern number to edit. PATTERN NO. UNDEFINED If a selected pattern number is not CLR PATTERN CANCEL defined, "UNDEFINED" will RUN PATTERN <EDIT PATTERN>...

  • Page 41: Group Setup

    Geniewatch, NSD5451 User Manual (Ver. 1.0) 4.10 Group Setup Group Number [1~8] GROUP SETUP ------------------------ Selects Group number to edit. GROUP NO. UNDEFINED If a selected Group number is not CLEAR GROUP CANCEL defined, "UNDEFINED" will be displayed RUN GROUP <EDIT GROUP>...
  • Page 42 Geniewatch, NSD5451 User Manual (Ver. 1.0) ④ Set up items such as Action, ###, Dwell and OPT. EDIT GROUP 1 ------------------------ NO ACTION ### DWELL OPT ------------------------ 1 PRESET 1 00:03 360 2 NONE 3 NONE 4 NONE 5 NONE...

  • Page 43: System Initialize

    Geniewatch, NSD5451 User Manual (Ver. 1.0) 4.11 System Initialize Clear All Data Deletes all configuration data such as SYSTEM INITIALIZE display, camera, motion setup and so ------------------------ CLEAR ALL DATA CLR DISPLAY SET CLR CAMERA SET Clear Display Set Initializes Display Configuration...

  • Page 44: Specifications

    Geniewatch, NSD5451 User Manual (Ver. 1.0) 5 Specifications Specifications Appearance Model × 10 Video Signal System NTSC 1/4'' Interline Transfer CCD Max. Pixels 811(H)× 508(V) 410K 795(H)× 596(V) 470K Effective Pixels 768(H)× 494(V) 380K 752(H)× 582(V) 440K Horizontal Res. 500 TV Line(Color), 570 TV Line(B/W)

  • Page 45: Dimension

    Geniewatch, NSD5451 User Manual (Ver. 1.0) Dimension Main Unit & Surface Mount Bracket Ceiling Mount Bracket 158.2 56.4 56.4 3/4" NPT 1.5" NPT 3/4" NPT Wall Mount Bracket 118.6 Unit (mm) Genie Network...
