3.2 Rear Panel

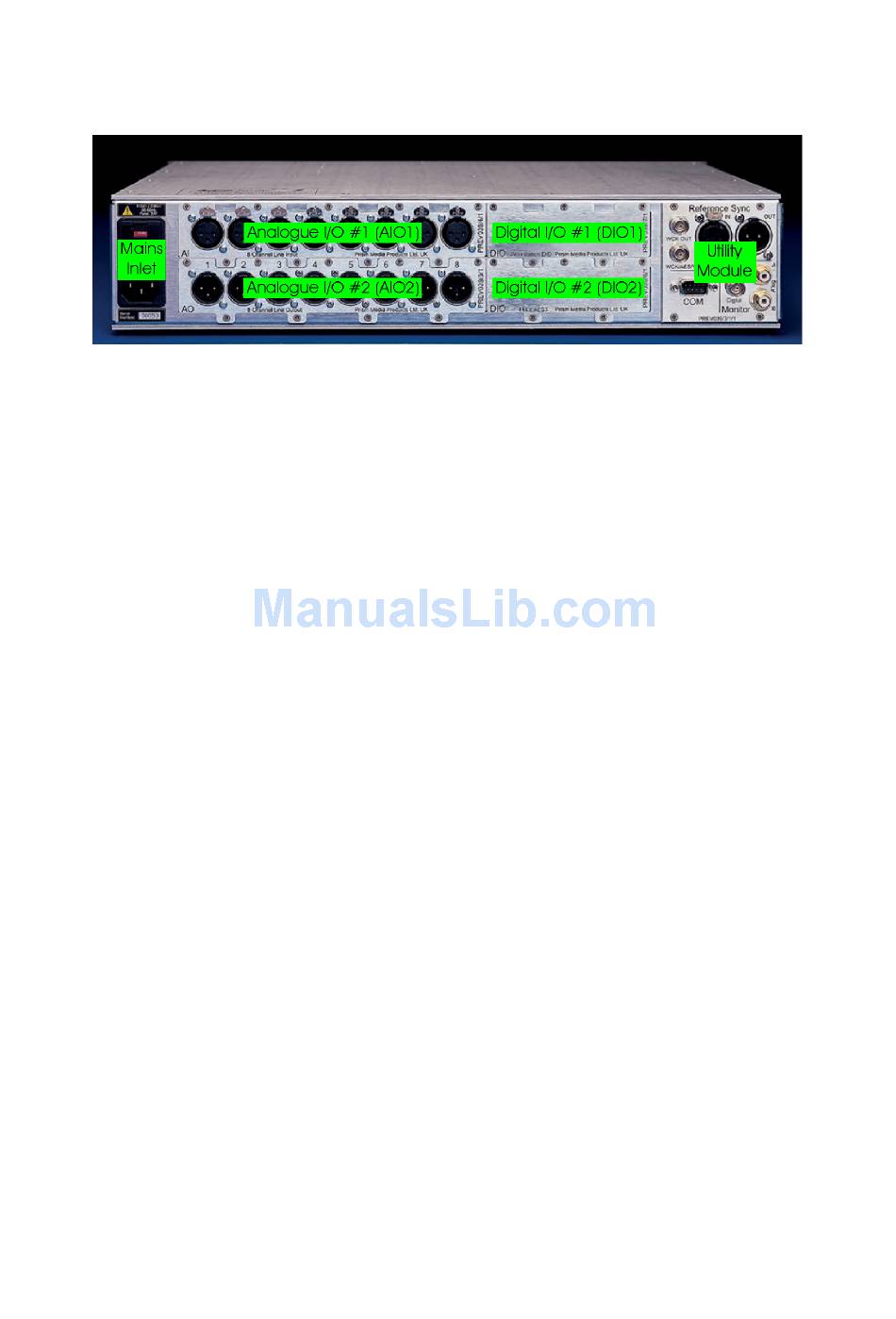

The rear panel of the ADA-8 is arranged, from left to right when viewed from the rear, as
follows:
The mains inlet comprises an inlet socket for the IEC mains lead (appropriate regional
version, provided), mains switch, and two-way voltage selector and fuse holder. For details of
how to change the voltage selector, see section 6.1.
To the right of the mains inlet are two large Module Slots for Analogue I/O Modules. The
upper slot is referred to as Analogue I/O Slot #1, or AIO1 in the front-panel legends and
menus. Inputs on Analogue Module #1 are referred to as AI1, outputs as AO1. The lower
slot is Analogue I/O Slot #2, with similar nomenclatures.
To the right of the Analogue I/O Slots are two small Module Slots for Digital I/O Modules. The
upper slot is referred to as Digital I/O Slot #1, or DIO1 in the front-panel legends and menus.
Inputs on Digital Module #1 are referred to as DI1, outputs as DO1. The lower slot is Digital
I/O Slot #2, with similar nomenclatures.
On the extreme right-hand side is the Utility Module, which contains a variety of input and
output connectors for Reference Sync, analogue and digital Monitor, and serial
communications.
Details of all available Analogue and Digital I/O Modules, including the Utility Module, are in
the Module Reference.
