Page 1: Important Guarantee Information

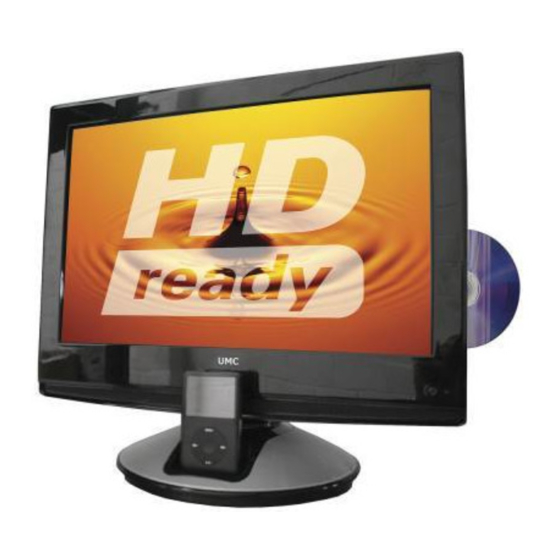

HD Ready LCD TV with Freeview, DVD & iPod Docking User Guide Model No M22/15B-GB-TCDI-UK... -
Page 3: Playstation
Important information regarding the digital TV switchover Television in the UK is going digital, bringing us all more choice and new services. Starting late 2007 and ending in 2012, television services in the UK will go completely digital, TV region by TV region. How the switchover affects your TV equipment. -
Page 4: Warnings
WARNINGS Caution This television contains no user serviceable parts. Please refer to the manufacturer or authorised repair agent in the event of malfunction. Do not remove the back cover from the television. Warning To reduce the risk of fire, electric shock or damage to the television, do not expose it to dust, rain or moisture, or place any objects filled with liquids on or near the television. - Page 5 Examples of images that you need to be aware of are as follows...
-
Page 7: Table Of Contents
CONTENTS - Important Guarantee Information CHANNEL SERVICES - Digital Switchover information 2 - 3 - Using Electronic Program Guide - Warnings 4 - 5 - Using Digital TV teletext - Contents - Using Analogue TV teletext SETTING UP YOUR TV IPOD OPERATION - What is included in the box - Connect iPod to TV-Dock... -
Page 8: What Is Included In The Box
WHAT IS INCLUDED IN THE BOX Accessories Included with this TV are the following accessories: 1x - User Guide Book 1x - Remote control IPOD PROGRAM TEXT HOLD REVEAL INDEX GOTO SIZE SUBPAGE FAV- FAV+ NICAM D.TITLE D.MENU ZOOM SUBTITLE DVB-LANG -/-- DVB-INFO... -
Page 9: Initial Set Up
GETTING STARTED - INITIAL SET UP IMPORTANT - AFTER TUNING DO NOT PRESS ANY BUTTONS FOR 20 SECONDS SO THE CHANNEL INFORMATION CAN BE STORED. TUNING IN IMPORTANT — Please ensure the TV has reached room temperature before connecting the power for the first time 1) Connect the mains lead to rear of the TV and the plug to the wall. -
Page 10: Remote Control Buttons
REMOTE CONTROL BUTTONS DVB-LANGUAGE / AUDIO Digital mode: Press to select the digital language Press to switch on LCD when on standby mode or DVD mode: Press to select DVD audio channels vice versa EPG / REPEAT Digital mode: Press to show the Electronic Program Press to mute the sound and press again to restore Guide menu in freeview / digital mode DVD mode: Press to set repeat... -
Page 11: Tv Buttons And Their Functions
TV BUTTONS TOP PANEL BUTTONS Select the input source Displays Menu/OSD Volume down and menu down Volume up and menu up Program/Channel down and menu down Program/Channel up and menu up Standby ON/OFF INPUT MENU STANDBY SIDE PANEL BUTTONS Pause Forward a chapter Back a chapter Stop... -
Page 12: Changing Source
INPUTS & CONNECTIONS REAR CONNECTIONS RF IN RF input PC AUDIO PC Audio input YPbPr/AV AUDIO Video/Component Audio input COMPONENT IN Component input VIDEO IN Video input SCART Scart input VGA (PC) VGA-PC Audio input CI Port HDMI HDMI input Audio output to connecting to an external amplifier RF IN... -
Page 13: Tv Menu Operation
TV MENU OPERATION To access the OSD menu, press ‘MENU’ on the remote control. Use the scroll up/down/right/left to navigate through the menus. DISPLAY IPOD MENU SOURCE PC-AUTO VOL- LIST VOL+ ASPECT SLEEP PICTURE SETTINGS MENU Lets you adjust picture mode, contrast, brightness, colour, tint and sharpness to enhance the viewing experience. -
Page 14: Brightness
TV MENU OPERATION PICTURE SETTINGS MENU Adjusting Brightness (Only available when Picture Mode is set to Personal) Increase or decrease the brightness of the picture 1) Press [MENU] to enter menu 2) Press [\/] to highlight Brightness 3) Press [>] to increase the brightness or [<] to decrease the brightness 4) Press [EXIT] to exit Adjusting Colour (Only available when Picture Mode is set to Personal) Increase the colour from black and white to vivid... -
Page 15: Tint
TV MENU OPERATION PICTURE SETTINGS MENU Adjusting Tint (Only available with NTSC signal) Lets you increase or decrease the level of tint within the picture 1) Press [MENU] to enter menu 2) Press [\/] to highlight Tint 3) Press [>] to increase the tint or [<] to decrease the tint 4) Press [EXIT] to exit Adjusting Sharpness You can change the sharpness between the different preset options... -
Page 16: Colour Temperature
TV MENU OPERATION PICTURE SETTINGS MENU Adjusting Colour Temperature (Only available with NTSC signal) There are 3 presets for colour temperature Normal Standard setting Warm Increased red within the picture Cold Increased blue within the picture 1) Press [MENU] to enter menu 2) Press [\/] to highlight Colour Temperature 3) Press [>] to navigate through the various options 4) Press [EXIT] to exit... -
Page 17: Sound Settings Menu
TV MENU OPERATION SOUND SETTINGS MENU Adjusting Volume Lets you adjust the volume of the television 1) Press [MENU] to enter menu 2) Press [>] to move to Sound Settings Menu 3) Press [\/] to highlight Volume 4) Press [>] to increase the volume or [<] to decrease the volume 5) Press [EXIT] to exit Selecting Sound Mode Switch between different preset sound options... -
Page 18: Bass
TV MENU OPERATION SOUND SETTINGS MENU Adjusting Bass To adjust the amount of bass within the sound 1) Press [MENU] to enter menu 2) Press [>] to move to Sound Settings Menu 3) Press [\/] to highlight Bass 4) Press [>] to increase the bass or [<] to decrease the bass 5) Press [EXIT] to exit Adjusting Treble To adjust the amount of treble within the sound... -
Page 19: Tuning Settings Menu
TV MENU OPERATION TUNING SETTINGS MENU (Only Freeview & Analogue TV modes) Adjusting Country If you are moving country you may wish to change the Country Settings 1) Press [MENU] to enter menu 2) Press [>] to move to Tuning Settings Menu 3) Press [\/] to highlight Country 4) Press [>] to alter the chosen country 5) Press [EXIT] to exit... -
Page 20: Program Edit / Channel Position
TV MENU OPERATION TUNING SETTINGS MENU Program Edit / Changing Channel Position (Only Freeview & Analague TV modes) You can change the analogue channel position to suit your requirements. 1) Press [MENU] to enter menu 2) Press [>] to move to Tuning Settings Menu 3) Press [\/] to highlight Program Edit 4) Press [>] to enter the program edit menu 5a) Freeview mode –... -
Page 21: Timer Settings Menu
TV MENU OPERATION TIMER SETTINGS MENU Lets you adjust the OSD timing and the sleep timer Sleep Timer Lets you set the sleep timer so the television automatically switches off after a certain amount of time. 1) Press [MENU] to enter menu 2) Press [>] to move to Timer Settings Menu 3) Press [\/] to highlight Sleep Timer 4) Press [>] to increase the time to the required amount... -
Page 22: General Settings Menu
TV MENU OPERATION GENERAL SETTINGS MENU Lets you adjust the language, picture size, blue screen, add child lock, complete first time installation and reset the television. On Screen Menu Language Lets you change the on screen menu language. 1) Press [MENU] to enter menu 2) Press [>] to move to General Settings Menu 3) Press [\/] to highlight Language 4) Press [>] to change the language... -
Page 23: First Time Installation
TV MENU OPERATION GENERAL SETTINGS MENU 5) To change Pin Code enter menu. Enter the old pin code (Default is blank), then enter the new pin code and enter it again. Press [OK], the pin is now changed Change PIN Code Old PIN Code New PIN Code Enter PIN Code... -
Page 24: Electronic Program Guide
ELECTRONIC PROGRAM GUIDE Electronic Program Guide (EPG) The Electronic Program Guide (EPG) is available in Digital TV mode. It is a 7 day TV guide and provides information about forthcoming programmes (where supported by the broadcasted channel). You can view the start and end time of all programs and on all channels for the next 7 days. It is very simple to operate. -
Page 25: Using Digital Tv Teletext
DIGITAL TELETEXT Digital TV Teletext With Digital TV (Freeview) there is also digital teletext available on some channels. Simply follow the on screen commands. Here is an example of the BBC digital teletext service. 1) To start digital teletext press RED button. 2) To select the information you require you can scroll using [\/] or [/\] and press [OK] alternatively you can key the page number for example [3][0][0] followed by [OK] You can then navigate using the colour buttons (Red, Green, Yellow, Blue), the [\/] [/\] buttons... -
Page 26: Using Analogue Tv Teletext
ANALOGUE TV TELETEXT Teletext is a service offered by some broadcasters. Teletext Operation 1) Press [TEXT], after a few seconds teletext page 100 should appear. Here is an example of BBC1 2) You can now navigate to the page you require in a number of ways: a) Press the page you require using the number buttons i.e. -
Page 27: Ipod Operation
IPOD OPERATION Connect iPod to TV-Dock 1. Insert your iPod to the TV-dock on the sound base. The TV will detect the insertion of the iPod and automatically switch to iPod mode. You can also manually switch to iPod mode by pressing IPOD button or selecting “iPod”... -
Page 28: Key Buttons
IPOD OPERATION Key Buttons VOL- Decrease the volume TEXT HOLD REVEAL INDEX VOL+ Increase the volume GOTO SIZE SUBPAGE BASS- Decrease the sub bass BASS+ Increase the sub bass FAV- FAV+ NICAM D.TITLE D.MENU ZOOM Play/pause DVB-INFO SUBTITLE DVB-LANG Next track SUBT. -
Page 29: Shuffle & Repeat Songs
IPOD OPERATION Now Playing Interface Track Title Artist Album Name Shuffle Off Shuffle State Shuffle On Repeat Off Repeat State Repeat One Song Elapsed time Repeat All Track Time Vlolume Level Bass Level Scrubber bar Shuffle and Repeat Songs Please note - Both the repeat and shuffle mode will default to the iPod settings on the iPod player iPod iPod... -
Page 30: Watch Videos From Ipod
IPOD OPERATION Watch Videos from iPod iPod Main Menu 1 Music 2 Videos 3 Shuffle Songs 4 Settings 5 Now Playing Pg Up/Down Enter Select IPOD MENU Operate Via Ipod Back For iPod nano 3Gen, iPod Classic, iPod 5Gen, you can select a video program and play in the iPod Menu OSD. -
Page 31: Connecting To A Pc
CONNECTING TO A PC - WINDOWS XP IMPORTANT— Before connecting to a PC you must ensure that the settings of the PCs output are correct for the new LCD Monitor. You need to do the following with your old monitor connected 1) Switch on your PC 2) When finished booting up, right click your mouse anywhere on the screen, the below will appear... -
Page 32: Connecting To A Pc
CONNECTING TO A PC - WINDOWS XP 5) Left click your mouse on Advance, this screen will appear, click on tab called ‘Monitor’ 6) Left click on the drop down for Screen refresh rate and select 60 Hertz. 7) Finally click on Apply, then click Yes and the settings will be saved. 8) Turn off your PC. -
Page 33: Pc Menu Settings
PC MENU OPERATION (VGA) VGA MENU Auto Configuration of Screen Lets you automatically configure the television to be used as a computer monitor 1) Press [MENU] to enter menu 2) Press [>] to select PC settings 3) Press [\/] to select Auto Sync 4) Then press [>] for the TV to automatically configure itself 5) Press [EXIT] to exit Phase... - Page 34 PC MENU OPERATION (VGA) Horizontal Position Changes the horizontal position of the picture 1) Press [MENU] to enter menu 2) Press [>] to select PC settings 3) Press [\/] to select H-Position 4) Then press [>] or [<] to move the picture to left or right 5) Press [EXIT] to exit Vertical Position Changes the vertical position of the picture...
-
Page 35: Dvd Menu Operation
DVD MENU OPERATION DVD SETTINGS MENU Adjusting Parental Control You may wish to block certain DVDs being played, for example if you have young children. This can be done via limiting the age rating of the DVD. 1) Press [MENU] to enter menu 2) Press [>] to move to DVD Setting Menu 3) Press [\/] to highlight Parental Control SETUP... -
Page 36: Adjusting Language
DVD MENU OPERATION Adjusting Language Lets you adjust the Audio Language, Menu Language, Subtitle Language within DVD mode 1) Press [MENU] to enter menu 2) Press [>] to move to DVD Setting Menu 3) Press [\/] to highlight Language SETUP Parental Control Language Audio Setup... -
Page 37: Adjusting Audio Set Up
DVD MENU OPERATION Adjusting Audio Set Up Lets you adjust the Audio Setup within DVD mode 1) Press [MENU] to enter menu 2) Press [>] to move to DVD Setting Menu 3) Press [\/] to highlight Audio Setup SETUP Parental Control Language Audio Setup Digital Setup... -
Page 38: Adjusting Digital Set Up
DVD MENU OPERATION Adjusting Digital Set Up Lets you adjust the Audio Setup within DVD mode 1) Press [MENU] to enter menu 2) Press [>] to move to DVD Setting Menu 3) Press [\/] to highlight Digital Setup SETUP Parental Control Language Audio Setup Digital Setup... -
Page 39: Connecting A Games Console
CONNECTING A GAMES CONSOLE The Nintendo Wii, Sony PS1, Sony PS2 and Xbox are supplied with an AV Multi Out plug to AV cable, some versions, depending on model/age are also supplied with SCART to AV adaptor. SCART to AV adaptor - supplied with some consoles or available to purchase separately. - Page 40 CONNECTING A GAMES CONSOLE SONY PS3 Different models/versions of PS3 come with different types of connecting cables included with the console. The ideal way to connect the PS3 to a TV fitted with a HDMi socket is by using the HDMi connector on the PS3 to the HDMi input on the TV (where fitted).
-
Page 41: Wall Mounting
WALL MOUNTING IMPORTANT— BEFORE DRILLING ANY HOLES IN THE WALL ENSURE YOU ARE NOT DRILLING WHERE THERE COULD BE ANY ELECTRIC WIRES, WATER OR GAS PIPES THIS TV REQUIRES A VESA 100 WALL MOUNT, OR EQUIVALENT To provide improved sound this television has speakers built into the stand of the TV. -
Page 42: Using With Sky Digital
USING WITH SKY DIGITAL You may wish to use your TV with Sky Digital. There are a number of connection options, the best being connecting via SCART cable. Connecting via SCART 1) Connect the SCART cable from the Sky Digital Box to SCART of the TV 2) Press [SOURCE] 3) Press [\/] or [/\] to select SCART 4) Press [OK]... -
Page 43: Using With Sky Digital
USING WITH SKY DIGITAL Manually tune until you locate the Sky channel. If it stops press [>] again and the search will continue. (Often, the frequency required is 847.25 mhz, depending on which model of Sky Set top box) Once tuned in it will go back to TV USING WITH SKY DIGITAL REMOTE CONTROLS (BSKYB) OR UNIVERSAL REMOTE CONTROL You may wish to use your Sky Digital or a universal remote control to operate some of the functions of this TV. -
Page 44: Connecting Tvs With Ipod Function
CONNECTING TV’s WITH iPOD FUNCTION This TV’s with iPod speaker base and iPod function is designed to work with most models of iPods launched into the market. Below is a list of tested and compatible iPods which will work on this TV. Some functions will operate using the TV’s remote control, other functions will operate using the iPod display, depending on the model of iPod. -
Page 45: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS Solution: Question: I have tuned in Digital TV but 1) Check you are in an area that can I am not receiving any or all of the receive Freeview. Visit channels and/or the channels I receive www.freeview.co.uk or call are breaking up 08701 111 270. -
Page 46: Technical Specifications
TECHNICAL SPECIFICATION Model Name " 9 " 2 Panel Type LCD Panel Panel 16:10 Screen Format × Analogue:BG, DK, I, L/L' TV System Digtial: DVB-T Analogue: PAL, SECAM, NTSC 3.58/4.43(Only video in) Colour/Video System Digital: MPEG-2 MP@ML Systems Analogue: VHF: E2-E12/UHF: E21-E69/CATV: S1-S20/HYPER: S21-S41 D/K: R1-R12, R21-R69/L: F2-F10, B-Q, F21-F6 9/I: UHF B21-B69 Reception Range Digital: VHF/UHF... -
Page 47: Index
INDEX Analogue TV teletext On Screen Display Language Audio Set Up On Screen Display Timer Auto Tuning Parental Control Balance PC Menu Settings 33 - 34 Bass Photos from iPod Blue Screen Picture Format Brightness Picture Mode Presets Changing Regions PlayStation 3 Child Lock / Key Lock Program Edit / Channel Position... - Page 50 MMU/MAN/0018...
