Summary of Contents for Doro TH80

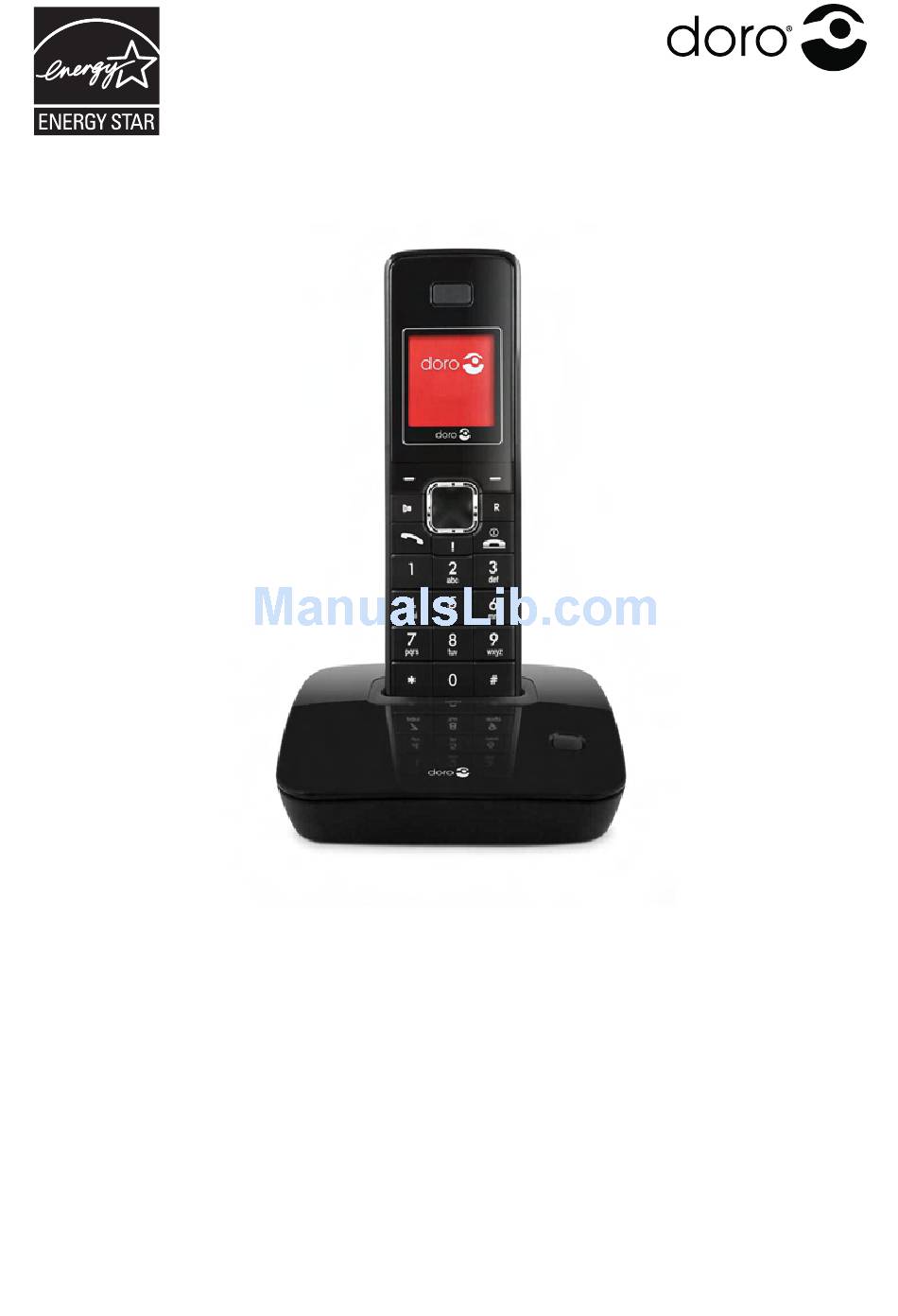

- Page 1 th80...
- Page 3 Front Housing - keypad area Lens -laser etching -pant (for numbers :colour white after laser) (for on/off keys: green and red respectively) 1 Left menu button/Back/ 4 Shared phonebook 8 Recall button (PBX features) Internal call and ring signal off/on 9 Right menu button/OK Date : 8 May 20 2 Speaker phone and keyguard 10 Scroll button Prepared by : Rickard N 3 Talk button...
-
Page 4: Table Of Contents
English Connection ...... 1 KeyGuard ......3 Other settings ....10 Range ......1 Paging ......3 Base settings ....11 Battery ......2 Message button ....3 Register a new handset .. 11 Base unit indicators ..2 Phonebook ...... 4 Expanded system (+1) ..12 The display ...... 2 Incoming numbers/Caller Troubleshooting ....13 Specific Absorption Rate Making a call .... -
Page 5: Battery
English Battery As batteries only have a certain lifespan it is quite normal that call time and standby time will decrease somewhat compared to the specifications when the telephone is used regularly. Fully-charged batteries (10 hours charging) will last for approx. 100 hours standby time or approx. 10 hours call time. These times apply at normal room temperature. Full battery capacity will not be reached until the batteries have been charged 4-5 times. The base unit has an automatic charging mechanism that prevents the batteries from being overcharged or damaged due to prolonged charging. Please note! Use only original battery (3.7V Li-ion polymer 465mAh) and original power adapter (7.5V DC 400 mA) Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instruction in your country. -
Page 6: Making A Call
English Making a call 1. Enter the required number. 2. Press , and the number will be dialled. Press to end the call. Receiving a call 1. Wait for the handset to ring. 2. Press to answer. Press to end the call. Please note! To switch between handset/speaker press . Please remember that in speaker mode, it is only possible for one person at a time to talk. This product does not usually ring on the first signal to allow correct matching to the phone book. -
Page 7: Phonebook
English Phonebook 200 telephone numbers (max. 24 digits) with names (max. 15 letters) can be stored in the handset’s phonebook. If you subscribe to a caller ID service, the name allocated to the caller in the phonebook will be shown for incoming calls. You can also select different ring signals for different groups of numbers that are stored in the phonebook. Letters Each number key has been allocated certain letters. The phonebook is arranged according to the order of the buttons, which is not the same for all languages........[Space] ABC/abc/Abc ........Switch between upper/lower case letters (press & hold) ..... Pause in telephone number Save name/number in handset 1. Press ). Press Option. 2. Scroll to New entry. Press OK. 3. Press equivalent digit key one or more times for desired name. Press 4. Enter the telephone number, including the area code. 5. Press OK to save or first press and scroll with to assign the position to a ring signal group. Managing the phonebook 1. Press 2. Scroll among the entries with . You can quick search the phonebook by pressing the corresponding number key for the first letter. -
Page 8: Incoming Numbers/Caller Id
English Shared phone book The phone book in the base unit is shared by all handsets and has 10 entries which only need to be stored once however many handsets there are. Useful telephone numbers are pre-programmed in certain models. However these numbers may not match with caller identification for name/ringtone. 1. Press 2. Scroll among the entries with 3. Press to dial or scroll to the entry that is to be replaced. Press Option. 4. Scroll to Edit entry. Press OK. 5. Enter name. Press 6. Enter the telephone number, including the area code. Press OK. Incoming numbers/Caller ID The display shows you who is calling and the 30 most recent incoming numbers. Missed calls are indicated by in standby mode. If one and the same number calls in more than once it will be saved as only one entry. Please note! This function requires a subscription from your service provider. Retrieving and dialling 1. Press . Scroll to the required entry using 2. Press to make a call or press Option for misc. choices. -
Page 9: Sms Messages
English SMS messages This applies only to subscribers of text messaging services (SMS). This service is not yet available in all countries. Maximum 160 signs per message. A new SMS message is indicated with the text New SMS and the symbol The memory can store up to 20 messages. Please note! Program the correct number for your operator, see next page. In most cases you must subscribe to the SMS service as well as the caller ID service supplied by your service provider for message reception to function. -
Page 10: Uk Only
English Entering the telephone number to SMS service centre/Send service Check that the correct number for your service provider has been programmed. UK only E.g. for BT: SMS-Centre 1 (sending): 147017094009 SMS-Centre 2 (receiving): 0800587529 - To register for the SMS text messaging service you can either send a text message to another telephone number, or text REGISTER to 00000. - Should you wish to reset your SMS settings text RESET to 00000. - You can also request a delivery report by entering * 0 # prior to any SMS message. - An SMS message can also be sent to a telephone number that does not support this feature, and will be received as a voice message. - Not all networks (ie mobile, cable) are compatible. 1. Press Menu. Scroll to SMS. Press OK. 2. Scroll to SMS settings. Press OK. 3. Scroll to Service centre. Press OK. 4. Scroll to selected entry. Press OK. 5. Enter number. Press OK. Under Send service you specify which of the stored numbers is to be used for outgoing SMS. Message Alert You can activate a tone that is heard when new messages have been received. 1. Press Menu. Scroll to SMS. Press OK. 2. Scroll to SMS settings. Press OK. -
Page 11: Message Indication (Voice Mail)
English Message Indication (voice mail) This applies only to subscribers with access to a voice mail service. In addition, if you subscribe to services for message indication and caller ID the display will show if someone has left a message. A new message is then indicated with the text Message waiting on standby (only applies in certain countries). Please note! The telephone number to call voice mail depends on the network and must be programmed see under Other services further on in this chapter. Network codes Playback with hot key Hold pressed down for a few seconds. Listen to the information/messages received. -
Page 12: Other Info Services
English Other info services Most usual operator/extra services can be accessed via the menu or with the menu buttons during a call. Some functions are pre-programmed but is not certain that all functions will work on delivery as this will depend on the country of installation/operator. You can change the codes that are sent, see below in this chapter. The functions available will depend on your service provider. Please note! You may have to pay extra for some services, contact your service provider for more information. Some services will not work unless you have contacted your service provider to activate them. Busy number/call waiting 1. Connect an external call and wait until the timer is shown. Press Option. -
Page 13: Sound
English Sound 1. Press Menu. Scroll to Sound. Press OK. 2. Scroll to desired function, e.g. Ringer. Press OK. 3. Scroll to desired function, e.g. Ring volume. 4. Scroll to desired setting . Press OK. The handset’s ring signal can be adjusted. Ringer Can be heard when pressing buttons/when charging starts, low battery, Tones confirmation or when out of range. Other settings 1. Press Menu. 2. Scroll to HS settings. Press OK. 3. Scroll to required function e.g. Language. Press OK. 4. Scroll to desired setting. Press OK. This function allows you to dial a predetermined number by pressing any Direct call button (however not Opt which allows you to disconnect this function). The activated alarm is indicated with on standby. When the alarm Alarm goes off, an audio signal is heard for 30 seconds. Use Stop to switch it off permanently. The volume is determined by the set ringer level. Setting of date/time is described in the Connection chapter. Date/Time Only used in systems with more than one base unit. -
Page 14: Base Settings
English Base settings Base PIN is 0000 on delivery. 1. Press Menu. 2. Scroll to Base settings. Press OK. 3. Scroll to desired function e.g. Exchange code. Press OK. 4. Scroll to desired setting. Press OK. The base unit’s ring signals can be set at several different levels. Ringer You can decide whether all handsets should ring at once when there HS priority is an incoming call, or if one handset should start ringing before the others. You can set the number of ring signals for this function as well. Must be in tone in most countries. Dial mode Only for adaptation to international company switchboards. For most Flash time countries, the setting is 100 ms. Msg Wait Off To turn off the message indication manually. You can change the PIN code (0000 on delivery). System PIN Exchange code Enter the digit that obtains an external line and the telephone will insert a pause automatically when a number starts with that digit. When this function is enabled, less power is consumed during charging, ECO mode if you use one handset only. -
Page 15: Expanded System (+1)
English Expanded system (+1) All handsets included in the package are already registered to the base unit. The handset number used for internal calls is shown in the display on standby mode. The base unit should be positioned centrally so that the coverage area is roughly equal for all handsets. You can register up to 5 handsets to one base unit. This model is GAP (Generic Access Profile) compatible, which means that the handset and the base unit can both be used with most other GAP compatible units irrespective of manufacturer. However the GAP protocol cannot guarantee that all functions may be accessed. Intercom / internal call 1. Press Int. -
Page 16: Troubleshooting
English Troubleshooting Check that the telephone cord is undamaged and properly plugged in. Disconnect any additional equipment, extension cords and other phones. If the problem is resolved, the fault is with some other equipment. Test the equipment on a known working line (e.g. at a neighbour’s house). If the equipment works there the fault is probably with your telephone line. Please report this to your network operator. No number shown when ringing - This function requires a Caller ID subscription from your service provider. - A switchboard cannot usually pass on incoming numbers. Warning signal during call/Cannot connect - The batteries may be running low (recharge the hand unit). - The hand unit may be nearly out of range. Move closer to a base unit. - Try turning the ECO Mode function off under System settings. Telephone does not work - Check that the adapter and telephone cord are connected to the base unit and to their respective wall sockets. - Check that you have selected Tone Dial, see System Settings/Dial. - Check the charge status of the handset batteries. - Try connecting another telephone, known to be in working order, to the line socket. If that phone works then it is likely that this equipment is faulty. The telephone continues to ring - Some of the telephone’s ringers do not follow the line signal, which means that the signal may continue for up to 10 seconds after answering a call. -
Page 17: Declaration Of Conformity
ENERGY STAR and the ENERGY STAR mark are registered US marks. ENERGY STAR is a registered mark owned by the US government. Declaration of conformity Doro hereby declares that the Doro th80 products conform to the essential requirements and other regulations contained in the directives 1999/5/EC (R&TTE), 2002/95/EC (ROHS). A copy of the manufacturer’s declaration is available at www.doro.com/dofc Guarantee This product is guaranteed for a period of 12 months from the date of purchase. If you experience any problems please contact the place of purchase. Proof of purchase is required for any service or support needed during the guarantee period. This guarantee will not apply to a fault caused by an accident or a similar incident or damage, liquid ingress, negligence, abnormal usage, non-maintenance or any other circumstances on the user’s part. Furthermore, this guarantee will not apply to any fault caused by a thunderstorm or any other voltage fluctuations. As a matter of precaution, we recommend disconnecting the device during a thunderstorm. Batteries are consumables and are not included in any guarantee. This guarantee does not apply if other batteries than DORO original batteries have been used. If you cannot resolve the fault using the faultfinder section, technical support is available by email on tech@doro-uk.com or via a premium rate telephone number: 0905 895 0854, calls cost 50 pence per minute (prices correct at the time of publication). Further contact details are available on our website: www.doro-uk.com Alternatively you can write to: Customer Services Doro UK Ltd 1 High Street Chalfont St Peter Buckinghamshire SL9 9QE... -
Page 18: Australia And New Zealand
English Australia and New Zealand Products permitted for connection to the telephone network are marked with in Australia and in New Zealand. These marks indicate the products comply with the regulations and can be legally connected in the country of purchase. Customer support AUSTRALIA NEW ZEALAND DORO Australia Pty Ltd Atlas Gentech (NZ) Limited PO Box 6646 Private Bag 14927 Silverwater BC NSW 1811 Panmure Australia Auckland New Zealand Ph: Ph: 1300 885 023 Ph: 0900-500-25 (Toll Call) Fax: (02) 9748-6892 Fax: (09) 574-2722 support@doro.com.au support@atlasgentech.co.nz www.doro.com.au Electro Magnetic Radiation (EMR) This telephone complies with applicable safety requirements for exposure to radio waves. The mean power of this telephone is not greater than 14 mW. This is below the 20mW limit at which testing is required. REN (RN for New Zealand) The REN (Ringer Equivalence Number) or (RN) is of significance only if you wish to connect more than 1 telephone to your telephone line. A standard telephone line has a... - Page 19 7.5V DC (~230V AC 50Hz) th80 (base): 400mA +1,+2..: (charger unit): 200mA...
- Page 20 English Version 1.2...
