Lenmar PPUCLIP User Manual

Model: PPUCLIP

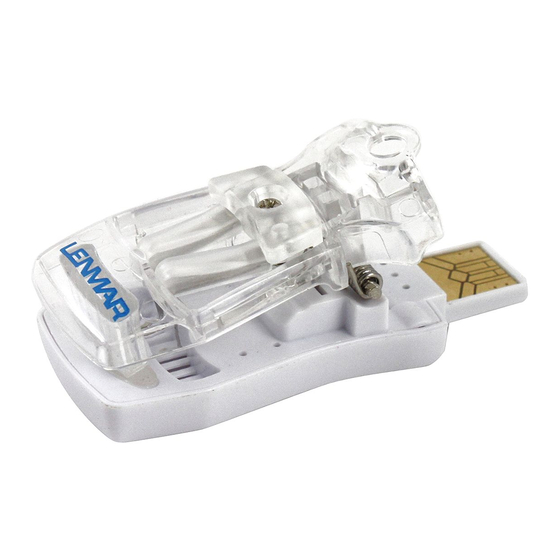

PowerPort™ Clip USB Battery Charger
PLEASE READ THIS INFORMATION THOROUGHLY BEFORE USING THIS
PRODUCT. IT CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR
YOUR UNIT.

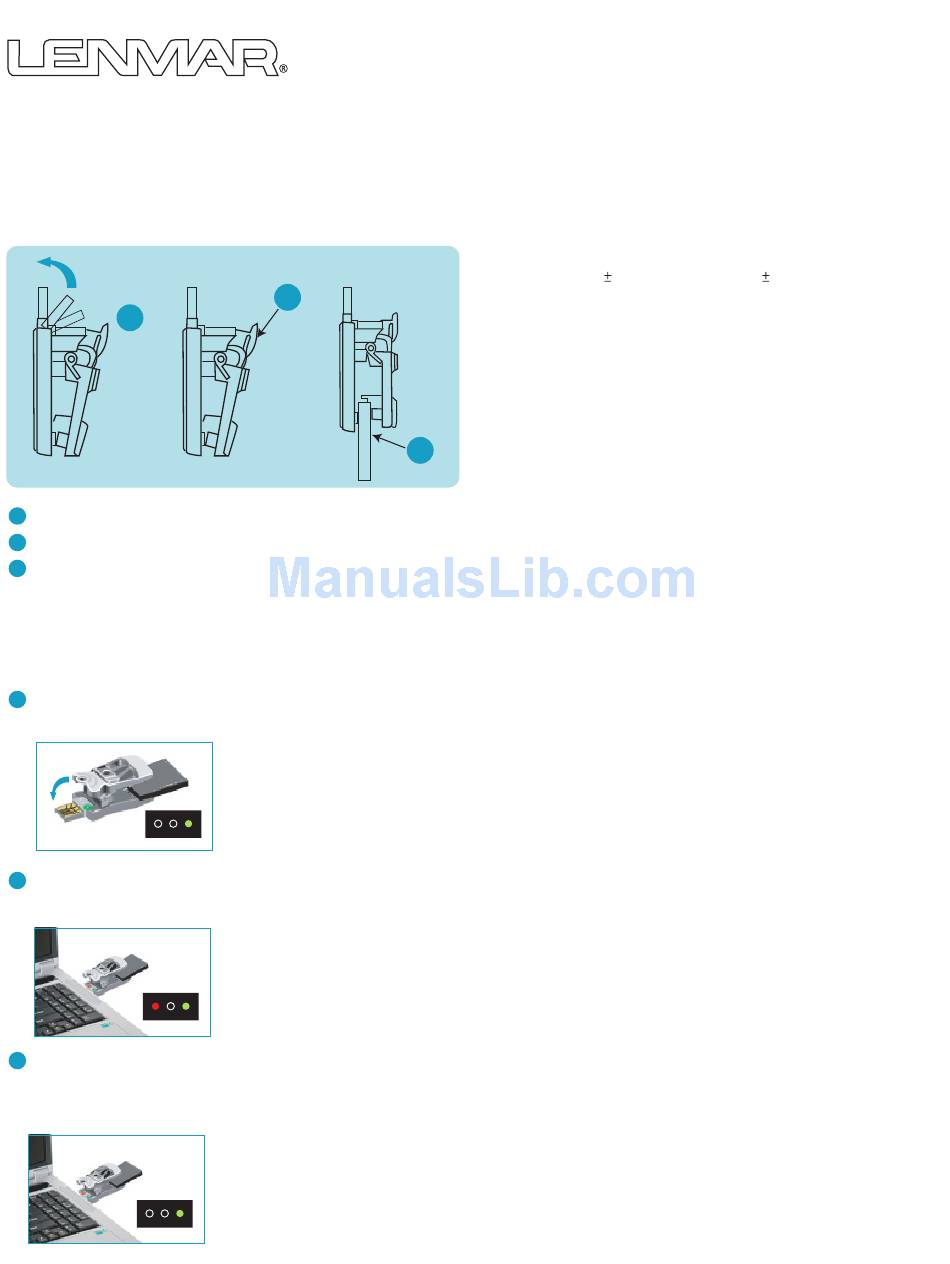

Instructions
1
1
Flip up the USB connector on the PPUCLIP.
2
Press the back of the top cover to open the PPUCLIP.
3
Slide the battery towards the PPUCLIP's contacts, adjusting them so
that one contact touches the positive (+) terminal of the battery and
the other touches the negative (-) terminal. There is no need to worry
about positive and negative polarity connections - the polarity is auto
sensing and adjusts accordingly.
4
When the battery is installed correctly and making proper contact the
green LED will turn on.
5
Insert the USB end of the PPUCLIP into any USB port. Both the red and
green LEDs will turn on indicating the battery is charging.
6
The red LED will gradually dim as the battery reaches a full
charge. When the battery reaches a full charge, the red LED will
turn off and the green LED remains on, indicating a full charge.
POWERED BY
2
B
A
T
T
E
R
Y
Caution
• The product provides current and voltage surge protection as well as short-
circuit protection and is suitable for charging 3.6 & 3.7V lithium batteries
• Do not leave the charger in wet conditions or under high temperatures
• It is normal for the charger to become warm when in use; this will not
damage the battery
• Do not charge non-rechargeable batteries

Specifications

Battery Type: Rechargeable 3.6-3.7V Li-Ion batteries
Power: DC 5V USB interface Model A
Voltage: DC5.0V
Charging Current: MAX 500mA
Working Environment: Temperature 0-45C, Humidity 20-60%
Size: 47mm x 26.5mm x 27mm
Weight: Approx. 11g
