Lenmar PPW24 Owner's Manual

Model: PPW24

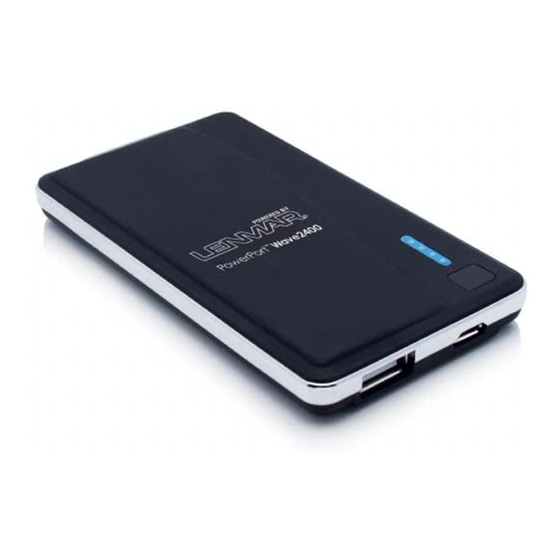

PowerPort™ Wave2400 - Portable Battery & Charger
PLEASE READ THIS INFORMATION THOROUGHLY BEFORE USING THIS PRODUCT. IT CONTAINS IMPORTANT
OPERATING INSTRUCTIONS FOR YOUR UNIT.
Owner's manual
Thank you for purchasing the PowerPort Wave2400, Portable Battery and Charger. Take the compact,
lightweight PowerPort Wave2400 with you wherever you go and have a handy charger or rescue battery that
works anywhere!
The PowerPort Wave2400 charges your PDA, mobile phone, MP3 player, game system, or almost any device
that can be charged via a USB cable connection.
You have a maximum output of 1.0A with this unit's USB port.
Included in the package you have purchased:
PowerPort Wave2400, USB Charging Cable, & User Manual
Charging your PowerPort Wave2400
You can charge the PowerPort Wave2400 with the included Micro-USB to
USB cable. Just plug the Micro-USB cable into the Micro-USB input port
(labeled "in" on unit), and the other end into your computer's USB port, a
USB wall plug style adapter, or a USB DC car adapter.
The LED status indicators show the current charging status of the
PowerPort Wave2400. The LED's will blink and become steady as it
charges, ascending from the bottom to the top. Once the 4th LED has
become steady, the charging process has completed.
Capacity Level / Charge Button
With the built-in "Capacity Level / Charge Button" button, you have the option of checking the remaining
capacity left in the PowerPort Wave2400. Checking remaining capacity is as easy as pushing the button while
the PowerPort Wave2400 is not connected to any device.
One LED indicates 20-40% power remaining.
Two LED's indicate 40-60% power remaining.
Three LED's indicate 60-80% power remaining.
Four LED's indicate 80-100% power remaining.
When you're ready to charge your device, plug it in and push the "Capacity Level / Charge Button to start the
charging. Once the button has been pushed, it will charge your connected device. If it senses no device is
connected within 30 seconds, it will shut down automatically.
Connecting the PowerPort Wave2400
to your Device.
Attach your device using its USB charging/sync cable
(not included) to the PowerPort Wave2400. Once
attached via its USB cable, push the "Capacity Level /
Charge Button" button once, turning it "ON". Depending
on the device, it will now either power or charge it.
Port
USB
Capacity Level / Charge Button
PowerPort ™ Wave2400
Features:
Caution:
Do not overcharge the PowerPort Wave2400, as it will shorten its life span.
Disconnect the PowerPort Wave2400 as soon as it is practical after the charge is complete. When not in use,
unplug the PowerPort Wave2400 from all cables and devices. Do not drop.
Recycle or dispose of the PowerPort Wave2400 properly. If disposed of in re or short circuited, the PowerPort
may leak or explode, causing personal injury.
Note:
The PowerPort Wave2400 must be charged prior to rst use and may become warm during charging and use.
Specifications
Cell type: Lithium-Polymer Battery
Input: DC 5V 1.0A max
Output: DC 5V 1.0A
Capacity: 2400mAh
Dimensions: 103.5 x 55 X 11mm
Weight: 41g
Limited 1 Year Warranty
Lenmar product is warranted to be free of defective parts and workmanship for stated period from the original
date of purchase when sold through our website or our authorized retailers. Warranties are not transferable. The
warranty excludes damage resulting from accident, misuse, modi cation, delay or loss of use, damage to
equipment or by normal wear and tear.
ALL WARRANTY CLAIMS ARE PROCESSED ONLINE AT THE FOLLOWING LINK:
WWW.LENMAR.COM/WARRANTY
Warranty claims made after 60 days from the original date of purchase, will require a processing fee. Details will
be included while completing the online warranty request. Payment can be made via credit card when
completing the warranty form or a check can be included with the package when it is returned to Lenmar. Once
the request is completed, you will be emailed with a con rmation WRA number and instructions on how to
return the item for a warranty replacement.
Proposition 65 Notice (California)
The following statement is required in the state of California pursuant to the settlement of an action brought
by the Mateel Environmental Justice Foundation against multiple electronics and appliance manufacturers
• WARNING: Handling the cord on this product will expose you to lead, a chemical known to the
state of California to cause birth defects or other reproductive harm. Wash hands after handling.
For additional questions, comments, or to explore other Lenmar power solutions,
visit our website at: www.lenmar.com or call 800/424-2703 from 9AM – 5PM PST.
311-441-33-1005 r1 y1
5
Lithium-Polymer battery must be
recycled or disposed of properly.
