Lenmar PRO541 Quick Start Manual

Model: PRO541

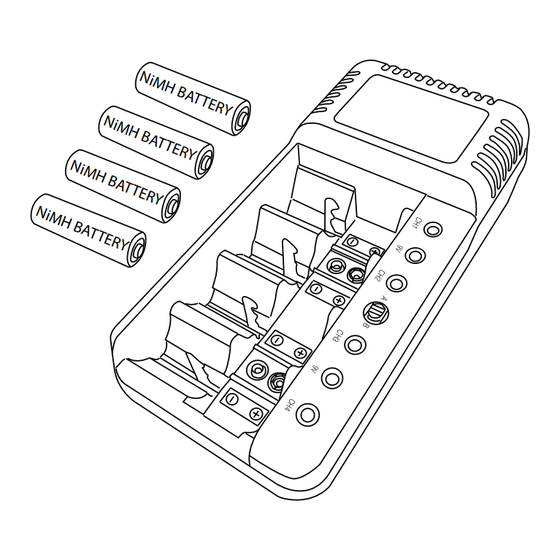

Lenmar 5-in-1 Battery Charger
For NiMH AA/AAA, C, D, & 9V Batteries
IMPORTANT SAFETY INSTRUCTIONS-
DANGER. TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.
PLEASE READ THE ENTIRE MANUAL BEFORE USE.
SAVE THESE INSTRUCTIONS.

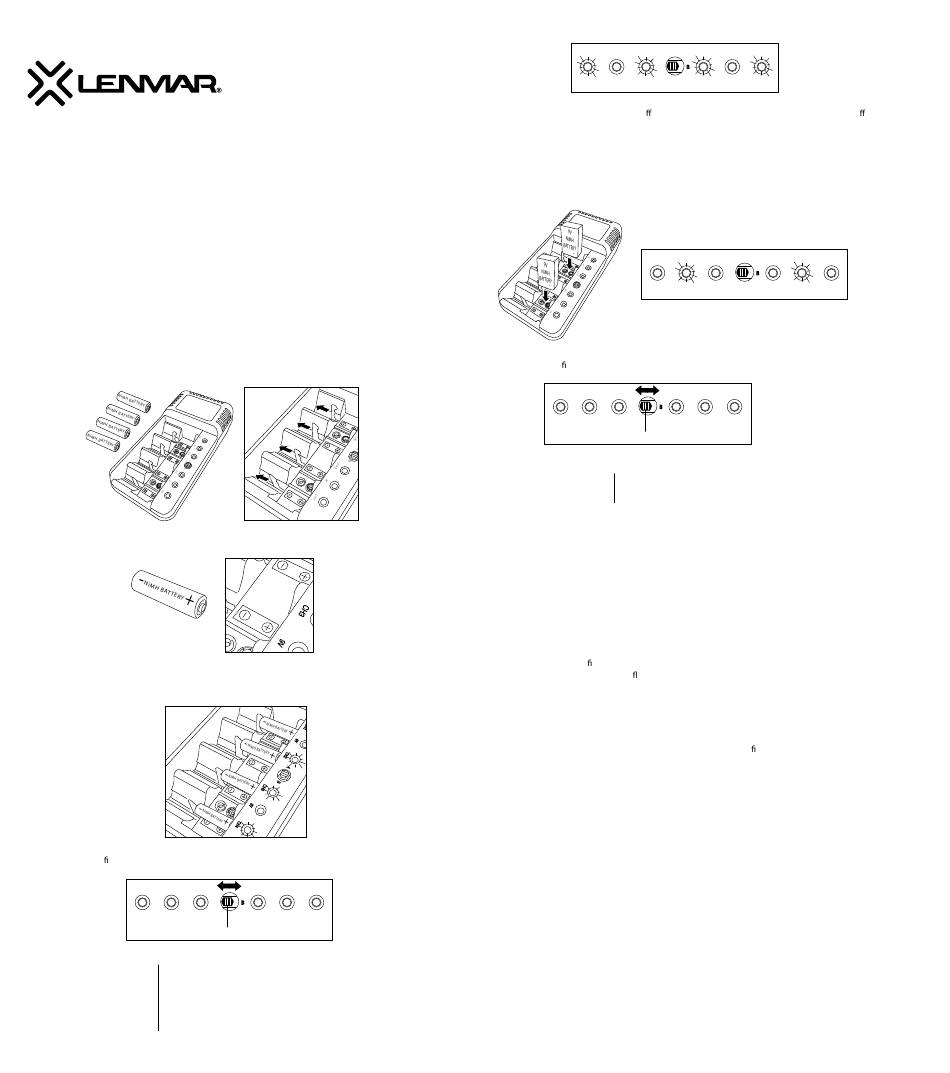

OPERATING INSTRUCTIONS
Thank you for purchasing the Lenmar 5-in-1 Battery Charger. Read the instruction manual thoroughly before
use and keep the manual for later reference. This universal charger can recharge up to 4 NiMH AAA, AA, C or
D batteries simultaneously. This charger can also recharge up to two 9V NiMH batteries at the same time.
INSTALLING THE BATTERY:
1. Insert the battery into the battery compartment by pulling back the spring loaded battery contact, then
releasing it. Allow the spring loaded contact to make contact with the battery.
2. Match the polarity of your battery (+ or – sign) to the polarity shown in the diagram in the battery
compartment. (Put the + side of your battery on top of the + mark in the battery compartment).
CHARGING AAA/AA/C/D BATTERIES:
1. Insert 1-4 AA, AAA, C, D batteries into the battery compartments labeled CH1, CH2, CH3 CH4. Each battery
compartment can only hold one battery at a time; do not stack more than one in each compartment.
2. Slide the switch to select the correct capacity of the battery being charged.
Refer to the speci cations below to determine the correct setting.
CH1 9V CH2
CHARGING TIMES:
Slide switch to "A" position Slide switch to "B" position
(5 hours) (8 hours)
AA: Lower than1300mAh AA: Higher than1300mAh
AAA: Lower than 500mAh AAA: Higher than 500mAh
C/D: Lower than 1600mAh C/D: Higher than 1600mAh
A
CH3 9V CH4
SWITCH
3. Plug the charger into a 100-120V AC outlet. The corresponding LED above the battery compartment will
illuminate Red to indicate that the battery is charging.
A
CH1 9V CH2
4. The charger will automatically switch o once the battery is recharged. The Red LED will turn o .
The charged batteries are now ready for use.
NOTE:
Unplug the charger and remove the batteries from the charger when not in use.
CHARGING 9V NiMH BATTERIES:
1. Insert 1-2 9V batteries into the battery compartments labeled 9V. When 9V cells are placed in the charger,
the Green LED will switch on.
CH1
2. Slide the switch to select the correct capacity of the battery being charged.
Refer to the speci cations below to determine the correct setting.
A
CH1 9V CH2
SWITCH
CHARGING TIMES:
Slide switch to "A" position Slide switch to "B" position
(5 hours) (8 hours)
9V: Lower than 120mAh 9V: Higher than 120mAh
3. The Green LED will stay on even after the charge time of 5 to 8 hours has been reached.
4. Remove the 9V cells from the charger. The charged batteries are ready for use.
NOTE:
Unplug the charger and remove the batteries from the charger when not in use.
WARNING:
- This charger is for NiMH batteries only. Do not use other battery cell types in this charger.
- Do no disassemble. Do not attempt to open the charger's casing; there are no user serviceable parts.
This will void the warranty
- Do not submerge. Keep the charger dry at all times. If the charger gets wet while in use, unplug it
immediately and wipe it dry. Remove the batteries from the charger. Do not attempt to use the device
again until you have veri ed that it is completely dry and in working order
- Keep the battery charger away from ammable and heat-sensitive materials.
- For maximum battery life, remove the batteries from the charger once they are fully charged.
LIMITED 1 YEAR WARRANTY
Lenmar product is warranted to be free of defective parts and workmanship for stated period from the original
date of purchase when sold through our website or our authorized retailers. Warranties are not transferable. The
warranty excludes damage resulting from accident, misuse, modi cation, delay or loss of use, damage to
equipment or by normal wear and tear.
ALL WARRANTY CLAIMS ARE PROCESSED ONLINE AT THE FOLLOWING LINK:
WWW.LENMAR.COM/WARRANTY
SPECIFICATIONS
Dimensions: L229 x W110 x T64mm
Input: 110-127 VAC, 50/60 Hz 11W
Output: C/D – 4 x 1.4 VDC 440mA Weight: 515g
AA – 4 x 1.4 VDC 360mA
AAA – 4 x 1.4 VDC 140mA
9V - 2 x 9VDC 30mA
Lenmar was founded in California in 1965. In the ensuing decades the company has been responsible for
bringing millions of consumer electronics back from the dead. Our products are designed locally and
consumed globally, with headquarters in North America, Europe, and Asia. In an increasingly connected
world, where thousands of smartphone, tablet, camera, and laptop batteries die every second, keep your
favorite electronics UNDEAD with Lenmar.
For questions, comments, and to explore Lenmar's Undead Power solutions, please visit our website at
www.lenmar.com or call customer service at 800-424-2703 from 8AM to 5PM PST.
