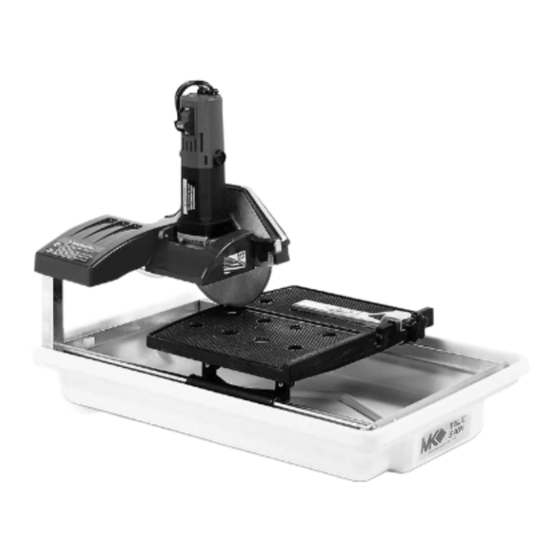

MK-370 TILE SAW
www.mkdiamond.com
OWNERS MANUAL
PARTS LIST &

OPERATING INSTRUCTIONS

Revision 200
05.2010
Manual Part# 156760
Caution: Read all safety and operating instructions
before using this equipment. This parts list MUST
accompany the equipment at all times.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MK-370 and is the answer not in the manual?

Questions and answers

Summary of Contents for MK Diamond Products MK-370

  • Page 1: Operating Instructions

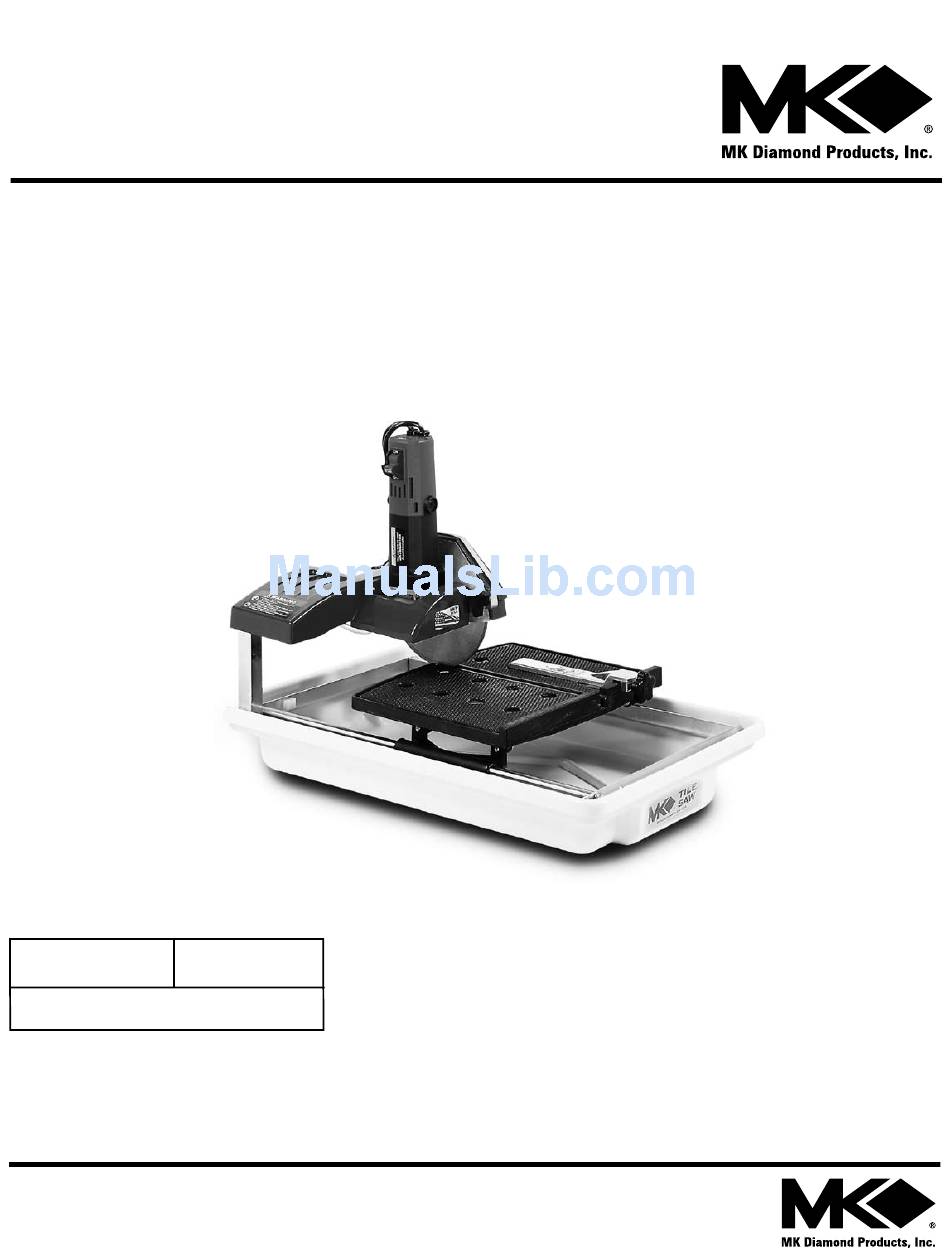

    MK-370 TILE SAW www.mkdiamond.com OWNERS MANUAL PARTS LIST & OPERATING INSTRUCTIONS Revision 200 05.2010 Manual Part# 156760 Caution: Read all safety and operating instructions before using this equipment. This parts list MUST accompany the equipment at all times.
  • Page 2: Exploded View

    MK-370 SAW EXPLODED VIEW...
  • Page 3: Parts List

    MK-370 SAW PARTS LIST ITEM DESCRIPTION PART # Accessories Wrench, Blade Nut, 15/16 Boxed End 134684 Wrench, Blade Shaft, 11/16 Open End 153450 Blade, 7 Dia X 5/8 arbor 153441 Owner’s Manual, 370 156760 Warranty Card 155037 Tag, Saw Hang, 370...
  • Page 4 MK-370 SAW PARTS LIST ITEM DESCRIPTION PART # Label, 370 Model 156692 Plug, CEE 7/7 16a 240v 153687 Post Cover Casting, Cover, Post, 370 156748 Screw, 10-24 X 3/8 Socket Head Set, Cup Point 156715 Label, Warning, Read Owner’s Manual...
  • Page 5 MK-370 SAW EXPLODED VIEW Ryobi Motor...
  • Page 6 MK-370 SAW PARTS LIST ITEM DESCRIPTION PART # GEAR SHAFT 6110298 PARALLEL KEY 5X5X14 6100224 GEAR CASE COVER 6821489 FLAT TAPPING SCREW (S) M4X12 9150412 WASHER t=1.6 6901213 BALL BEARING #6203LLH 9896203 BEARING PLATE t=1.6 6155821 TAPPING SCREW (S) M4X10...
  • Page 7: Theory Of Diamond Blades

    MK-370 SAW THEORY THEORY OF DIAMOND BLADES Diamond blades do not really cut; they grind the material through friction. Diamond crystals, often visible at the leading edge and sides of the rim/segment, remove material by scratching out particles of hard, dense materials, or by knocking out larger particles of loosely bonded abrasive material. This process eventually cracks or fractures the diamond particle, breaking it down into smaller pieces.
  • Page 8 MK-370 SAW ACCESSORIES ITEM NUMBER DESCRIPTION MK-200, 10" x 5/8 Arbor 137166 Premium grade Diamond Blade for smooth, chip-free cutting on tile. MK-215, 10" x 5/8 Arbor Supreme grade diamond blade for hard 128074 materials MK-315, 10" x 5/8 Arbor...
  • Page 9: Ordering Information

    ORDERING & RETURN ORDERING INFORMATION You may order MK Diamond products through your local MK Diamond distributor or, you may order direct from MK Diamond. NOTE: There is a $25.00 minimum order when ordering direct from MK Diamond. All purchases must be made using VISA, MasterCard or American Express.
  • Page 10 MK-370 TILE SAW OWNERS MANUAL & OPERATING INSTRUCTIONS MK Diamond Products, Inc. 1315 Storm Parkway Torrance, CA 90501 Toll-Free: (800) 421-5830 Phone: (310) 539-2221 Fax: (310) 539-5158 www.mkdiamond.com...
