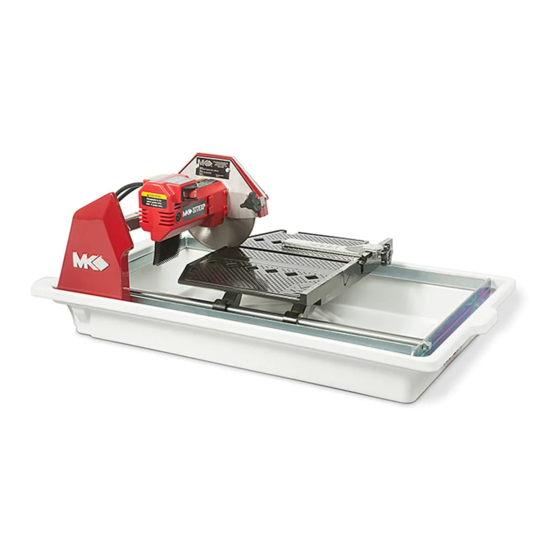

- Page 1 MK-377EXP TILE SAW www.mkdiamond.com OWNER'S MANUAL OPERATING INSTRUCTIONS & PARTS LIST Part# 160028 Revision 201 02.2015 Manual Part No. 160030 Caution: Read all safety and operating instructions before using this equipment. This parts list MUST accompany the equipment at all times.
-
Page 2: Exploded View
MK-377EXP SAW EXPLODED VIEW Saw Assembly A Part #160028... -
Page 3: Parts List
155987-VP SELL SHT, TILE ACCESSORY 156915 CLIP, CORD 1/4" PUSH MOUNT 157259 MK-HDTCM WET 7X060X7/8 157913 KNOB, RUBBER, 1/4-20 X 3/4" LONG 159428-1 OWNER'S MANUAL MK-377EXP 160030 PAN, WATER MK-370EXP/1080 160041 GUARD, SPLASH 160310 SHEET, WARNING LABELS, TILE SAW 166012... - Page 4 MK-377EXP SAW EXPLODED VIEW Saw Assembly B Part #160028...
- Page 5 MK-377EXP SAW PARTS LIST Item Description Part # FLANGE, OUTER, 2-3/8 135830 NUT, HEX, 5/8-18 135848 KNOB, DAVIES, 5/16-18 X 1 151681 SCREW, HEX HD, 5/16-18 X 1 151743 NUT, WING, NYLK, 5/16-18 151746 WASHER, LOCK, SPLIT, 5/16 151747 SCREW, HEX HD, TAP, 5/16-18X2-1/2...
- Page 6 MK-377EXP SAW EXPLODED VIEW Part #170898 2X 152227 BEARING, MULTILUBE INCLUDED WITH TABLE...
- Page 7 MK-377EXP SAW PARTS LIST Item Description Part # SCREW, HEX HD, CAP, 5/16-18 X 3/4 151369 WASHER, LOCK, SPLIT, 5/16 151747 WASHER, FLAT, SAE, 5/16 151754 WASHER, FLAT, SAE, #8 155454 SCREW, 8-32 X 3/8 PAN HEAD PHILLIPS 156614 CASTING, TABLE, 370/770EXP-COMP...
- Page 8 MK-377EXP SAW ACCESSORIES ITEM NUMBER DESCRIPTION MK-200, 7" x 5/8 Arbor 139295 Premium grade Diamond Blade for smooth, chip-free cutting on tile MK-215, 7" x 5/8 Arbor Supreme grade diamond blade 139311 for hard materials MK-315, 7" x 5/8 Arbor...
- Page 9 NOTES...
-
Page 10: Ordering Information
MK-377EXP SAW ORDERING & RETURN ORDERING INFORMATION You may order MK Diamond products through your local MK Diamond distributor or, you may order direct from MK Diamond. When ordering direct from MK Diamond, please have the following information ready before calling: •... -
Page 11: Contact & Warranty
© COPYRIGHT 2015, MK DIAMOND PRODUCTS, INC. ALL RIGHTS RESERVED. The MK Diamond logo is a registered trademark of MK Diamond Products, Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property of their re- spective owners and used with permission. - Page 12 MK-377EXP TILE SAW OWNER'S MANUAL & OPERATING INSTRUCTIONS MK Diamond Products, Inc. 1315 Storm Parkway Torrance, CA 90501 Toll-Free: (800) 421-5830 Phone: (310) 539-5221 Fax: (310) 539-5158 www.mkdiamond.com...
