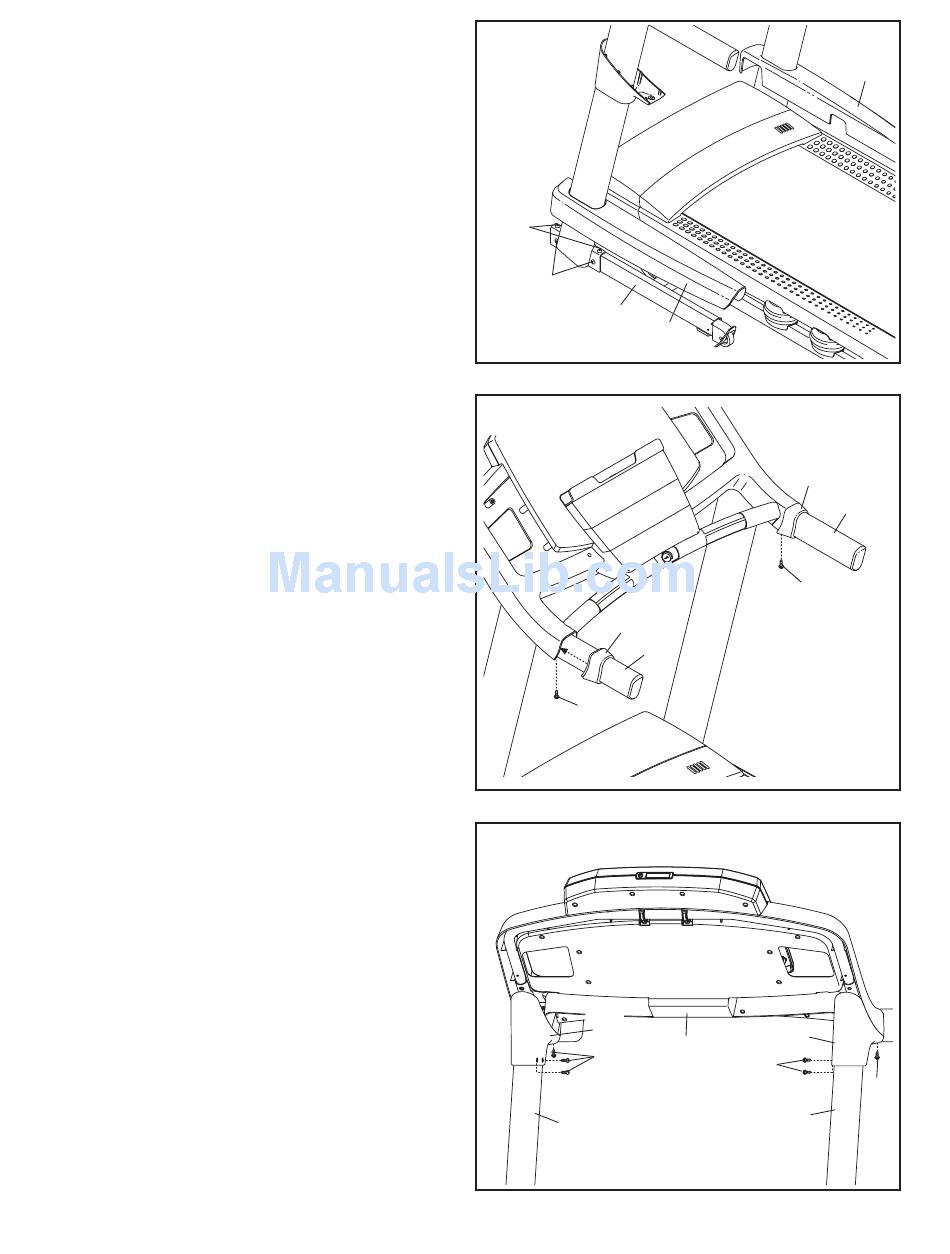

12. Firmly tighten the four the 3/8" x 2 3/4" Screws
(7) and the four 3/8" x 1 1/4" Screws (8) (only
one side is shown).
Press the Left Base Cover (82) and the Right
Base Cover (83) onto the Base (94) until they
snap into place.
13. Slide the Left Handrail Cover (85) onto the Left
Handrail (88). Slide the Right Handrail Cover
(86) onto the Right Handrail (87). Attach the
Handrail Covers with two #8 x 1/2" Screws (1).
14. Hold the Left Upright Cover (79) against the
console assembly. Align the holes in the Left
Upright Cover with the holes in the Left Upright
(89). Attach the Left Upright Cover with three #8
x 1/2" Screws (1).
Attach the Right Upright Cover (80) to the
Right Upright (90) in the same way.
12
7
8
94
13
85
1
14
80
1
90
12
82
86
1
88
79
Console
Assembly
1
89
83
87
1
