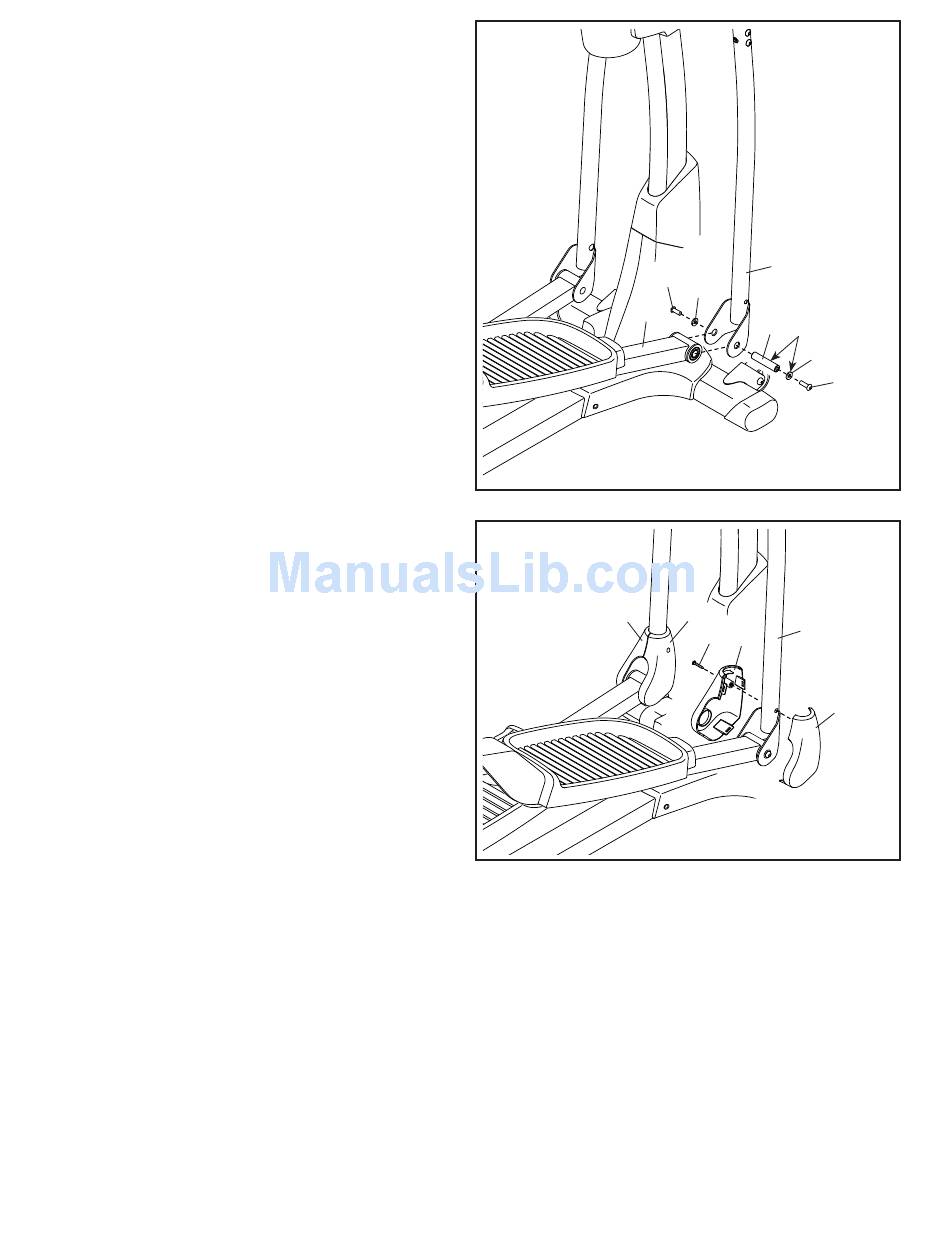

14. Apply a small amount of grease to a Long Pedal
Arm Axle (106) and to an M8 x 23mm x 1.5mm
Washer (91).
Next, tighten an M8 x 16mm Screw (102) and an
M8 x 23mm x 1.5mm Washer (91) a few turns
into one end of the Long Pedal Arm Axle (106).
While a second person holds the front end of the
right Pedal Arm (12) inside the bracket on the
Right Upper Body Leg (6), insert the Long Pedal
Arm Axle (106) through both parts.
Tighten another M8 x 16mm Screw (102) and
an M8 x 23mm x 1.5mm Washer (91) a few
turns into the Long Pedal Arm Axle (106). Then,
tighten both Screws at the same time.
Repeat this step on the other side of the
elliptical.
15. Identify the Right Inner and Outer Leg Covers
(27, 28) and orient them as shown.
Press the Right Inner and Outer Leg Covers
(27, 28) together around the Right Upper Body
Leg (6).
Attach the Right Inner and Outer Leg Covers
(27, 28) to the Right Upper Body Leg (6) with an
M4 x 16mm Screw (93). To avoid damaging the
plastic, do not overtighten the Screw.
Attach the Left Inner and Outer Leg Covers
(49, 50) in the same way.
