Pro-Form 700 Lt Treadmill Manual page 12

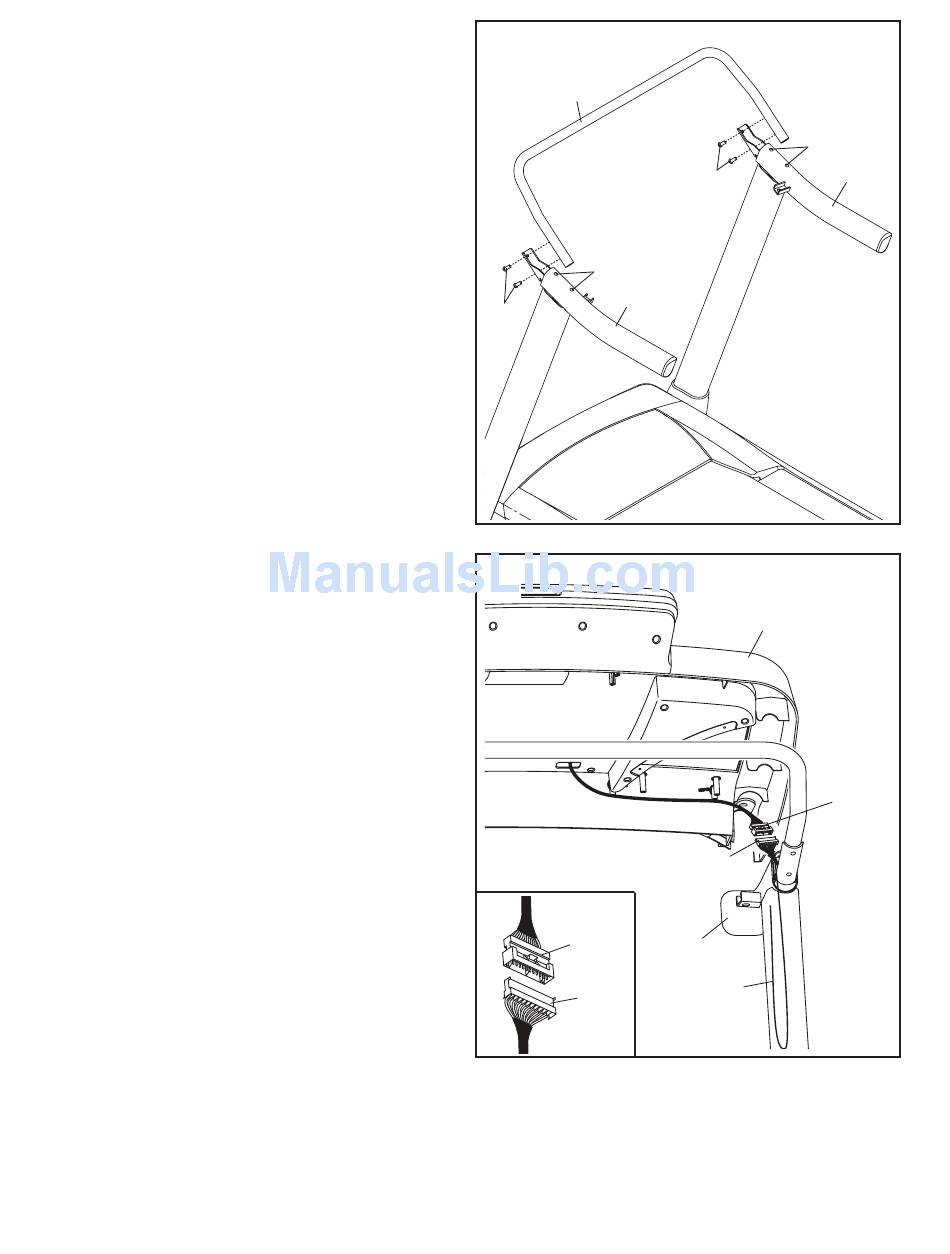

8. Insert the Console Frame (87) into the Handrails
(71, 72). Attach the Console Frame with the four
1/4" x 1" Screws (10). Start all four Screws,
and then tighten them. Be careful not to pinch
the Upright Wire (not shown).
Firmly tighten the four 3/8" x 3 1/2" Screws (9).
9. With the help of a second person, hold the con-
sole assembly near the Left Handrail (71) and
the Right Handrail (not shown).
Connect the Upright Wire (70) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Then, remove the wire tie from
the Upright Wire.
8
87
9
71
10
9
Console
Wire
70
12
9
72
10
Console
Assembly
Console
Wire
70
71
Wire
Tie
