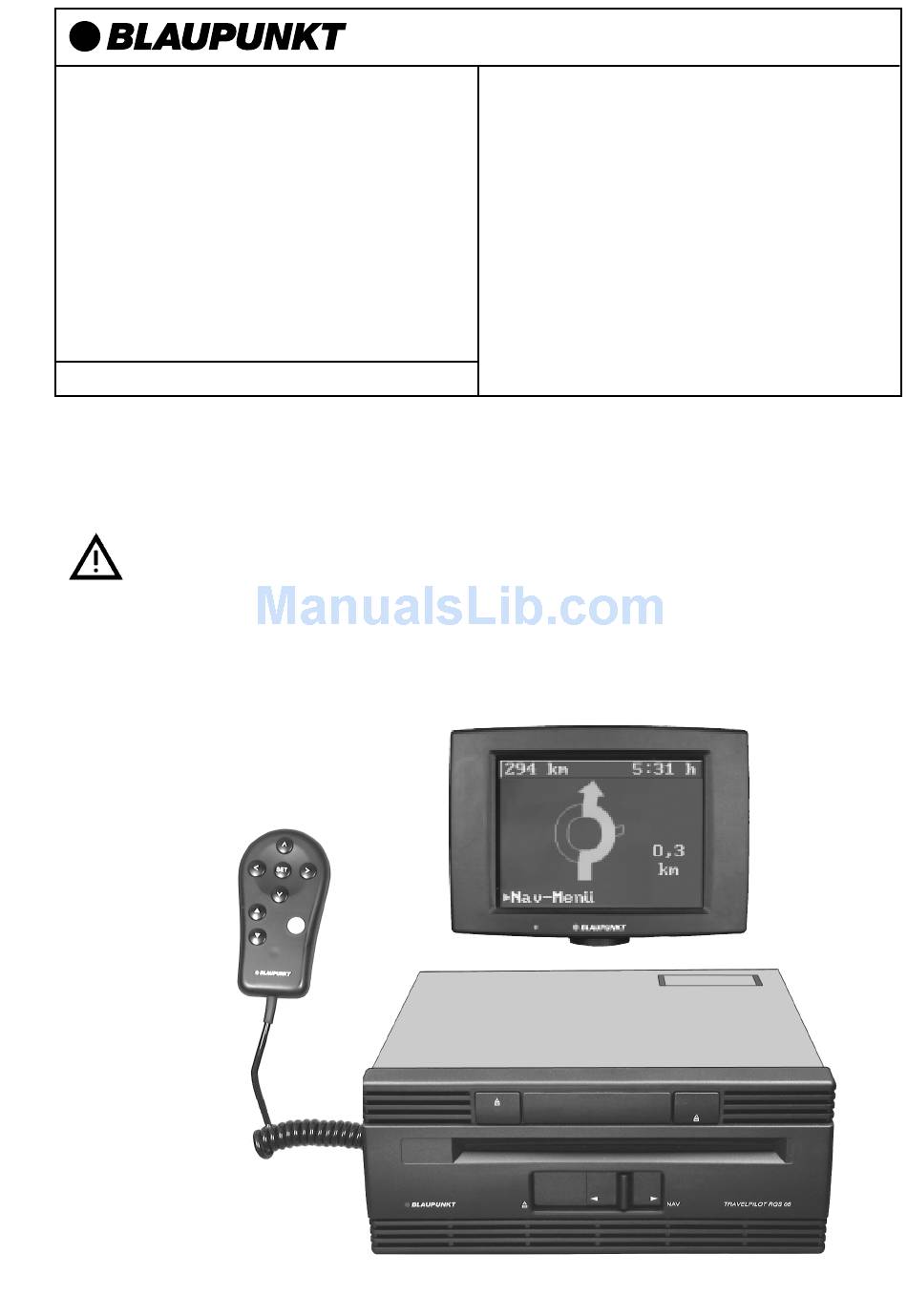

- Page 1 TravelPilot RGS 06/08 5" TFT Display 7 612 001 126 Installation notes for authorired service workshopsInstructions de montage pour atelier service après-vente agréé - 1 -...
-
Page 2: Table Of Contents
Table of contents Safety information ................3 Installation and connection regulations ..............3 Product information ....................3 Notes on the operation of the equipment ..............3 Preparing for installation .................... 3 Installing the navigation unit (Fig.1) ..........3 Mounting location for the navigation unit ..............3 Positive connection .................... -
Page 3: Safety Information
Because of the integrated gyro and CD-ROM drive, it is essen- Safety information tial that the basic navigation unit be installed in a horizontal position. Preparing for installation Installation and connection regulations Before beginning your work, check the equipment to make sure You must disconnect the negative terminal of the batte- that everything has been included: ...... -
Page 4: Safety Instructions
Fig. 7 The display is mounted directly on a console (telepho- antenna must not be exposed to temperatures of less ne console) with the ball joint. than -20 C or more than +80 C. Fig. 8 The display is mounted using the gooseneck 7 612 001 If necessary, use protective sheathing to protect the antenna 204 and the ball joint. -
Page 5: Connecting The Speedometer Signal
Connecting the speedometer signal Installing the wheel sensor Important: Only an authorised customer service centre should Screw the wheel sensor onto the sensor carrier and look for a make this connection. suitable mounting location. The sensors must not swing me- chanically and they should be placed in a sheltered location, The connection is made with the speedometer signal cable, Fig. -
Page 6: Rgs 06 Service Menu
RGS 06 Service Menu Insert navigation CD into the basic unit Enter test stretch in m. (min. 100 m) and drive stretch Reset standby time to 0 min. in the System install. Display values: DSC menu Gyro, wheel sensor, - Strech calibr. speedometer, km/h, direction - Sensor- test Display instantaneous... -
Page 7: Scope Of Delivery
Scope of delivery 1 Navigation unit with integral gyro and GPS receiver 2 GPS-antenna 3 Colour display 4 Loudspeaker 5 Control unit including bracket 8 618 841 480 Remote control extension cable, 4 m 6 Fixings 7 8 618 841 985 Adapterkabel voor sensor- interface, ca. - Page 8 8 618 841 105 2 916 064 005 (4x) 2 910 645 120 (4x) gelb, yello, jaune, giallo, geel, gul, amarillo, amarelo 8 618 841 423 (58 x 13) 8 600 660 007 (6x) 8 618 841 421 (58 x 9) weiß, white, blanc, bianco, wit, vit, blanco, branco...
-
Page 9: Fig.1-4
Fig.1 Fig. 2 Fig. 4 Fig. 3 - 9 -... -
Page 10: Fig.5-9
+12V Fig. 5 Fig. 8 Fig. 9 Fig. 6 Fig. 7 - 10 -... - Page 11 Fig.12 2 914 551 015 Sensor midle max. 10 Magnetic strip Fig.13 Fig.10 Fig.14 10˚ max. 25 mm Interface Fig.15 90 mm Wheel rim 8 618 841 475 (1,5 m) Magnetic strip Fig.16 max. 20 max. 20 Metal holder max. 25 mm Magnetic strip Fig.18 a Fig.11...
