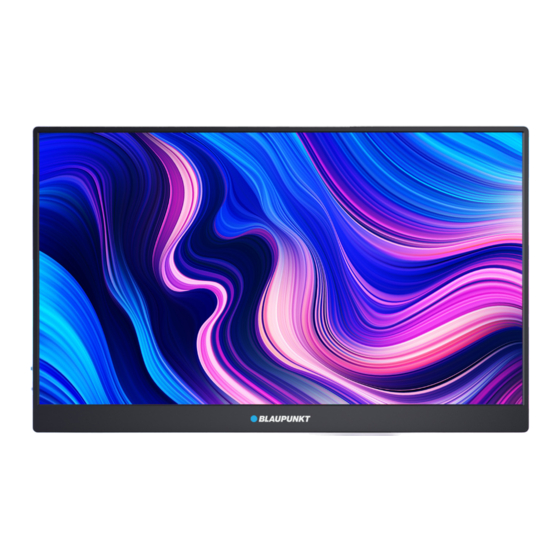

- Page 1 Instruction Manual 15.6” Portable Monitor - BP15PM60...
-
Page 3: Table Of Contents
CONTENTS General Safety Installation Wall or Arm Mounting Instructions Attaching the Magnetic stand Controls and Connections Operation Brightness Image Color Temp. Reset MISC. Specifications Customer Helpline Last Page... -
Page 4: General Safety
GENERAL SAFETY Read this manual thoroughly before you start using the Monitor. Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. - Page 5 GENERAL SAFETY (CONT.) IMPORTANT INFORMATION • Do not expose this appliance to rain or moisture as it may result in fire or an electric shock hazard • Do not tamper or change or modify the product in any way. • Only use Accessories outlined and recommended by the manufacturer. •...
- Page 6 GENERAL SAFETY (CONT.) • Please beware that Dust could accumulate over time on the unit and cause it to generate heat and or deteriorate insulation, which in turn may result in an electrical fire. • The product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or young children of any age, They must be supervised product by a person responsible for their safety.
- Page 7 GENERAL SAFETY (CONT.) Please make sure upon positioning this product, the place is: • Not wet or damp and Well ventilated • Away from direct sunlight or heaters. • Away from splashes or food. • Protected from excessive dust or grease. •...
-
Page 8: Installation
INSTALLATION Install the stand as described below, or if you want to mount it to a wall, please contact a professional installer. Please ensure the monitor is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task. Wall OR Monitor Arm Mounting Instructions Please ensure the Monitor is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task. -
Page 9: Attaching The Magnetic Stand
INSTALLATION (CONT.) ATTACHING THE MAGNETIC STAND (REFER TO BELOW IMAGES) Step 1 - The Foldable stand will already be attached to the back of portable monitor. Lay it down flat as shown below. Step 2 - Fold the bottom single row of the stand, up and ontop of the middle row as it will attach with magnetic force. -
Page 10: Controls And Connections
CONTROLS AND CONNECTIONS Power - Press and Hold or Return Button - Press once Volume Control 3.5mm Headphone Jack USB Type-C Ports USB TYPE-C PORTS - 1 - Can be used for Power (Adaptor Included) 2 - Can be used for USB Type-C to USB Type-C Video Display. Connect USB Type-C into your Portable Monitor Connect other end of USB Type-C to your Laptop or PC to display the video from device to your Portable Monitor. -
Page 11: Operation
OPERATION BRIGHTNESS • Brightness • Contrast • • • Sharpness • Save brightness Brightness This item can adjust the optical fiber output of the entire picture, and it will affect the dark region of the picture. (0-100) Contrast This item can adjust the highlight intensity of the picture, (0-100) but the shadow of the picture is invariable. -
Page 12: Image
OPERATION (CONT.) IMAGE • H. Position • V. Position • Clock • Phase • Aspect (WIDE/4:3) -
Page 13: Color Temp
OPERATION (CONT.) COLOR TEMP. • Color Temp. • • GREEN • BLUE... -
Page 14: Osd
OPERATION (CONT.) OSD SETTING • Lanauage • OSD H. POS. • OSD V. POS. • OSD TIMER • Transparency... -
Page 15: Reset
OPERATION (CONT.) RESET SETTING • Image Auto Adjust • Color Auto Adjust • Reset • Auto Powerdown • HDR mode... -
Page 16: Misc
OPERATION (CONT.) MISC. • Signal source • Low Blue light • Volume • Freesync •... -
Page 17: Specifications
SPECIFICATIONS Resolution 1920 x 1080 Display Colours 16.7 Million Contrast ratio: 800 : 1 Brightness 220-350 cd/m2 Refresh Rate 60Hz Power Source Dimensions With stand: 354 (w) × 9 (d) × 218 (h) mm 1 x Instruction Manual 1 x Warranty Card Accessories 1 x Foldable case/stand 1 x Mini HDMI to HDMI Cable... -
Page 20: Customer Helpline
CUSTOMER HELPLINE: info@ayonz.com DISTRIBUTED BY: Ayonz Pty Ltd...
