Summary of Contents for Blaupunkt BP24M60

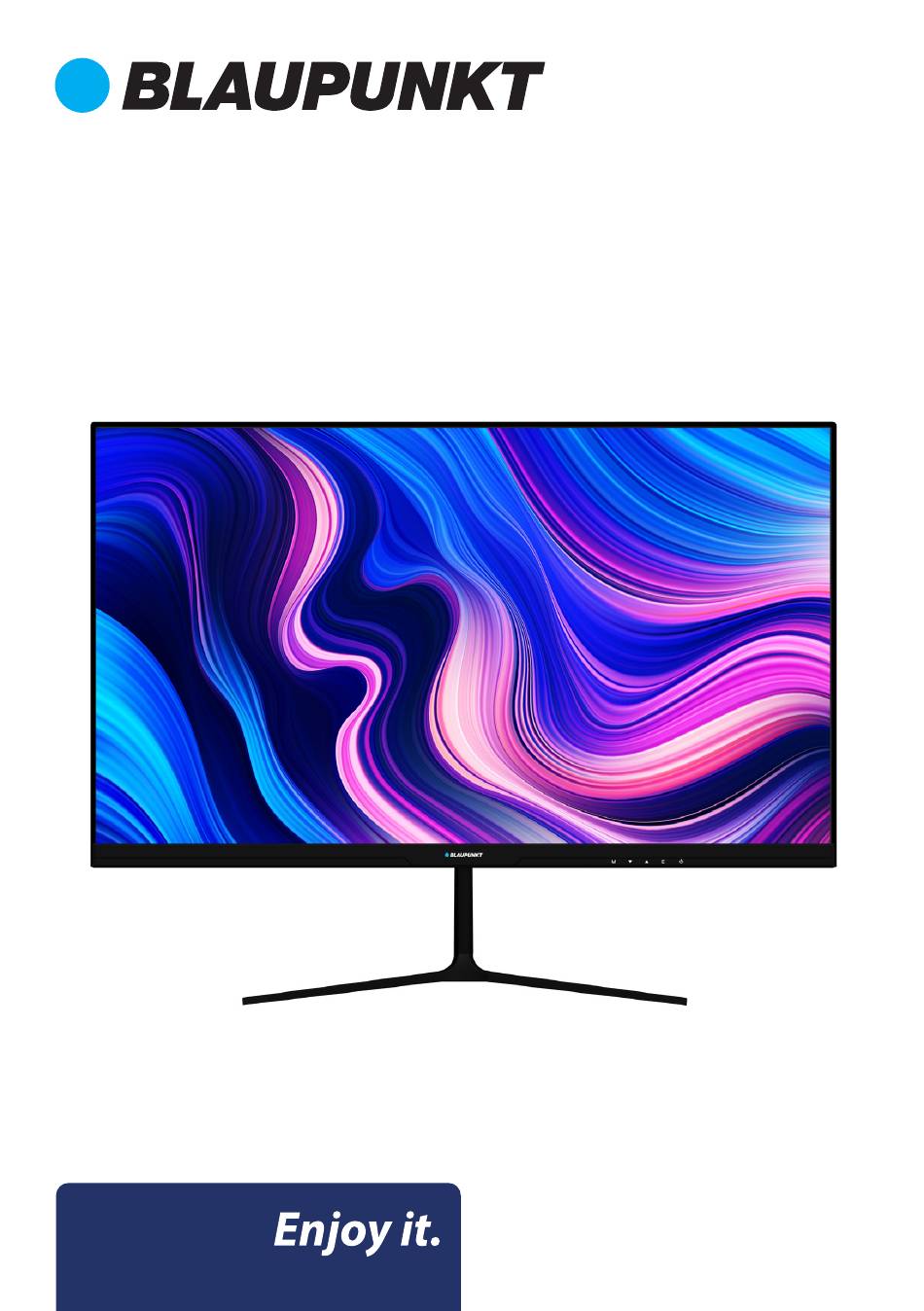

- Page 1 Instruction Manual 23.8” Full HD Monitor - BP24M60...
-
Page 3: Table Of Contents
CONTENTS General Safety Installation Wall Mounting Instructions Controls and Connections Menus Picture Settings Display Settings Colour Settings Advance Settings Input Menu Audio Settings Other Settings Information Specifications Last Page Customer Helpline Last Page... -
Page 4: General Safety
GENERAL SAFETY Read this manual thoroughly before you start using the Monitor. Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. - Page 5 GENERAL SAFETY (CONT.) IMPORTANT INFORMATION • Do not expose this appliance to rain or moisture as it may result in fire or an electric shock hazard • Do not tamper or change or modify the product in any way. • Only use Accessories outlined and recommended by the manufacturer. •...
- Page 6 GENERAL SAFETY (CONT.) • Please beware that Dust could accumulate over time on the unit and cause it to generate heat and or deteriorate insulation, which in turn may result in an electrical fire. • The product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or young children of any age, They must be supervised product by a person responsible for their safety.
- Page 7 GENERAL SAFETY (CONT.) Please make sure upon positioning this product, the place is: • Not wet or damp and Well ventilated • Away from direct sunlight or heaters. • Away from splashes or food. • Protected from excessive dust or grease. •...
-
Page 8: Installation
INSTALLATION Install the stand as described below, or if you want to mount it to a wall, please contact a professional installer. Please ensure the monitor is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task. Attaching the stand Step 1 - Use the foam and box provided to lay the screen onto face down. -
Page 9: Wall Mounting Instructions
INSTALLATION (CONT.) Wall-Mounting or Monitor Arm Brakets for Desk Instructions Please ensure the Monitor is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task. • We recommend you use a professional installer as we assume no liability for any eventual damage to the product or injury to yourself if you mount the Monitor on your own. -
Page 10: Controls And Connections
CONTROLS AND CONNECTIONS... - Page 11 CONTROLS AND CONNECTIONS...
-
Page 12: Menus
MENUS PICTURE • Backlight • Brightness • Contrast • Sharpness MONITOR BUTTONS REFER: AUTO - Previous or Back MENU - Open on screen menu, SELECT and Exit On Screen Menu - Move Backward on screen menu items or a lower level - Move Forward on screen menu items or increase level... -
Page 13: Display Settings
MENUS (Cont.) DISPLAY • Auto Adjust screen position • Adjust Horizontal (width) position • Adjust Vertical (height) position • Adjust the Clock MONITOR BUTTONS REFER: AUTO - Previous or Back MENU - Open on screen menu, SELECT and Exit On Screen Menu - Move Backward on screen menu items or a lower level - Move Forward on screen menu items or increase level... -
Page 14: Colour Settings
MENUS (Cont.) COLOUR • Temperature Colour • Gamma adjustment • Color Effect • Demo Mode MONITOR BUTTONS REFER: AUTO - Previous or Back MENU - Open on screen menu, SELECT and Exit On Screen Menu - Move Backward on screen menu items or a lower level - Move Forward on screen menu items or increase level... -
Page 15: Advance Settings
MENUS (Cont.) ADVANCE • Aspect Ratio Adjustment • DDCCI • Ultra Vivid Function • Active Contrast Function MONITOR BUTTONS REFER: AUTO - Previous or Back MENU - Open on screen menu, SELECT and Exit On Screen Menu - Move Backward on screen menu items or a lower level - Move Forward on screen menu items or increase level... -
Page 16: Input Menu
MENUS (Cont.) INPUT • Auto Select Input • VGA Input • HDMI Input MONITOR BUTTONS REFER: AUTO - Previous or Back MENU - Open on screen menu, SELECT and Exit On Screen Menu - Move Backward on screen menu items or a lower level - Move Forward on screen menu items or increase level... -
Page 17: Audio Settings
MENUS (Cont.) AUDIO • Volume level adjustment • Mute on/off MONITOR BUTTONS REFER: AUTO - Previous or Back MENU - Open on screen menu, SELECT and Exit On Screen Menu - Move Backward on screen menu items or a lower level - Move Forward on screen menu items or increase level... -
Page 18: Other Settings
MENUS (Cont.) OTHER • Reset Monitor Settings (NOT RECOMMENDED) • Menu Time adjustment • OSD Horizontal Position • OSD Vertical Position MONITOR BUTTONS REFER: AUTO - Previous or Back MENU - Open on screen menu, SELECT and Exit On Screen Menu - Move Backward on screen menu items or a lower level - Move Forward on screen menu items or increase level... -
Page 19: Information
MENUS (Cont.) INFORMATION • MONITOR INFORMATION/DISPLAY MONITOR BUTTONS REFER: AUTO - Previous or Back MENU - Open on screen menu, SELECT and Exit On Screen Menu - Move Backward on screen menu items or a lower level - Move Forward on screen menu items or increase level... -
Page 20: Specifications
SPECIFICATIONS Resolution 1920 x 1080 Display Colours 16.7M Contrast ratio: 1000 : 1 Brightness 200 cd/m2 Power Source 12V --- 4A With stand: 541 (w) × 161 × 406 (h) mm Dimensions Without stand: 541 (w) × 39 × 324 (h) mm Net: 2.4 kg Weight Gross: 3.8 kg...
