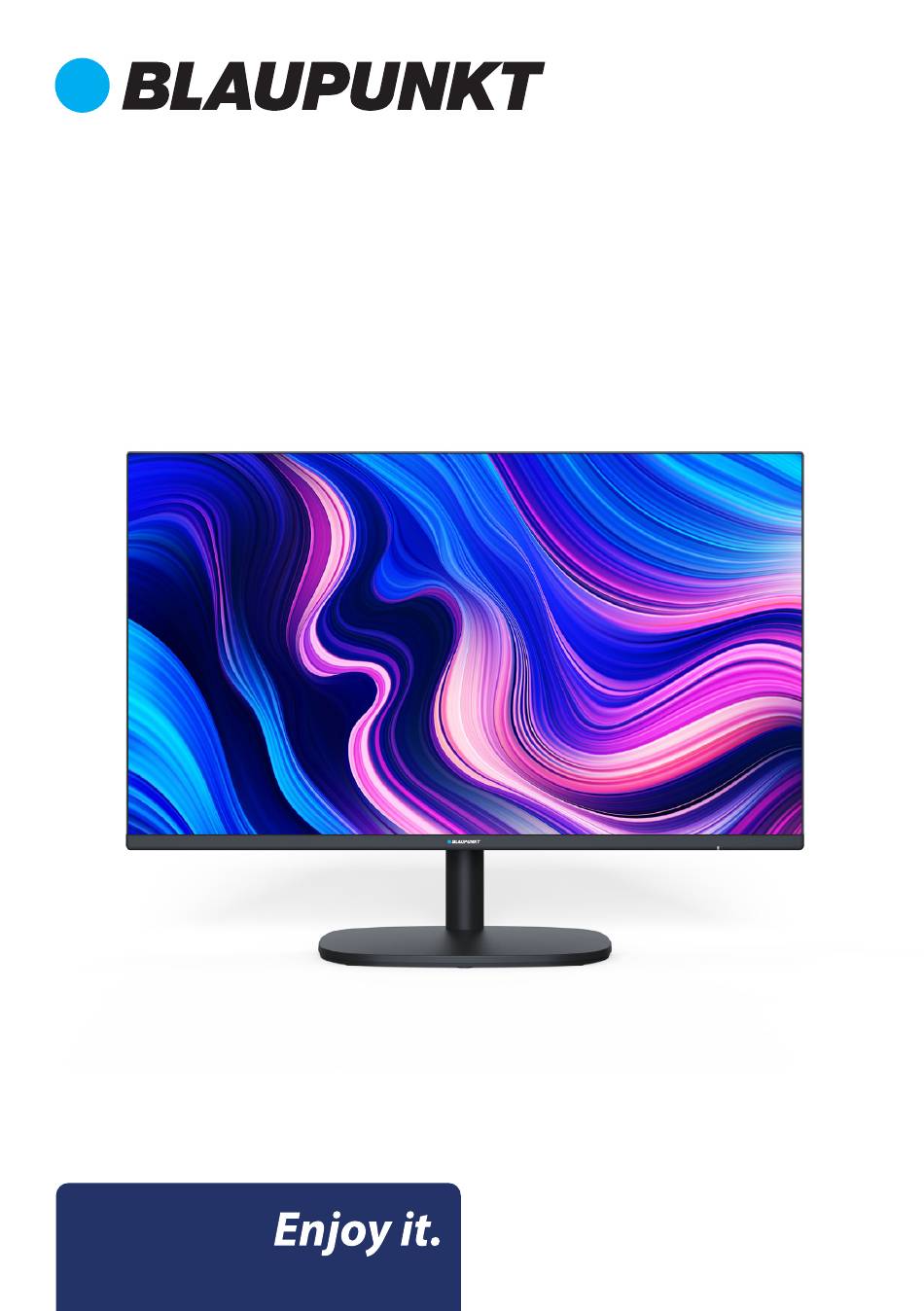

- Page 1 Instruction Manual 27” Full HD Monitor - BP27M75...
-
Page 3: Table Of Contents
CONTENTS General Safety Installation Wall Mounting Instructions Controls and Connections Menus Picture Settings Colour Settings Audio Settings Gaming Settings OSD Menu System Settings Information Specifications Customer Helpline Last Page... -
Page 4: General Safety
GENERAL SAFETY Read this manual thoroughly before you start using the Monitor. Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. - Page 5 GENERAL SAFETY (CONT.) IMPORTANT INFORMATION • Do not expose this appliance to rain or moisture as it may result in fire or an electric shock hazard • Do not tamper or change or modify the product in any way. • Only use Accessories outlined and recommended by the manufacturer. •...
- Page 6 GENERAL SAFETY (CONT.) • Please beware that Dust could accumulate over time on the unit and cause it to generate heat and or deteriorate insulation, which in turn may result in an electrical fire. • The product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or young children of any age, They must be supervised product by a person responsible for their safety.
- Page 7 GENERAL SAFETY (CONT.) Please make sure upon positioning this product, the place is: • Not wet or damp and Well ventilated • Away from direct sunlight or heaters. • Away from splashes or food. • Protected from excessive dust or grease. •...
-
Page 8: Installation
INSTALLATION Install the stand as described below, or if you want to mount it to a wall, please contact a professional installer. Please ensure the monitor is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task. Attaching the monitor base Step 1 - Attach the monitor stand arm to the base. -
Page 9: Wall Mounting Instructions
INSTALLATION (CONT.) Wall-Mounting or Monitor Arm Brackets for Desk Instructions Please ensure the Monitor is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task. • We recommend you use a professional installer as we assume no liability for any eventual damage to the product or injury to yourself if you mount the Monitor on your own. -
Page 10: Controls And Connections
CONTROLS AND CONNECTIONS Joystick button: Power On/Off, Menu Control (long press the button for power off). Connect the power cord to the monitor then into a properly grounded AC outlet. The digital interface is used to transmit the uncompressed video image and audio signal from the monitor to the external device at the same time. -
Page 11: Menus
MENUS Find more details Press the MENU button and personalize the Picture, Color, and other settings to best fit your viewing needs. -
Page 12: Picture Settings
MENUS PICTURE • Modes - Action, Racing, Sports, Use, Standard, ECO, Graphics, Movie • Brightness • Contrast • Black Boost • Blue Light • • Auto Config (VGA connection is optional, but HDMI connection is not.) • H.Position (VGA connection is optional, but HDMI connection is not.) •... -
Page 13: Colour Settings
MENUS (Cont.) COLOUR • Gamma • Colour Temp. (R.G.B can be adjusted only in the User state, but not in the Warm,Normal, and Cool states.) MONITOR BUTTONS REFER: Button located at the back lower right hand side of monitor. Middle button - ENTER Left button - EXIT... -
Page 14: Audio Settings
MENUS (Cont.) AUDIO • Volume • Mute MONITOR BUTTONS REFER: Button located at the back lower right hand side of monitor. Middle button - ENTER Left button - EXIT Up/Down/Right - MOVE... -
Page 15: Gaming Settings
MENUS (Cont.) GAMING • OVER DRIVE - Response time overdrive allows you to push the monitor’s response time speed (pixel transition time) in order to decrease the trailing/ ghosting artifacts behind fast-moving objects. • ADAPTIVE SYNC - (The VGA source does not support adaptive-sync.) - Dynamically sync the monitor’s refresh rate to the GPU’s frame rate to •... -
Page 16: Osd Menu
MENUS (Cont.) OSD (MENU) • Language • OSD Timeout • Transparency MONITOR BUTTONS REFER: Button located at the back lower right hand side of monitor. Middle button - ENTER Left button - EXIT Up/Down/Right - MOVE... -
Page 17: System Settings
MENUS (Cont.) SYSTEM • Input • Auto Source • Wide Mode • DDC/CI • Quick Start Mode MONITOR BUTTONS REFER: Button located at the back lower right hand side of monitor. Middle button - ENTER Left button - EXIT Up/Down/Right - MOVE... -
Page 18: Information
MENUS (Cont.) INFORMATION • Main Source • Resolutio • H/V Frequency • Mode • Series Number • Reset all settings MONITOR BUTTONS REFER: Button located at the back lower right hand side of monitor. Middle button - ENTER Left button - EXIT Up/Down/Right - MOVE... -
Page 19: Specifications
SPECIFICATIONS Resolution 1920 x 1080 Display Colours 16.7M Contrast ratio: 4000: 1 Refresh Rate 75Hz Brightness 250 cd/m2 Power Source 12V --- 3.5A or 4A With stand: 613.4 (w) × 224.5 × 456.4 (h) mm Dimensions Without stand: 613.4 (w) × 39.9 × 360.8 (h) mm Net: 3.6 kg Weight Gross: 5 kg... -
Page 20: Customer Helpline
CUSTOMER HELPLINE: info@ayonz.com DISTRIBUTED BY: Ayonz Pty Ltd...
