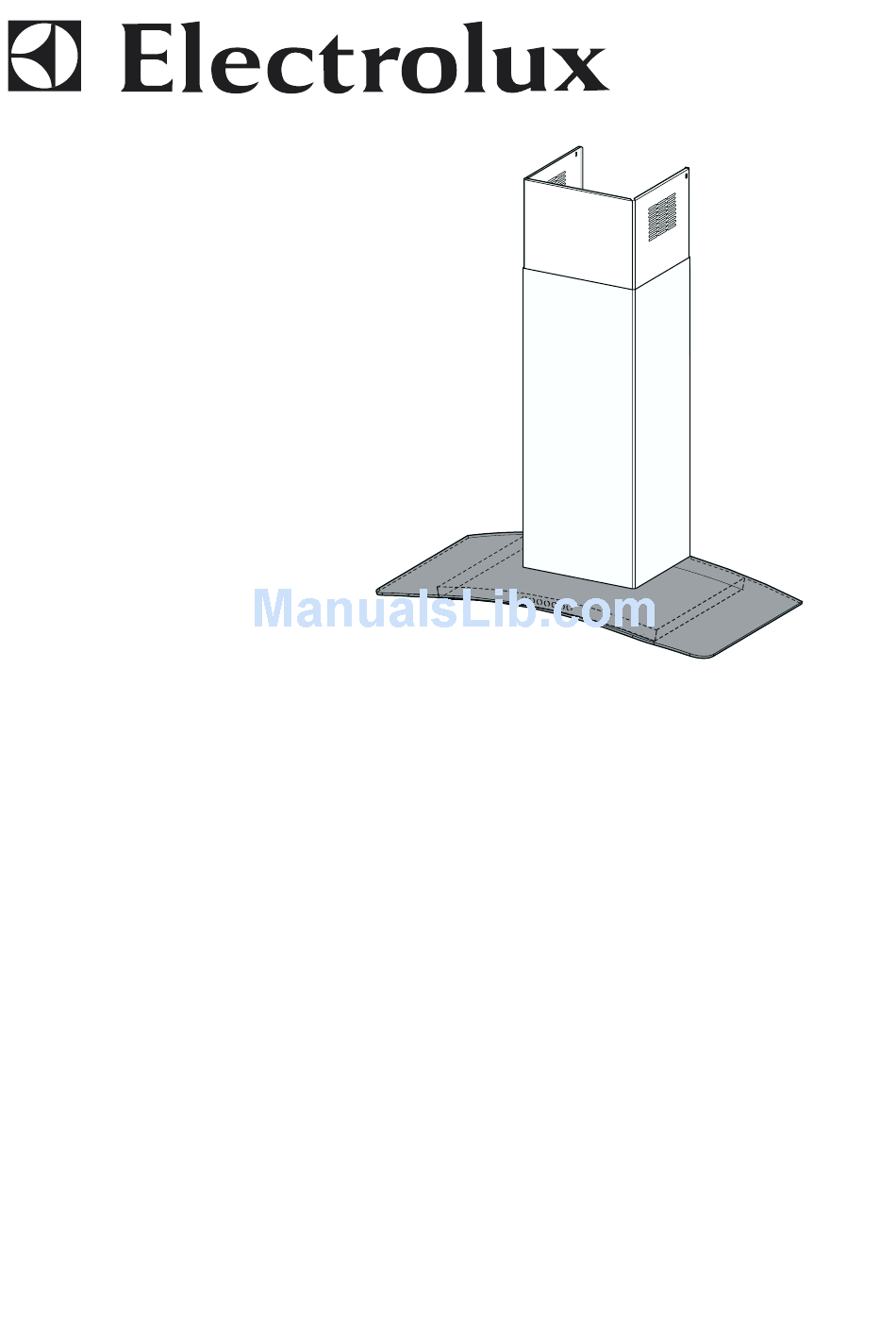

- Page 1 EFC 9542 Instructions Manual Manual de instrucciones Manual de Instruções...
-
Page 2: Table Of Contents
Instructions Manual INDEX RECOMMENDATIONS AND SUGGESTIONS ........................5 CHARACTERISTICS................................6 INSTALLATION ..................................7 USE.......................................10 MAINTENANCE..................................12... - Page 3 Manual de instrucciones ÍNDICE CONSEJOS Y SUGERENCIAS ............................14 CARACTERÍSTICAS ................................15 INSTALACIÓN..................................16 USO ......................................19 MANTENIMIENTO................................21...
- Page 4 Manual de Instruções ÍNDICE CONSELHOS E SUGESTÕES ............................23 CARACTERÍSTICAS ................................24 INSTALAÇÃO ..................................25 UTILIZAÇÃO..................................28 MANUTENÇÃO ..................................30...
-
Page 5: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. • The minimum safety distance between the cooker top and the extrac- tor hood is 650 mm. • Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood. -
Page 6: Characteristics
CHARACTERISTICS Dimensions Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Telescopic Chimney comprising: Upper Section Lower Section Reducer Flange ø 150-120 mm 14.1 Air Outlet Connection Extension Air Outlet Connection Ref. Q.ty Installation Components 7.2.1 Upper Chimney Section Fixing Brackets Air Outlet Connection Support Wall Plugs... -
Page 7: Installation
INSTALLATION Wall drilling and bracket fixing Wall marking: • Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed. • Draw a horizontal line at 650 mm above the hob. •... - Page 8 Mounting the hood body • Before attaching the hood body, tighten the two screws Vr lo- cated on the hood body mounting points. • Hook the hood body onto the screws 12a. • Fully tighten support screws 12a. • Adjust screws Vr to level the hood body. Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the...
- Page 9 ELECTRICAL CONNECTION • Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm. • Remove the grease filters (see paragraph Mainte- nance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.
-
Page 10: Use
The hood can be switched on pushing directly onto the requested speed without firstly hav- ing to select 0/1 button . Touch Basic functions Indicator lights control Dual Function When briefly pressed it switches the lighting system Touch control unlit Lights off on and off. - Page 11 Touch Basic functions Indicator lights control When pressed the motor is set to the intensive speed timed to 5 minutes. At the end of 5 minutes of intensi- ve speed the hood starts again at the speed it was set Touch control lit to previously.
-
Page 12: Maintenance
MAINTENANCE Grease filters CLEANING OF THE METAL CASSETTE FILTERS Alarm reset • Stop the motor. • Press the F -touch control for at least 4 seconds until the T1 -touch control flashes. Cleaning the filters • Filters can be washed in the dish machine. They need to be washed every 2 months or even more frequently in case of particularly intensive use of the hood. - Page 13 Odour filter (Recirculation Version) This filter cannot be washed or regenerated, and must be replaced when the F touch control starts to flash, or at least once every 4 months. The alarm is only triggered when the motor is on. Enabling/Disabling the alarm signal •...
- Page 14 The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could oth- erwise be caused by inappropriate waste handling of this product.
