  • Page 1 Guitar Amplifier with Digital Effects User’s Guide...
  • Page 2 Guitar Amplifier TABLE OF CONTENTS: Introduction ....... . .3 The Top Panel ......4,5 The Bottom Panel .

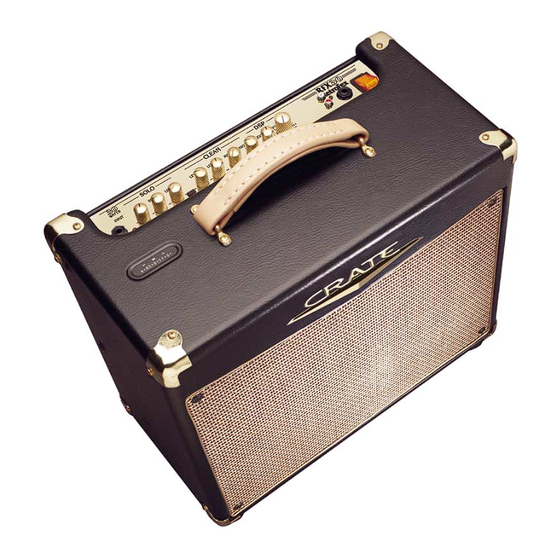

  • Page 3 Guitar Amplifier Congratulations and thank you for choosing the Crate RFX30 RetroFex Guitar Amplifier. This rugged amplifier features a Clean channel with a three-band EQ and level control, and a Solo channel with our patented FlexWave technology, Gain, Level and Shape control. An easy to operate DSP section lets you dial in a variety of digital effects including reverbs, delays, octave and wah-wahs.
  • Page 4 Guitar Amplifier The Top Panel: 1: INPUT: Use this 1/4” jack to connect your guitar to the amplifier by means of a shield- ed instrument cable. SOLO CHANNEL: A high gain channel giving you sounds from a slight edge to serious overdrive.
  • Page 5 17: FOOTSWITCH: Use this jack to connect the 1/4” stereo plug on the cable of a two-but- ton footswitch (such as the Crate CFP2). This allows you to remotely switch between the Clean and Solo channels and turn the DSP function on and off.
  • Page 6 Guitar Amplifier The DSP Section: Use the DSP control to select one of the 16 built-in digital effects. Use the DSP Level control to adjust the amount of selected effect. In the fully counter clockwise position there will be no effect applied. As you rotate the control closckwise the amount of effect increases.

  • Page 7: System Block Diagram

    Guitar Amplifier System Block Diagram: TUNER A BC D EF G BUFFER INPUT CLEAN FOOTSWITCH JACK LEVEL MID HIGH SOLO/ CLEAN SOLO GAIN SHAPE LEVEL POWER SPEAKER EXTENSION SPEAKER LEVEL MODE EXTENSION SPEAKER INPUT...
  • Page 8 16-1/2” H x 11-3/4” W x 9-1/4” D, 20 lbs. The RFX30 is covered with a durable Tolex material: wipe it clean with a lint-free cloth. Never spray cleaning agents onto the cabinet. Avoid abrasive cleansers which would damage the finish.
