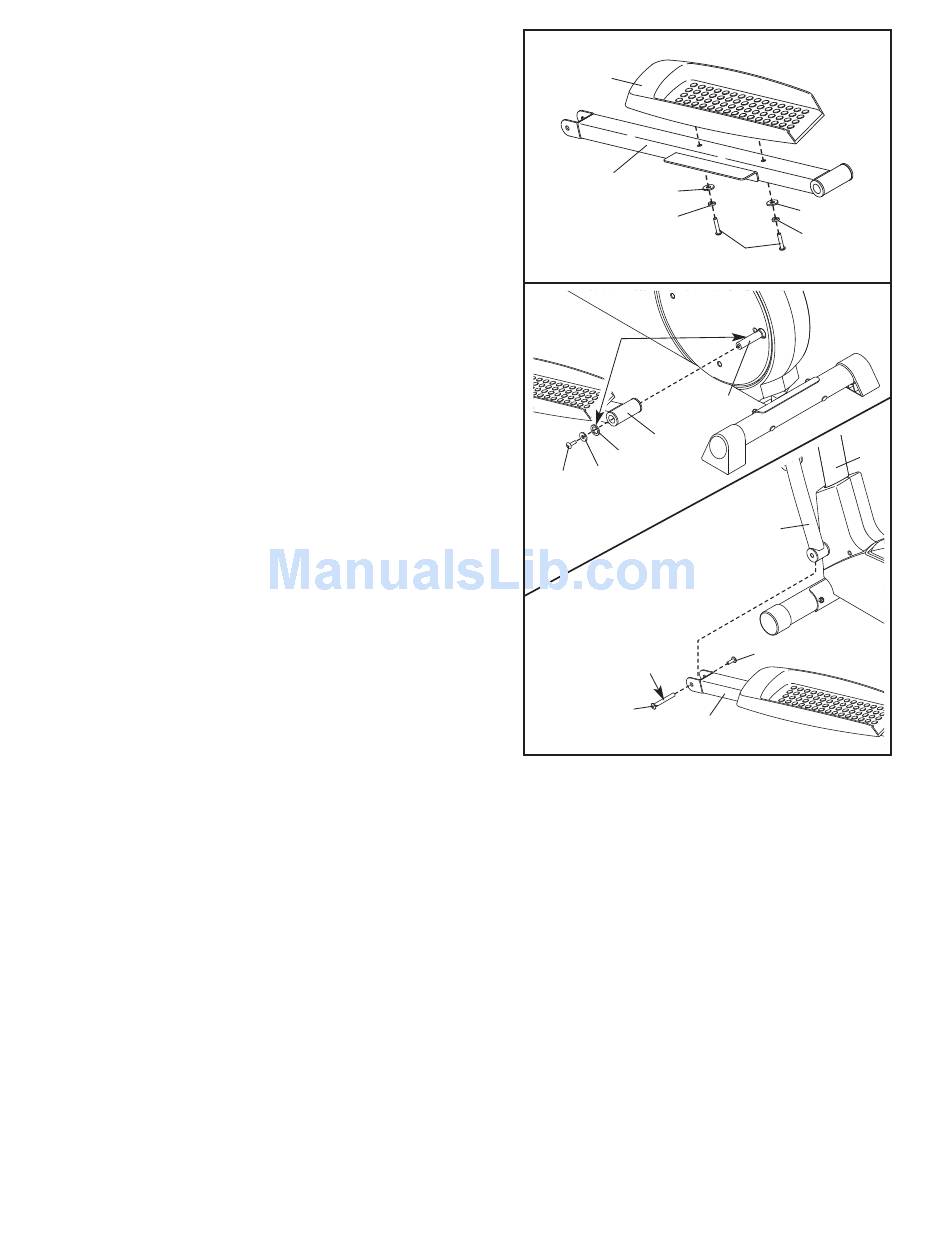

7. Identify the Left Pedal Leg (11), which is marked with a
sticker. Attach the Left Pedal (13) to the Left Pedal Leg
with two M8 x 52mm Button Screws (27), two M8 Split
Washers (28), and two M8 Washers (71).
Attach the Right Pedal (not shown) in the same way.
8. Apply a small amount of grease to the axle on the left
Disc Crossbar (16). Slide the Left Pedal Leg (11) onto
the axle. Apply a small amount of grease to a Large
Wave Washer (72) and press it onto the end of the Left
Pedal Leg. Slide a Pedal Leg Washer (35) onto an
M10 x 27mm Patch Screw (40), and tighten the Patch
Screw into the axle.
Next, hold the lower end of the left Handlebar Leg (5)
inside of the bracket on the front of the Left Pedal Leg
(11). Apply grease to an M10 Bolt Set (25). Attach the
Handlebar Leg to the Left Pedal Leg with the Bolt Set.
Do not overtighten the Bolt Set; the Handlebar Leg
must pivot freely.
Attach the Right Pedal Leg (not shown) to the right side
of the elliptical crosstrainer in the same way.
See step 5. Tighten the M10 x 74mm Button Bolts (7)
in the Upright (2).
See step 6. Tighten the M8 x 45mm Button Bolts (50)
in the Handlebar Legs (5).
9. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware may
be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical crosstrainer.
