X8124r User's Manual
Version: 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X8124r and is the answer not in the manual?

Questions and answers

Related Manuals for XAVI Technologies Corp. X8124r

Summary of Contents for XAVI Technologies Corp. X8124r

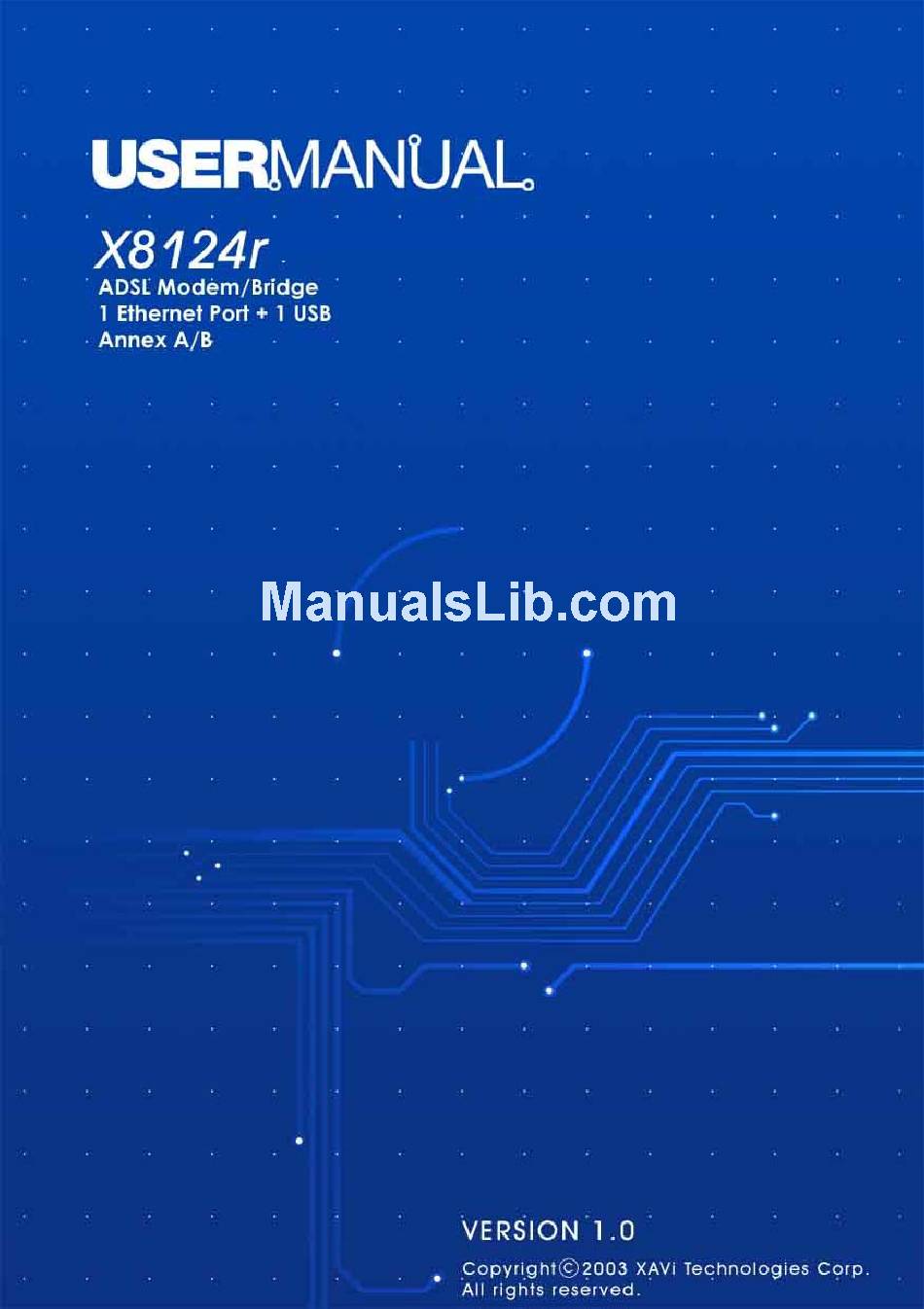

  • Page 1 X8124r User’s Manual Version: 1.0...
  • Page 2 X8124r User’s Manual Version: 1.0 XAVi Technologies Corporation Tel: +886-2-2995-7953 9F, No. 129, Hsing Te Road, Sanchung City, Taipei Hsien 241, Taiwan (R.O.C.) Copyright © 2003, XAVi Technologies Corporation Information in this manual is subject to change without notice. No part of this manual...

  • Page 3: Table Of Contents

    X8124r User’s Manual Version: 1.0 – – Overview…………………………………………………………………………………. 1 Features…………………………………………………………………………………. 2 III. Packaging……………………………………………………………………………….. 3 Appearance……………………………………………………………………………... 4 Front Panel……………………………….……………………………………………... 4 Rear Panel………………………………………………….…………..………………. 5 Hardware Installation…………………….…………………………………………….. 6 Management………………………………………………………………………….… 7 VII. Default Values…………………………………………………………………….……. 8 VIII. Software Upgrade……………………………………………………………………… 9 Console Setup………………………………………………………………………… 10 – –...
  • Page 4 X8124r User’s Manual Version: 1.0 – – A1. Hardware Specifications..……………………………………………………..…….. 62 A2. Software Specifications……….……………………………………………………... 63 – – B1. Product Warranty………………………………………………….………………….. 64 B2. Warranty Repair…………………………………………………………………….… 65 B3. Out-of-Warranty Repair. ………………………….……………………………….… 65 – – C1. FCC Part 15 Notice…………………………………………………….………….… 66 C2. IC CS-03 Notice……….……………………………………………………..…….… 67 C3.
  • Page 5 X8124r User’s Manual Version: 1.0 Revision Date Notes V 1.0 August 13, 2002 Software: 3.66XAT0.8124A/138030331a10...

  • Page 6: Overview

    X8124r is multi-mode ADSL Router, compliant with ANSI T1.413 Issue 2, ITU G.992.1 (G.dmt) Annex A/B, G.992.2 (G.lite). X8124r provides high-speed Internet access via one WAN port over ATM over ADSL, and also connects to a corporate network via one 10/100BaseTX Ethernet port and one USB port.

  • Page 7: Features

    X8124r User’s Manual Version: 1.0 II. Features High speed asymmetrical data transmission on a single twisted copper pair Full rate operations up to 8Mbps downstream (12Mbps to be provided) and up to 1Mbps upstream. G.lite operation up to 1.5Mbps downstream and 512Kbps upstream...

  • Page 8: Packaging

    X8124r User’s Manual Version: 1.0 III. Packaging This package contains the following items: X8124r ADSL device unit RJ-45 Cable RJ-11 Cable AC Adapter User’s Manual CD - 3 -...

  • Page 9: Appearance

    X8124r User’s Manual Version: 1.0 IV. Appearance Front Panel Label Color Description Status Green Ethernet port is connected. Green USB port is connected. Green Power supply is connected. Blinking Green Training with DSLAM. Green ADSL link is ready. Blinking Booting up.

  • Page 10: Rear Panel

    USB port; connect to a PC RESET Reset the modem back to factory settings by holding down on this button RJ-11 or RJ-45 port; connect to the ADSL outlet. X8124r uses RJ-11 Cable. X8124r-B uses RJ-45 Cable. - 5 -...

  • Page 11: Hardware Installation

    Step 2: Use a RJ-45 cable to connect one end to the Ethernet port of X8124r, and the other end to the LAN or a PC with an Ethernet adapter installed. You may also connect a USB cable from the USB port to a PC.

  • Page 12: Management

    Local Ethernet Port (Telnet) – connect the Ethernet port to your local area network or to directly to a PC. “Telnet” X8124r from any workstation in the LAN. The default local Ethernet IP address is “192.168.1.1”. Local Ethernet Port (Web Browser) – connect the Ethernet port to your local area network or directly to a PC.

  • Page 13: Default Values

    X8124r User’s Manual Version: 1.0 VII. Default Values X8124r is pre-configured with the following parameters; you may also re-load the default parameters by rebooting the router into the Default configuration from the web browser. Default Mode: Bridge User Name: admin...

  • Page 14: Software Upgrade

    Extract the ZIP file for updated firmware. Connect X8124r via one of the four local ports or remote ADSL link. Make sure that the X8124r IP address and your terminal is properly configured, then you can successfully “ping”...

  • Page 15: Console Setup

    Double Click “Hypertrm.exe” Enter Connection Name Select Icon Click on the OK button. Select COM port to communicate with X8124r. Choose direct to COM1 or COM2 and click on the OK button. Set Port Properties -- Port Setting: − Bit per second: 38400 −...

  • Page 16: Ii. Preparation

    X8124r User’s Manual Version: 1.0 Chapter 2 Web Interface Management I. Overview The Web management is provided in order to manage the ADSL device as easily as possible. It provides a very user-friendly configuration and graphical interface through a Web based platform.

  • Page 17: Login

    X8124r User’s Manual Version: 1.0 III. Login The window Enter Network Password will pop up while starting the configuration. With the window open, type admin for both User Name and the Password. You can also edit the Username and Password or add new users. (For further details, see G.

  • Page 18: Home

    X8124r User’s Manual Version: 1.0 A. HOME After logging in, the first tab that will be displayed is the Home tab. Under this tab, the System View page is displayed. This page displays a summary of the interfaces and their settings.
  • Page 19 X8124r User’s Manual Version: 1.0 Section Name Description Device Displays model name, hardware/software version, device mode, uptime, current time, time zone, daylight savings time, and domain name. Displays operation status, last state, DSL version, and DSL standard. WAN Interface Displays the WAN interface name,...

  • Page 20: Lan

    X8124r User’s Manual Version: 1.0 B. LAN Click on the LAN tab to view its sub-menu and configure the LAN settings. The four sub-menu are: LAN Config, DHCP Mode, DHCP Server, and DHCP Relay. Each sub-menu is described below. 1. LAN Config...
  • Page 21 X8124r User’s Manual Version: 1.0 - 16 -...
  • Page 22 X8124r User’s Manual Version: 1.0 2. DHCP Mode Click on the DHCP Mode link to select a DHCP setting. From the drop down list, select DHCP Server, DHCP Relay, or None. Click on the Submit button when completed. 3. DHCP Server Click on the DHCP Server link to view the DHCP Server settings.
  • Page 23 X8124r User’s Manual Version: 1.0 4. DHCP Relay Click on the DHCP Relay link to view the DHCP Relay settings. Fill in the DHCP server IP address in the text boxes and select an interface name from the dorp down list. Click on the Add button to complete the DHCP Relay configuration.

  • Page 24: Wan

    X8124r User’s Manual Version: 1.0 C. WAN Click on the WAN tab to view its sub-menu and configure the WAN settings. The five sub-menu are: DSL, ATM VC, PPP, EOA, and IPOA. Each sub-menu is described below. 1. DSL Click on the DSL link to view the DSL status. Click on the DSL Param button to view the DSL parameters and the Stats button to view the DSL statistics.
  • Page 25 X8124r User’s Manual Version: 1.0 a) DSL Parameters Click Param button view parameters. Another window will then display parameters, which may be different from the one shown below, due to the type and speed of the network. Click on the Close button to close the window, or click on the Refresh button to refresh the status.
  • Page 26 X8124r User’s Manual Version: 1.0 2. ATM VC Click on the ATM VC link to view the ATM VC table. This table displays the interface name, VPI/VCI values, Mux type, and maximum protocols per AAL5. Click on the trash can icon to delete the current interface, or edit the current interface by clicking on the pencil icon.
  • Page 27 X8124r User’s Manual Version: 1.0 3. Point to Point Protocol (PPP) Click on the PPP link to view the PPP configuration table. This table displays PPP information such as: interface name, interface type, protocol, WAN IP, gateway IP, default route, DHCP, DNS, and operation status.
  • Page 28 X8124r User’s Manual Version: 1.0 Field Name Description PPP Interface Select an interface name from the drop down list. ATM VC Select an ATM VC from the drop down list. Interface Sec Type Select between public, private, or DMZ. Status Select start, stop, or start on data.
  • Page 29 X8124r User’s Manual Version: 1.0 The following is a list of field names and their descriptions. After filling in the table, click on the Submit button when completed. Field Name Description EoA Interface Select an interface name from the drop down list.
  • Page 30 X8124r User’s Manual Version: 1.0 5. IP over ATM (IPoA) Click on the IPoA link to view the IP over ATM configuration table. This table displays IPoA information such as: interface name, interface security type, lower interface, config IP, network IP, subnet mask gateway IP, and status.

  • Page 31: Bridging

    X8124r User’s Manual Version: 1.0 D. Bridging Click on the Bridging tab to view its sub-menu and configure the bridge settings. The six sub-menu are: Bridging, LAN Config, DSL, ATM VC, and RFC 1483 Interface (EoA). The bridging sub-menu is described below. (Each of the other sub-menus is described in the earlier sections.)

  • Page 32: Routing

    X8124r User’s Manual Version: 1.0 E. Routing Click on the Routing tab to view its sub-menu and configure the routing settings. The eight sub-menu are: IP route, IP address, LAN Config, DSL, ATM VC, PPP, EoA, and IPoA. The IP route sub-menu is described below.
  • Page 33 X8124r User’s Manual Version: 1.0 The following is a list of field names and their descriptions. After filling in the table, click on the Submit button when completed. Field Name Description Destination Enter the destination IP address of the router.

  • Page 34: Services

    X8124r User’s Manual Version: 1.0 F. Services Click on the Services tab to view its sub-menu’s and configure the service settings. The six sub-menu are: NAT, RIP, Firewall, IP filter, DNS, and Blocked Protocols. Each one is described in detail below.
  • Page 35 X8124r User’s Manual Version: 1.0 b) NAT Entry Rule The table displays NAT route configuration. Click on the trash can icon to delete the current rule or click on the Add button to add another rule. After you click on the Add button, another window will pop-up.
  • Page 36 X8124r User’s Manual Version: 1.0 Field Name Description Rule Flavor Select a rule from the drop down list. Rule ID Enter a rule ID into this text box. IF Name Select an interface name from the drop down list. Protocol Select a protocol from the dorp down list.
  • Page 37 X8124r User’s Manual Version: 1.0 2. RIP Click on the RIP link to view the Routing Information Protocol (RIP) Configuration table. Routers on your LAN communicate with one another using the Routing Information Protocol. This table lists any interfaces on your device that use RIP (typically the LAN interface), and the version of the protocol used.
  • Page 38 X8124r User’s Manual Version: 1.0 3. Firewall Click on the Firewall link to view the Firewall Configuration table. The Firewall adds security to your network by protecting it from Internet intruders. The following is a list of field names and their descriptions. After...
  • Page 39 X8124r User’s Manual Version: 1.0 Max ICMP Conn. Enter the maximum number of ICMP connections. Max Single Host Conn. Enter the maximum number of host connections. Log Destination Select a destination for the log file. Email ID of admin Enter the email addresses of up to three administrators.
  • Page 40 X8124r User’s Manual Version: 1.0 Click on the Stats button to view the IP filter rule statistics. You may click on the Clear button to clear the table, or click on the Close button to close the window. To add an IP filter rule, click on the Add button .The table will pop-up in a new window.
  • Page 41 X8124r User’s Manual Version: 1.0 The following is a list of field names and their descriptions. After filling in the table click on the Submit button Field Name Description Rule ID Enter a Rule ID. Direction Select an incoming or outgoing direction.
  • Page 42 X8124r User’s Manual Version: 1.0 5. Domain Name Service (DNS) Click on the DNS link to view the DNS Configuration table. This page is used for adding and deleting DNS server IP addresses. You may also enable/disable DNS relay from this page.

  • Page 43: Blocked Protocols

    X8124r User’s Manual Version: 1.0 6. Blocked Protocols Click on the Blocked Protocols link to view the list of protocols. This page is used to block or unblock protocols running across the system. Check the box, if you would like the protocol blocked, un-check the box to allow the protocol.

  • Page 44: Admin

    X8124r User’s Manual Version: 1.0 G. Admin Click on the Admin tab to view its sub-menu’s and configure the admin settings. The six sub-menu’s are: User Config, Commit & Reboot, Local Image Upgrade, Remote Image Upgrade Alarm, Diagnostics, and Port Settings. Each one is described in detail below.
  • Page 45 X8124r User’s Manual Version: 1.0 2. Commit & Reboot Click on the Commit & Reboot link to view the reboot options. This page is used to save the changes into the device’s memory and reboot the device using different options.
  • Page 46 3. Local Image Upgrade Click on the Local Image Upgrade link to upgrade the software on the modem from Local site. You may easily upgrade X8124r embedded software by obtaining the compressed upgrade kit from the service provider and then following the steps: a.
  • Page 47 X8124r User’s Manual Version: 1.0 5. Alarm Click on the Alarm link to view the list of alarms. The alarms shown in the table have been recorded in response to system events. Click on the Clear button to clear the alarms.

  • Page 48: Port Settings

    X8124r User’s Manual Version: 1.0 6. Diagnostics Click on the Diagnostics link to test the device. Results will be displayed as pass, fail, or N.A, depending on your settings. Click on the Submit button to begin the diagnostic tests. 7. Port Settings Click on the Port Settings link to change the port settings on the device.

  • Page 49: Overview

    X8124r User’s Manual Version: 1.0 Chapter 3 Quick Protocol Setup Overview This chapter provides quick steps on setting up the protocols on this device. From this point on, configuration steps are listed for each of the protocols in their respective sections. The seven sections are: A.

  • Page 50: Rfc 1483 Bridge

    X8124r User’s Manual Version: 1.0 A. RFC 1483 Bridge Configuration Table: Protocol RFC1483 Bridge Mode WAN IP The ISP assigns the IP address, or have an IP address assigned from an external/internal DHCP server Modem IP 192.168.1.1 Gateway IP None...
  • Page 51 X8124r User’s Manual Version: 1.0 3. Another window will then appear. Enter the VPI/VCI values (8/81) into the VPI and VCI text boxes. Then click on the Submit button to confirm the changes. 4. Click on the EOA link below the WAN tab.
  • Page 52 X8124r User’s Manual Version: 1.0 6. Click on the Bridging tab to view its sub-menu and configure the bridging settings, then click on the Bridging link below it. 7. Select eoa-1 from the drop down list, and click on the Add button.

  • Page 53: Pppoe Route Configuration

    X8124r User’s Manual Version: 1.0 B. PPPoE Route Configuration 1. Click on the WAN tab to view its sub-menu’s and configure the WAN settings, then click on the PPP link below it. 2. You will then see the PPP Configuration table. Click on the Add button to add a new PPPoE setting.

  • Page 54: Rfc 1483 + Nat

    X8124r User’s Manual Version: 1.0 C. RFC 1483 + NAT Configuration Table: Protocol RFC1483 Mode + NAT LAN IP 192.168.1.xxx or assigned by DHCP server Modem IP 192.168.1.1 WAN IP 210.62.8.3 VPI/VC Value 8/81 1. Click on the WAN tab to view its sub-menu and configure the WAN settings.
  • Page 55 X8124r User’s Manual Version: 1.0 3. Another window will then appear. Enter the VPI/VCI values (8/81) into the VPI and VCI text boxes. Then click on the Submit button to confirm the changes. 4. Click on the EoA link below the WAN tab.
  • Page 56 X8124r User’s Manual Version: 1.0 7. Click on the Services tab to view its sub-menu and configure the NAT settings. Click on the NAT link below it. 8. Select NAT Entry Rule from the NAT configuration drop down list, and then click on the Add button to add a NAT entry.

  • Page 57: Pppoa Route Configuration

    X8124r User’s Manual Version: 1.0 D. PPPoA Route Configuration Configuration Table: Protocol PPPoA Route Mode LAN IP 192.168.1.xxx Modem IP 192.168.1.1 Gateway IP Not required VPI/VCI 8/81 Username From ISP Password From ISP 1. Click on the Routing tab to view its sub-menu and configure the Routing settings.
  • Page 58 X8124r User’s Manual Version: 1.0 4. Click on the PPP link in the Routing tab, and then click on the Add button to add a PPPoA configuration. 5. Select an interface name: PPP-1. 6. Select a protocol: PPPoA. 7. Default Route: Enable.
  • Page 59 X8124r User’s Manual Version: 1.0 12. Click on the Admin tab to view its sub-menu and configure the bridging settings. Click on the Commit & Reboot link below it. 13. Select the Reboot from last configuration option from the drop down list, and the click on the Commit and Reboot button.

  • Page 60: Ipoa Route Configuration

    X8124r User’s Manual Version: 1.0 E. IPoA Route Configuration Configuration Table: Protocol IPoA Route Mode LAN IP 192.168.1.xxx Modem IP 192.168.1.1 Gateway IP 210.62.8.1 VPI/VCI 8/81 WAN IP 210.62.8.2 1. Click on the Routing tab to view its sub-menu and configure the Routing settings.
  • Page 61 X8124r User’s Manual Version: 1.0 4. Click on the IPoA link in the Routing tab, and then click on the Add button to add an IPoA configuration. 5. Select an interface name: IPoA-0. 6. Conf. IP Address: From ISP. 7. Net mask: From ISP.
  • Page 62 X8124r User’s Manual Version: 1.0 13. Select the Reboot from last configuration option from the drop down list, and the click on the Commit and Reboot button. - 57 -...

  • Page 63: Dhcp Configuration

    X8124r User’s Manual Version: 1.0 F. DHCP Configuration 1. Click on the LAN tab to view its sub-menu and configure the LAN settings. Click on the DHCP Mode link below it. 2. From the drop down list, select DHCP Server, and click on the Submit button.
  • Page 64 X8124r User’s Manual Version: 1.0 4. Start IP Address: Enter the Start IP Address (192.168.1.2). 5. End IP Address: Enter the End IP Address (192.168.1.13). 6. Net mask: based on IP address (255.255.255.0). 7. Domain Name: Enter a name here.

  • Page 65: Nat Configuration

    X8124r User’s Manual Version: 1.0 G. NAT Configuration 1. Click on the Services tab to view its sub-menu and configure the NAT settings. Click on the NAT link below it. 2. From the NAT Options drop down list, select NAT Rule Entry.
  • Page 66 X8124r User’s Manual Version: 1.0 4. Rule Flavor: Select a Rule flavor from the drop down list (Basic). 5. Rule ID: Enter a number here. 6. Local Address From: Address from where this device will receive IPs. 7. Local Address to: 255.255.255.255 (broadcast) or other.

  • Page 67: Appendix A - Specifications

    X8124r User’s Manual Version: 1.0 Appendix A – Specifications A1. Hardware Specifications Local Interface • One 10/100BaseT Ethernet port, IEEE 802.3, RJ-45 connector • One port USB pin type for series B, supports USB 1.1 WAN ADSL Line Interface •...

  • Page 68: A2. Software Specifications

    X8124r User’s Manual Version: 1.0 A2. Software Specifications • ATM Cell over ADSL, AAL5 • Supports UBR/GFR, CBR, VBR-rt and VBR-nrt • VPI Range (0-4095) and VCI range (1-65535) • Supports up to 8 PVCs (Bridge Mode), 5 PVCs (Router Mode) •...

  • Page 69: B1. Product Warranty

    X8124r User’s Manual Version: 1.0 Appendix B – Warranties B1. Product Warranty 1. XAVi Technologies warrants that the ADSL unit will be free from defects in material and workmanship for a period of twelve (12) months from the date of shipment.

  • Page 70: B2. Warranty Repair

    X8124r User’s Manual Version: 1.0 B2. Warranty Repair 1. During the first three (3) months of ownership, XAVi Technologies will repair or replace a defective product covered under warranty within twenty-four (24) hours of receipt of the product. During the fourth (4th) through...

  • Page 71: Appendix C - Regulations

    X8124r User’s Manual Version: 1.0 Appendix C – Regulations C1. FCC Part 15 Notice Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 to the FCC rules.

  • Page 72: C2. Ic Cs-03 Notice

    X8124r User’s Manual Version: 1.0 C2. IC CS-03 Notice The Industry Canada label identifies certified equipment. This certification means that equipment meets certain telecommunications network protective, operational, and safety requirements as prescribed in appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee that the equipment will operate to the user’s...

  • Page 73: C3. Ul Notice

    X8124r User’s Manual Version: 1.0 C3. UL Notice The following markings and instructions are provided as bellow. "Disconnect TNV circuit connector before removing cover" or equivalent. "Disconnect TNV circuit connector(s) before disconnecting power." (Instruction) Including the following: -Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

  • Page 74: Contact Information

    X8124r User’s Manual Version: 1.0 Contact Information You can help us serve you better by sending us your comments and feedback. Listed below are the addresses, telephone and fax numbers of our offices. You can also visit us on the World Wide Web www.xavi.com.tw...
