Summary of Contents for Extech Instruments IR400

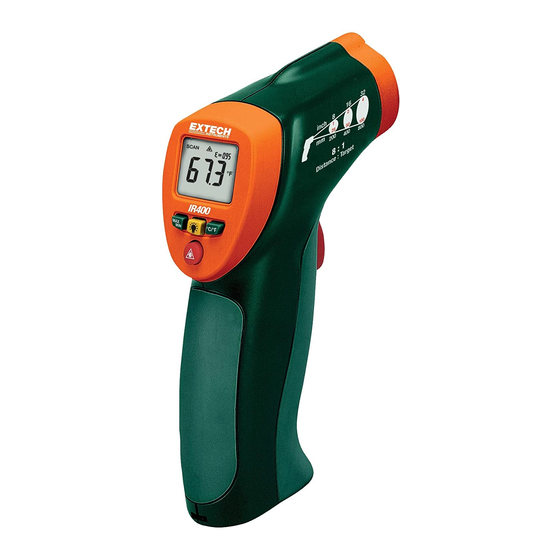

- Page 1 User Manual InfraRed Thermometer with Laser Pointer MODEL IR400...
- Page 2 Introduction Congratulations on your purchase of the Model IR400 IR Thermometer. The IR400 is capable of non-contact (infrared) temperature measurements at the touch of a button. The built-in laser pointer increases target accuracy while the backlit LCD and handy push-buttons combine for convenient, ergonomic operation.
- Page 3 5. LCD Display 6. Push-buttons 7. Handle Grip Display Description Temperature scan in progress (trigger held) Last reading held (trigger released) Laser pointer ON Emissivity (0.95 fixed) Max or MIN value displayed Temperature display Low battery icon (replace battery) Temperature units IR400-EU-EN-V1.1-6/3...
-
Page 4: Operating Instructions
The meter can measure from moderate distances but the measurement may be affected by external sources of light. In addition, the spot size may be so large that it encompasses surface areas not intended to be measured. IR400-EU-EN-V1.1-6/3... -
Page 5: Battery Replacement
Emissivity values range from 0.1 for a very reflective object to 1.00 for a flat black finish. For the Model IR400, the emissivity is set to 0.95 which is correct for 90% of typical IR measurement applications. -
Page 6: Specifications
Note: Accuracy is given at 18 °C to 28 °C (64 °F to 82 °F), less than 80%RH Copyright © 2011 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form.
